Key Features
- 400W LED Engine, 11,000 Lumens
- 7" Fresnel Lens, Preset Color Macros
- 6-in-1 COB LED Engine (RGBALC)
- Tunable White: 2400 to 8500K
- Manual Zoom, 9-37° Beam Angle
- Smooth 0-100% Digital Dimming (6 Curves)
- 5 DMX Control Modes, Virtual CMY Mixing
- Power Daisy Chain via powerCON

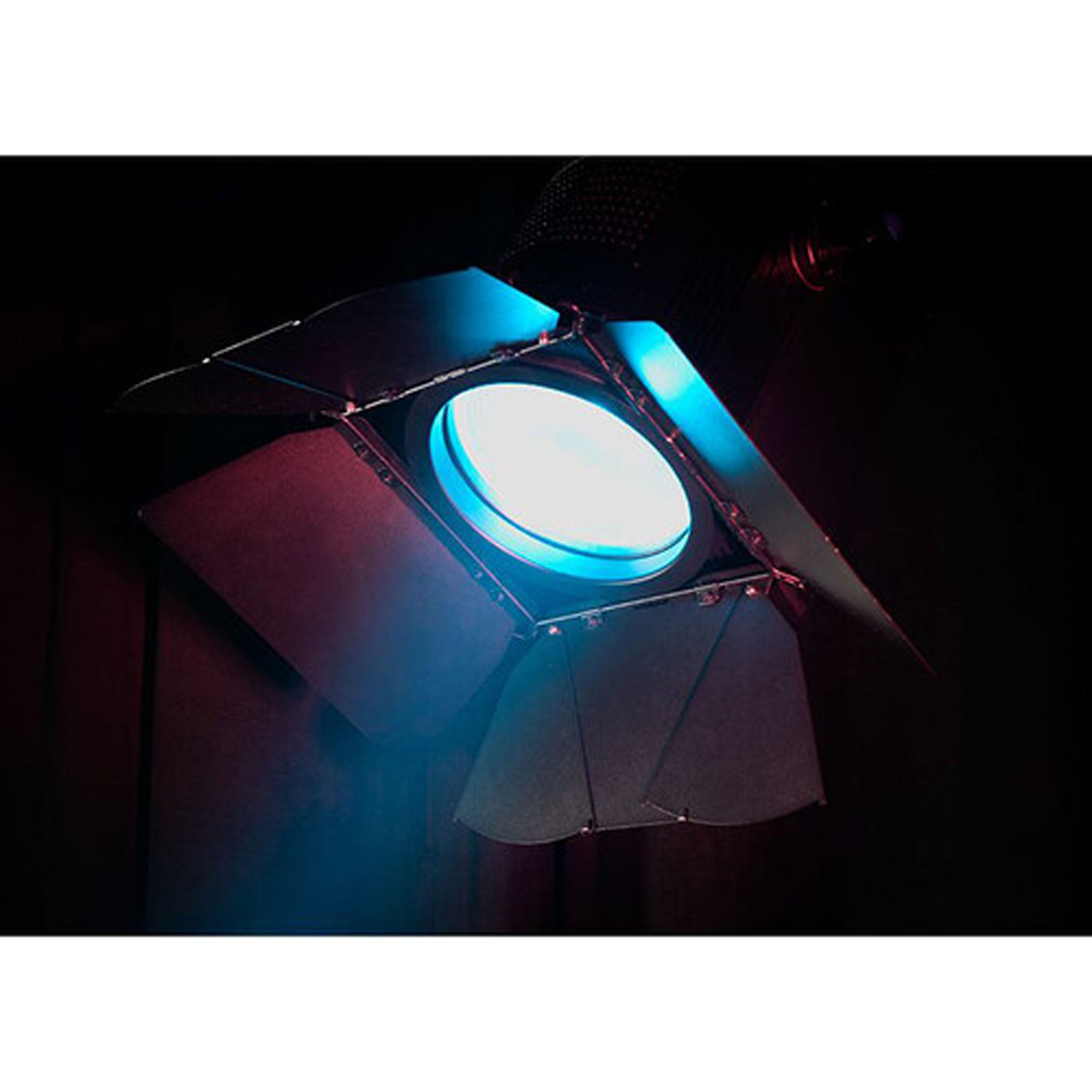

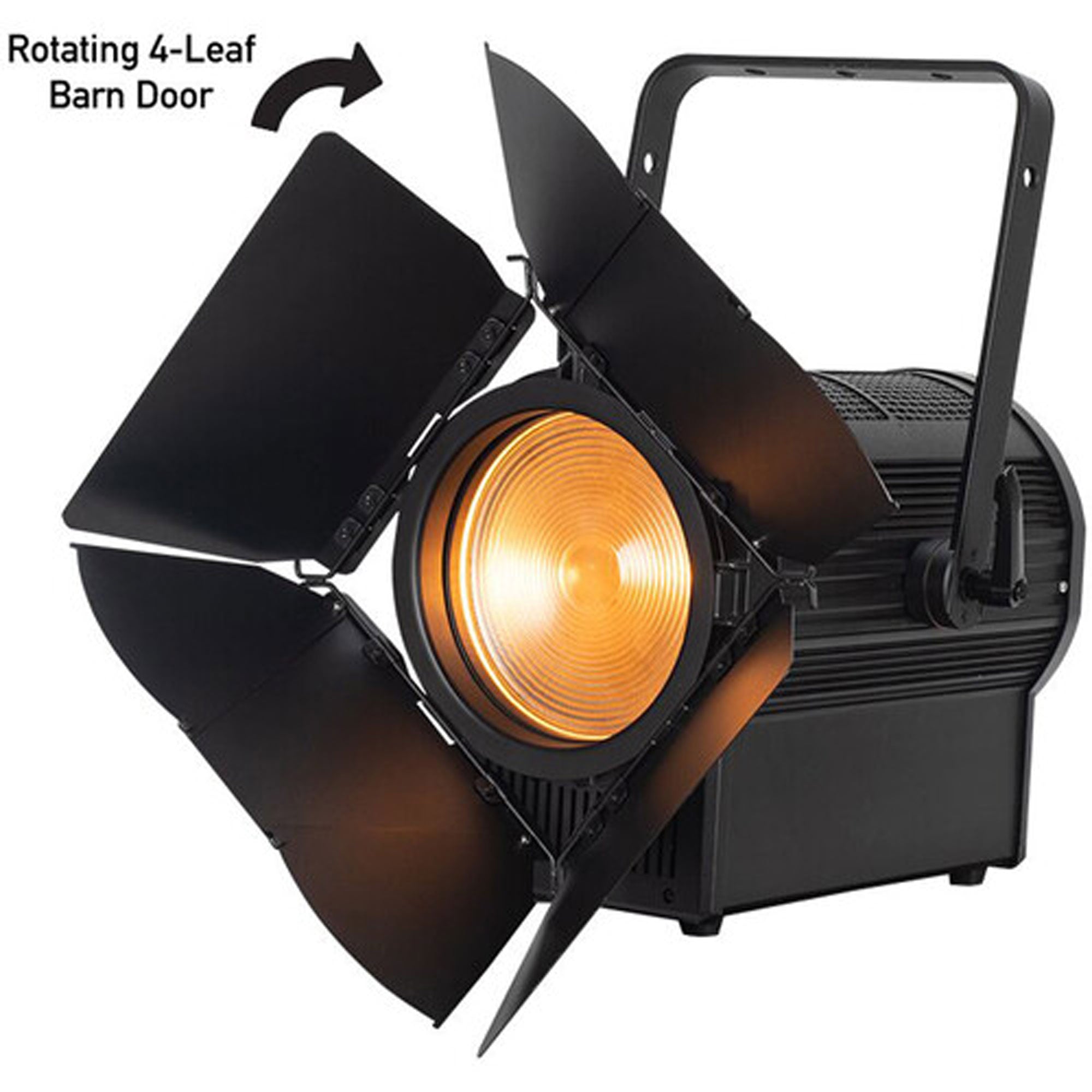

- Rotating 4-Leaf Barndoors
- Power Cord & Safety Cables Included
Description

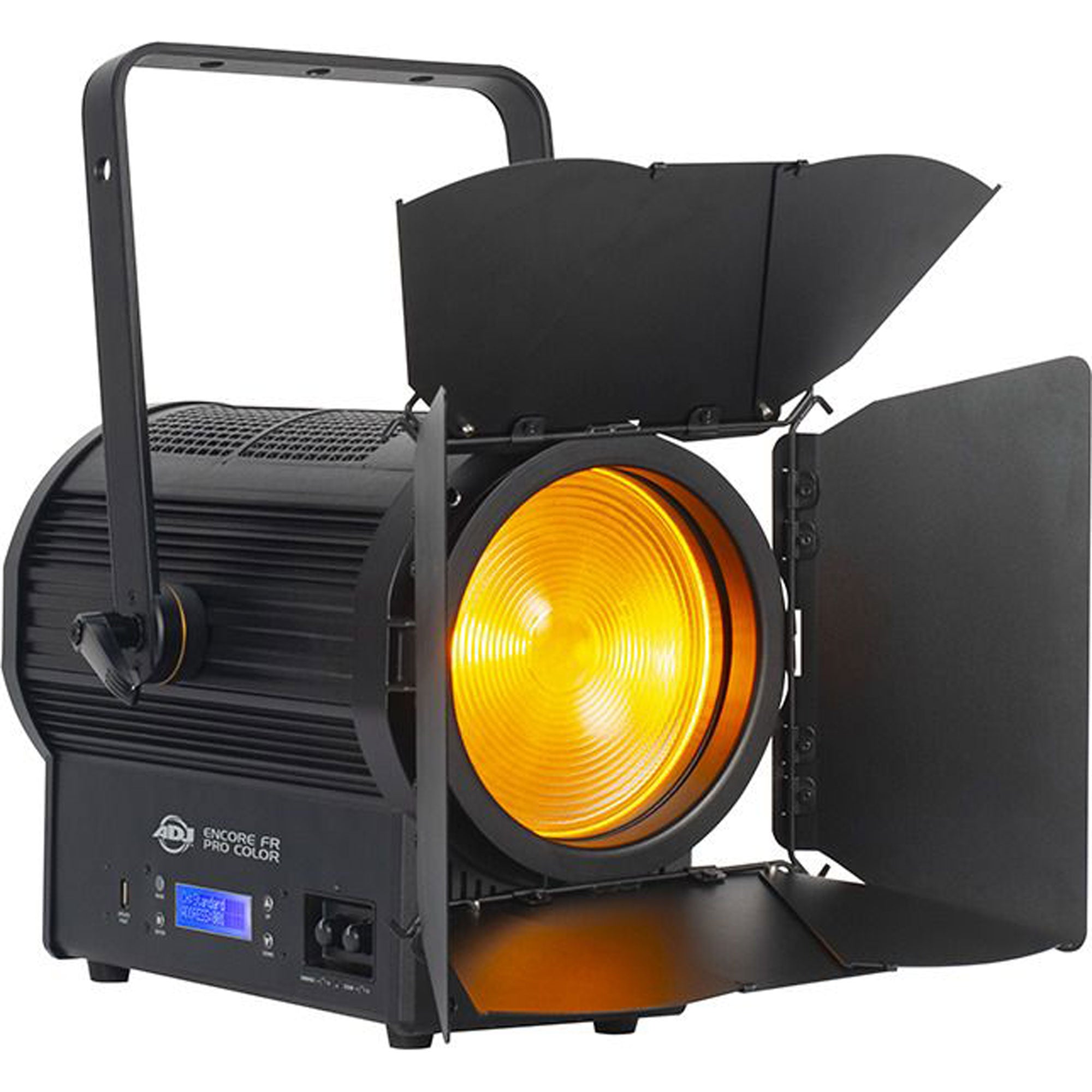

400W 6-color LED Fresnel Light Fixture with DMX I/O

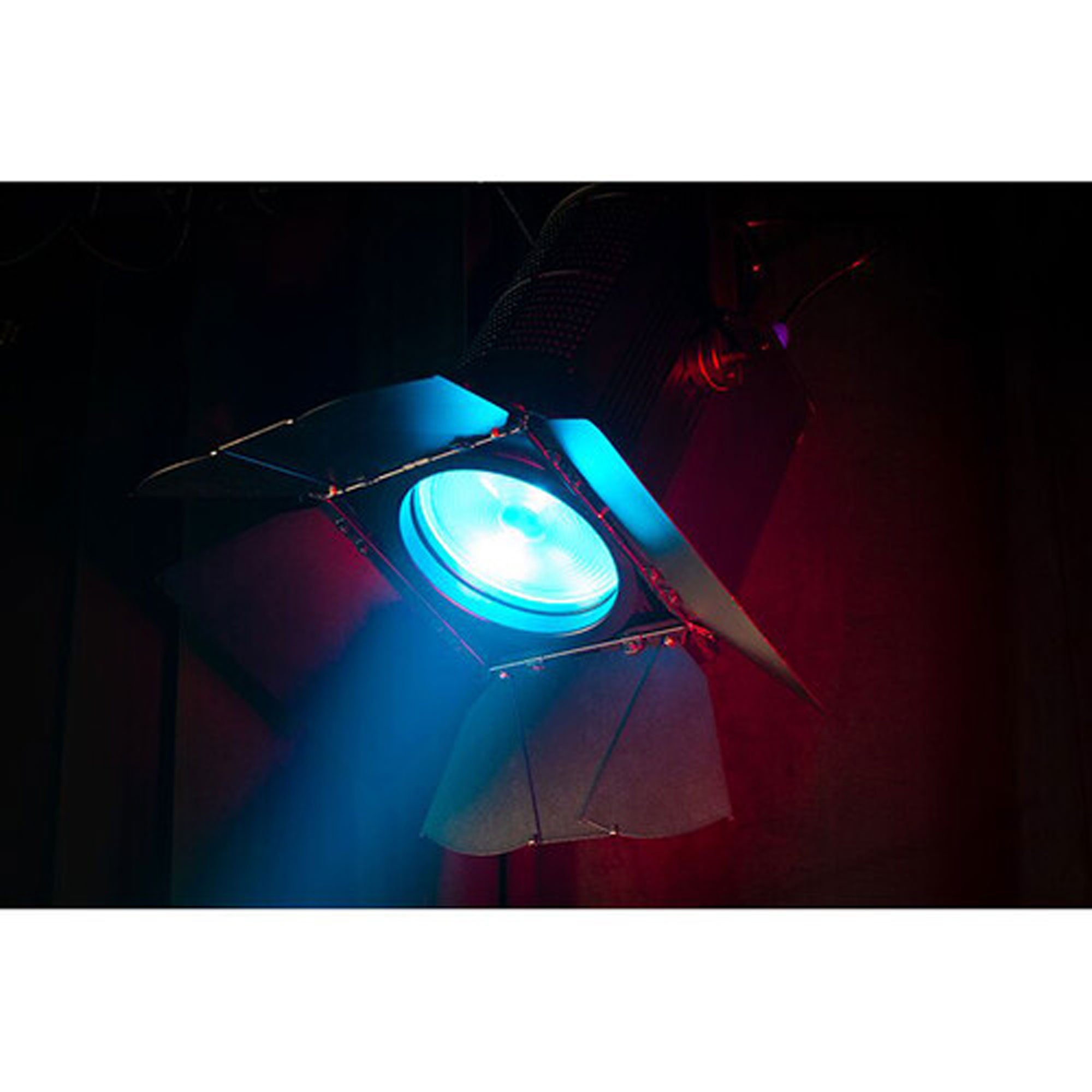

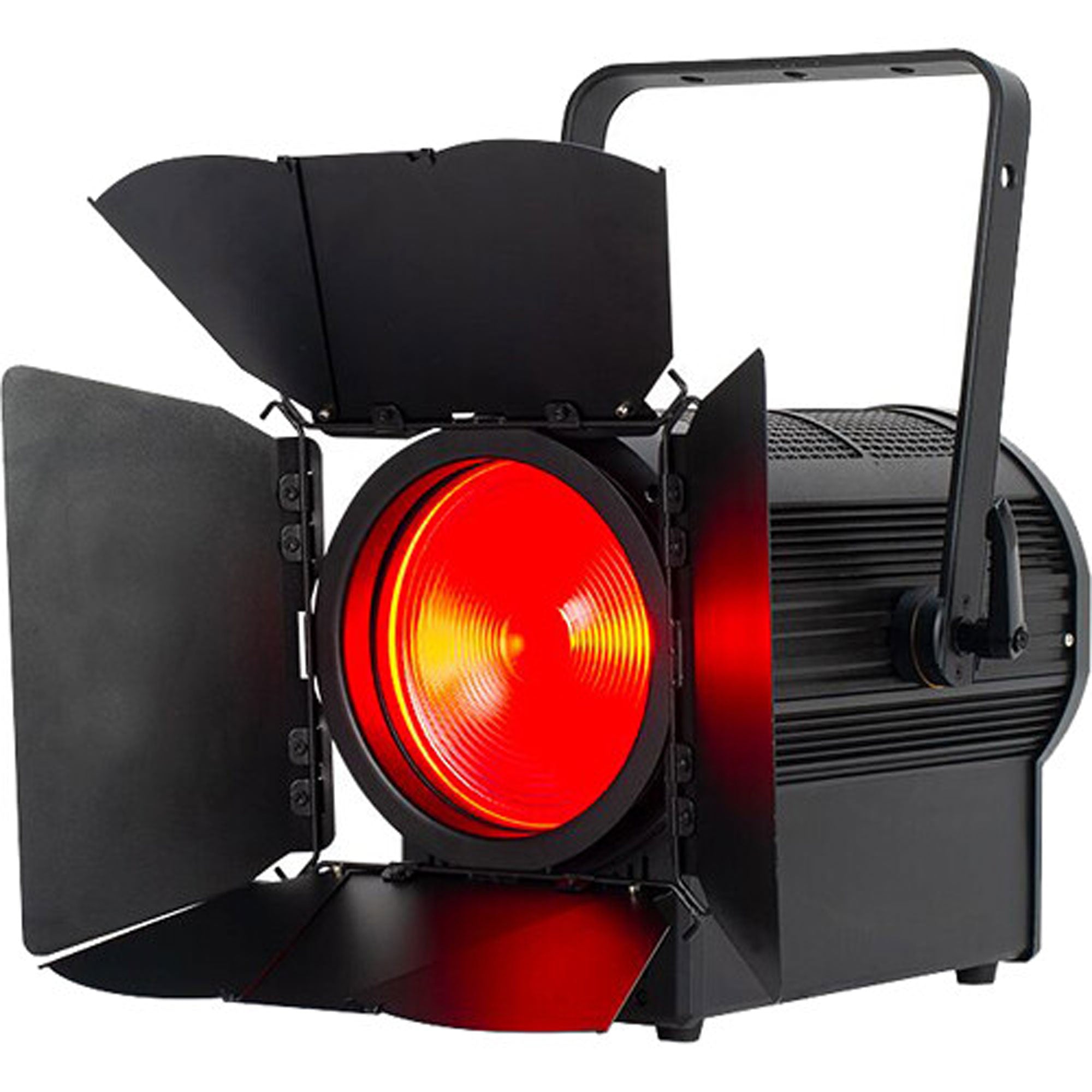

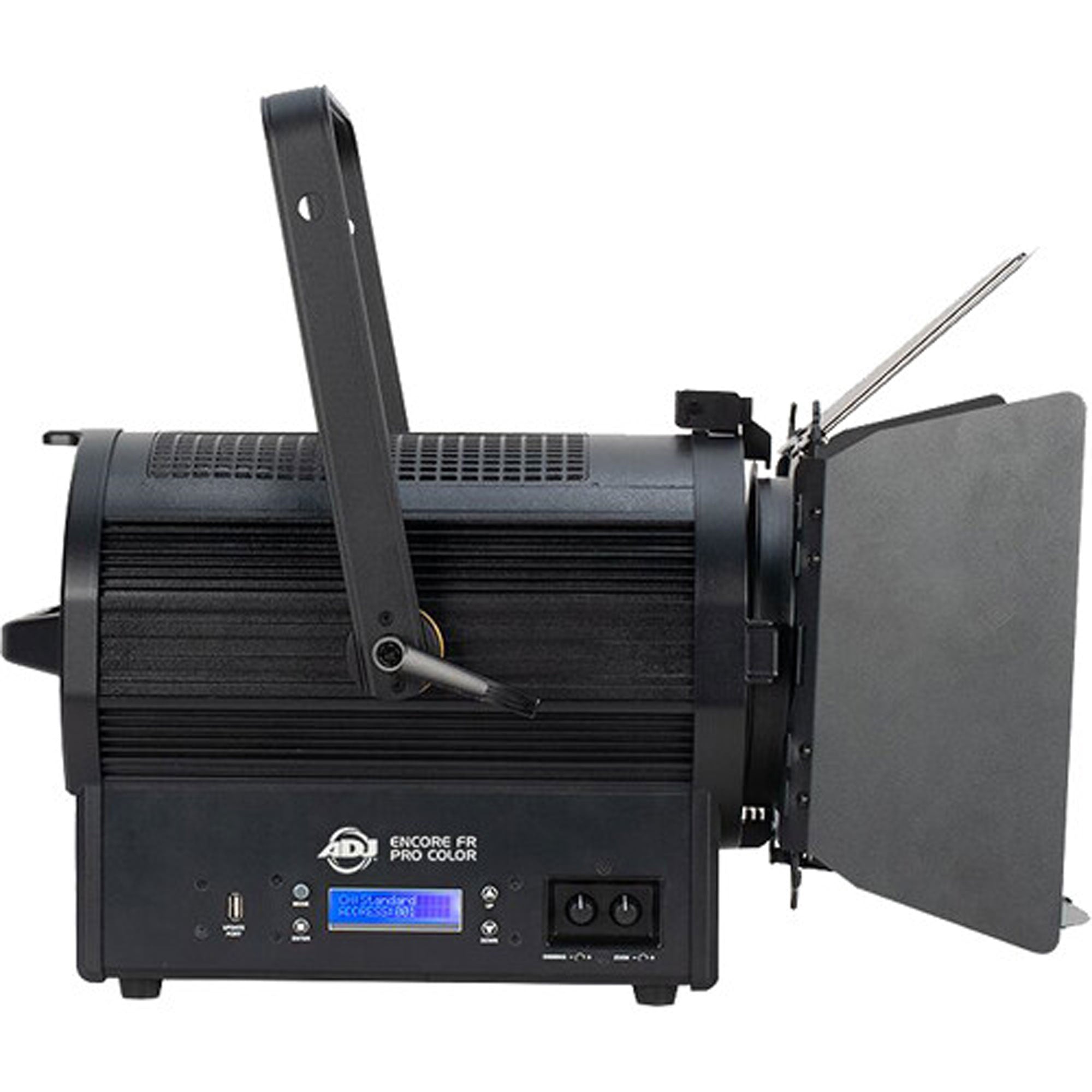

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, cyan and lime LEDs. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K.
Specifications:
- SOURCE
- 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
- 50,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- PHOTOMETRIC DATA
- 9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
- 9940 LUX, 923 FC @ 9.8' (3m) (Zoomed In / Full ON)
- 2756 LUX, 256 FC @ 9.8' (3m) (Zoom Out / Full ON)
- Beam Angle: 9° to 37.5°
- Max Field Angle: 49.8°
- Color Temperature: Tunable, 2400K to 8500K
- CRI: 97.8
- COLOR:
- Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
- Virtual Color Wheel Control
- Virtual CMY Control
- EFFECTS
- Motorized Zoom
- Electronic Dimmer and Strobe (1-20Hz)
- Variable 16-bit Dimming Modes and Curves
- Virtual CMY Color Mixing DMX Control Modes
- Tunable White Color Temperature from 2400K to 8500K
- 62 Preset White Color Temp Macros (2400K to 8500K)
- 60 Preset Colors on Virtual Color Wheel
- 64 Preset RGBA Color Macros
- CONTROL / CONNECTIONS
- Manual and DMX Controlled Dimmer and Shutter
- Dimmer and Zoom Rotary Dials
- (5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
- Adjustable Refresh Rate (68 presets from 900 - 25,000Hz)
- 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
- Dim Speed Options (0.1s to 10s)
- 4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)

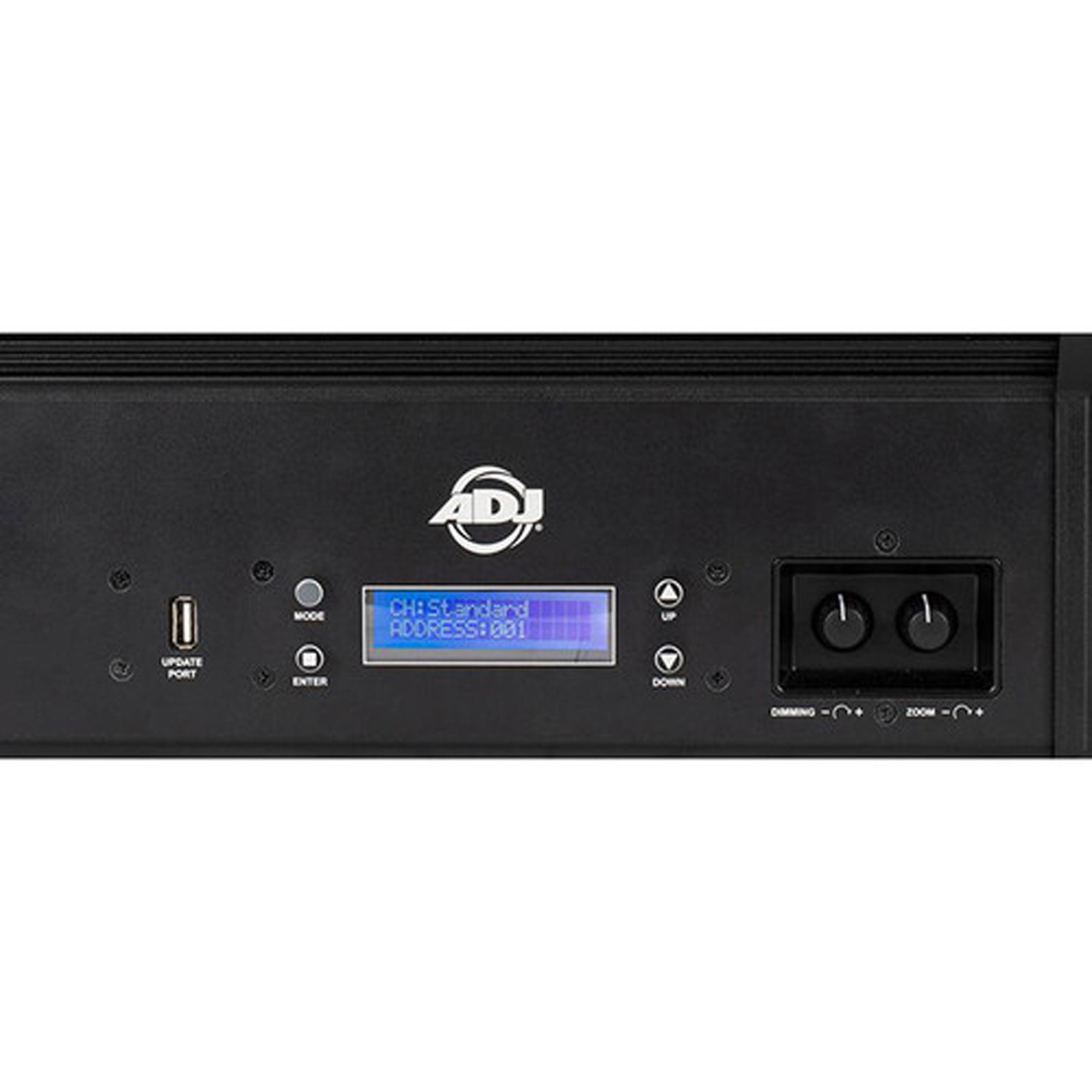

- 4 Button Control Panel LCD Menu Display
- RDM (Remote Device Management)

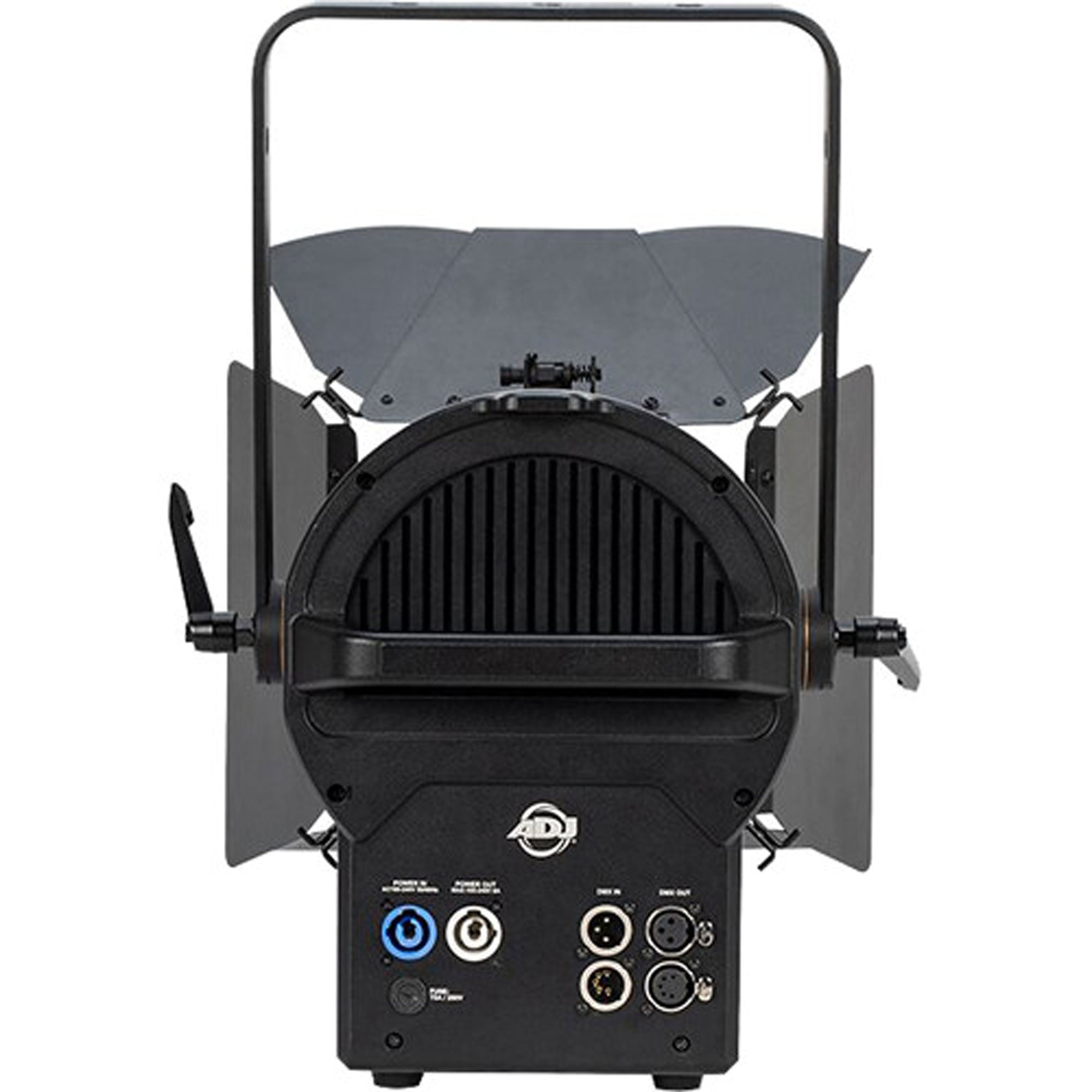

- 3/5pin DMX Input and Output
- Locking Power Input and Output
- USB Service Port
- With Wired Digital Communication Network
- SIZE / WEIGHT
- Length: 16.6" (421.9mm)
- Width: 14.18" (360.1mm)
- Vertical Height: 19.29" (490mm)
- Weight: 21.8 lbs. (9.9kg)
- ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 420W Max Power Consumption
- 5°F to 113°F (-15°C to 45°C)
- Power Linking: 2Pcs @ 110V / 5Pcs @ 240V
- INCLUDED ITEMS
- Barn Doors
- Locking Power Cable
- Two (2) Safety Cables
- APPROVALS / RATINGS
- CE | cETLus (Pending) | IP20
- Specifications are subject to change without notice.
Details
- Manufacturer: American DJ
- MPN: ENCORE FR PRO COLOR
- Model Number: Encore FR Pro Color
- UPC: 810087370091
