American DJ 5PX HEX LED Par Wash Fixture (RGBAW+UV, Black)

Versatile LED Par Fixture With 5 X 12-Watt, 6-in-1 HEX LEDs, Locking Power in/Out Connections, Plus 3-Pin and 5-Pin DMX in/Out

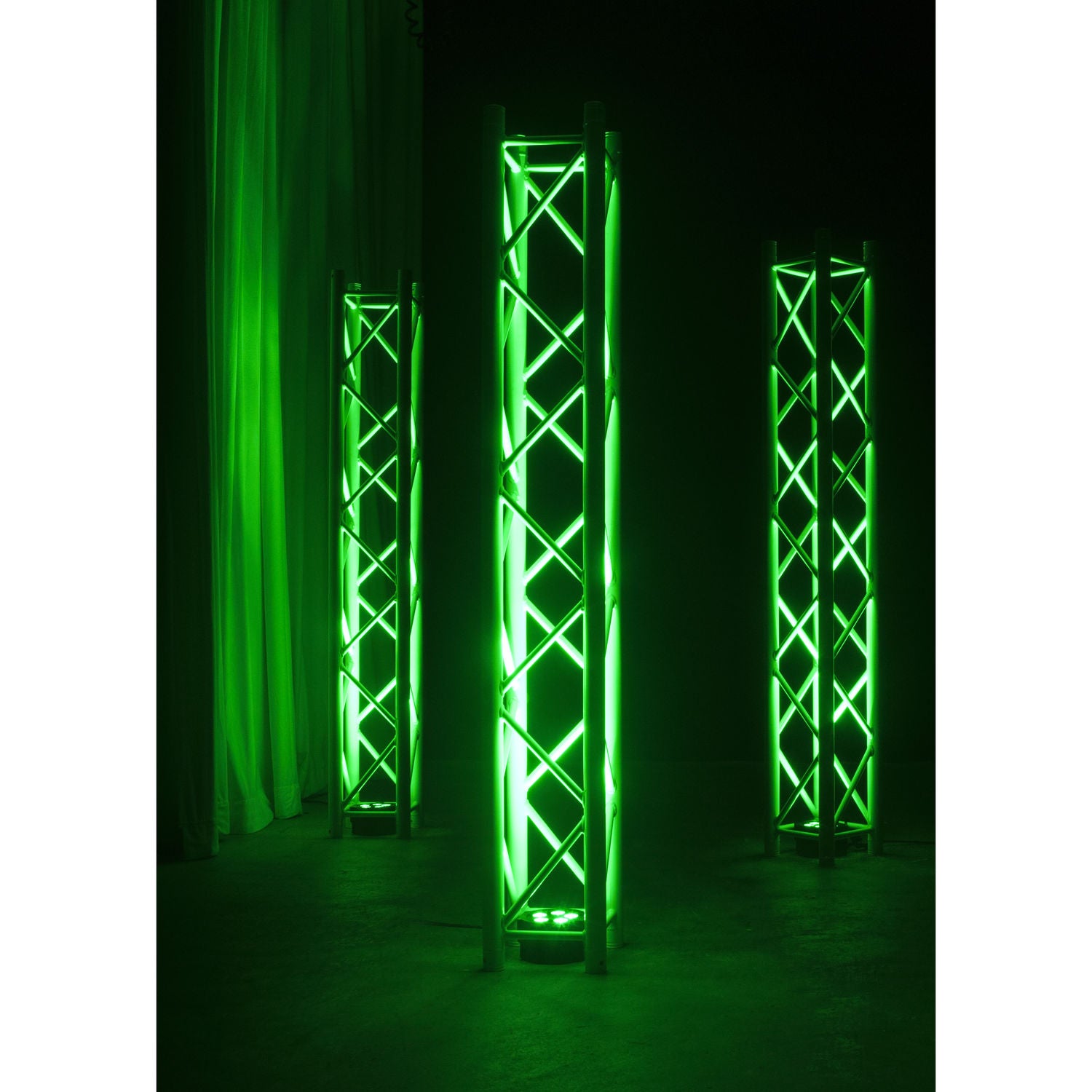

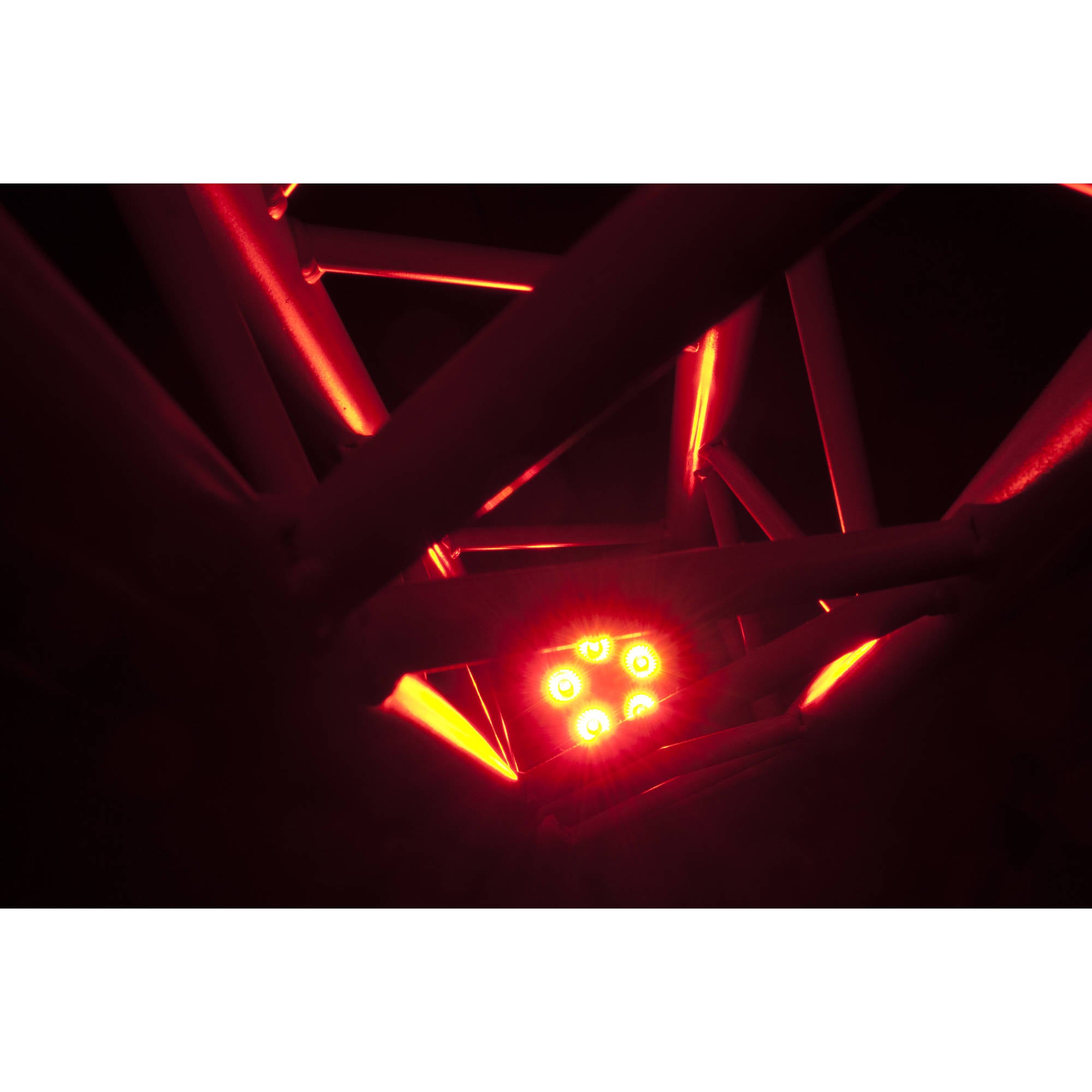

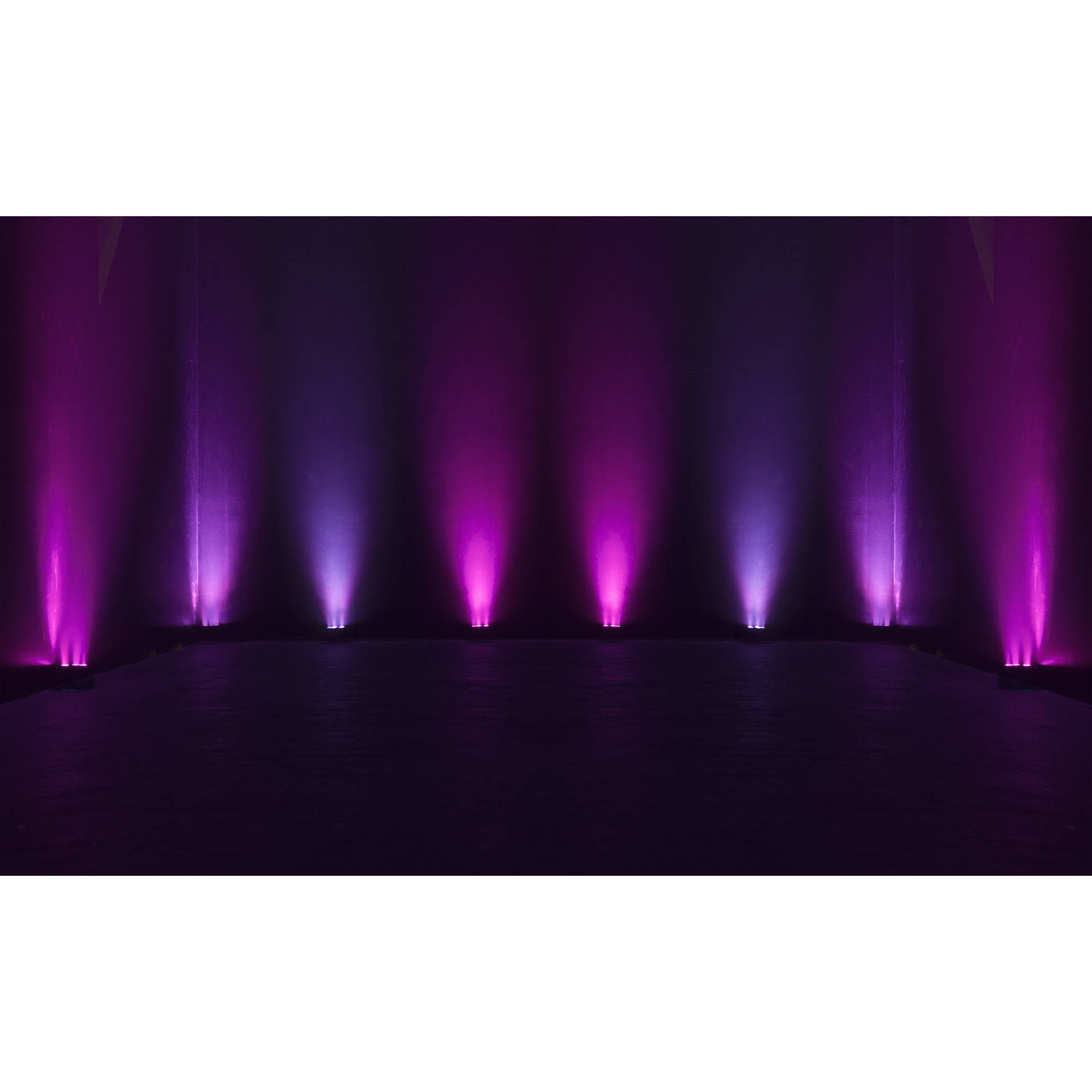

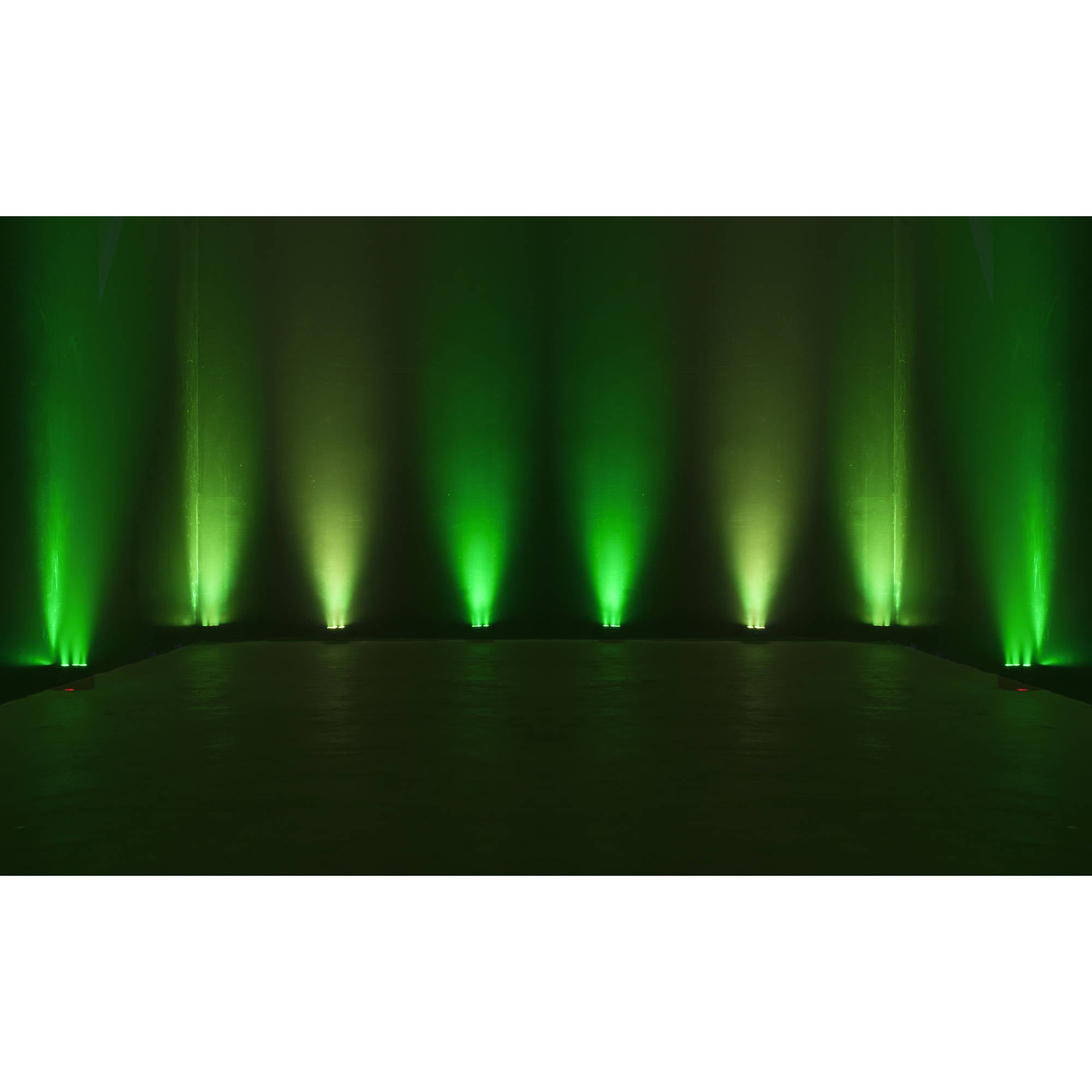

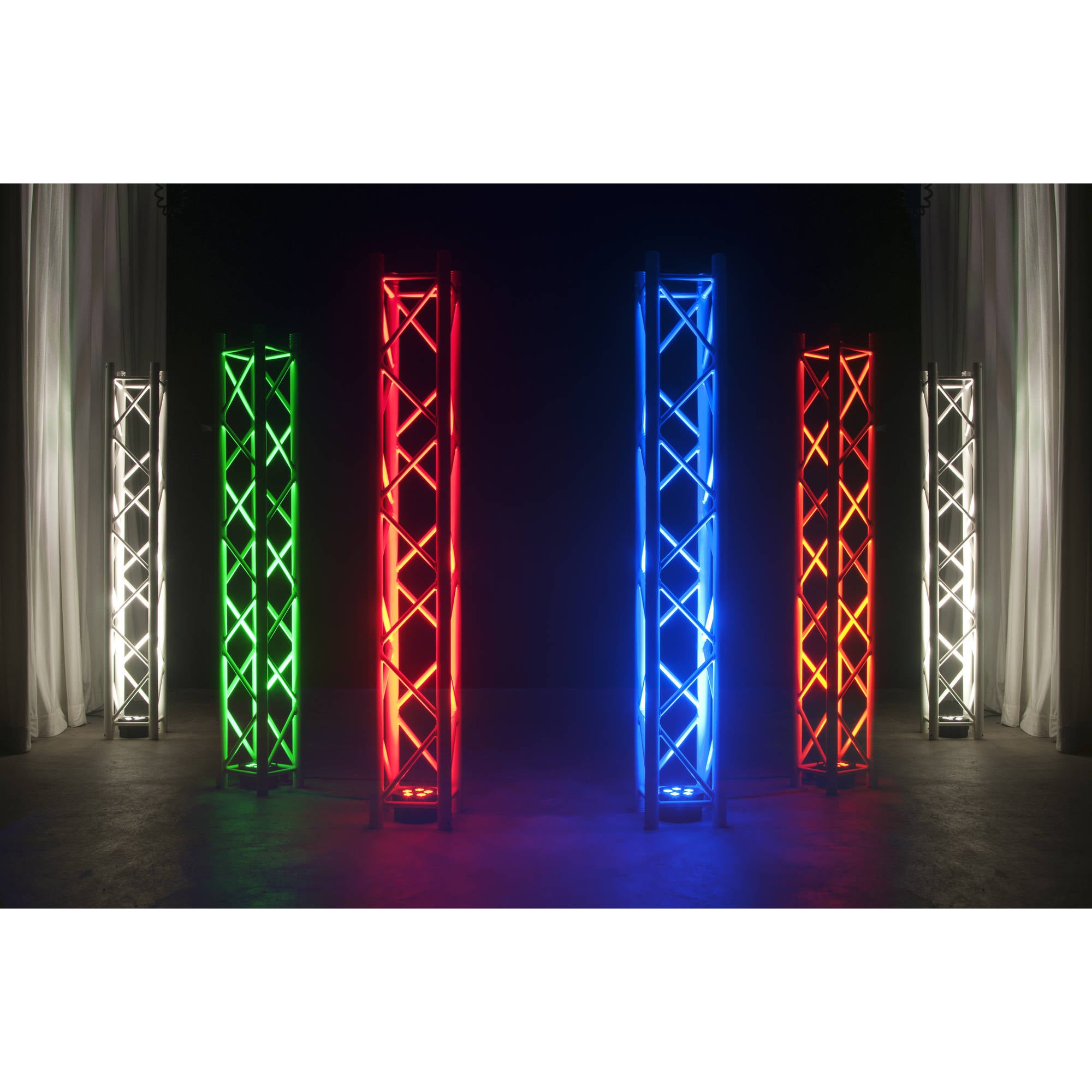

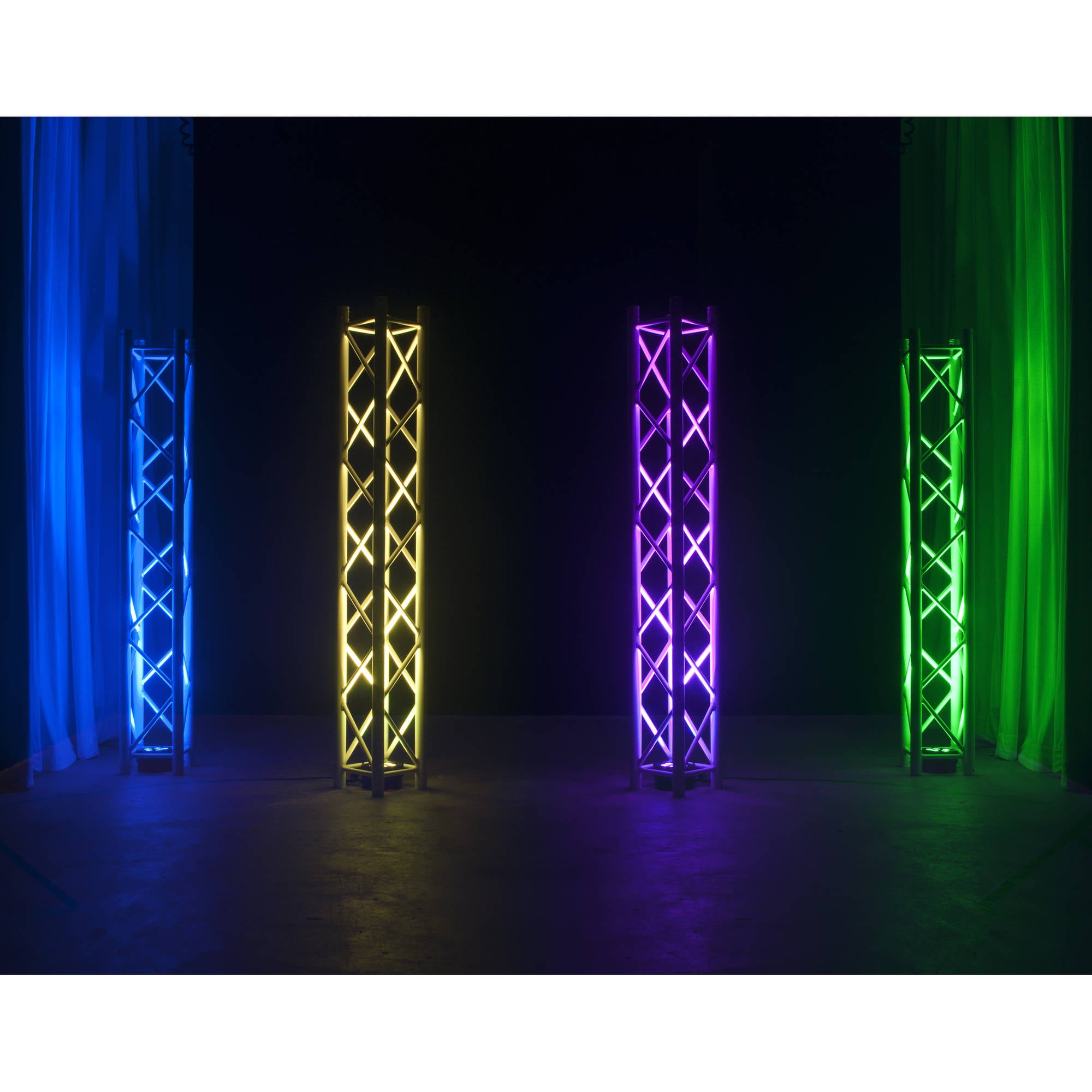

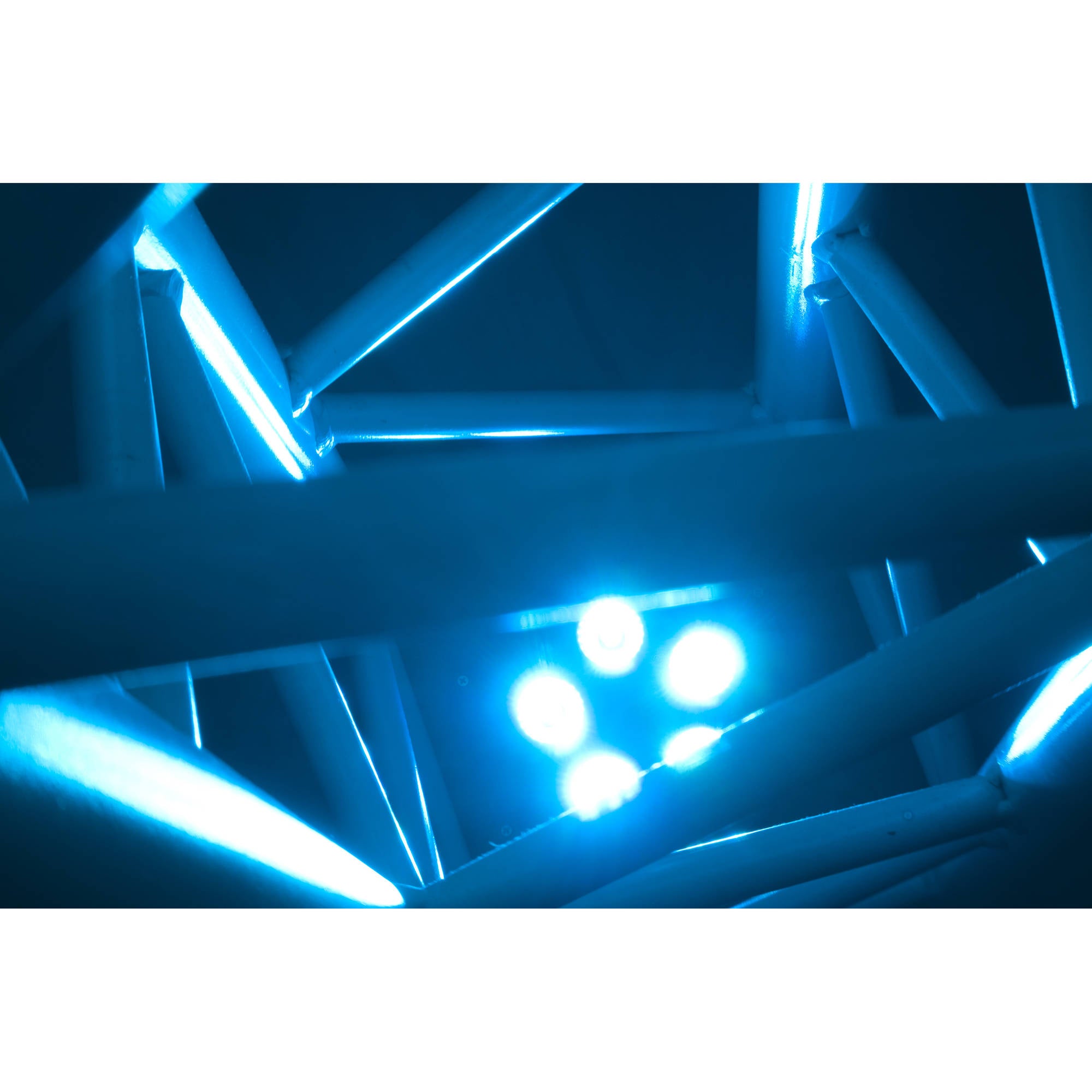

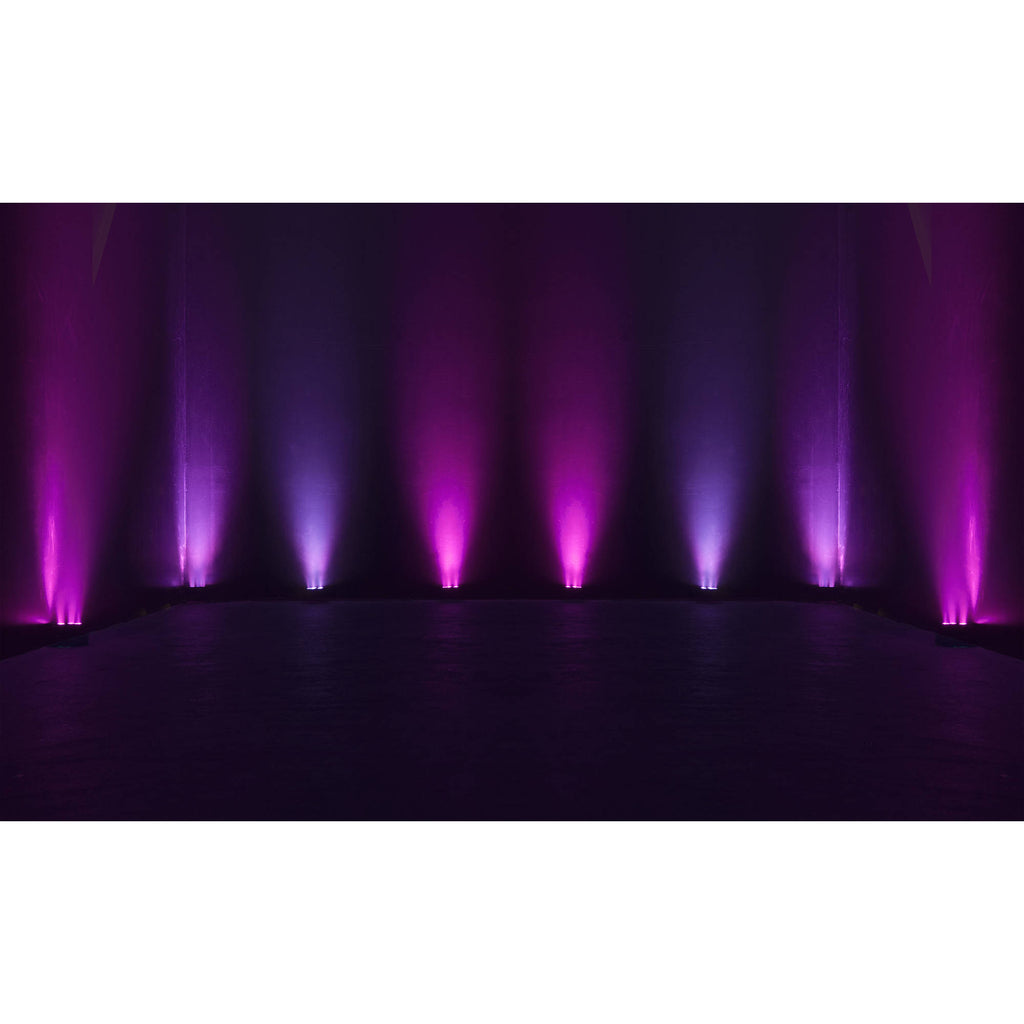

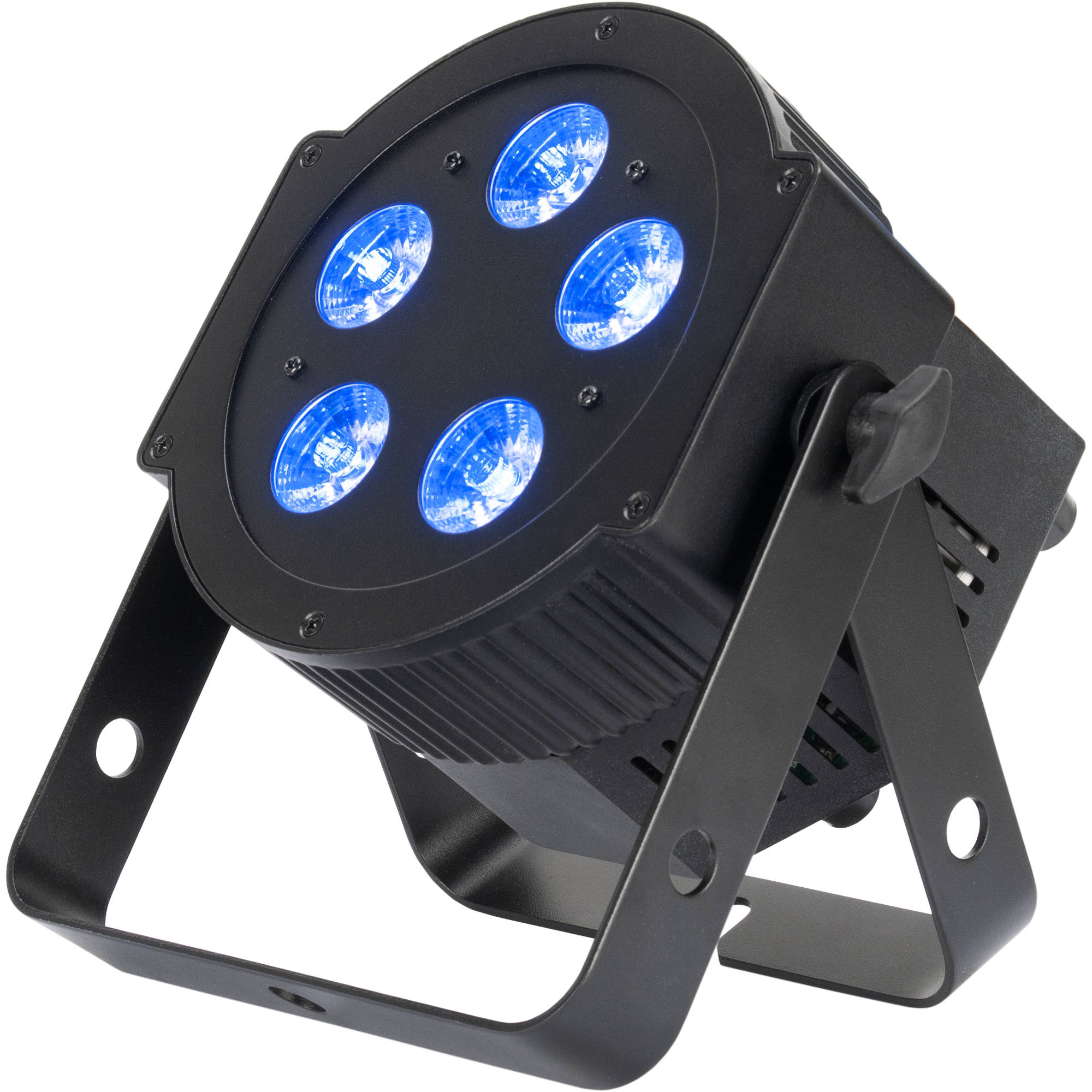

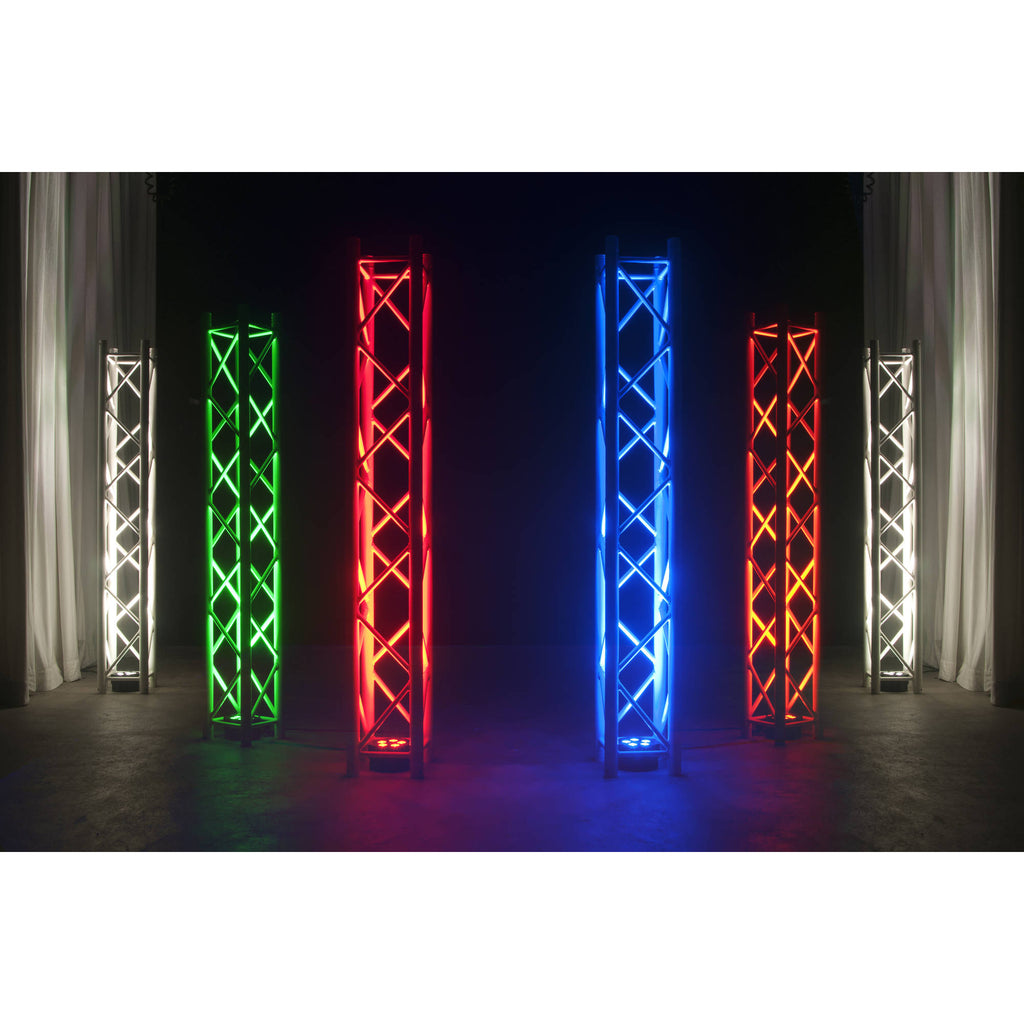

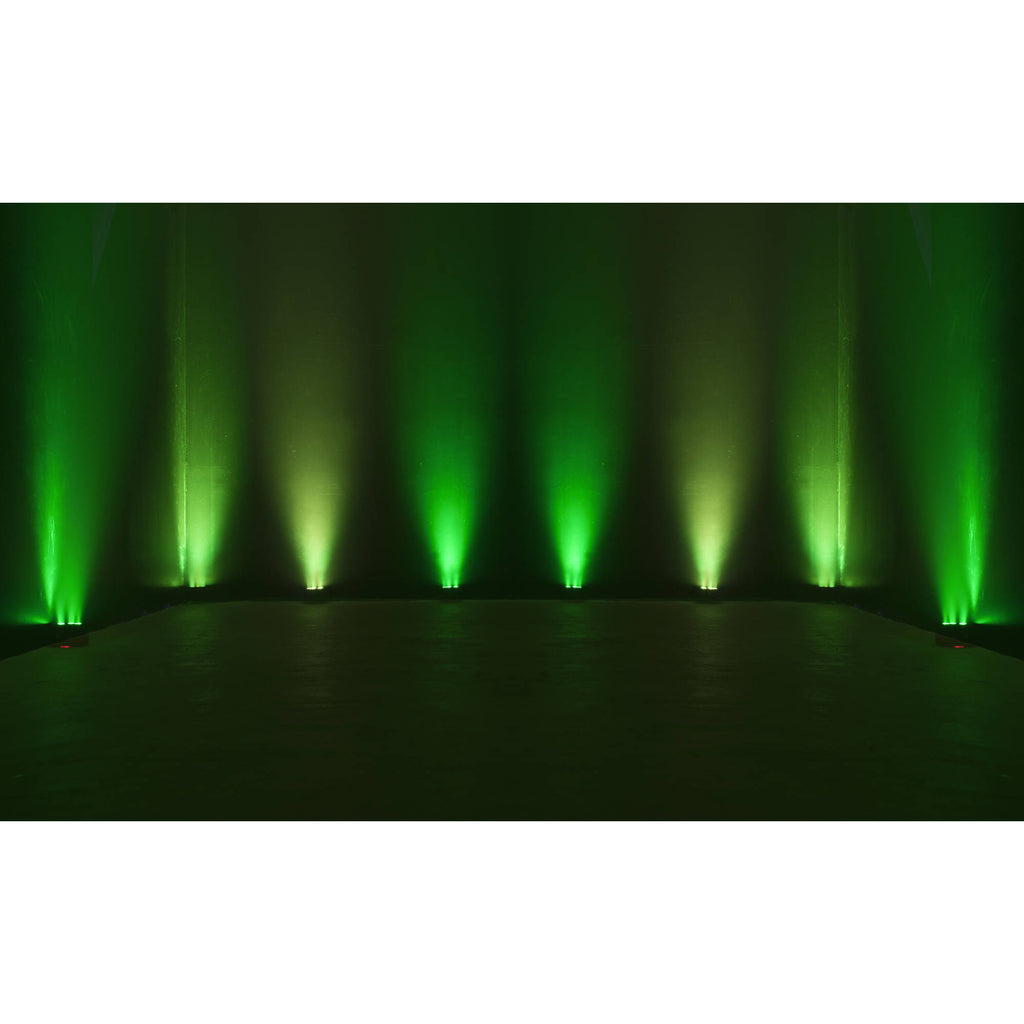

The black ADJ 5PX Hex is a 6-in-1 LED Par fixture, well suited for architectural wall washes, performance stages, and truss uplighting. The fixture utilizes five 12W LEDs that produce red, green, blue, amber, white, and UV colors with a 30° beam angle. The included scissor yoke allows for a variety of placement/installation options, while the rubber feet allow the unit to sit flush on the ground.

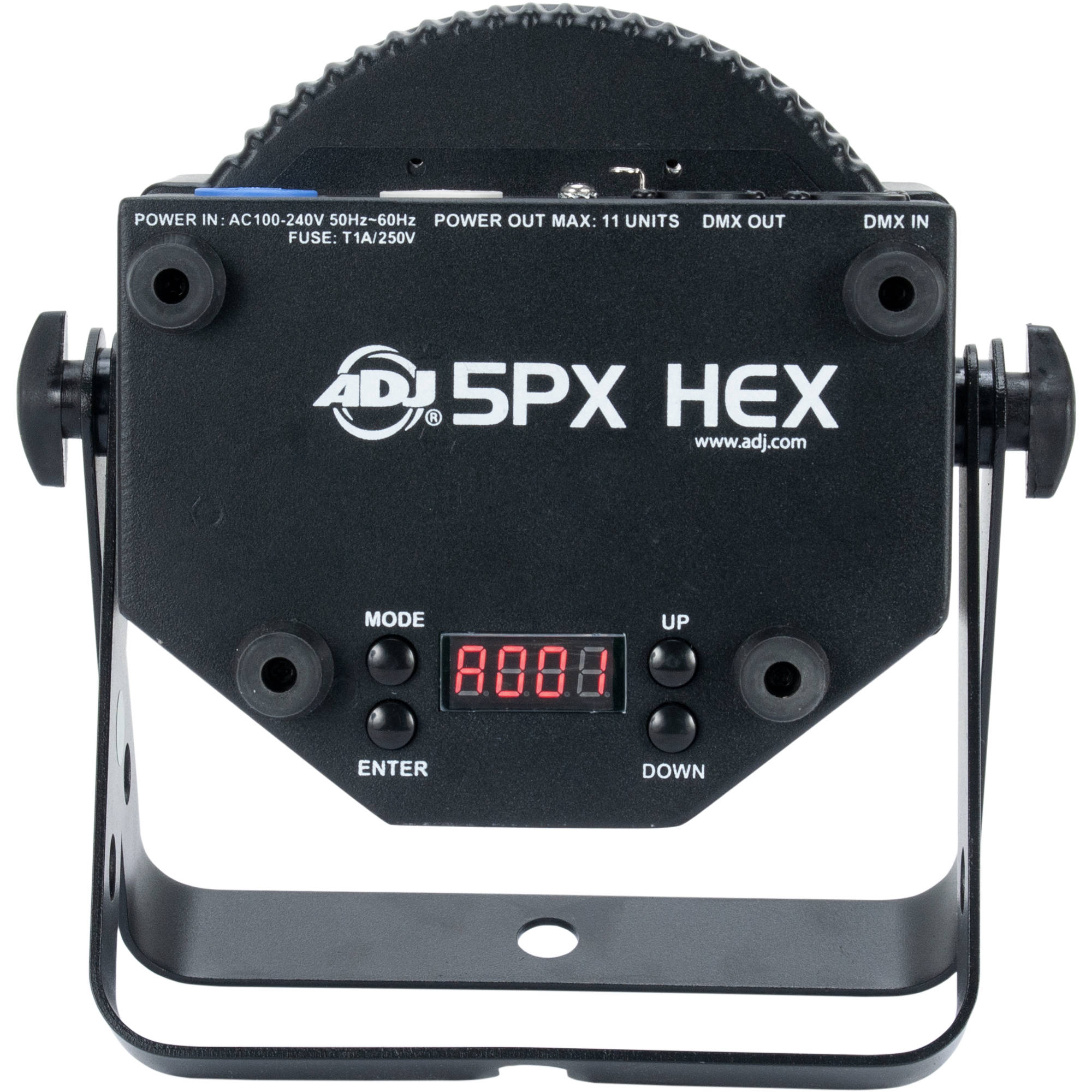

The 5PX Hex features a four-button DMX digital display on the rear panel, which allows you to select between seven built-in programs and 63 color macros. The fixture offers electronic dimming (0 to100%), LED pulse and strobe effects, five selectable dimming curves (standard, stage, TV, architectural, and theater) and five operational modes including static, RGBAW+UV dimmer, program, sound-active, and DMX. The four DMX channel modes (6, 7, 8, and 12) provide a wide variety of control parameters from any compatible DMX board or software. Additionally, the unit is compatible with the optional Dotz Par RF wireless remote control.

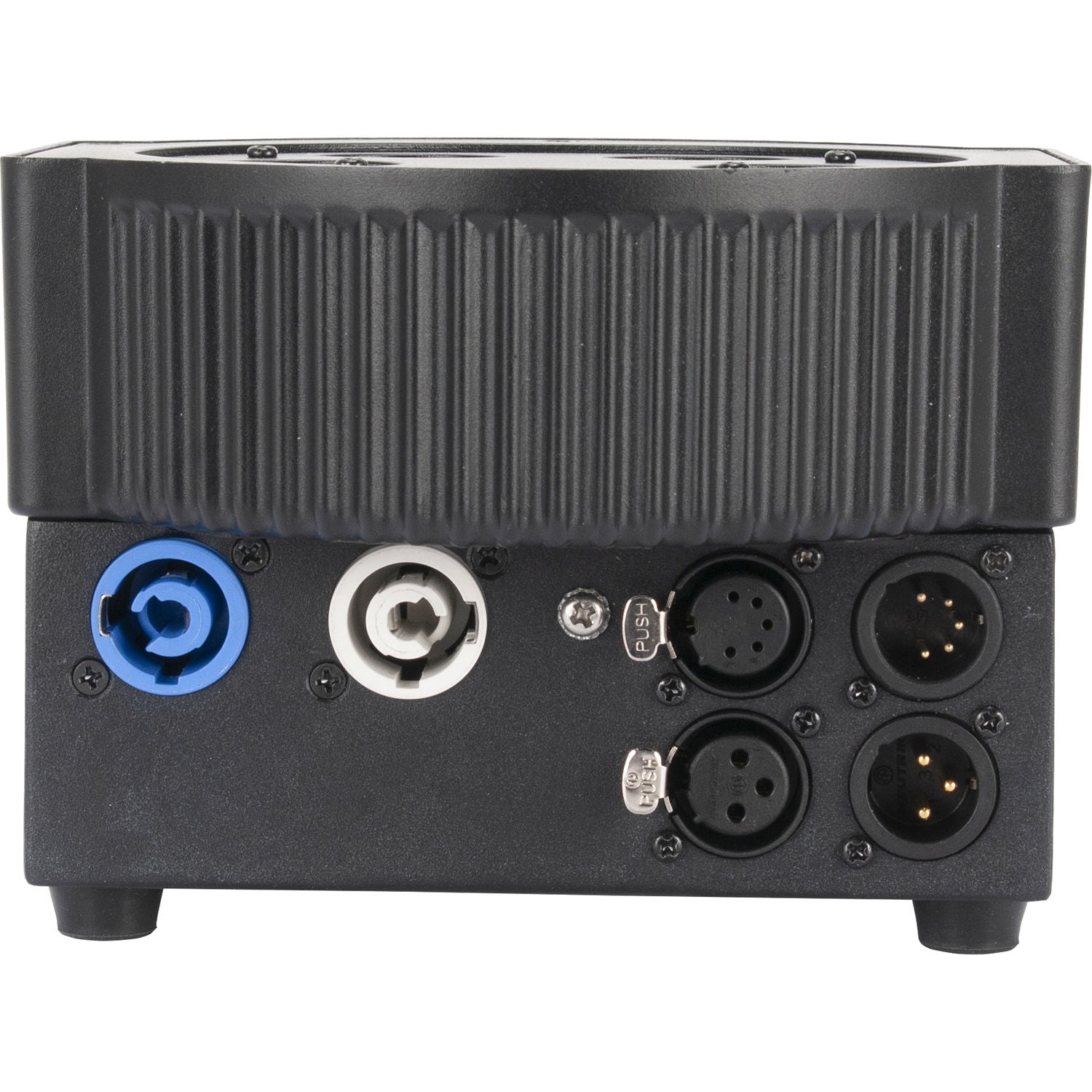

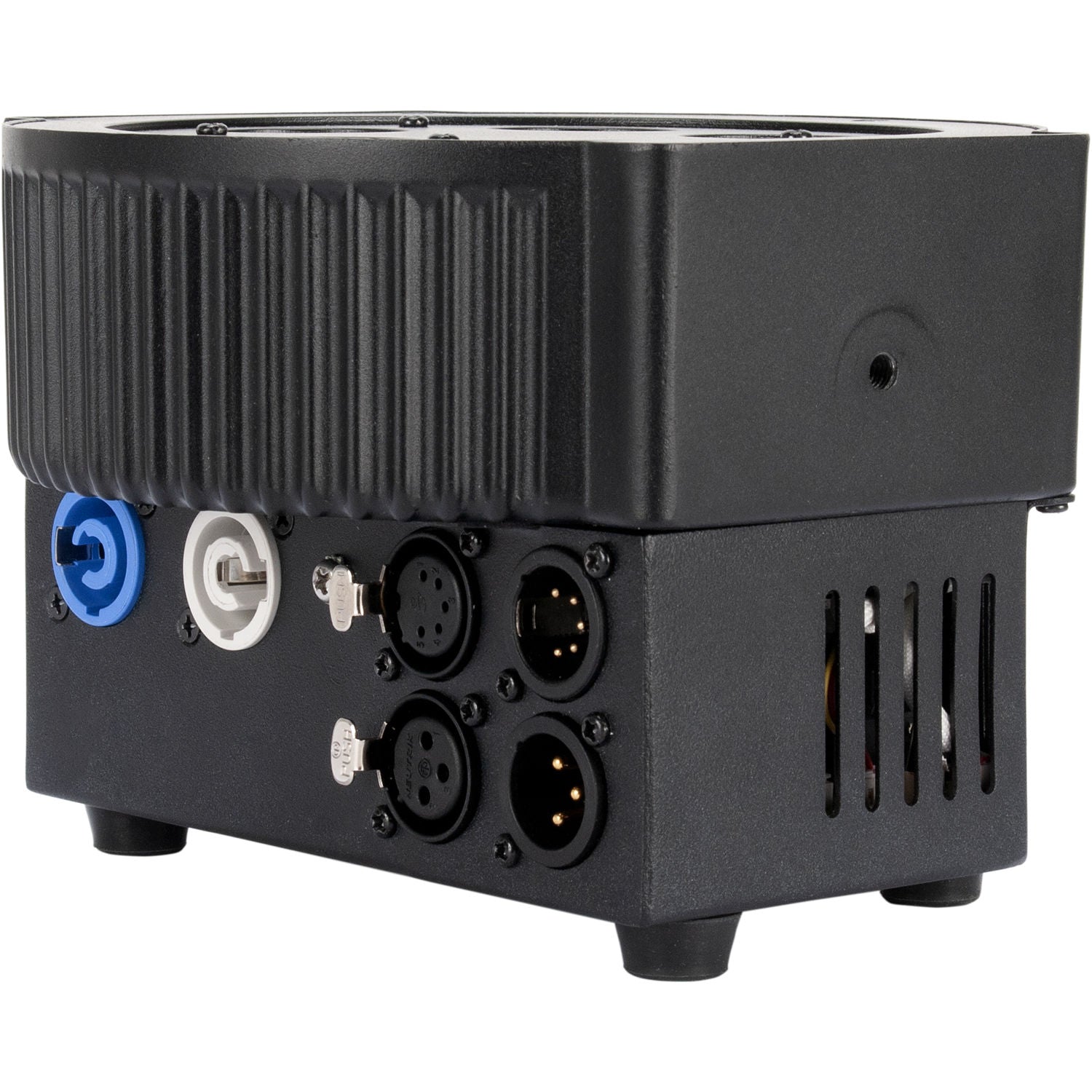

The black, all-metal housing features a side panel for connecting power and DMX, allowing the unit to lay flat. There are two sets of DMX I/O connectors with 3-pin or 5-pin configurations. The powerCON input/output allows several units to be daisy-chained. The ADJ 5PX Hex ships with a power cord and scissor yoke.

Features:

• Power and DMX inputs/outputs sit sideways, so the unit can be set flat on the ground or set inside a truss
• Great as an architectural wash light or for performance stages where traditional stage lighting
• Scissor yoke plus rubber feet allow fixture to be hung or set on the ground
• Flicker-free operation (no flickering on camera)
• Smooth RGBAW+UV color mixing
• All-metal black exterior housing

Specifications:

• OPTICAL:
• Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 30-degree
• CONTROL:
• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, & 12 channel
• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• CONNECTIONS:
• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from locking power In/Out connections
• With Wired Digital Communication Network
• ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 4.5" x 8.25" x 8.75"/ 114 x 208 x 222mm
• Weight: 5.8 lbs. / 2.6 kgs
• WHAT'S IN THE BOX:
• Locking Power to Edison Cable
• Scissor yoke
• APPROVALS:
• cETLus Approved (Control #4010765)
• CE Approved

Includes:

• American DJ 5PX HEX LED Par Fixture (RGBAW+UV, Black)
• Power Cable
• Scissor Yoke
• Limited 2-Year Warranty
