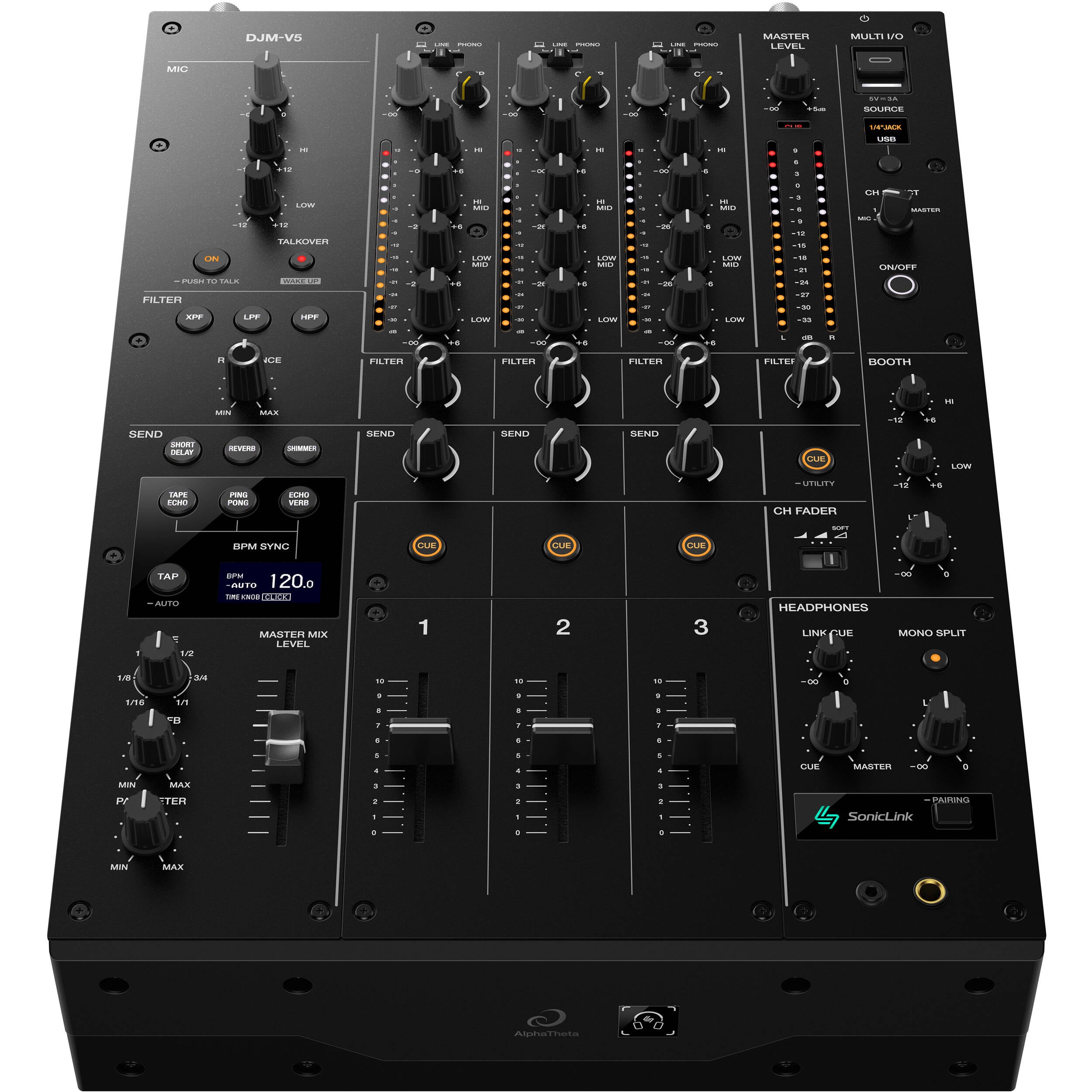

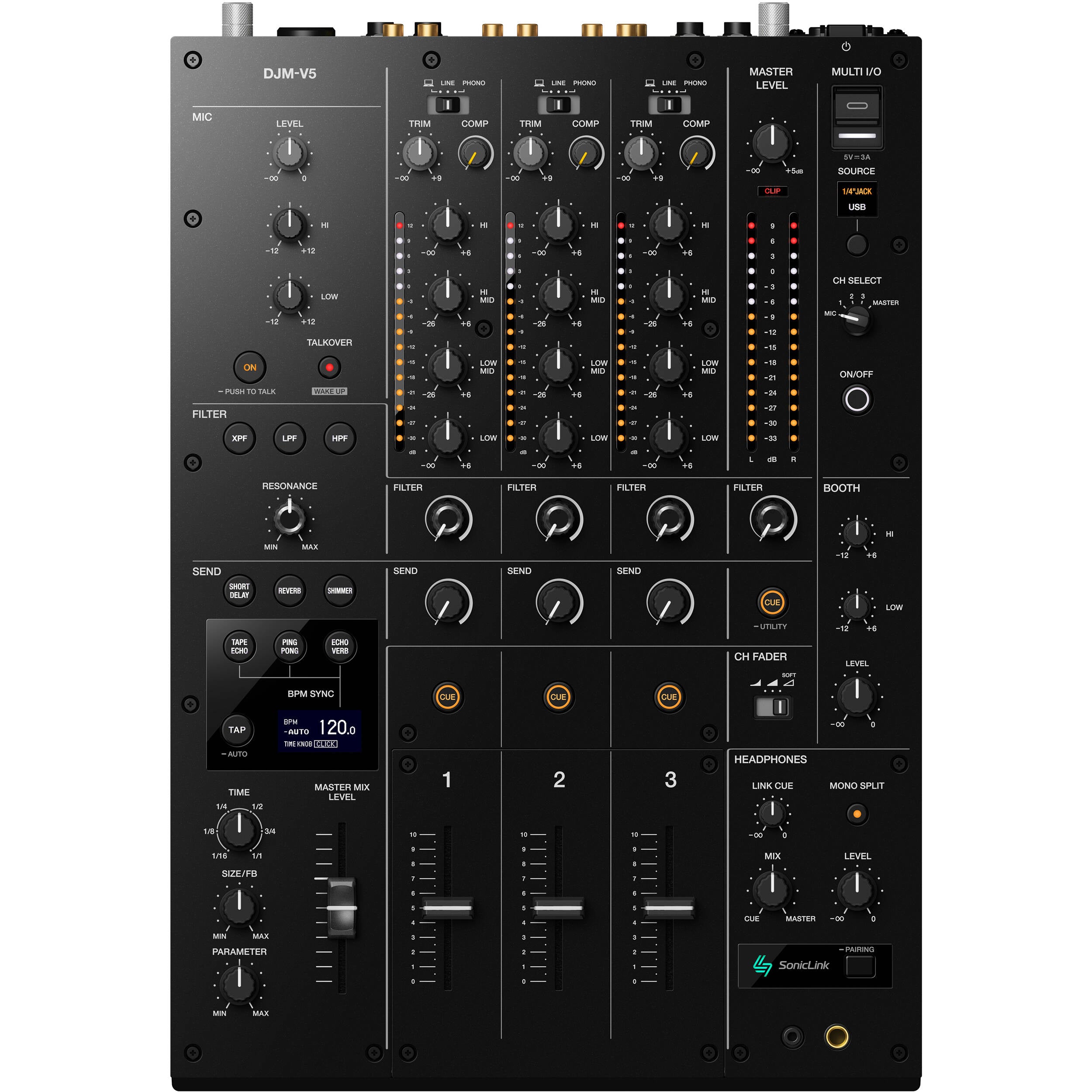

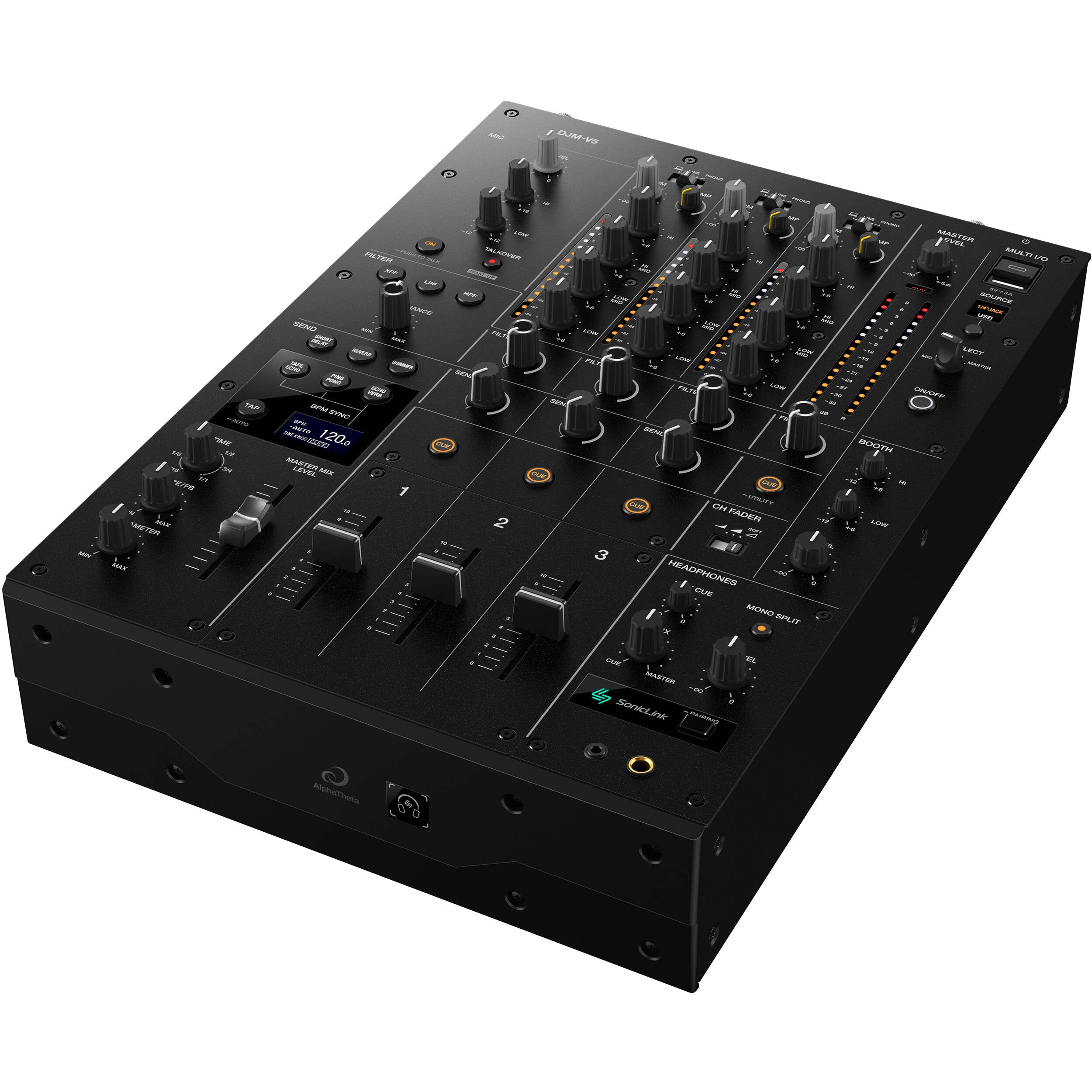

AlphaTheta DJM-V5 3-Channel Professional DJ Mixer (Black)

3-channel Digital DJ Mixer with 4-band EQ, 6 Send FX, Multi I/O, Pro DJ Link, 2-band Booth EQ, SonicLink, and 3 Filters

Features

• 4-Band EQ for Precise Control
• The 4-Band EQ on each channel - inherited from the DJM-V10 - enables detailed control over the frequencies so you can sculpt the sound you want.
• 60-mm Long-Throw Faders for Smooth, Natural Mixing
• With a 60-mm long-throw fader on each channel, which comes from the DJM-V10-LF, you can precisely control the blend when layering multiple sounds. The newly developed Soft Mix Curve gently reduces high frequencies as you start raising the fader when mixing in the next track, delivering smoother and more natural transitions.
• 6 Send FX Types for Expanded Expression
• Choose from 6 Send FX - Short Delay, Reverb, Shimmer, Tape Echo, PingPong, and Echo-Verb - to apply intuitively from the dedicated send knob on each channel. The time knob adapts to each effect, combining BPM-synced operation with smooth time adjustment for precise effect control.
• 3 Filter Types
• As well as low and high-pass filters, the DJM-V5 features a new cross-pass filter. By preserving low-end energy while shaping the mid and high frequencies, it makes musical phrases stand out without disrupting the groove.
• SonicLink Support
• With a built-in SonicLink transmitter, the DJM-V5 supports ultra-low-latency wireless monitoring. Simple pairing options - via a button press or NFC touch-based pairing with compatible equipment - allow for a clean, cable-free monitoring environment where sound and control stay seamlessly connected.

Specifications

• Main Features:
• MIDI Control
  Full assignable MIDI controls
  DVS Control
  rekordbox, Serato DJ Pro
• Accessories:
  Power Cord
  Quick Start Guide
  Precautions for Use
  Warranty (for some regions)
• Specifications:
• Max. External Dimensions (W x D x H): 302.0 x 437.5 x 107.9 mm / 11.89" x 17.22" x 4.25"
• Main Unit Weight: 8.0 kg / 17.6 lbs.

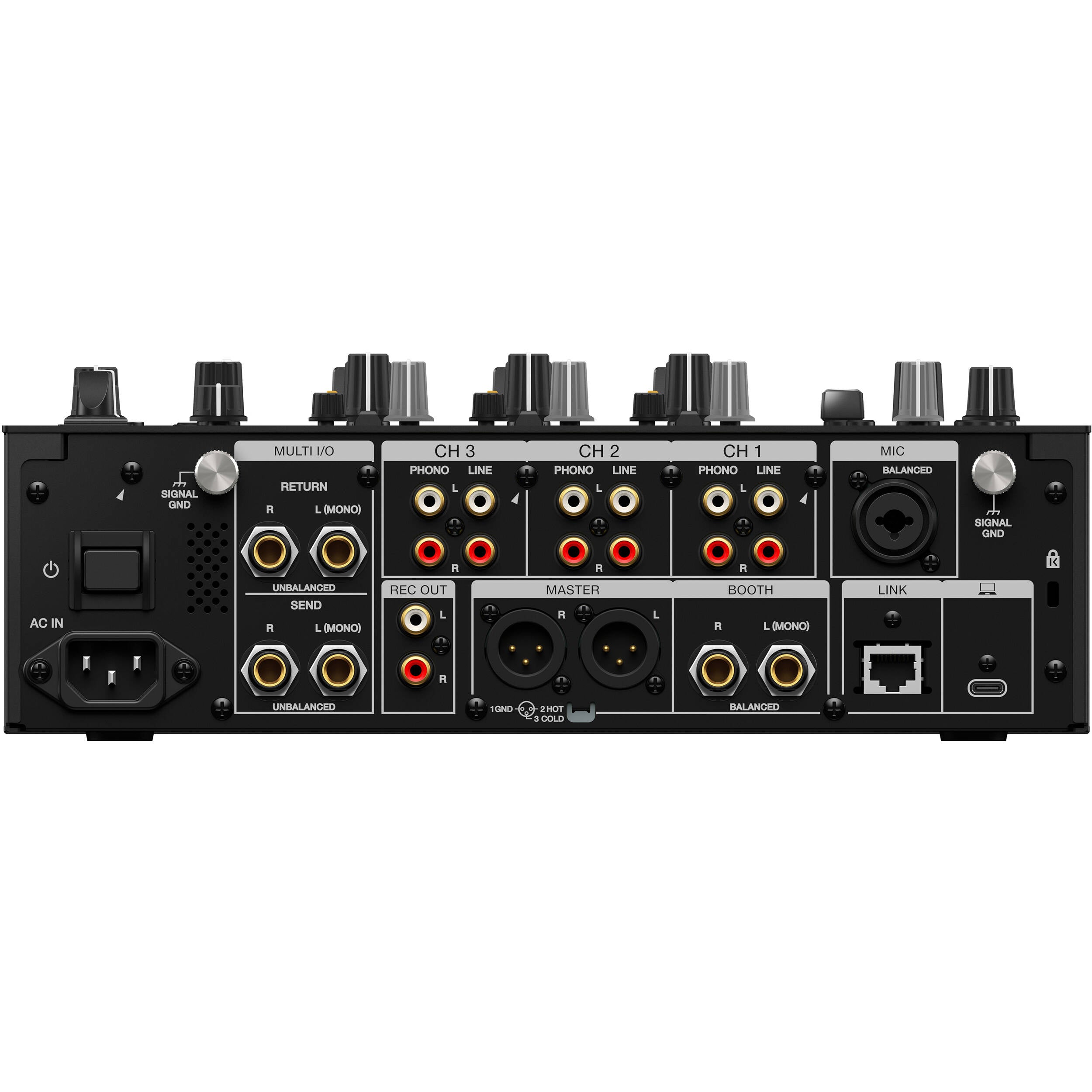

• Input / Output Terminal
• Input:
  PHONO x 3 (RCA)
  LINE x 3 (RCA)
  MIC x 1 (XLR / 1/4-inch TRS jack)
  RETURN x 1 (1/4-inch TS jack)
• Output:
  MASTER x 1 (XLR)
  BOOTH x 1 (1/4-inch TRS jack)
  REC OUT x 1 (RCA)
  PHONES x 2 (1/4-inch / 3.5 mm)
• SEND/RETURN:
  SEND x 1 (1/4-inch TS jack)
  RETURN x 1 (1/4-inch TS jack)
• LAN: LAN x 1
• USB: USB Type-C x 2 (MULTI I/O x 1, PC/Mac x 1)
• Audio
• Sampling Rate: 96 kHz
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio: LINE 105 dB / PHONO 88 dB / MIC 79 dB
• EQ: 4 Band
