Key Features
- Sound Management & Installation
- Audio Distribution, Paging, Conferencing
- Speaker Processing + GPIO
- 64x64 Matrix with 12x12 Local I/O
- I/O Port for Expansion (Up to 128x128)
- 64 Configurable Processing Outs
- 96 kHz FPGA Core for Ultralow Latency
- Sound Management Tools
- Works with Allen & Heath Remote Controls
- Includes Phoenix Connectors
Description

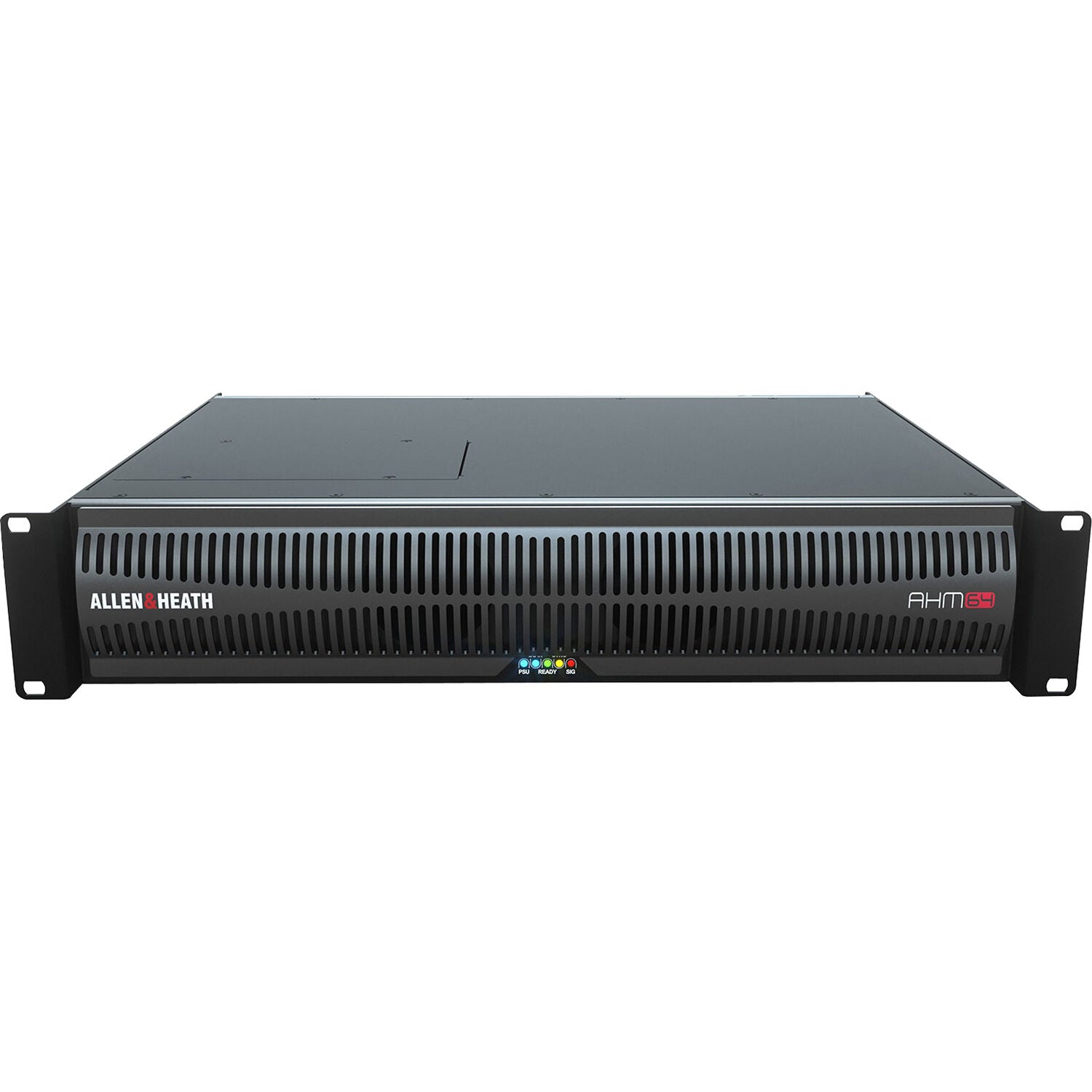

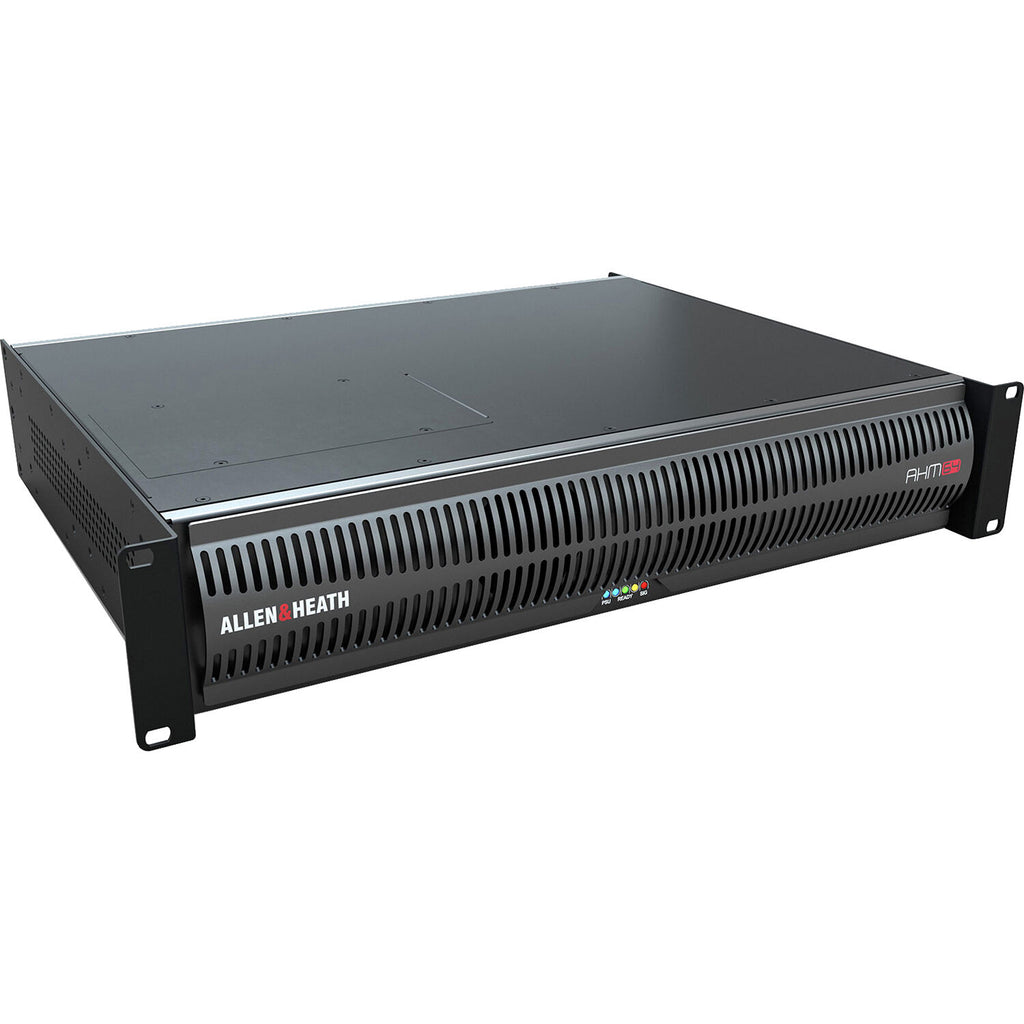

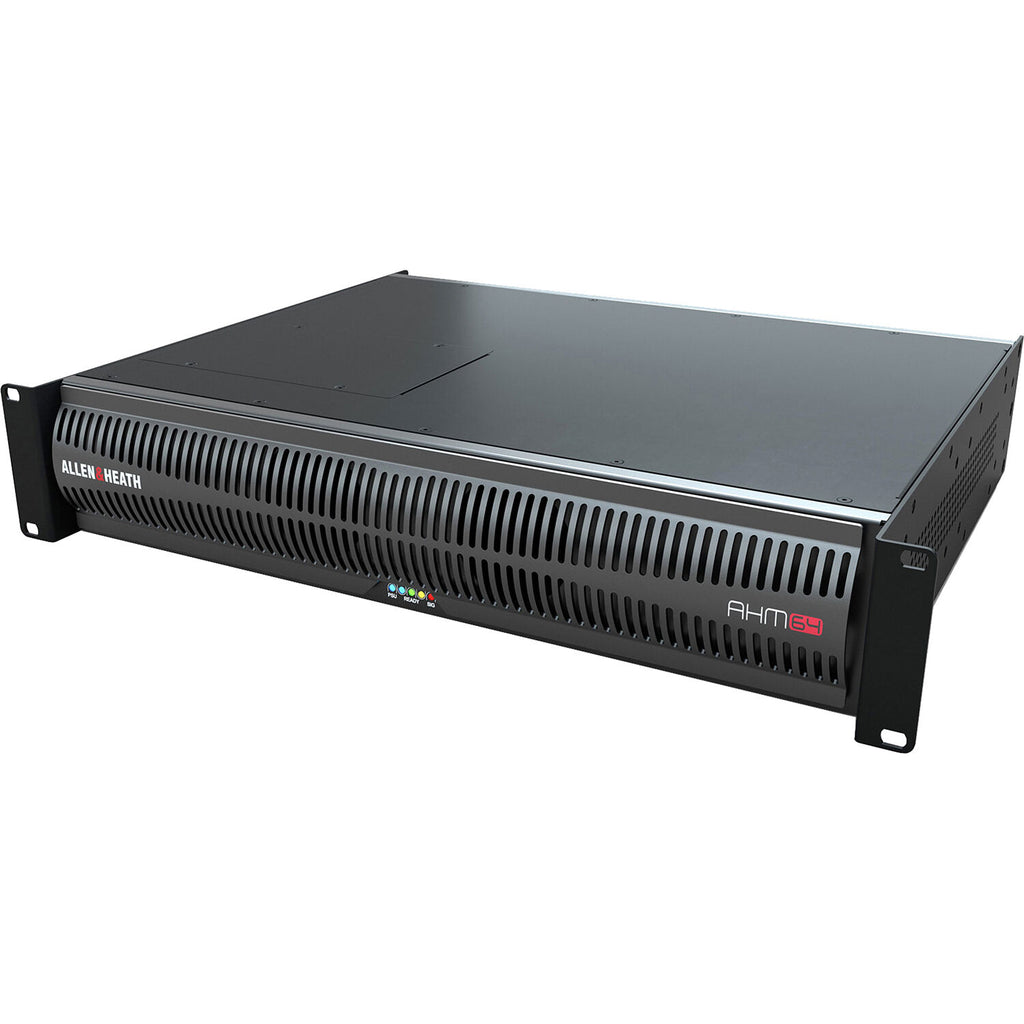

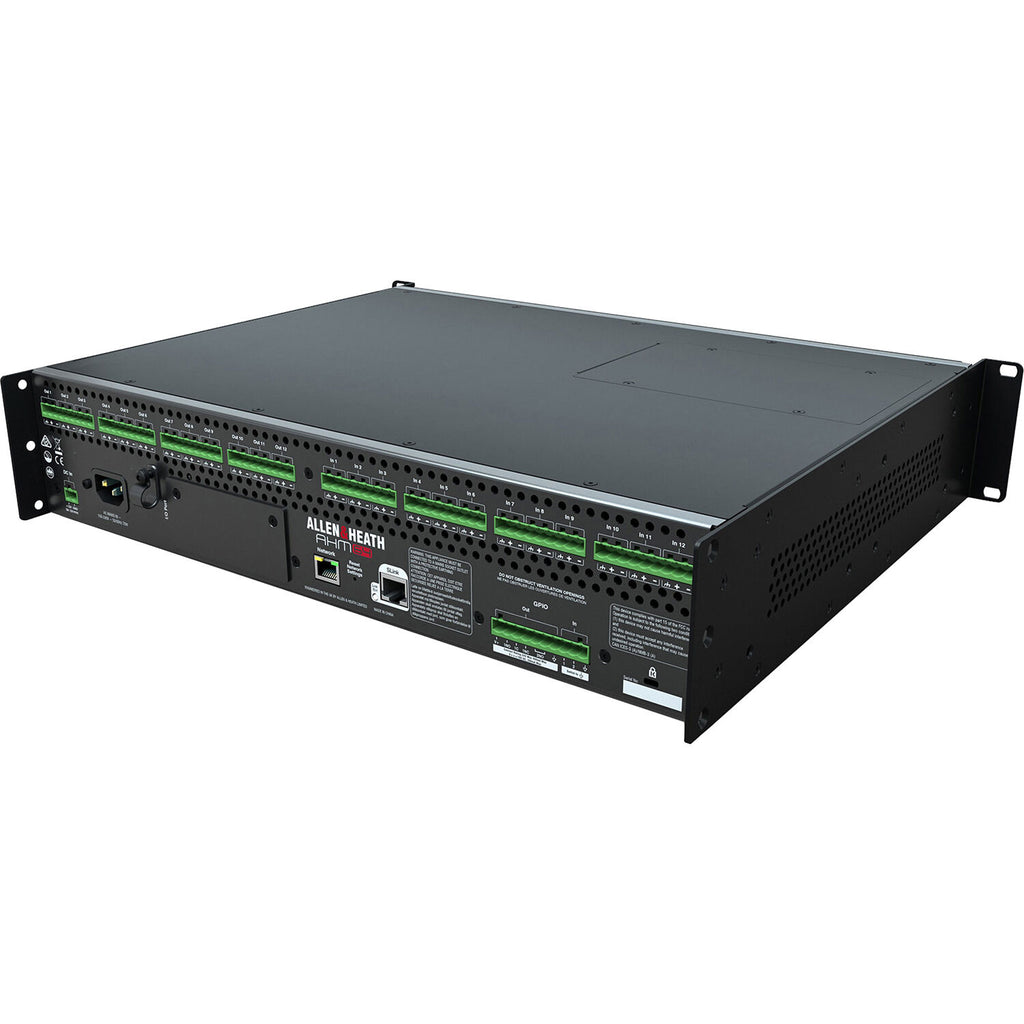

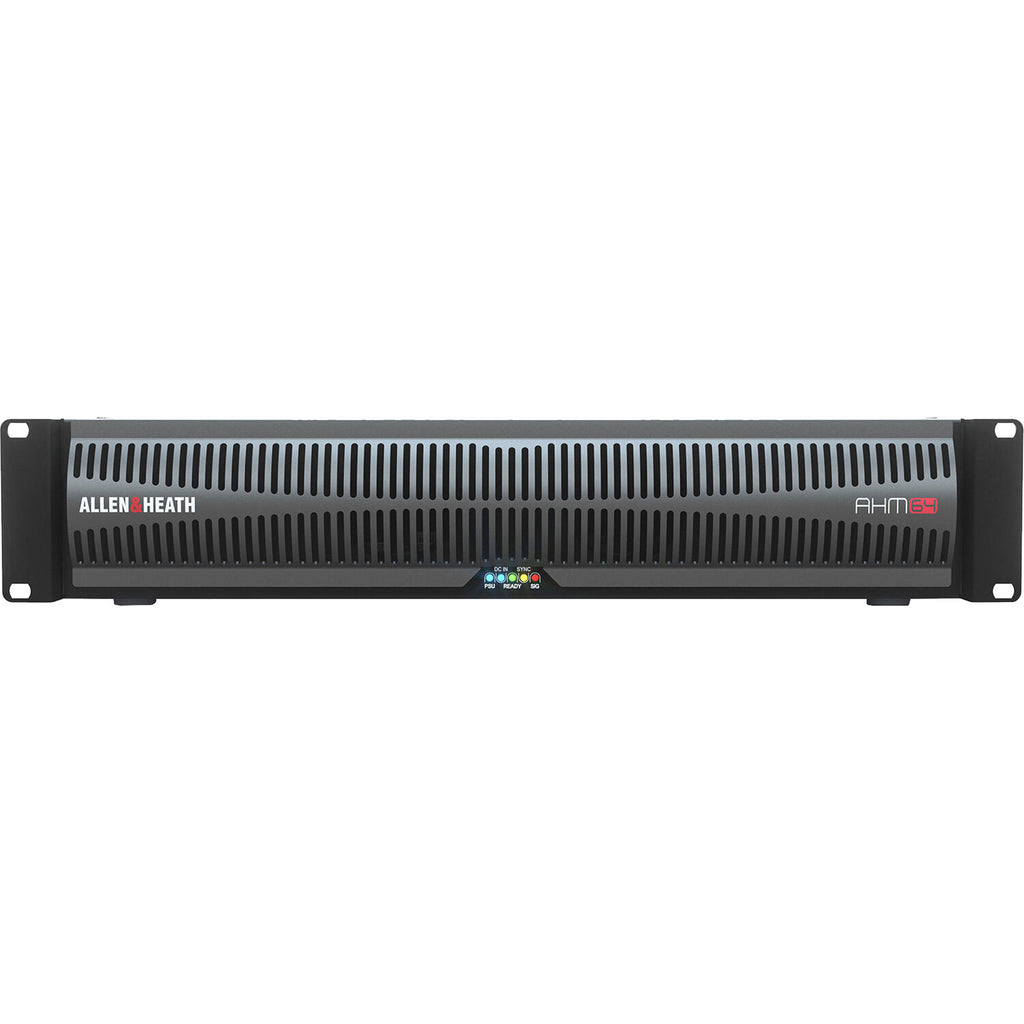

64 x 64 Audio Matrix Processor, with 128 x 128 SLink Port, 12 x 12 Local Analog I/O, 8 Automatic Mic Mixers, and Mac/Win Software Manager
The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.
64x64 Processing Matrix
Flexible routing with configurable processing on all 64 outputs.
12x12 Local Analogue I/O

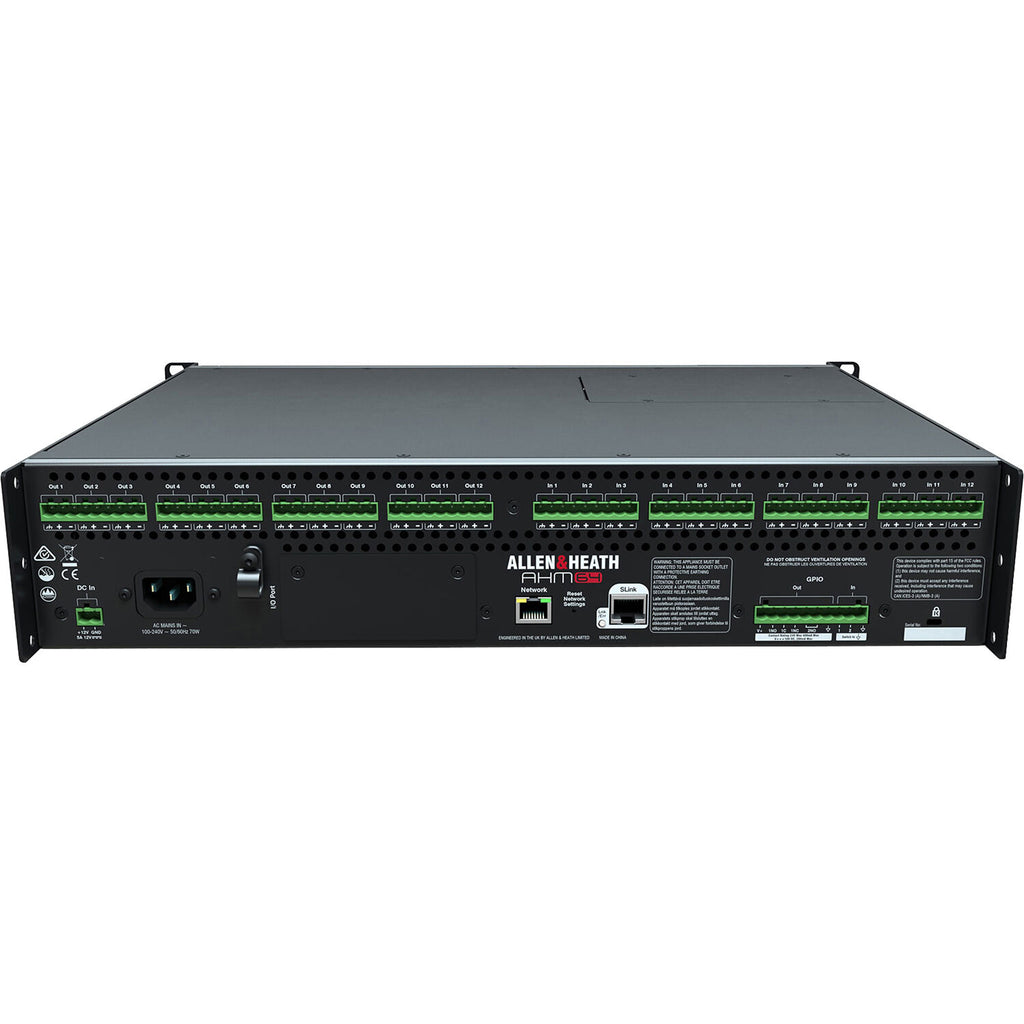

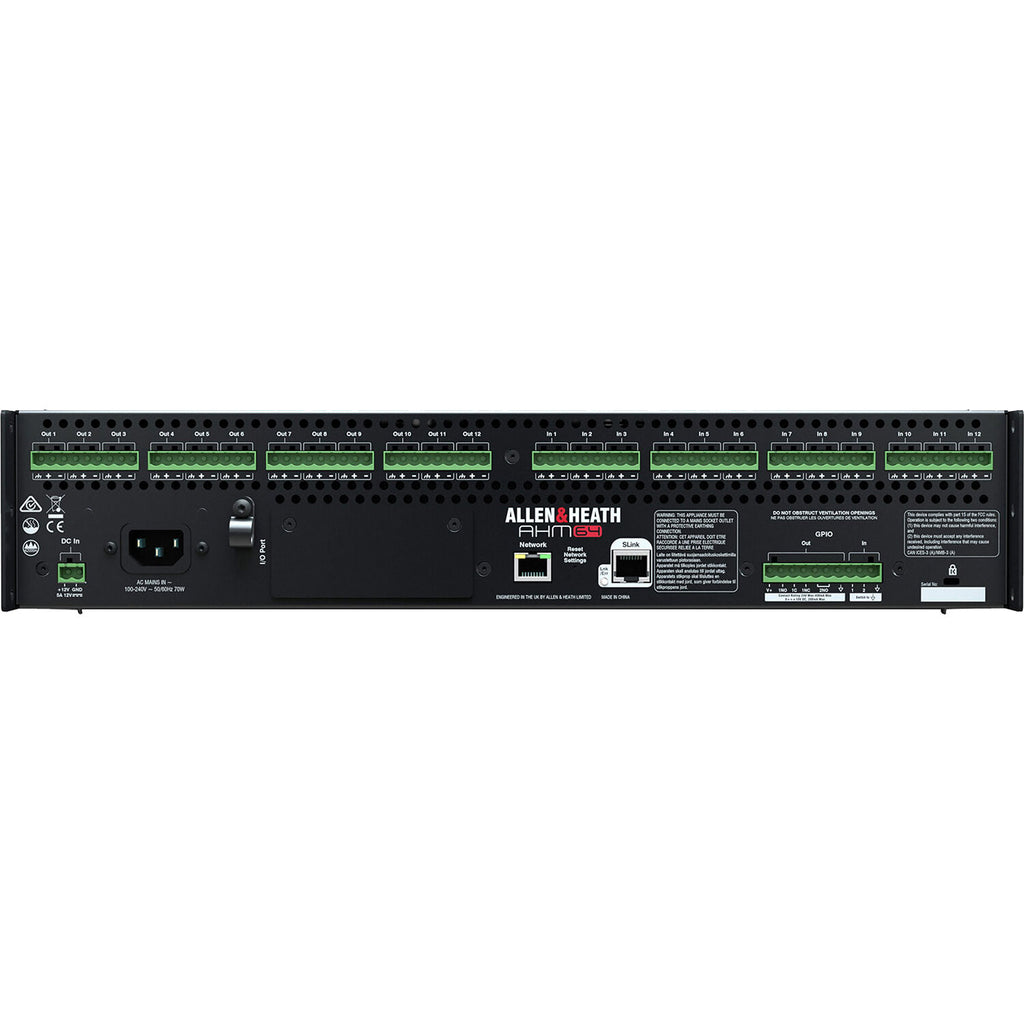

12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.
Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.
Sound Management Tools
-
8x Automatic Mic Mixers
-
ANC (Ambient Noise Compensation)
-
Priority Ducking
-
8-band PEQ, Dynamics and Delay on every Input and Zone
-
Speaker processing with x-over filter, delay, limiter and PEQ
-
Processing expansion module
Features
-
64x64 Processing Matrix
-
12x12 Local Analogue I/O
-
I/O Port for Audio Networking (Up to 128x128)
-
Dante 96kHz Option Card (AES67 and DDM ready)
-
128x128 Built-in SLink Port for Audio Expansion
-
64 Configurable Processing Outputs - Mono / Stereo Zones or Speaker Processing
-
96kHz FPGA Core With Ultra-low Latency
-
Compatible With IP1, IP6, IP8 Remote Controllers
-
2x2 Local GPIO Plus Networkable GPIO Interface
-
TCP/IP Protocol for Third Party Integration
-
Crestron, AMX and Extron Drivers
-
Mac / Windows System Manager Software
-
Custom Control app and Editor for BYOD
-
32 User Profiles
-
Integrated Stereo Playback
-
Event Scheduler
-
DC backup power supply
