Key Features
- High-Efficiency 1020W Class-D Amplifier
- 12" Woofer
- 2.5" Voice Coil Magnets
- Band-Pass Type Enclosure
Description
12" 800W Active Subwoofer with 42Hz-150Hz Frequency Range and 134dB Peak SPL
The black DXS12mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications.
The powered subwoofer features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS12mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output.
Features:
- The DXS high-performance Class-D amplifier produces up to 1020W of power.
- The DXS12mkII features a 2.5" voice coil magnet.
- All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
- Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
- Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.

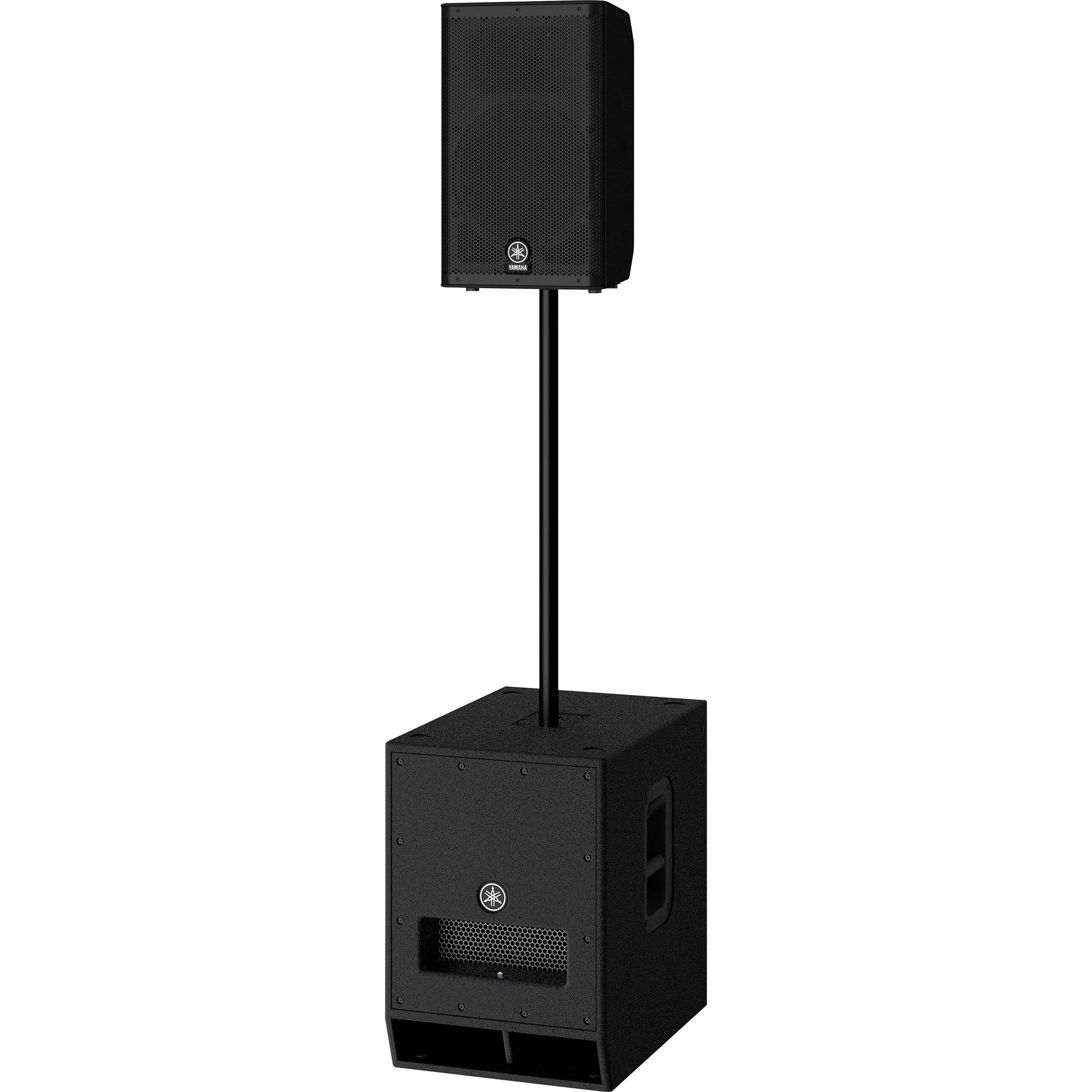

- For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
Specifications:
- PA Speaker
- Configuration: Active Subwoofer
- Total Power Capacity: 1020 W Peak
- 800 W RMS
- Drivers
- LF Driver: 1 x 12" / 30 cm Woofer
- LF Voice Coil: 2.5" / 6.35 cm
- Performance
- Frequency Range: 42 Hz to 150 Hz
- Maximum SPL: 134 dB
- Connectivity
- Audio I/O: 2 x XLR 3-Pin Female Input
- 2 x XLR 3-Pin Male Thru
- Power
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 100 W
- Physical
- Mounting: 1 x 1.4" / 35 mm Pole Socket
- 1 x M20
- Cooling: Convection
- Construction Material: Plywood
- Dimensions: 15.8 x 22.3 x 22.4" / 400 x 567 x 570 mm
- Weight: 66.1 lb / 30 kg
