Whirlwind IMCOML Line Level Combiner

Line Level Combiner - 2 In, 1 Out

This unit not only combines two line-level signals into one line level output, it also compensates for the 6dB of gain that occurs when two in-phase signals are combined. A handy ground-lift switch breaks the shield connection between the inputs.

Use the line level combiner when you want to create a mono mix from a stereo source but need to keep the original stereo signals isolated. It's great for feeding a DAT player or CD into a mono system or single channel on a board.

Connections are female XLRs in, male XLR out.

Features:

• Use fewer input channels by combining two mic lines into one.
• Use the polarity reverse switch to combine two mics - one with polarity reversed - to remove background noise and feedback or combine and correct polarity when using a pair of mics above and below a drum or in front and rear of an open backed guitar amp.

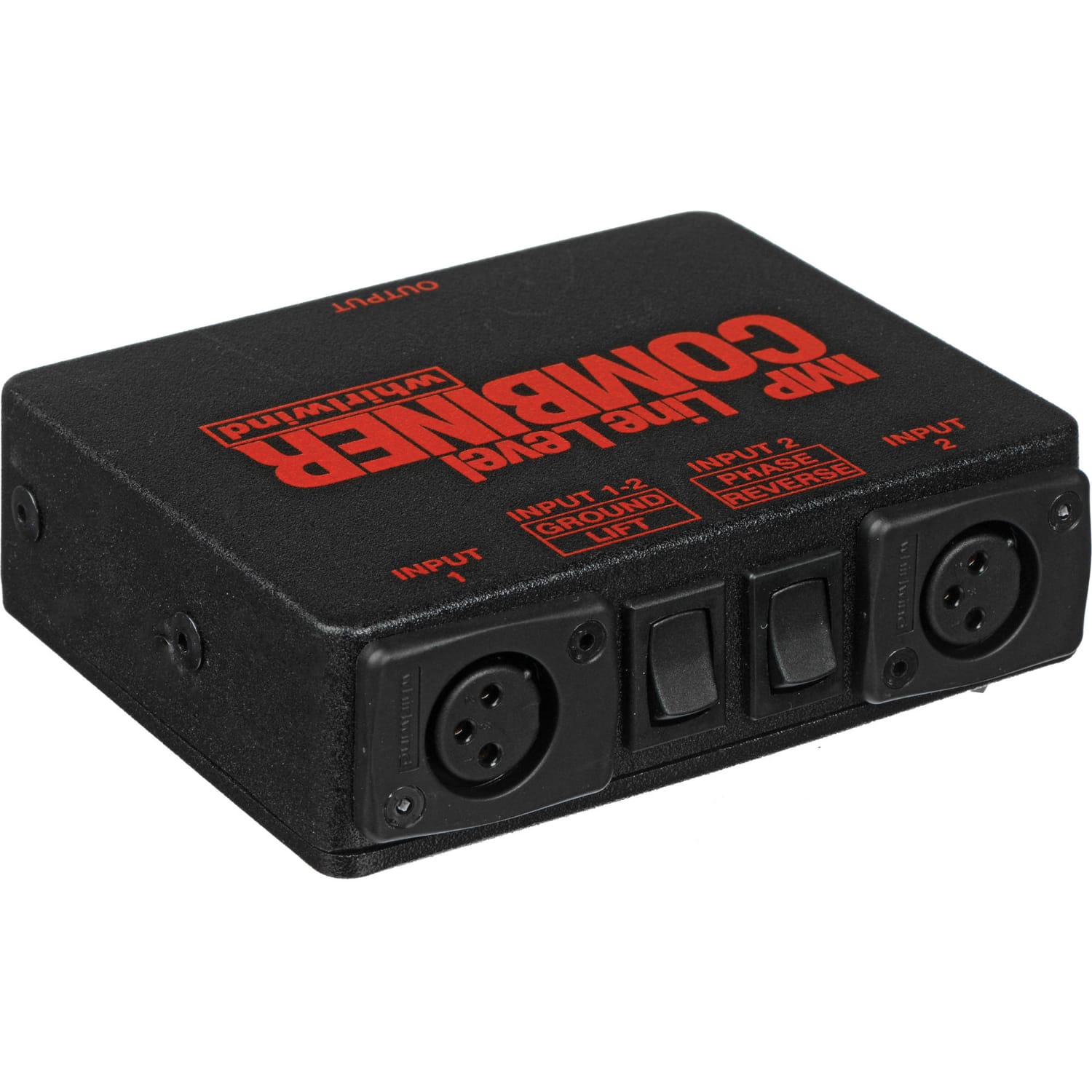

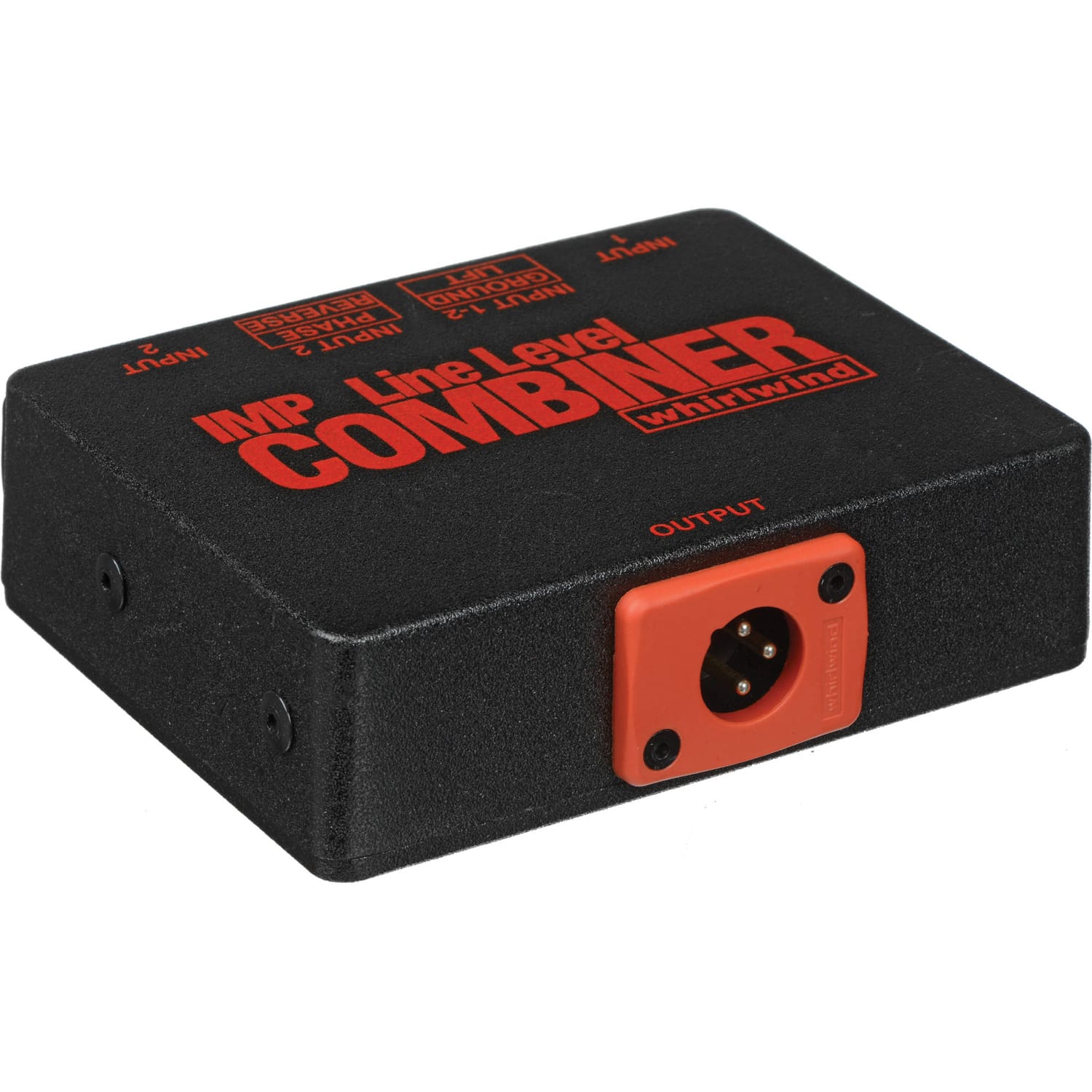

• Connections are female XLRs in, male XLR out.

Specifications:

• Frequency response:+/-0.3dB 20Hz-20kHz
• Total harmonic distortion + noise: Less than 0.025% at 1kHz
• Isolation between inputs: Greater Than 42dB
• Insertion loss: -0.6dB, 50 Ohms source impedance -3.8dB, 200 Ohms source impedance
• Output level: -3.8dB with both channels at 0dB sine wave input, in phase
• Maximum input level: +28dBm
• Input impedance: 600 Ohms
• Output impedance: Less than 100 Ohms
