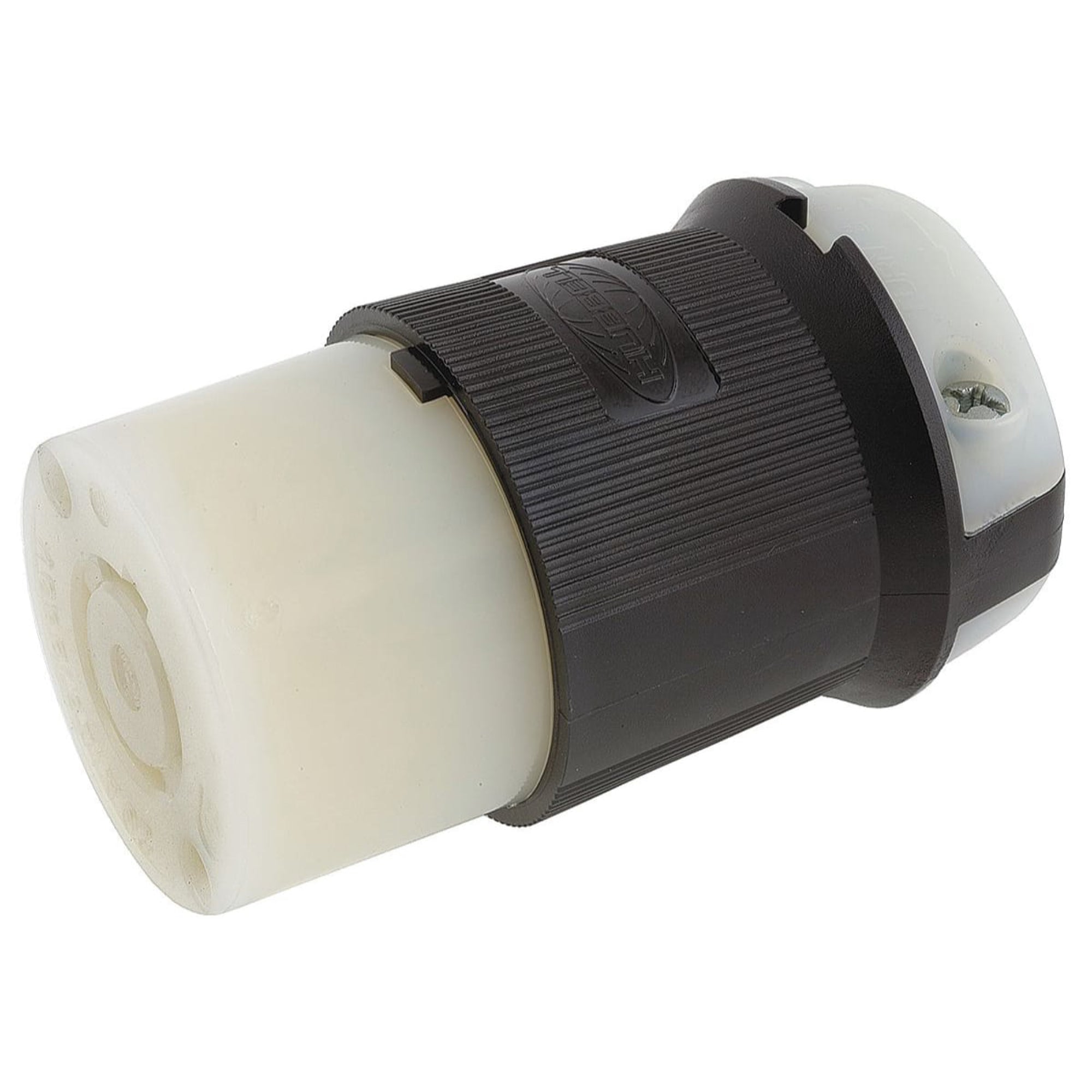

Whirlwind Hubbell HBL2513 Twist-Lock Nema L21-20R Female AC Electrical Power Connector

Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Black and White Nylon

Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Black and White Nylon. Superior cord grip design protects terminations from excess strain. Clear, funnel shaped wire entry for ease of termination. Integral dust shield protects wiring chamber from dust or contaminants.

Features:

• UL 498 listed
• HB or better per UL94 or CSA 22.2 No. 0.6 Flammability test
• IP20 Moisture resistance rating
• -40 to 75°C Operating temperature range
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
• Product family: Hubbell
• Type: Inline

Specifications:

• General
• Cord Range: 0.350"-1.150" (9-29)
• Insulation: Insulated Body
• Item Type: 20A Insulgrip Connector
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Connector Body
• UPC: 783585038551
• Dimensions
• Dimensions: 2.33 in x 2.33 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.40 lb
• Width: 2.33 in
• Electrical Ratings
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 120/208 VAC
• Voltage Rating Description: 3 Phase WYE 120/208 VAC
• Conductor Related
• Cable Range: 0.350 - 1.150 in
• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Nema Rating: L21-20R
• Logistics
• Carton Quantity: 30
