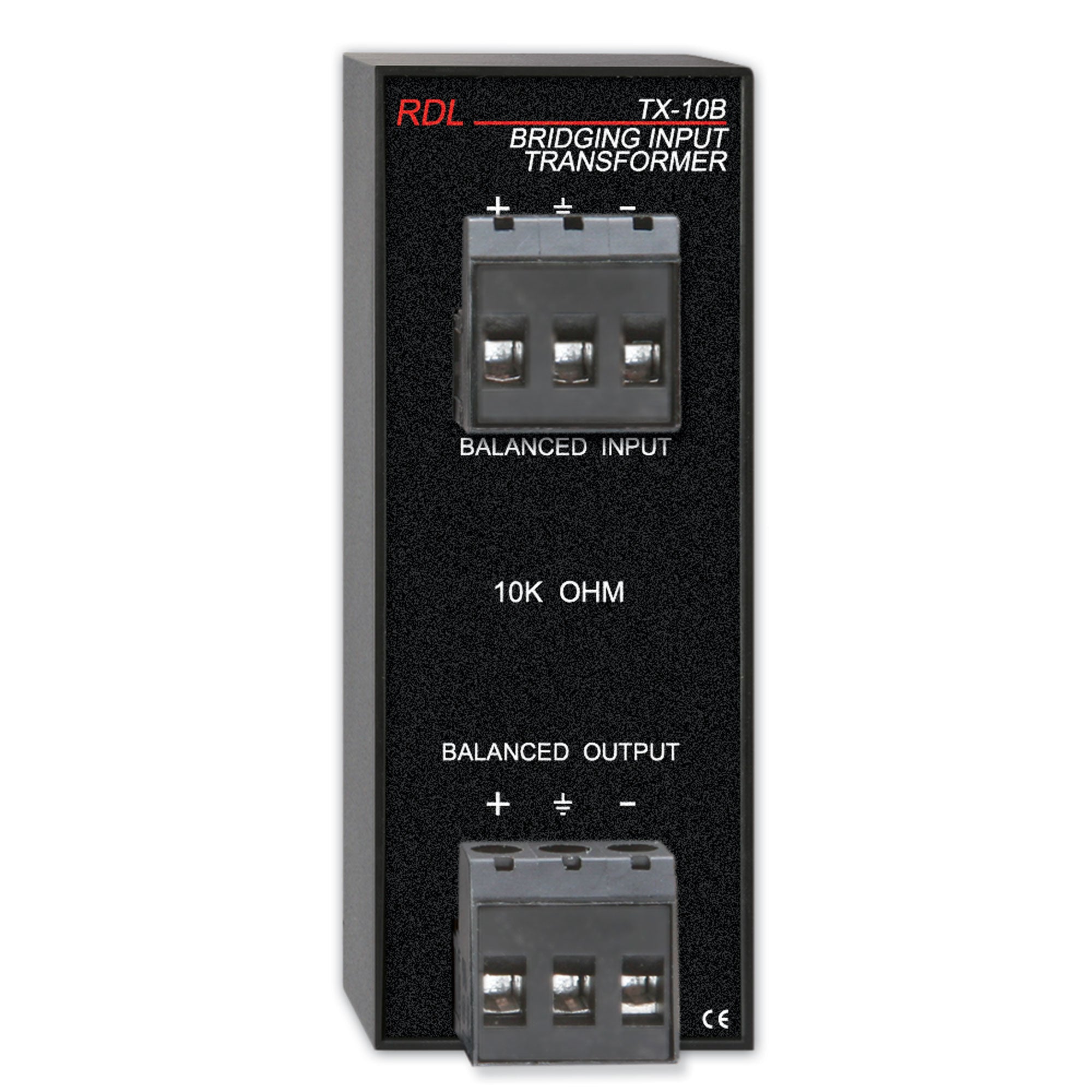

RDL TX-10B Bridging Input Transformer

Bridging Input Transformer

The TX-10B Bridging Input Transformer from RDL is a device that can be used to add transformer isolation to any line-level RDL product input. It provides 10KΩ input bridges on any audio line. It also includes both balanced input and output.

Features:

• Used to add transformer isolation to any line-level RDL product input
• Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)
• 10 kΩ input bridges any audio line
• Balanced input and output
• Connections on Detachable Terminal Blocks

Specifications:

• Ambient Operating Environment: 0° C to 55° C
• Package Type: Cardboard Box
• Package Dimensions: 2 x 2 x 4 in.
• Shipping Weight: 0.31 lbs.
• WEEE weight: 0.255 lbs.
• Tariff code: 8543.70.9960
