Yamaha DXS18 1020W 18" Active Subwoofer

18" 800W (1020W Peak Power Capacity) Active Subwoofer

The DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency response (down to 32Hz) in the lineup. Housed in a sturdy band-pass enclosure, the custom built 18" driver with a large 4-inch voice coil and a Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.

SERIOUS. BASS. PERFORMANCE.

Great bass sound speaks for itself. Period.

If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 15" and 12" models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance. All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.

Feel the Power

DXS Series were made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events- even when it's cranked to the maximum SPL.

Band-Pass Type Enclosure

All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.

Durable, Portable, and Road-Ready.

Ergonomic and compatible features just made your system setup and transport a whole lot easier.

Rugged coating for superior protection

Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.

Compact and portable design enclosure

Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15" and 12" predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.

Features:

• Ideal for bass reinforcement alongside the DXR and DSR full-range loudspeakers
• The compact wooden enclosure has an optimized band-pass design that delivers high SPL levels with minimal distortion
• The high-power 18" woofer is capable of reproducing frequencies as low as 32Hz
• The Class-D amplifier has a peak power rating of 1020W for clear, powerful bass
• D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes
• Cardioid Mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience

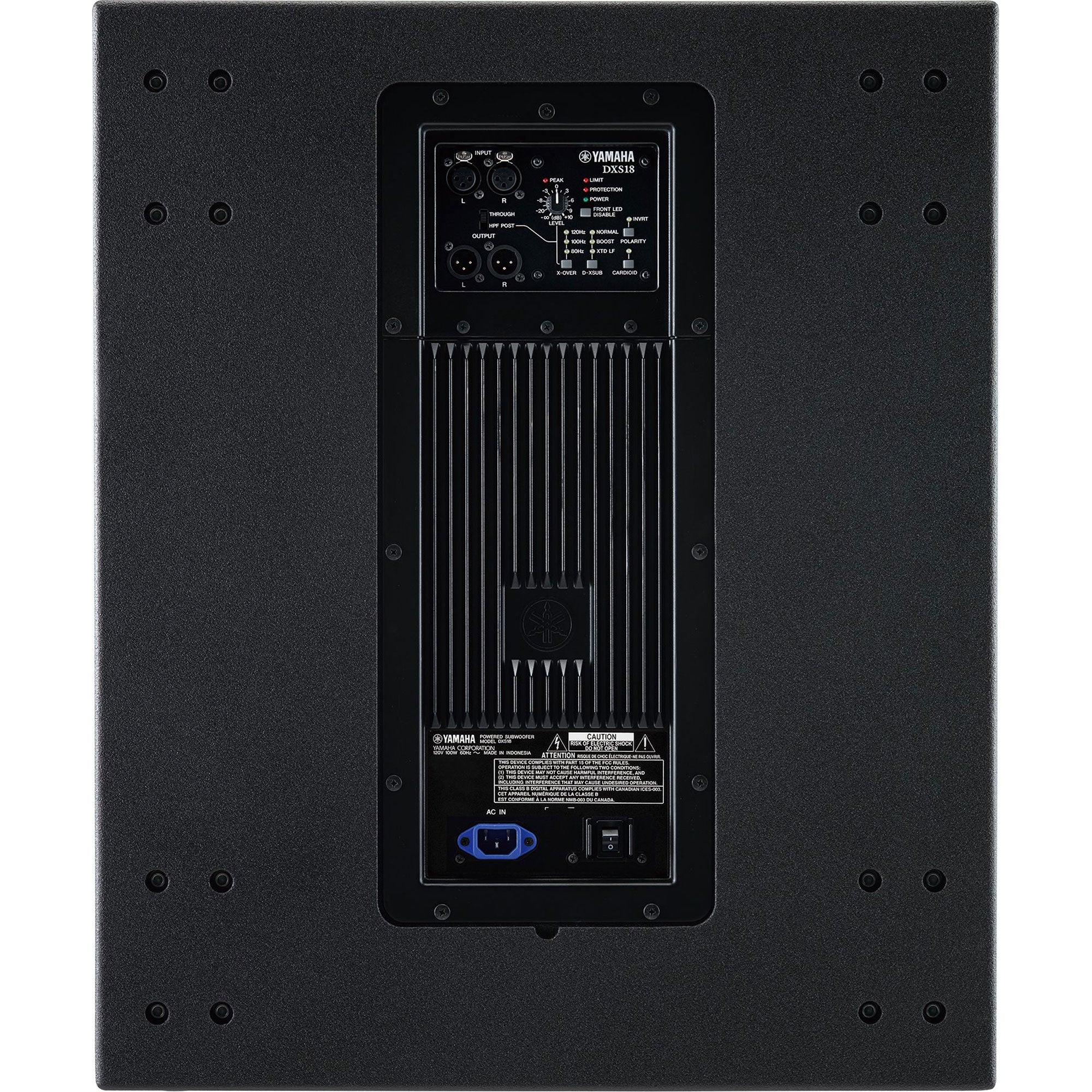

• The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems
• A standard 35mm pole socket allows you to mount a full-range speaker on top of the subwoofer
• Integrated handles offer convenient transportation
• Durable Line-X elastomeric coating

Specifications:

• Type: Active, band-pass
• Frequency Range: 32 to 120 Hz (-10 dB)
• SPL: 136 dB maximum
• Amplifier: Class-D, 1020 W dynamic, 800 W continuous
• Woofer: 18" (457 mm) cone woofer with 4" voice coil and ferrite magnet
• Controls: Level, Polarity, X-Over, Cardioid, Through/HPF Post, D-XSUB, Front LED disable, Power
• Connectors:
  2 x XLR inputs
  2 x XLR thru connectors (Through or HPF Post)
  1 x AC power input
• Input Impedance: 20 kOhms
• Input Sensitivity: 0 dBu, +10 dBu center
• Input Level: +24 dBu max
• Low-Pass Filter: 80/100/120 Hz, 24 dB/oct
• DSP: D-XSUB: Normal, Boost, Xtended LF
• Cabinet: Wood with black painted finish and 2 metal side handles
• Mounting: 1 x Top panel 35 mm pole socket
• Power Requirements: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 100 W (1/8 rating)
• Dimensions (WxHxD): 22.2 x 26.8 x 28.4" (563.0 x 680.7 x 721.3 mm)
• Weight: 110 lb (50 kg)
