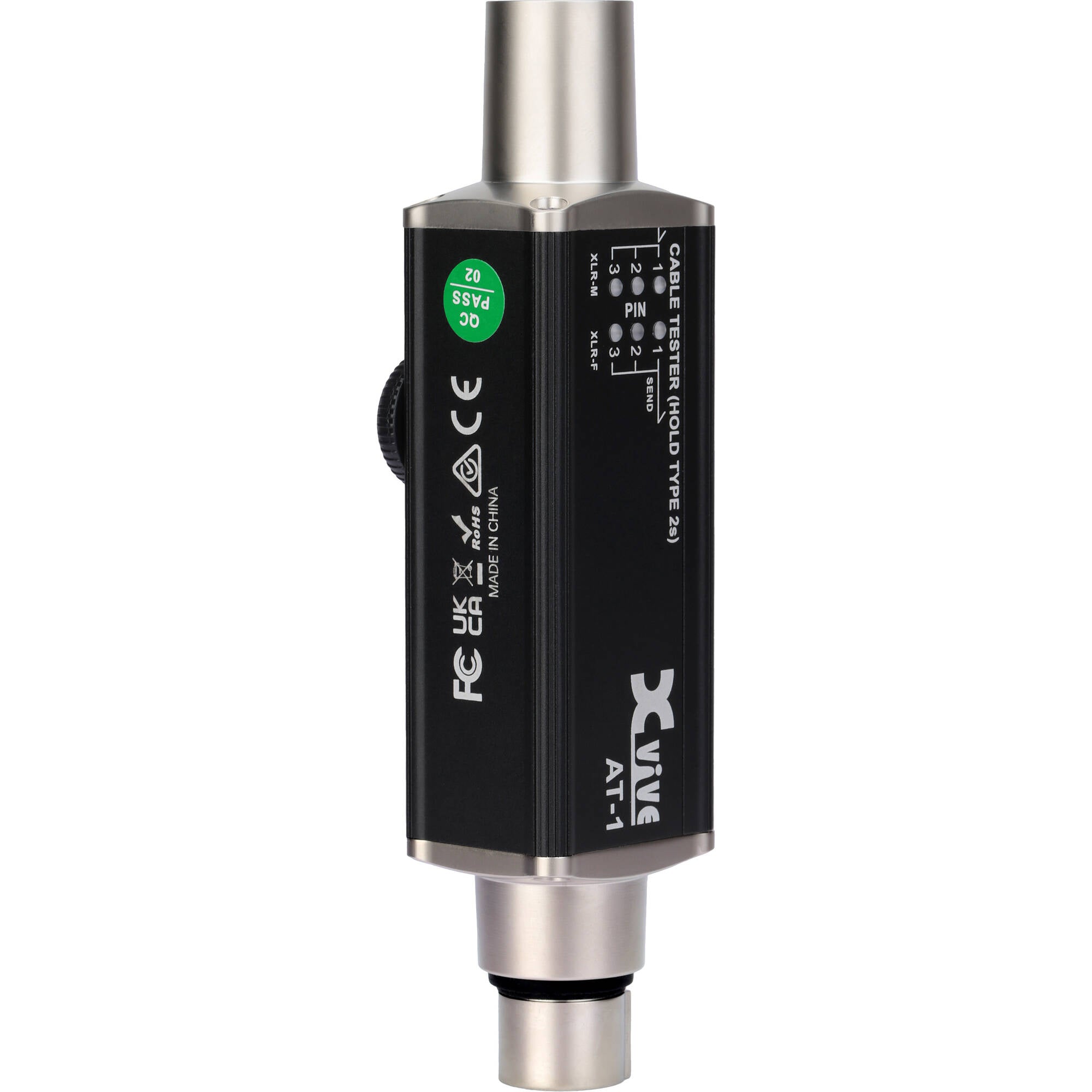

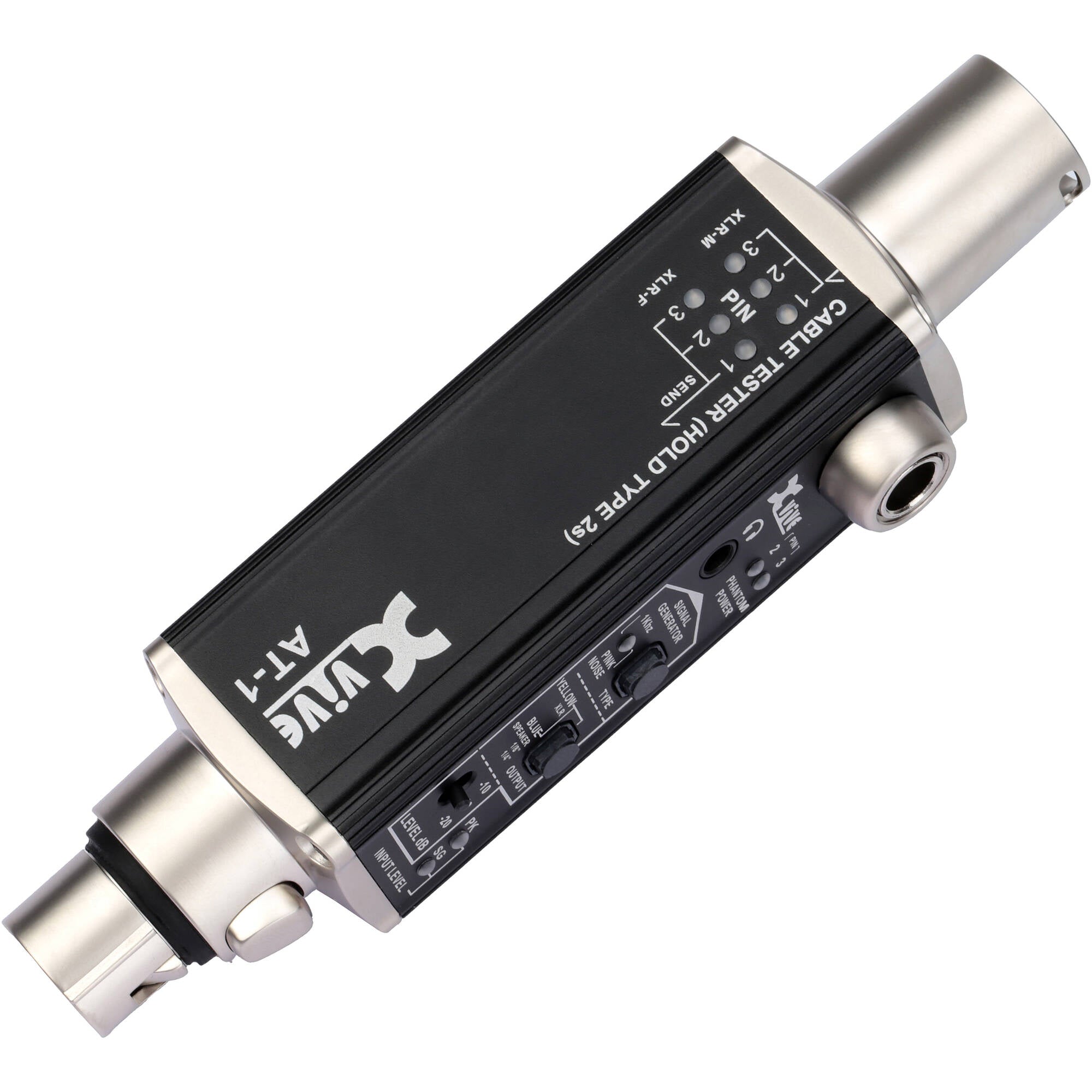

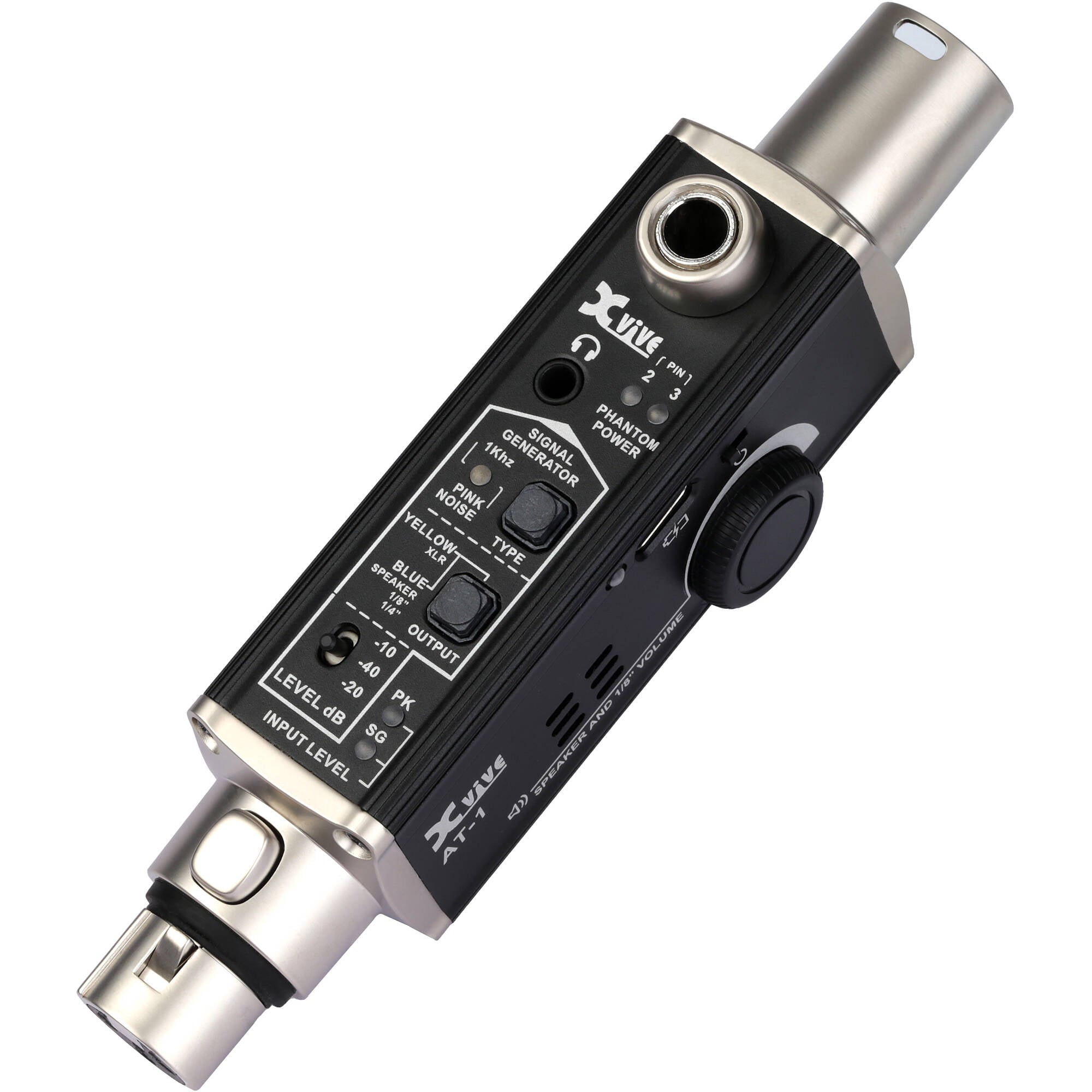

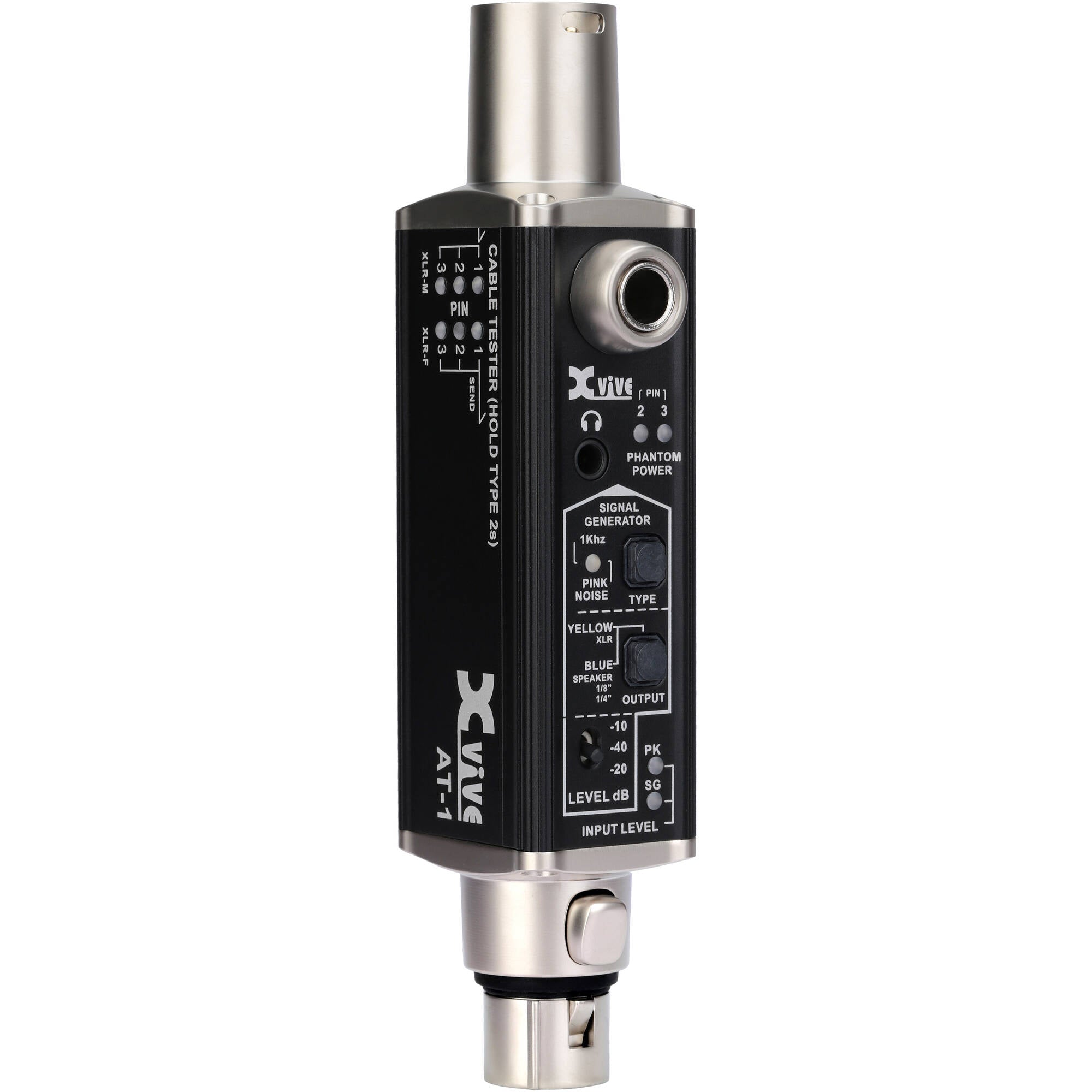

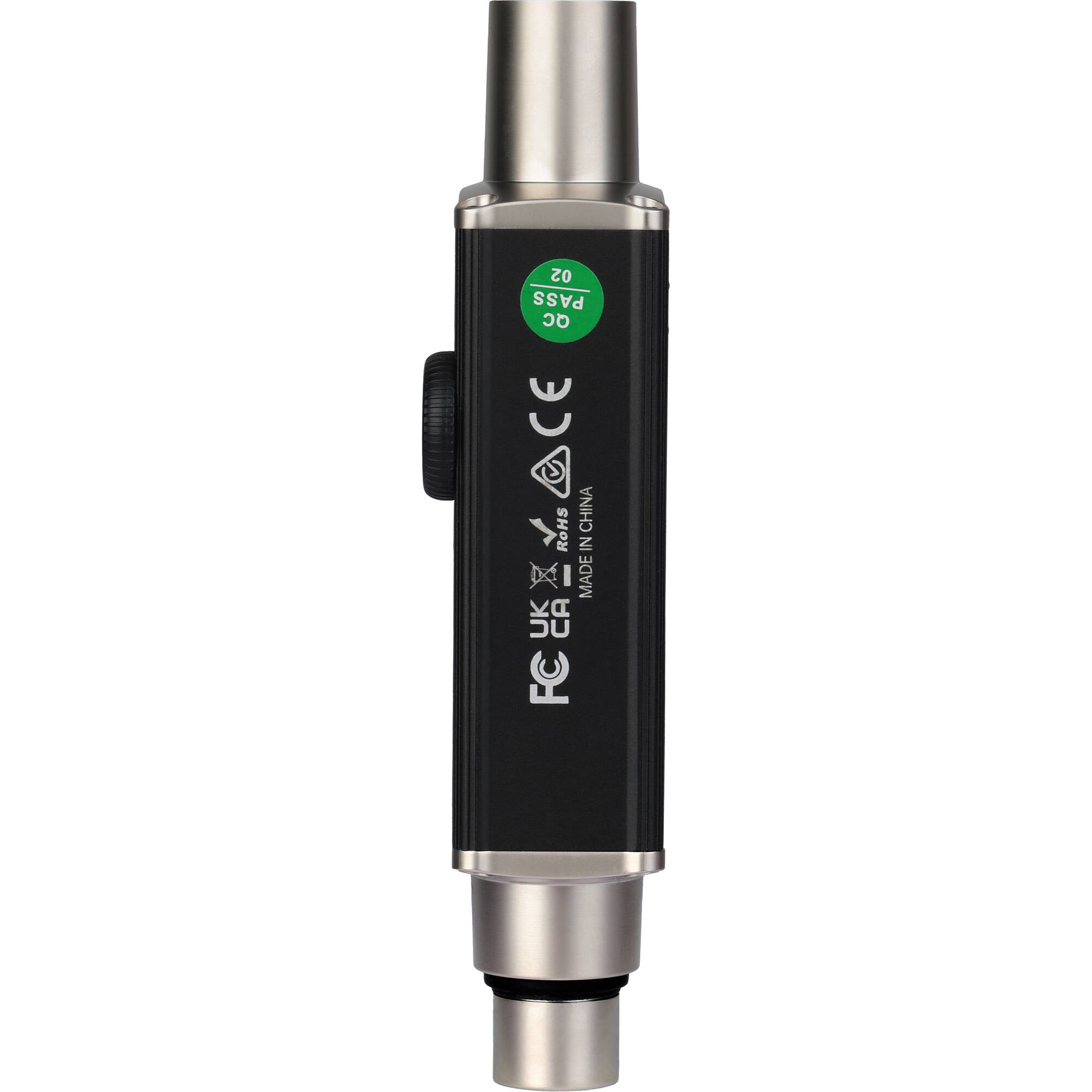

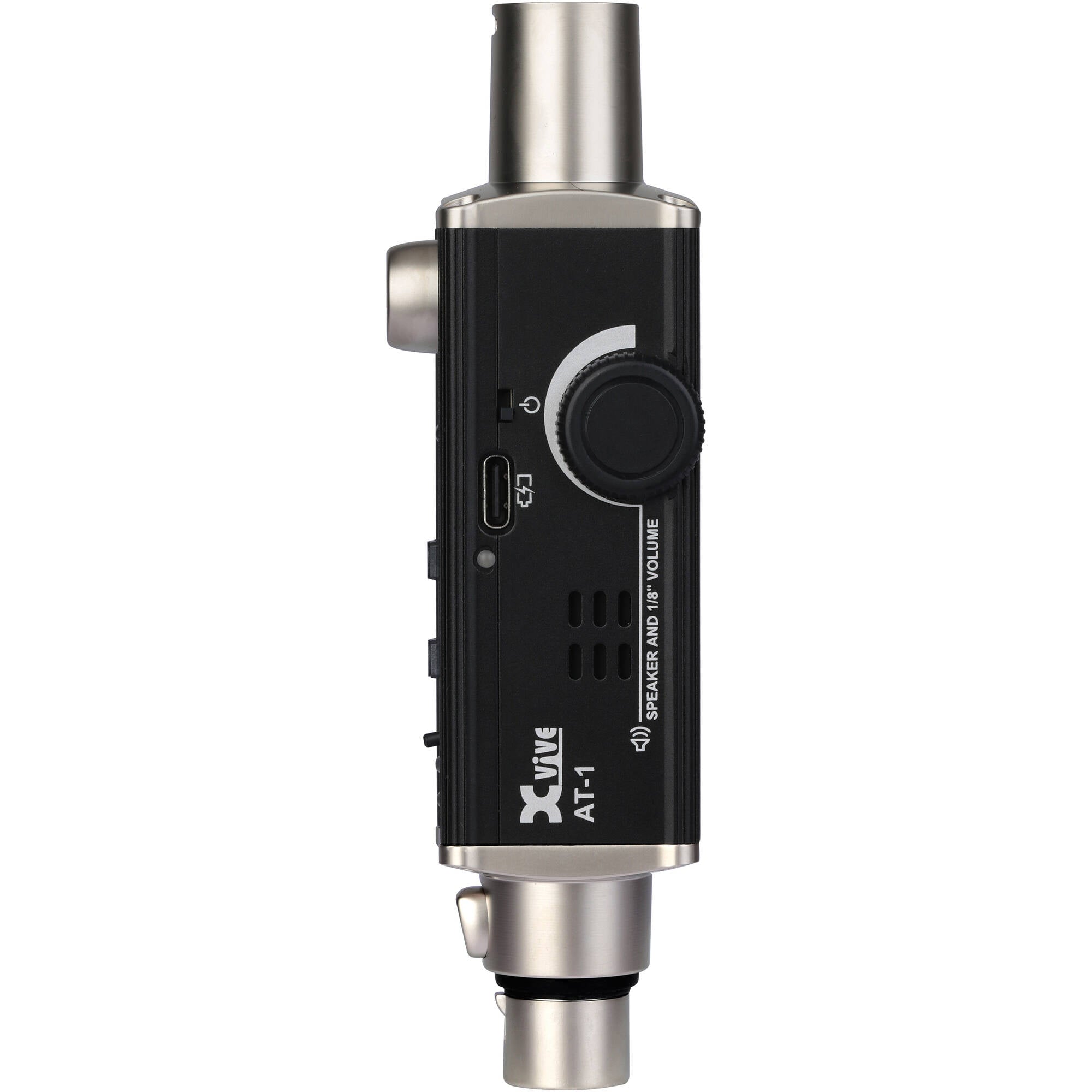

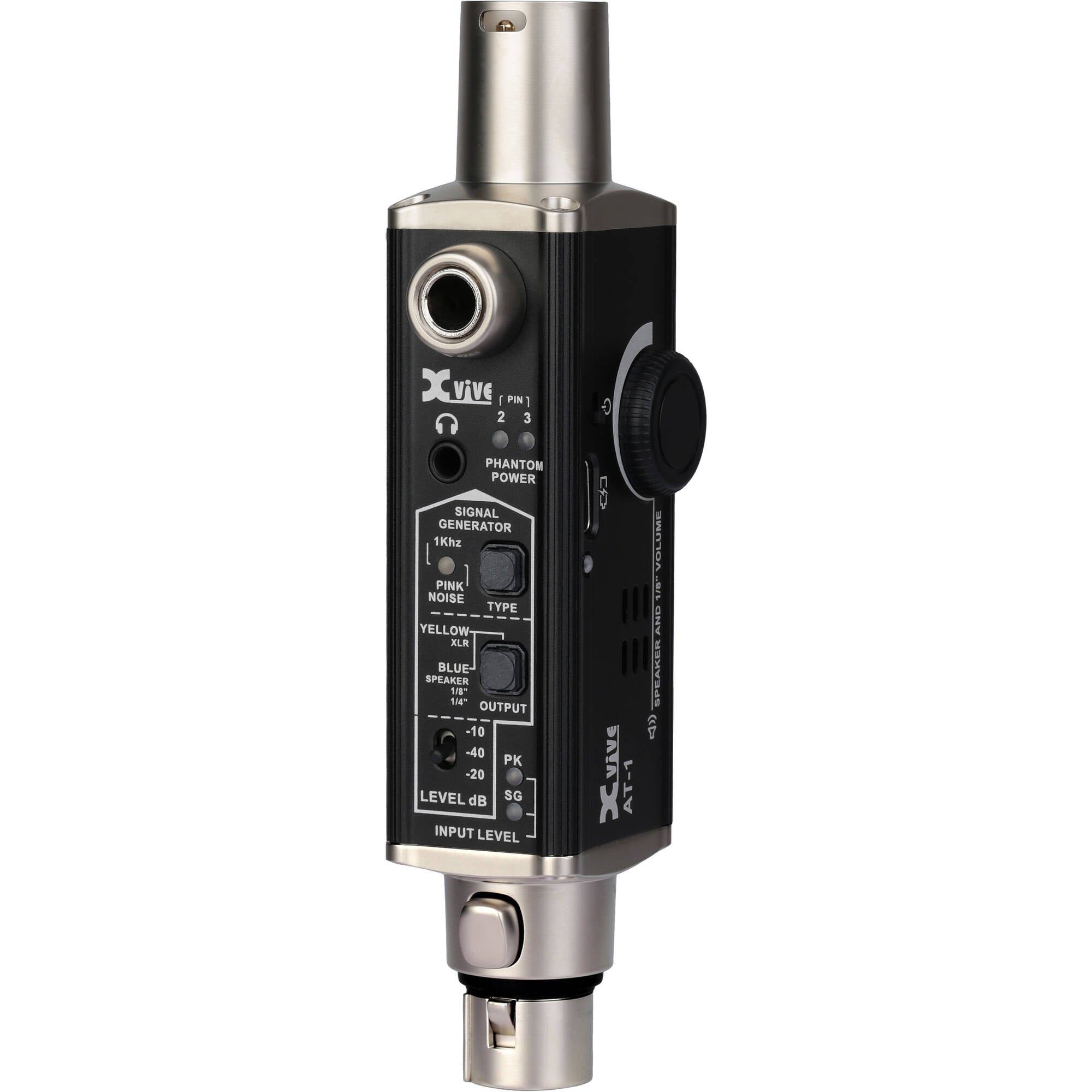

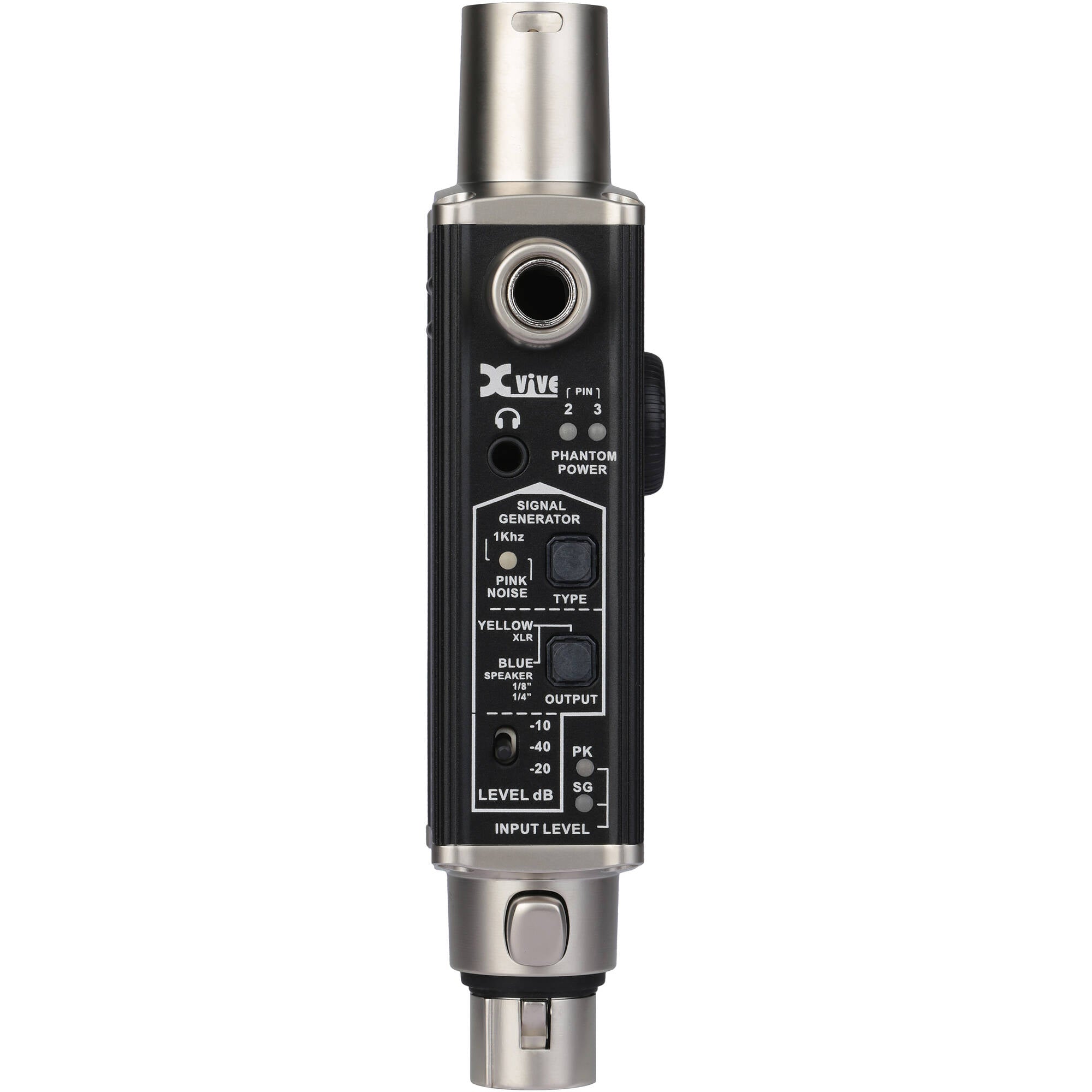

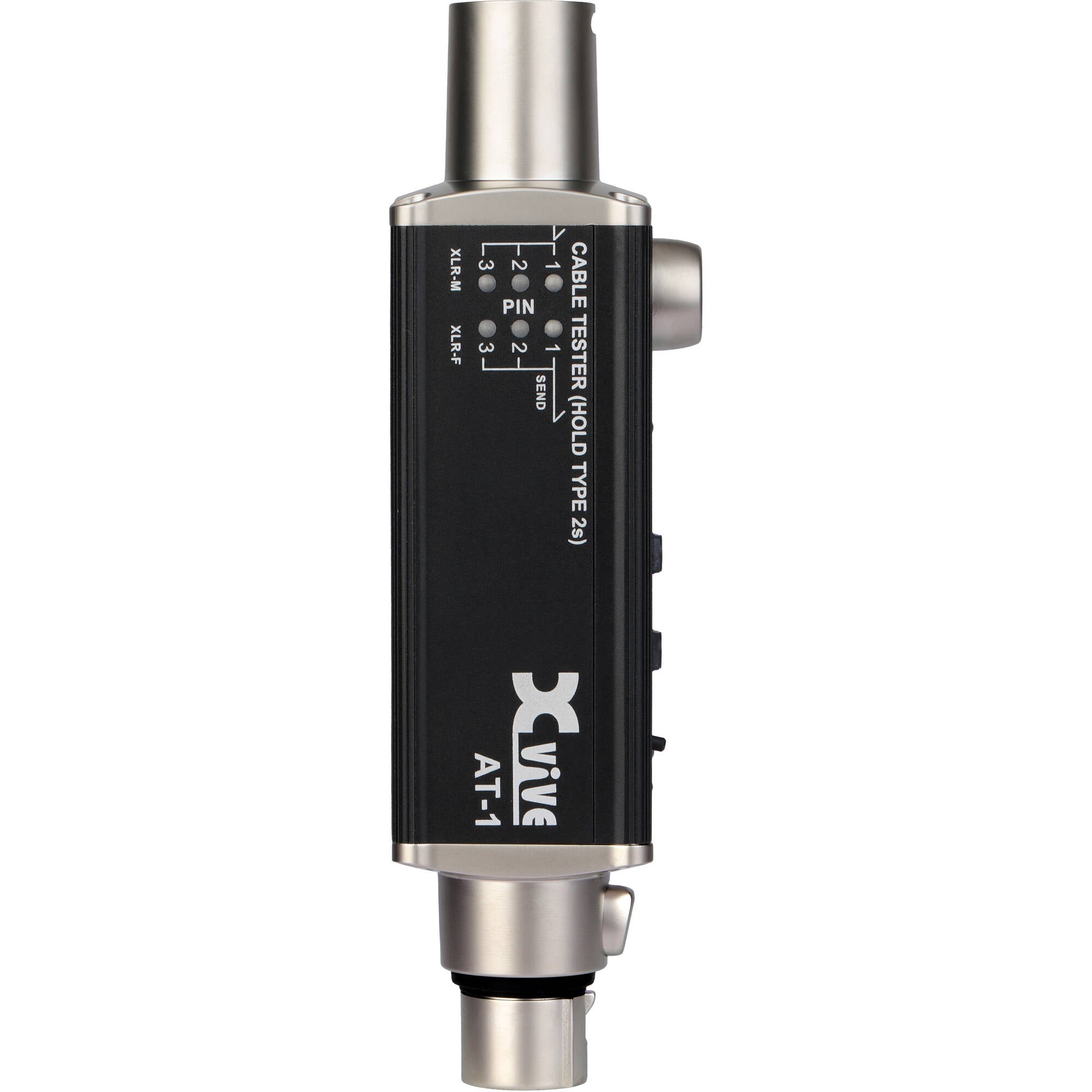

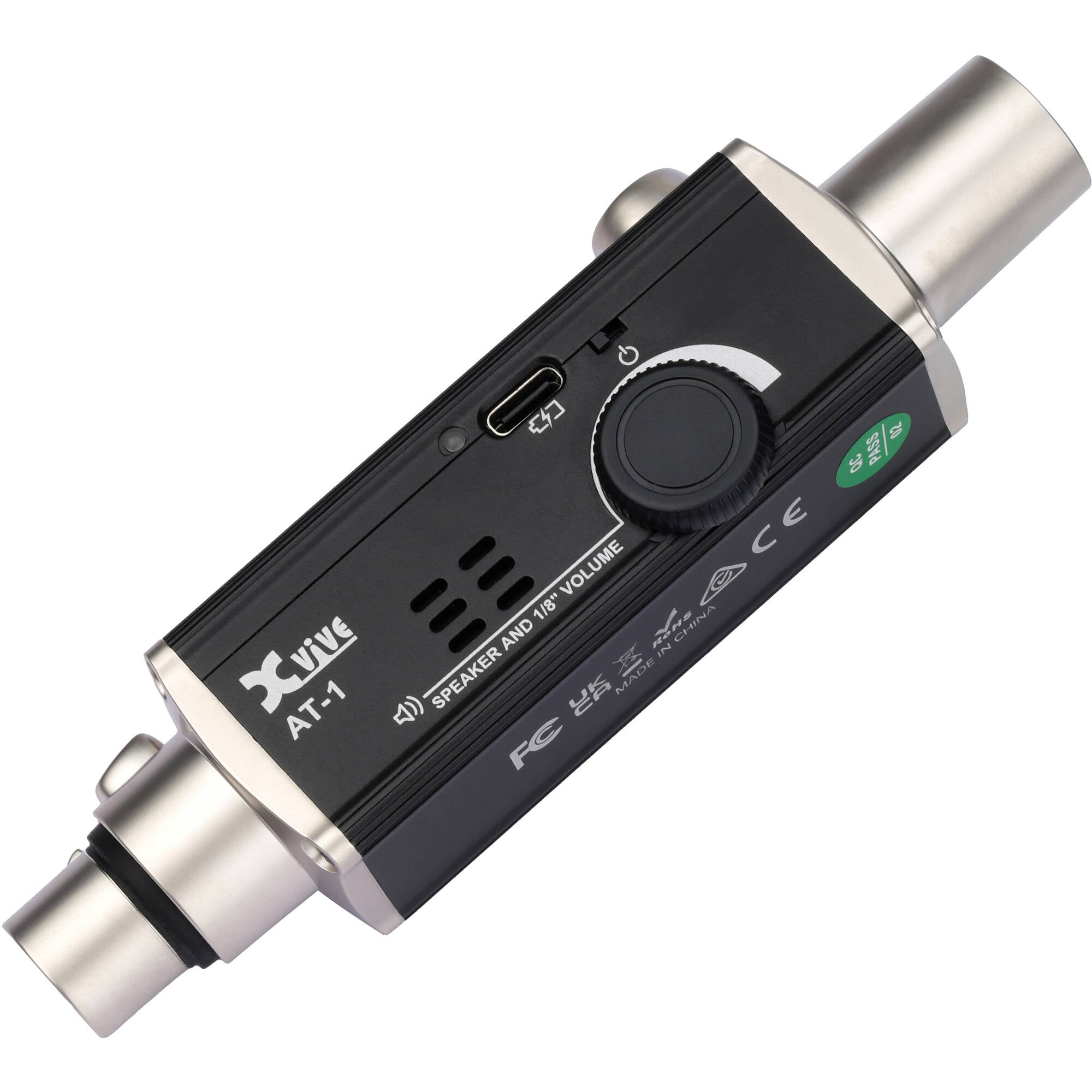

Xvive Audio AT-1 Portable Audio Tester

This feature-packed, compact utility ensures that your cables and gear are always up to the gig!

Signal Generator
Outputs a 1 kHz sine wave or pink noise audio signal through XLR male, 1/4", and 1/8" connectors, with three output level options: -10 dB, -20 dB, and -40 dB.

XLR Cable Tester
Tests whether all three pins of the XLR cable are functioning properly.

XLR Input Metering
Measures the input volume level of the XLR female connector.

Phantom Power Check
Tests the output voltage of the phantom power and ensures both pins are functioning properly.

Headphone and Speaker Monitoring
When an audio source is connected to the XLR female / 1/4" input, you can monitor the signal with headphones or speakers via the 1/8" headphone jack.

ALSO INCLUDED
A 1/4" male to 1/4" male adapter, and a USB-C charging cable

CHECK THE CASE
AT-1 comes with a protective carry case, with a belt clip-super-handy for audio technicians on the gig!

Features:

• Signal Generator emits 1 kHz tones or pink noise audio signals
• XLR Cable Tester for detecting whether XLR cables are damaged
• XLR Input Metering to measure the strength of XLR input signals
• Phantom Power Check to test voltage and ensure normal operation
• Headphone and Speaker Monitoring to check input signals
• Suitable for testing powered PA speakers, effect pedals, cables, DI boxes, IEM systems, mixers, and other audio equipment

Specifications:

• 1 KHZ TONE GENERATOR (±1 DB):
  XLR BALANCED JACK: -40, -20, -10 dBu
  1/4" UNBALANCED JACK: -40, -20, -10 dBu
• PINK NOISE GENERATOR (±1 DB):
  XLR BALANCED JACK: -40, -20, -10 dBu
  1/4" UNBALANCED JACK: -40, -20, -10 dBu
• INPUT METER 'SG' THRESHOLD:
  XLR BALANCED JACK: -20 dBu
  1/4" UNBALANCED JACK: n/a
• INPUT METER 'PK' THRESHOLD:
  XLR BALANCED JACK: +10 dBu
  1/4" UNBALANCED JACK: n/a
• OUTPUT IMPEDANCE:
  XLR BALANCED JACK: 350 Ω
  1/4" UNBALANCED JACK: 600 Ω
• INPUT IMPEDANCE:
  XLR BALANCED JACK: 3 kΩ
  1/4" UNBALANCED JACK: 600 Ω / 3.5 kΩ
• PHANTOM POWER VOLTAGE:
  XLR BALANCED JACK: solid: 44 - 52 V; flashing: 24 - 44 V
  1/4" UNBALANCED JACK: n/a
• CABLE TESTER DC VOLTAGE:
  XLR BALANCED JACK: 3.3 V
  1/4" UNBALANCED JACK: n/a
