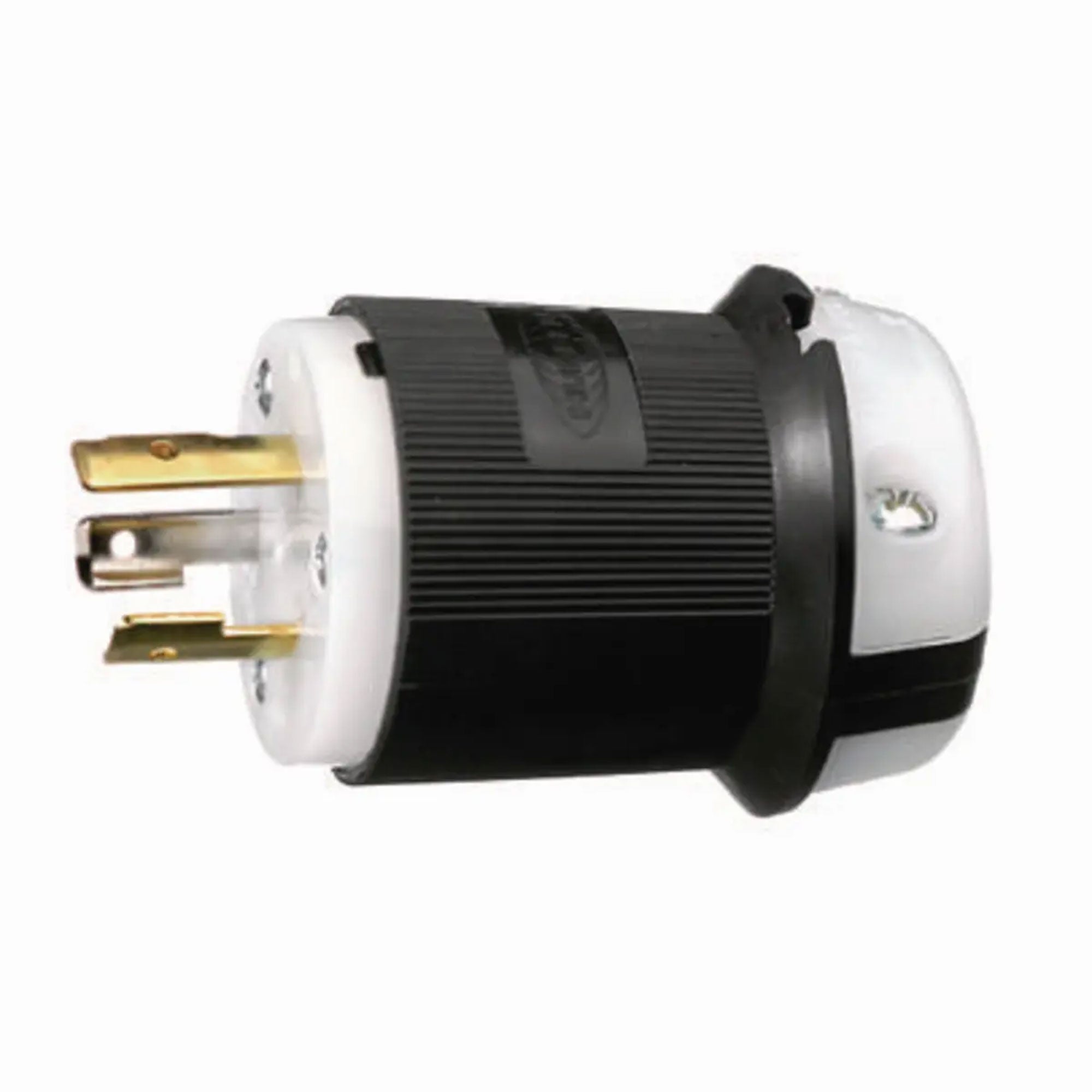

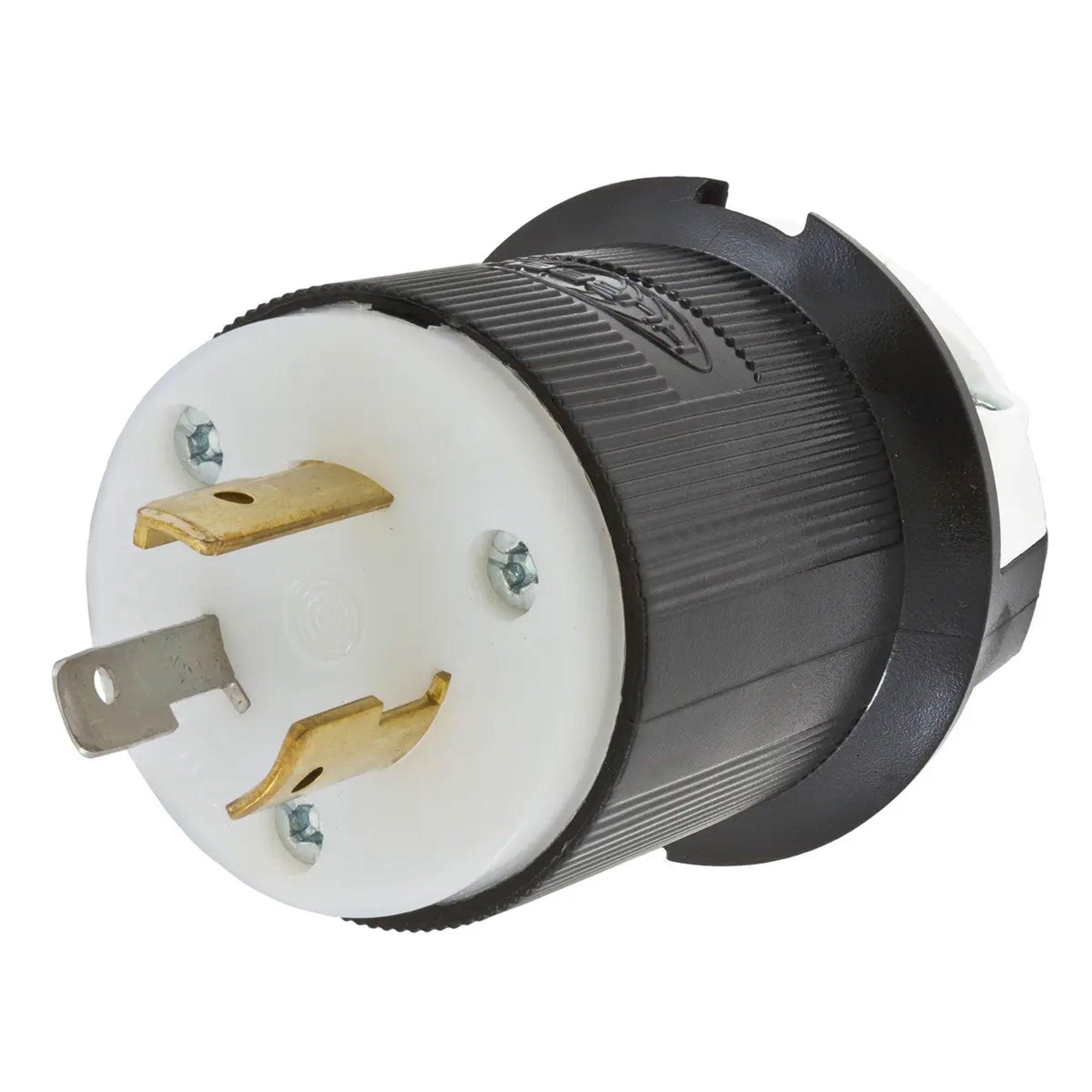

Whirlwind Hubbell HBL2311 Twist-Lock Nema L5-20P Inline Male AC Electrical Power Connector

Locking Devices, Twist-Lock, Industrial, Male Insulgrip Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black and White Nylon.

Locking Devices, Twist-Lock, Industrial, Male Insulgrip Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black and White Nylon. Ribbed nylon housing provides a secure grip and impact and chemical resistance. Superior cord grip design protects terminations from excess strain. Clear, funnel shaped wire entry for ease of termination. Integral dust shield protects wiring chamber from dust or contaminants.

Features:

• Improved Terminations Include No. 10 Multiple Drive Screws and Thicker 0.080 in. Clamping Nuts
• Self-Threading Screws Specially Designed For Secure Assembly
• Wiring Chambers Separate and Positively Insulate Conductors and Promote Easy Inspection
• Integral Dust Shield Protects Wiring Chamber From Dust or Contaminants. Single-Piece Shield/Housing Eliminates Need For Separate Step at Installation
• Funneled Holes to Permit Straight-In Conductor Insertion
• Materials: Nylon
• Grade: Industrial
• Series: Twist-Lock

Specifications:

• General
• Cord Range: 0.360"-0.930" (9-24)
• Horsepower - Maximum: 1
• Item Type: 20A Male Insulgrip Plug
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  Environmental - Moisture Resistance - IP20 Suitability
  Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Plugs
• UPC: 783585037707
• Dimensions
• Dimensions: 2.26 in x 2.26 in x 2.75 in
• Display Size: Standard Sized
• Height: 2.75 in
• Length: 2.26 in
• Weight: 0.25 lb
• Width: 2.26 in
• Electrical Ratings
• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 VAC
• Conductor Related
• Cable Range: 0.360 - 0.930 in
• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Nema Rating: L5-20P
• Logistics
• Carton Quantity: 30
