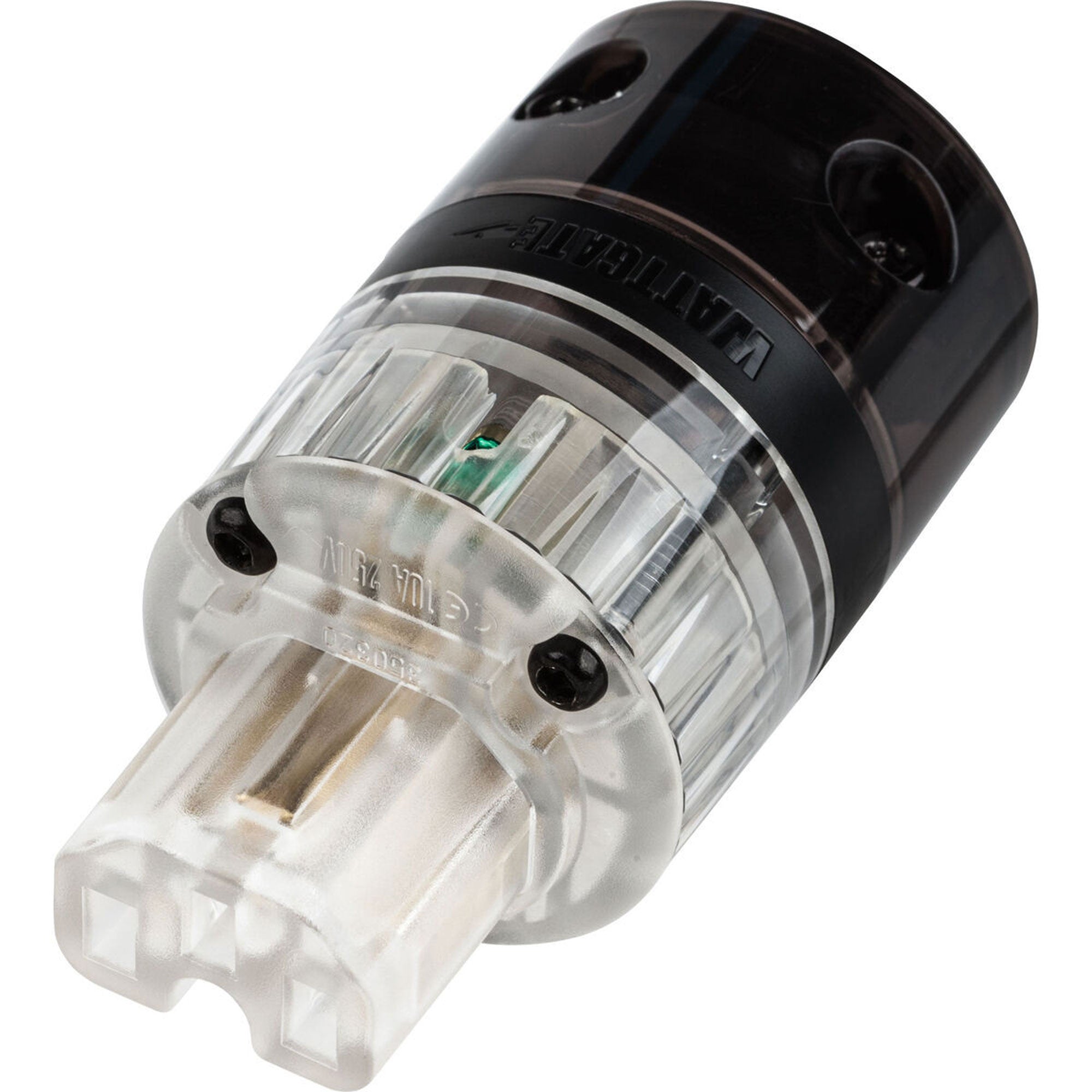

Wattgate 320 evo IEC AC Power Connector (Clear/Smoke)

320 evo Standard IEC Connector with WattLock terminals - Clear/Smoke

The WattLock terminals lock in wire gauges from 8 to 14 so you can be confident that heat or vibrations will not dislodge your connections. This connector accepts cable diameters up to 19 mm. The Cryo treatment Wattgate employs means you get maximum AC transfer for premium sonic benefits to both audio and video equipment.

Construction of the connector body is all polycarbonate and uses all non-magnetic materials to reduce interference. These plugs are rated 125 VAC, 15 amp. Housing dimensions: 2.2" L x 1.5" D. Overall dimensions: 2.97" L x 1.5" D.

Features:

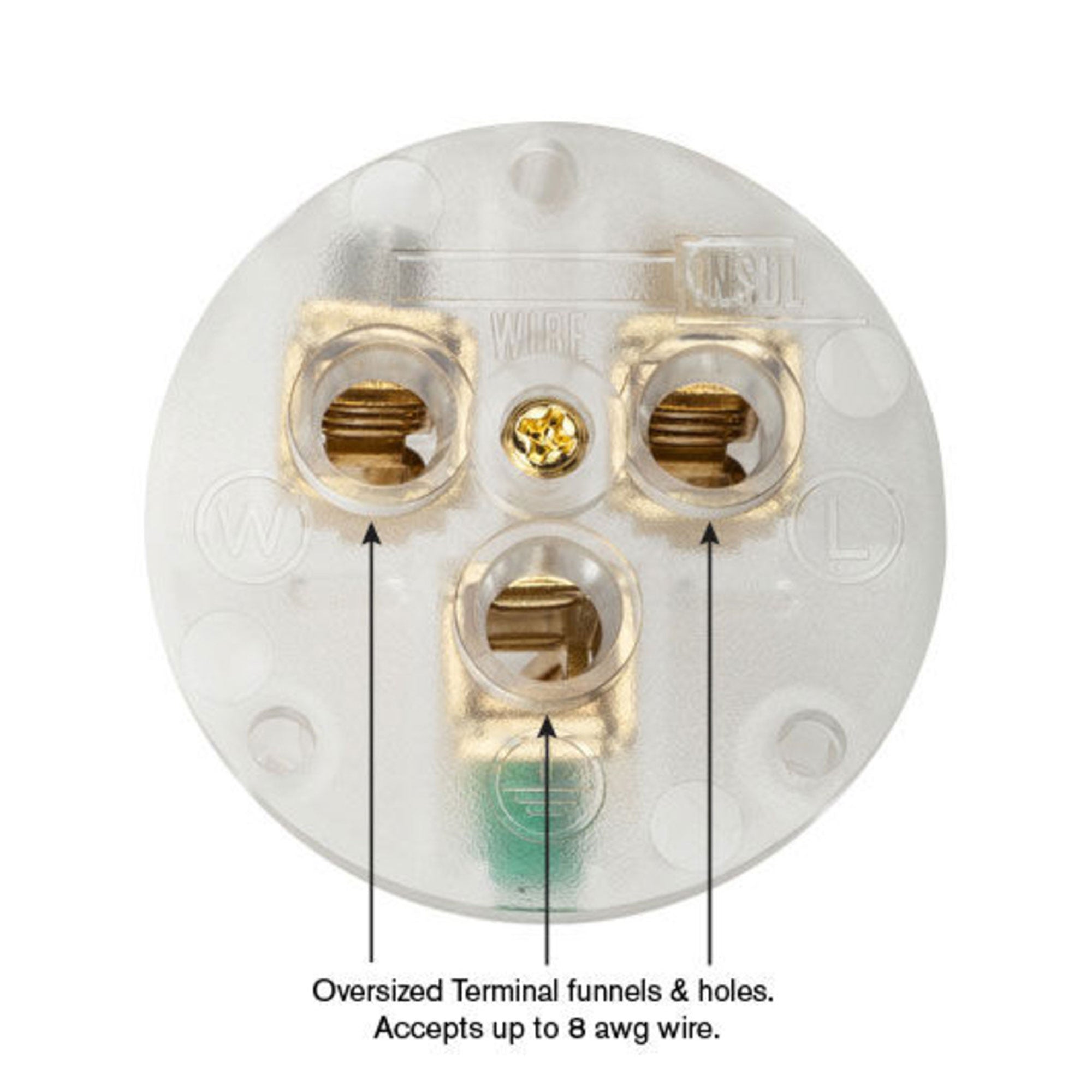

• Accepts 8 to 14 AWG wire
• Use cable with a diameter up to 19 mm
• WattLock terminals for heavy duty wire capture
• Polycarbonate design with all non-magnetic materials

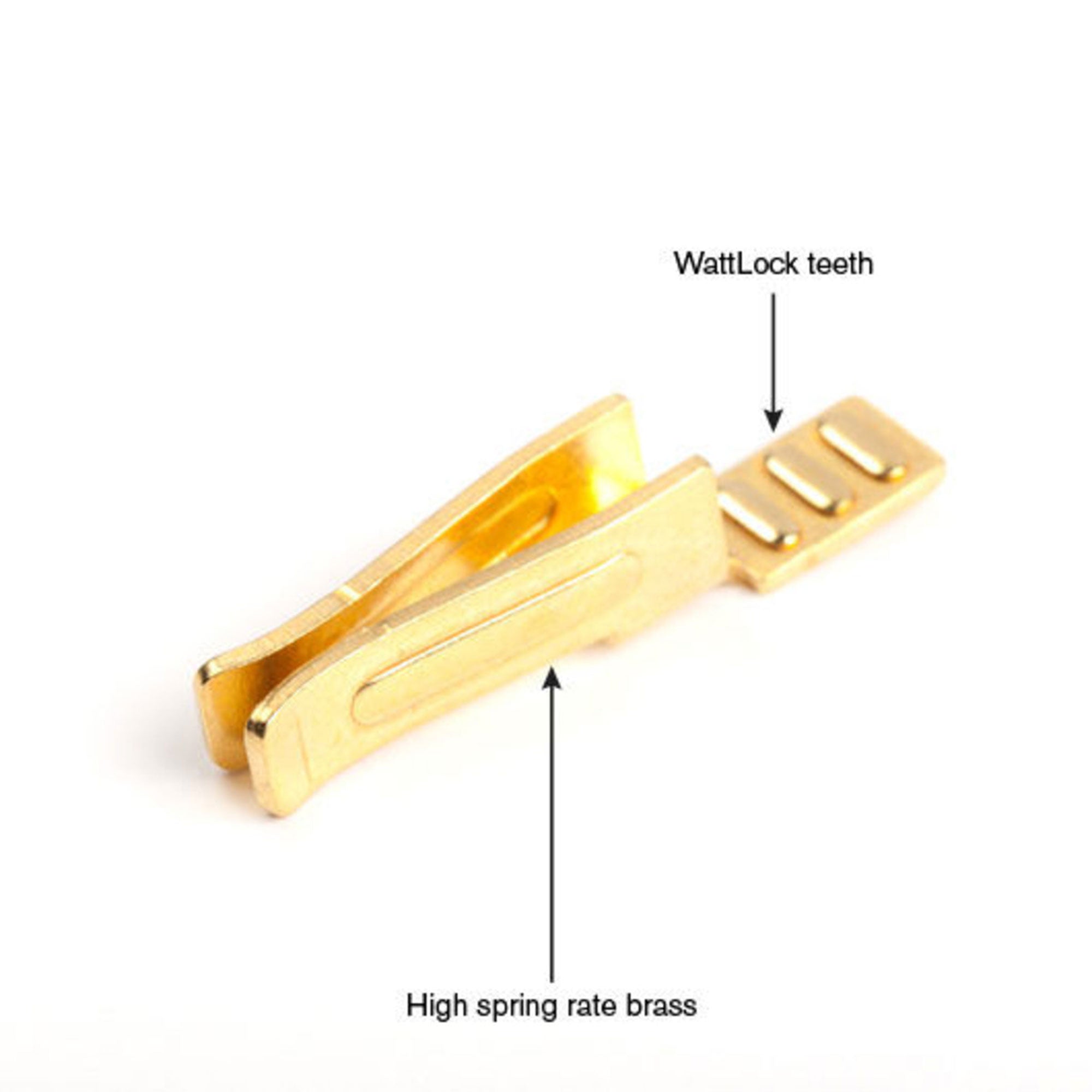

• High spring rate brass contacts
• 2.5 mm hex socket hardware holds individual wires tightly

Specifications:

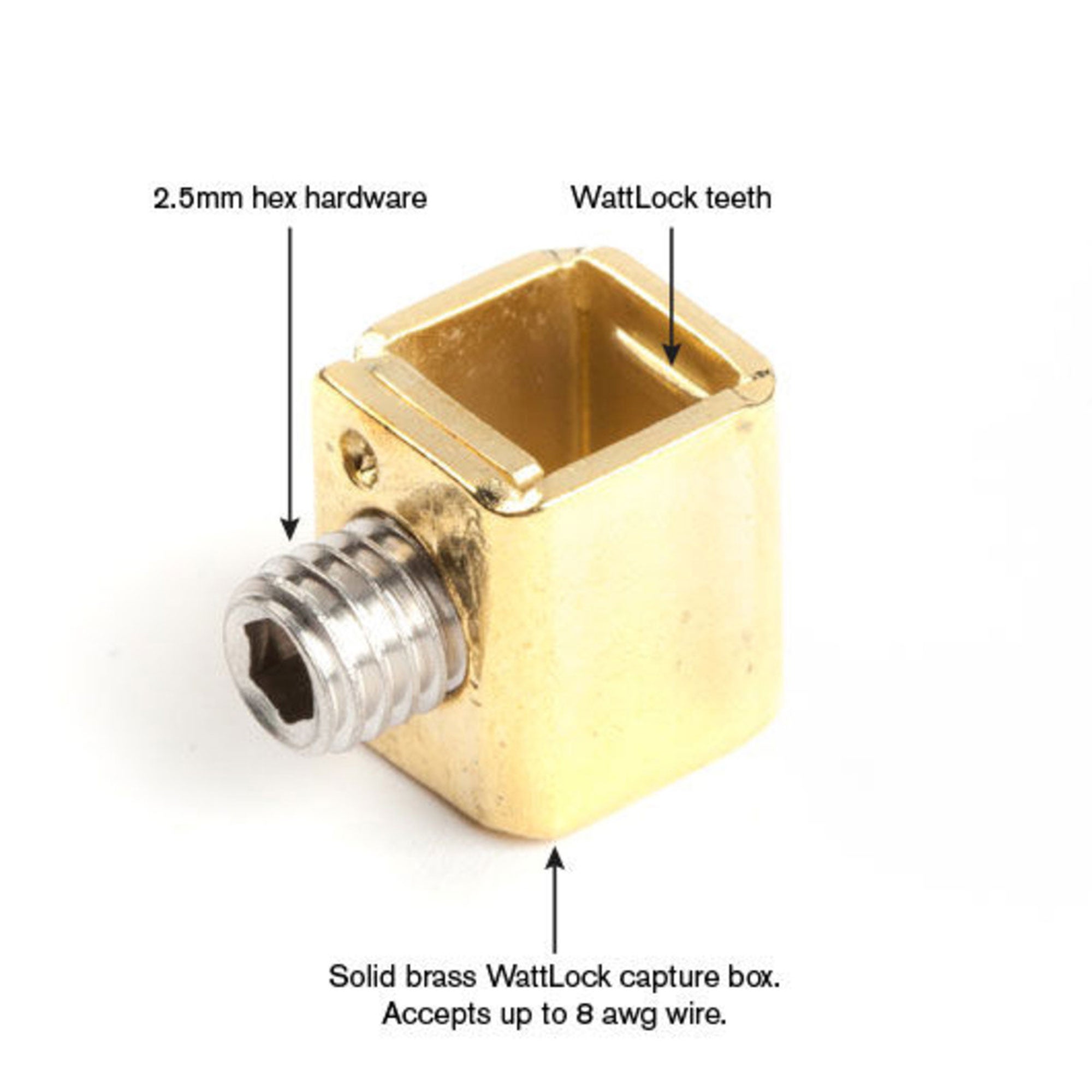

• WattLock terminals - Heavy duty wire capture box
• Accepts 8 to 14 awg wire
• Accepts 19mm cable diameter
• 2.5mm Hex socket hardware
• All Polycarbonate design
• All non-magnetic materials
• High spring rate brass contacts
• 15A/125VAC
• 10A/250VAC
• 15A/250VAC
