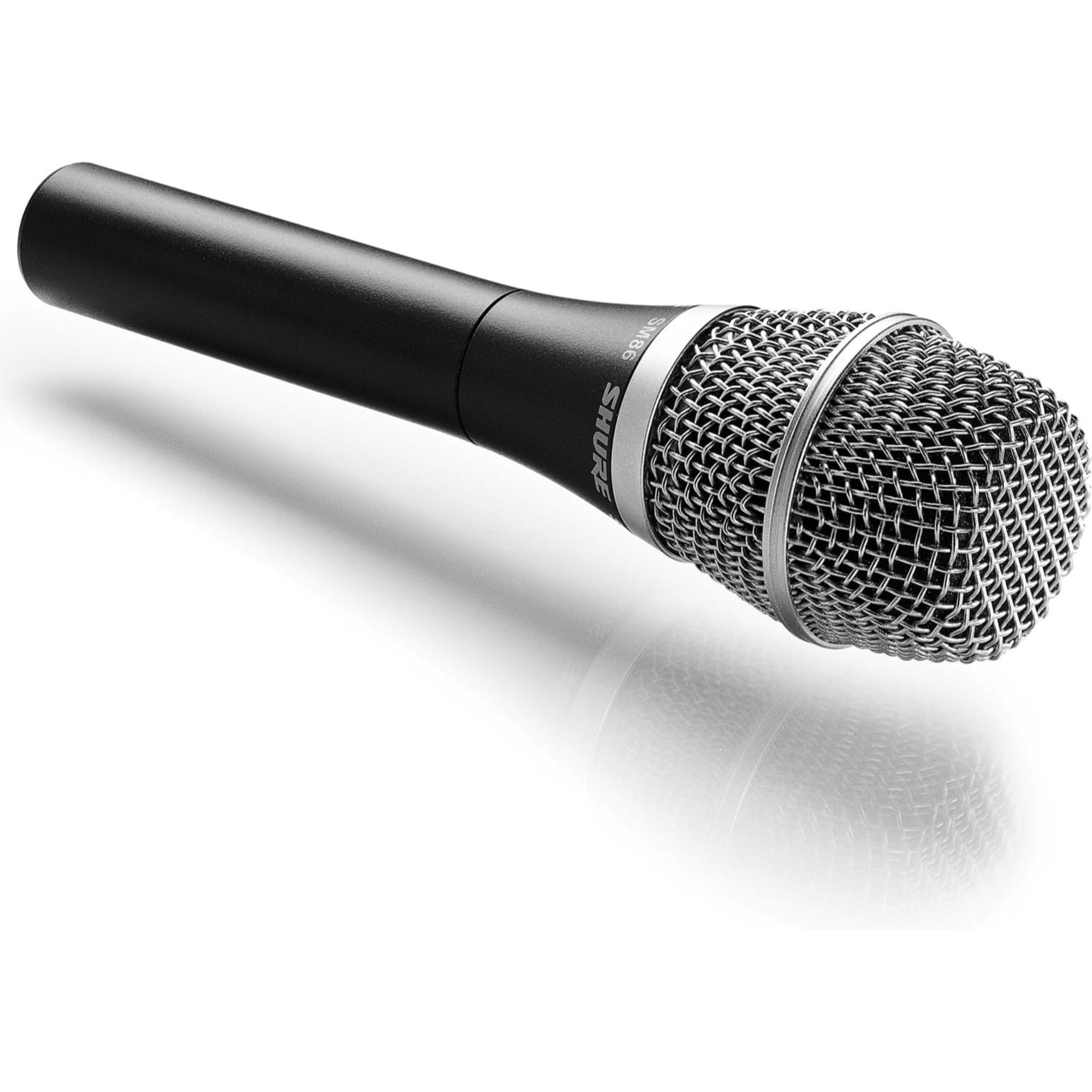

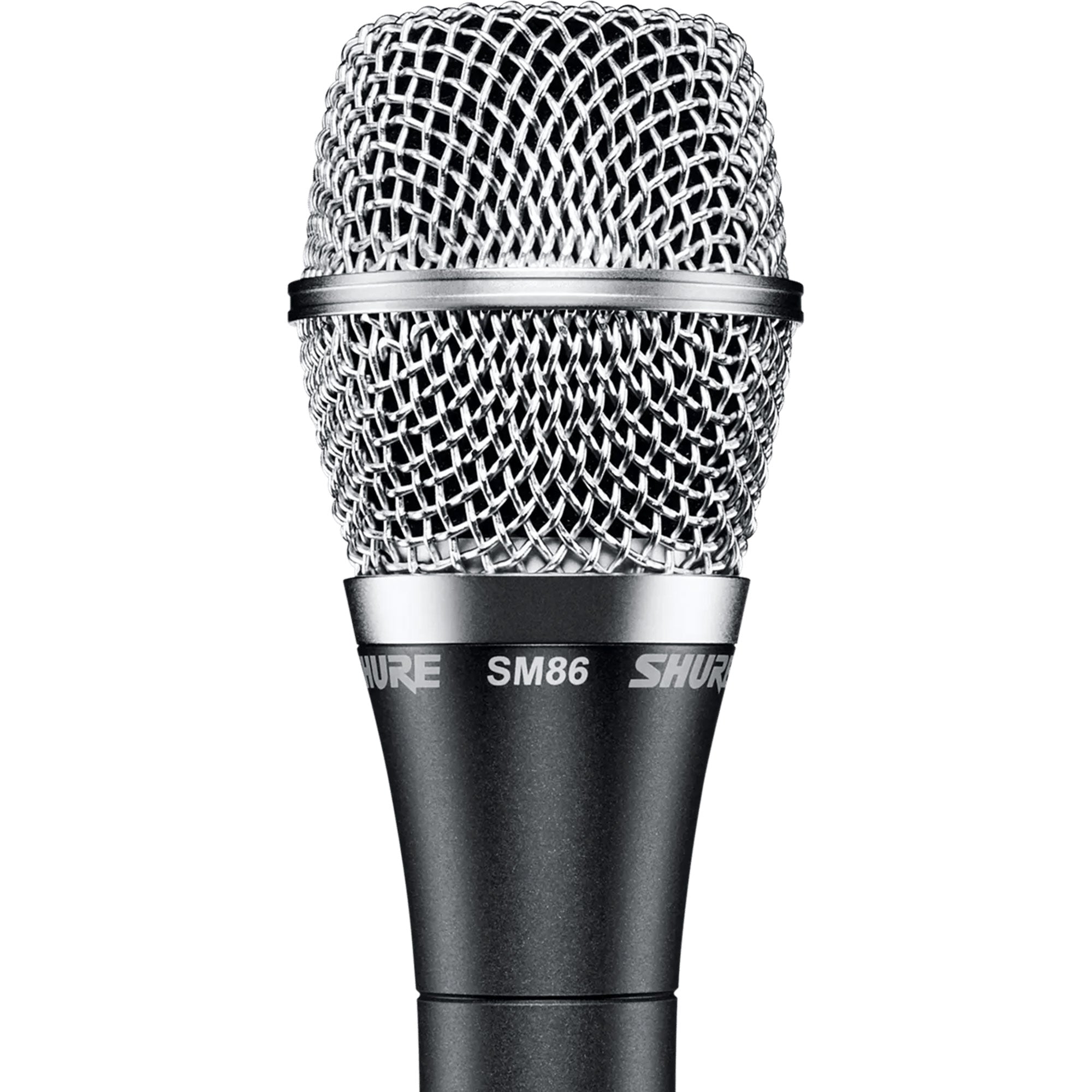

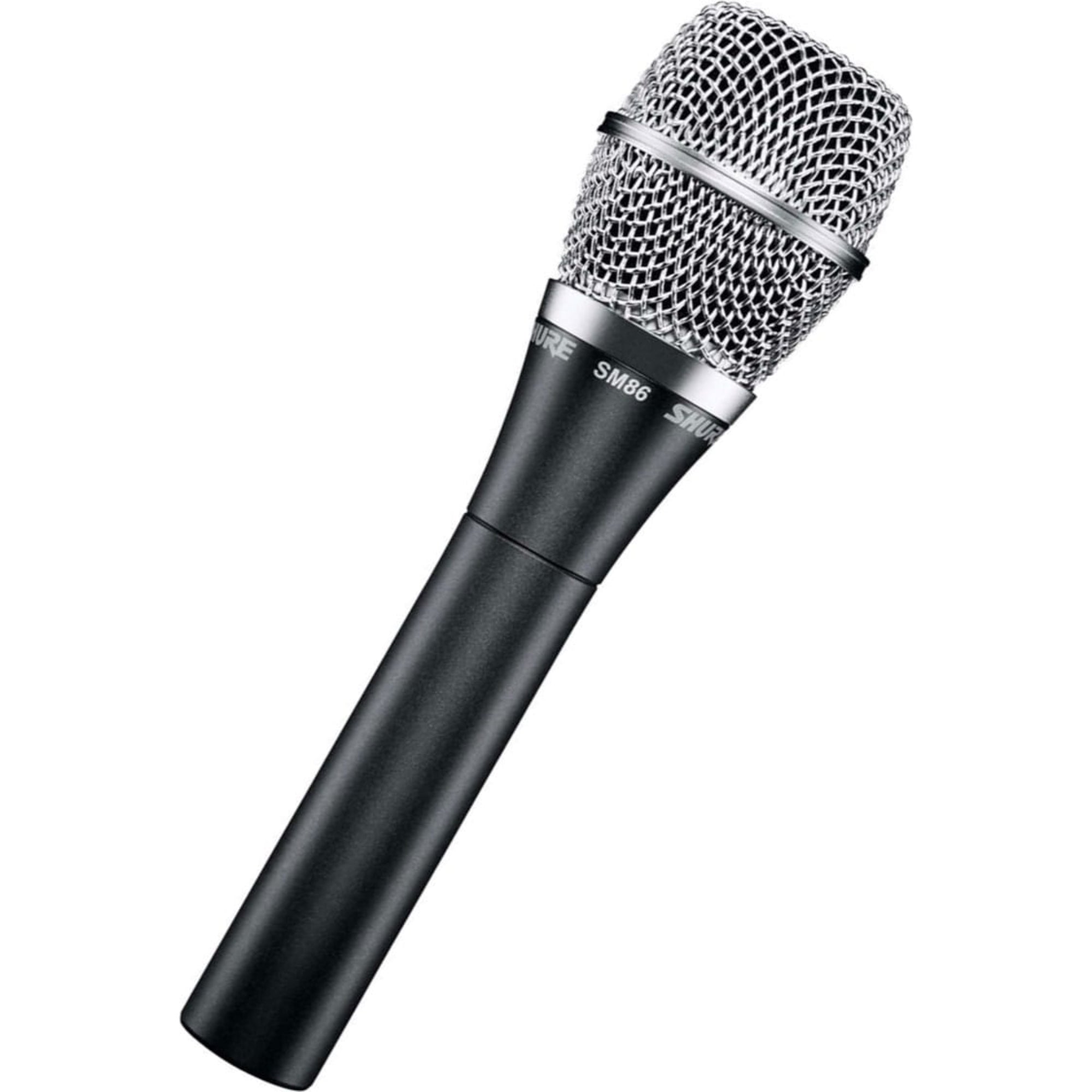

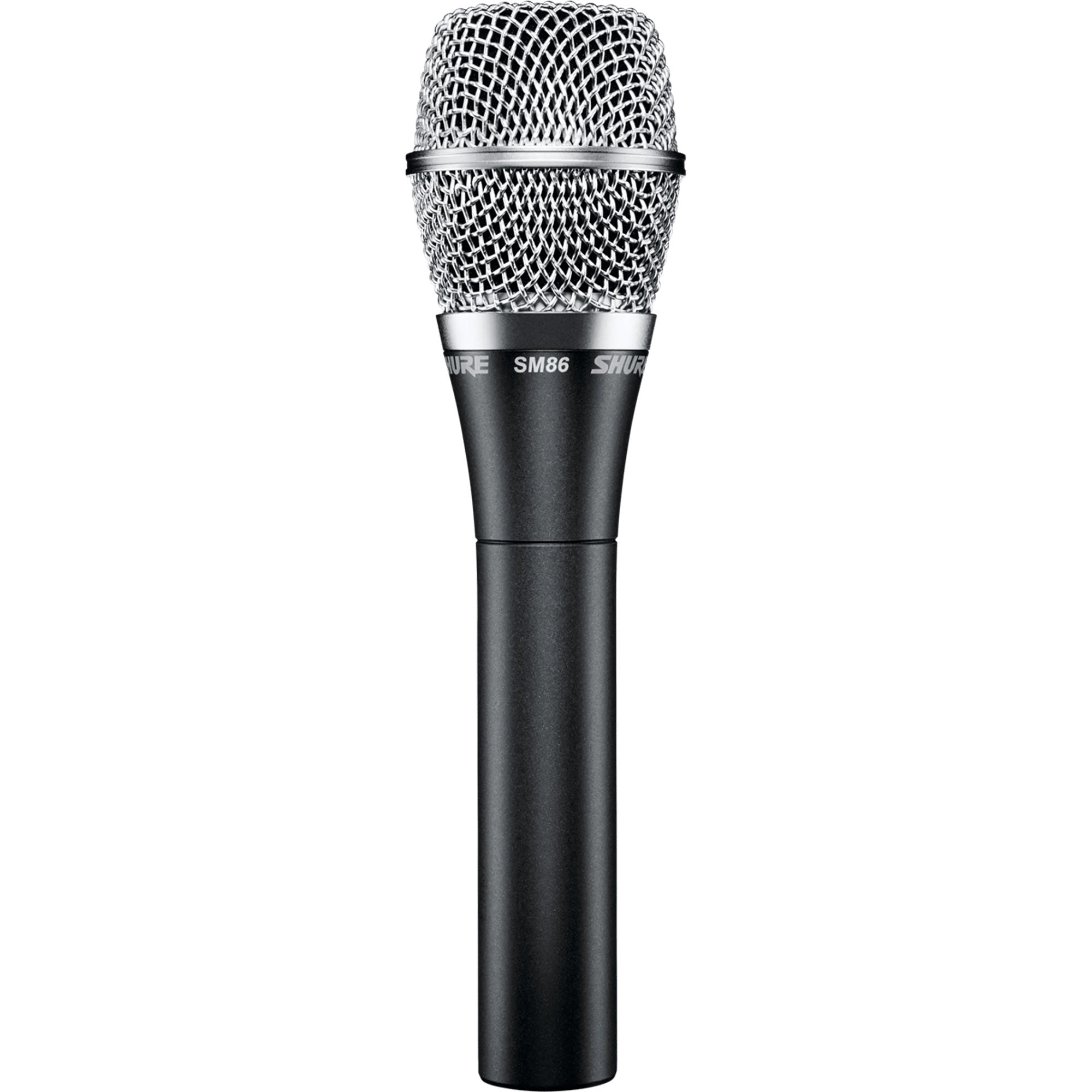

Shure SM86 Cardioid Condenser Vocal Microphone

Cardioid Condenser Handheld Vocal Microphone

Cardioid vocal microphone offers an extended high frequency response and rugged construction to withstand the rigors of touring. Features include a built-in 3-point shock mount to minimize handling noise and a 2-stage pop filter to reduce wind noise.

The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering a clear, studio-quality sound.

A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise.

Features:

• Condenser cartridge for studio quality sound
• Tailored frequency response for a clear reproduction of vocals
• Rugged construction withstands the rigors of touring sound
• Cardioid polar pattern minimizes unwanted background noise
• Excellent choice for stage monitors and personal monitors
• Built-in three-point shock mount minimizes handling noise
• Two-stage "pop" filter reduces wind and breath noise

Specifications:

• Transducer Type: Condenser (electret bias)
• Frequency Response: 50 to 18,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 150 Ohms at 1 kHz
  Recommended minimum load impedance: 600 Ohms
• Sensitivity (at 1,000 Hz): Open Circuit Voltage: -50 dBV/Pa (3.15 mV)
  (1 Pa = 94 dB SPL)
• Output Clipping Level: 1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
• Maximum SPL (at 1,000 Hz): 1000 ohm load (1% THD): 147 dB
• Self-Noise: 23 dB typical, A-weighted
• Dynamic Range (1000 ohms): 124 dB (maximum SPL to A-weighted noise level
• Signal-to-Noise Ratio: 71 dB at 94 dB SPL (IEC 651)*
  *S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
• Power: Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
  Current Drain: 5.2 mA
• Connector: Three-pin (XLR) professional audio
• Case: Dark gray enamel-painted steel with matte-finished silver colored steel grille
• Dimensions: See User Guide
• Net Weight: 278 grams (9.8 oz)
• Environmental Conditions:
  Operating: -18 degrees to 60 degrees C (0 degrees to 135 degrees F) (relative humidity >90%)
  Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F) (relative humidity >80%)
