Shure Beta 98AMP/C Miniature Cardioid Condenser Drum Microphone

Miniature Cardioid Condenser Microphone with XLR Preamp and A75M Universal Stand Adapter

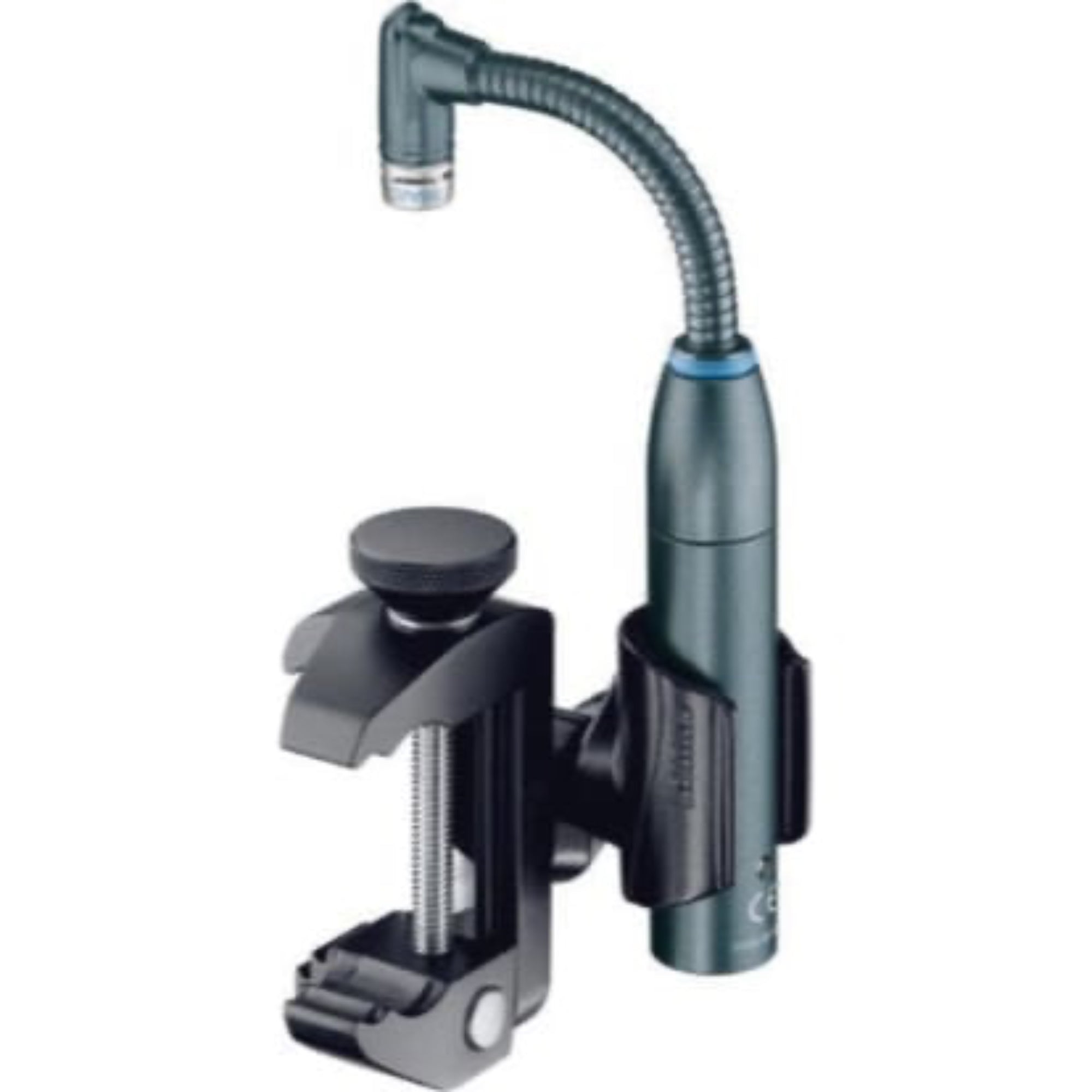

Instrumental microphone combines an integrated preamplifier with a miniature condenser capsule to provide a smooth response for percussion. It features a flexible gooseneck and the A75M microphone mount for secure placement in many configurations.

What is the Beta 98AMP/C best suited to?
This premium drum microphone is ideal for use with snares and toms.

What are the characteristics of the Beta 98AMP/C?
The Beta 98AMP/C provides a smooth and natural sound, and features an integrated XLR preamplifier with a flexible gooseneck.

What is the difference between the Beta 98AMP/C and the other versions of the Beta 98?
The Beta 98AMP/C is a cardioid condenser instrument microphone and comes complete with an integrated preamplifier and the A75M universal drum mount. None of the other versions of the Beta 98 contain an integrated preamplifier. The Beta 98AMP/C has a wider dynamic range with a SPL level 7dB higher than Beta 98AD/C and the Beta 98A/C. The Beta 98AD/C is for the same applications and instead contains an A98D drum mount which features a flexible gooseneck.

Please note - any Beta drum microphone featuring the letter 'A' following the model number contains a new capsule and as a result you can expect a more natural high frequency response.

Features:

• Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
• Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
• Precision-engineered design for unobtrusive microphone footprint
• Beta 98A models ship with external in-line preamplifier for discrete cable placement, snap-fit windscreen, and zipper pouch
• Beta 98AD/C ships with A98D drum mount featuring a flexible gooseneck for precise placement and secure attachment
• Beta 98A/C ships with RK282 shock mount swivel adapter for attachment to any standard microphone stand

Specifications:

• Type: Electret Condenser
• Frequency Response: 20 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 179 Ohms
• Sensitivity (at 1 kHz, open circuit voltage): -48.0 dBV/Pa (4.0 mV)
• Maximum SPL (1 kHz at 1% THD): 1000 Ohm load: 144 dB
• Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 64 dB
• S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
• Dynamic Range (at 1 kHz): 1000 Ohm load: 114 dB
• Common Mode Rejection (20 Hz to 20 kHz): > 50 dB
• Clipping Level (1 kHz at 0.25% THD): 1000 Ohm load: 1.0 dBV (1.26 V)
• THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL
• Self-Noise (typical, equivalent SPL, A-weighted): 30 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: Net: 12 g (0.6 oz.)
• Connector: Three-pin professional audio (XLR), male, balanced
• Power Requirements: 11-52 Vdc phantom, 3.6 mA
