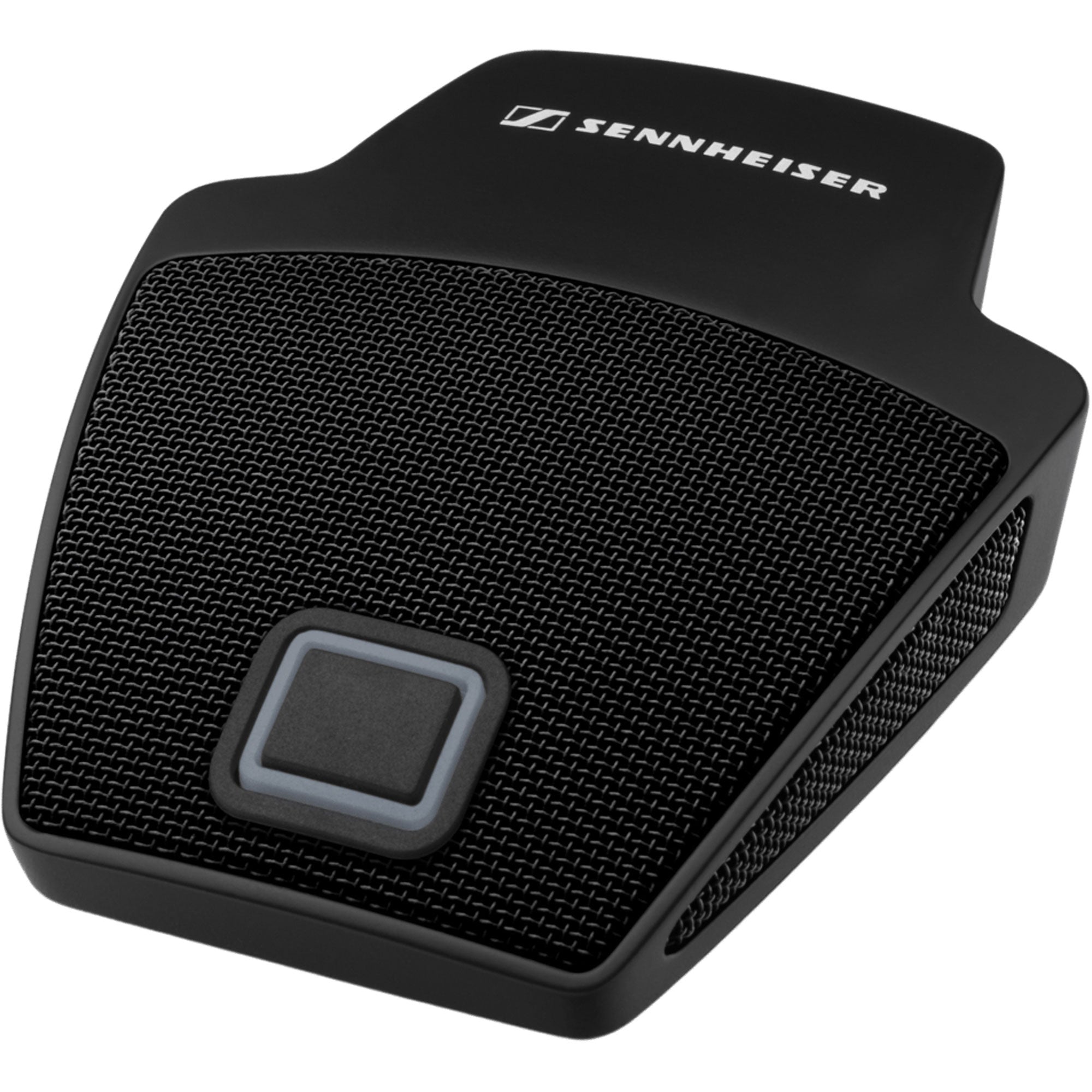

Sennheiser MEB114-S Cardioid Boundary Microphone (Black)

Speechline Table Cardioid Boundary Microphone with Programmable Button (On, On/Off, PTT, PTM) and TTL Logic - Black

Wired table boundary microphone with half-cardioid pickup pattern. Thanks to its sturdy housing and high-quality microphone capsule, the MEB-S 114 guarantees optimum speech intelligibility. The MEB 114-S has a programmable microphone button (PTT, PTM, Toggle on/off, Permanent on) and a two-color LED ring as a status indicator. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black and white color.

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its -S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Microphone modes
Toggle On/Off
Push to mute
Push to talk
Permanent On (external LED control)

Specifications:

• Dimensions: 3.34 x 3.93 x 0.98 in (W x D x H)
• Connector: Clip contact, trigger signal at the logic connector: Logic in (LED control), Ground, Logic out (switch signal)
• Frequency response: 40 Hz - 20 kHz
• Max. sound pressure level: 140 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 10.26 oz
• Pick-up pattern: cardioid
• Nominal impedance: 200 Ohm
• Phantom powering: P 24 - P 48
• Operating temperature: 14 ° to 122 ° F
• Equivalent noise level: 29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 39 dB (CCIR)
• Current consumption: 5.3 mA
• Output voltage:
  Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V
  Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
• Acoustics: boundary layer microphone
• Colour: LED light ring: Red / Green
• Dynamic range: 111 dB (A)
• Sensitivity: 10 mV/Pa

Includes:

• MEB 114 Microphone
• Cable
• Quick guide
