Sennheiser EW-D ASA Active Antenna Splitter (470-706 MHz)

Active Antenna Splitter with Power Supply and 8x BNC Interconnect Cables for Evolution Wireless Digital Systems

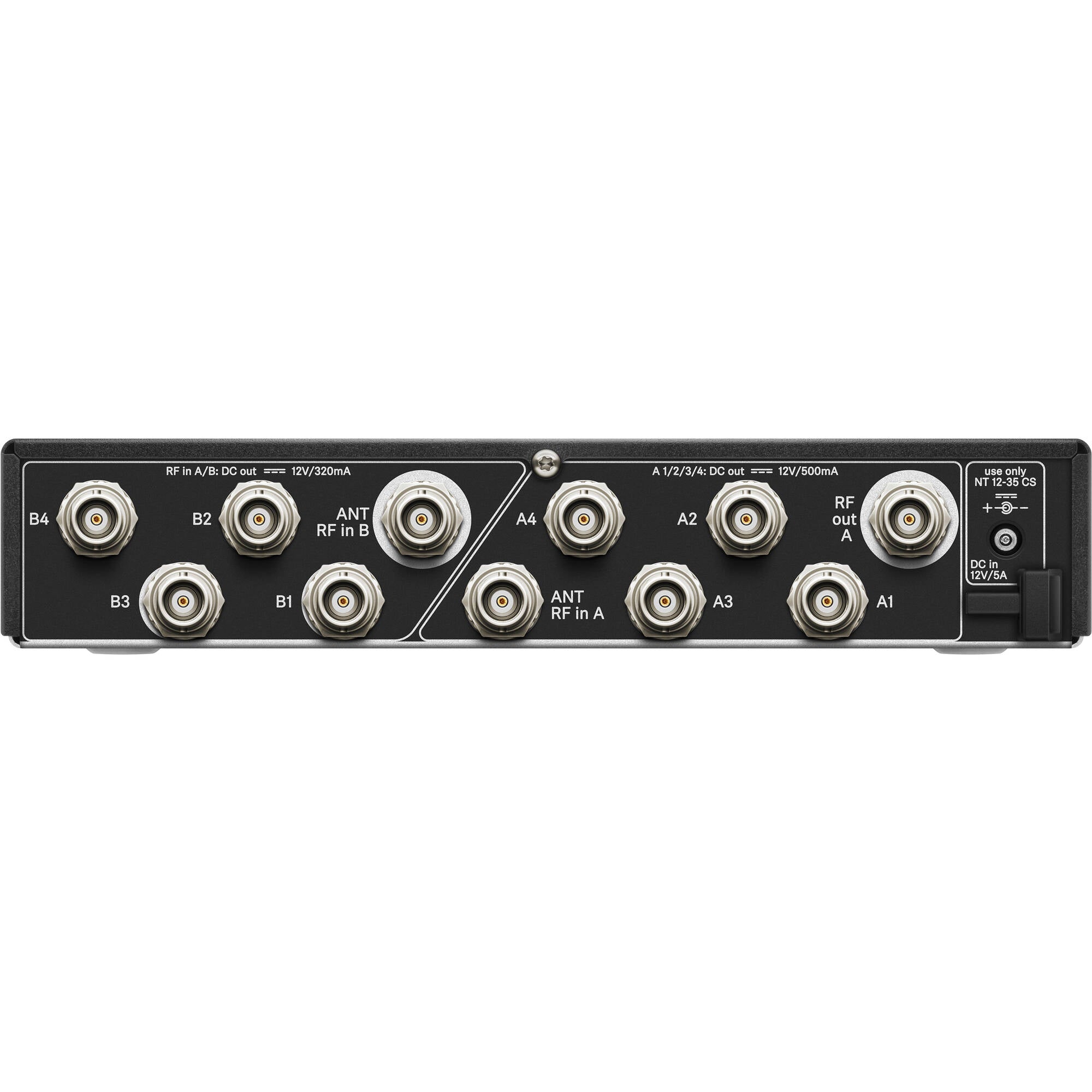

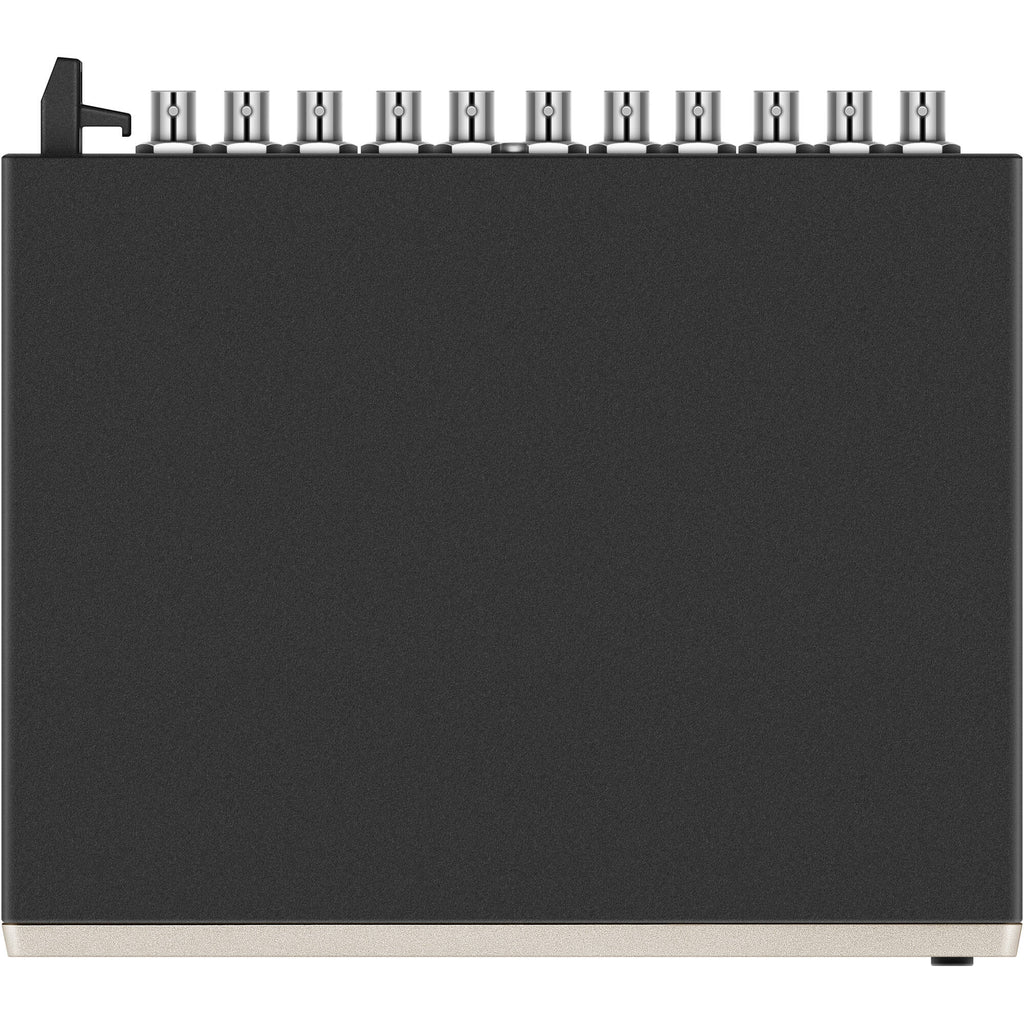

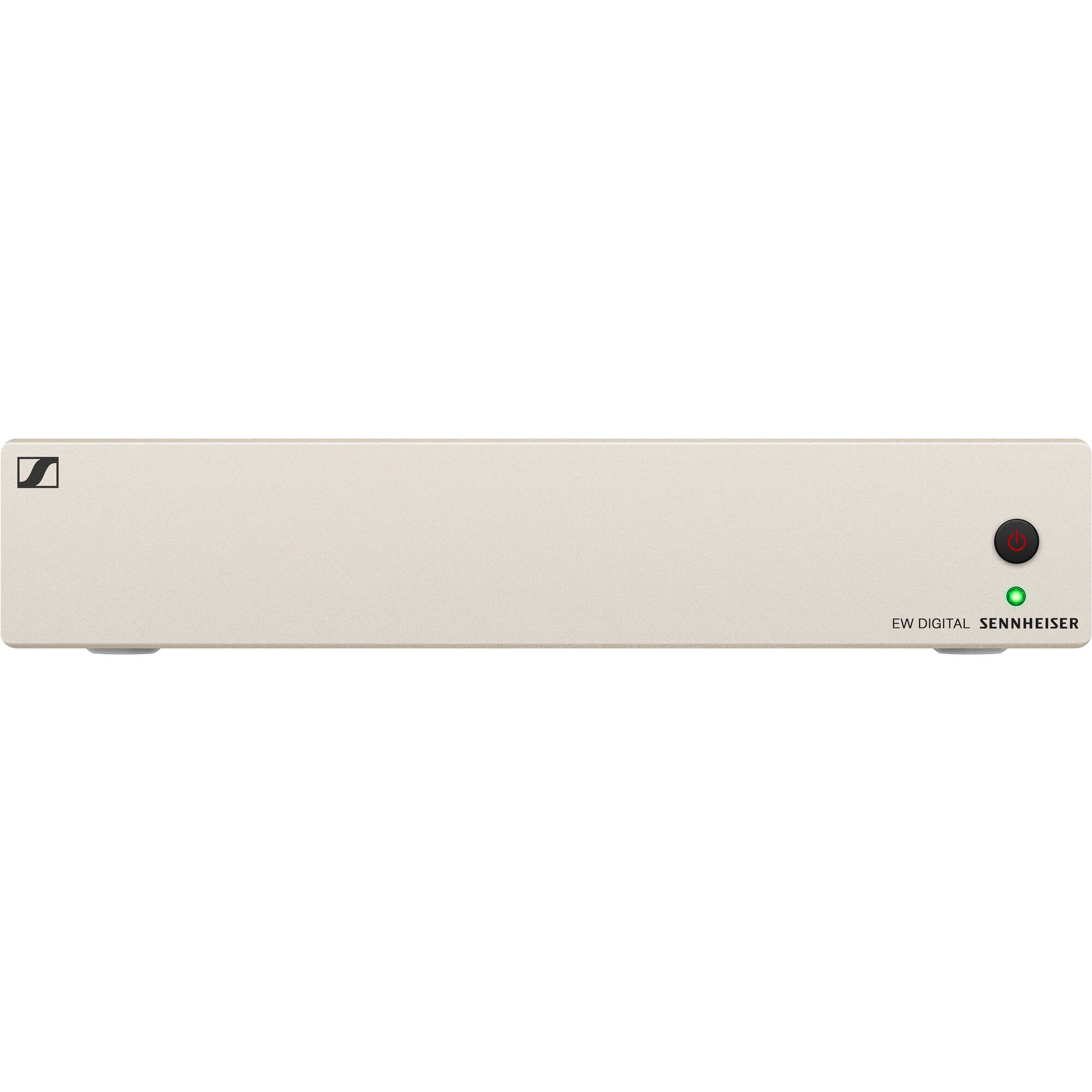

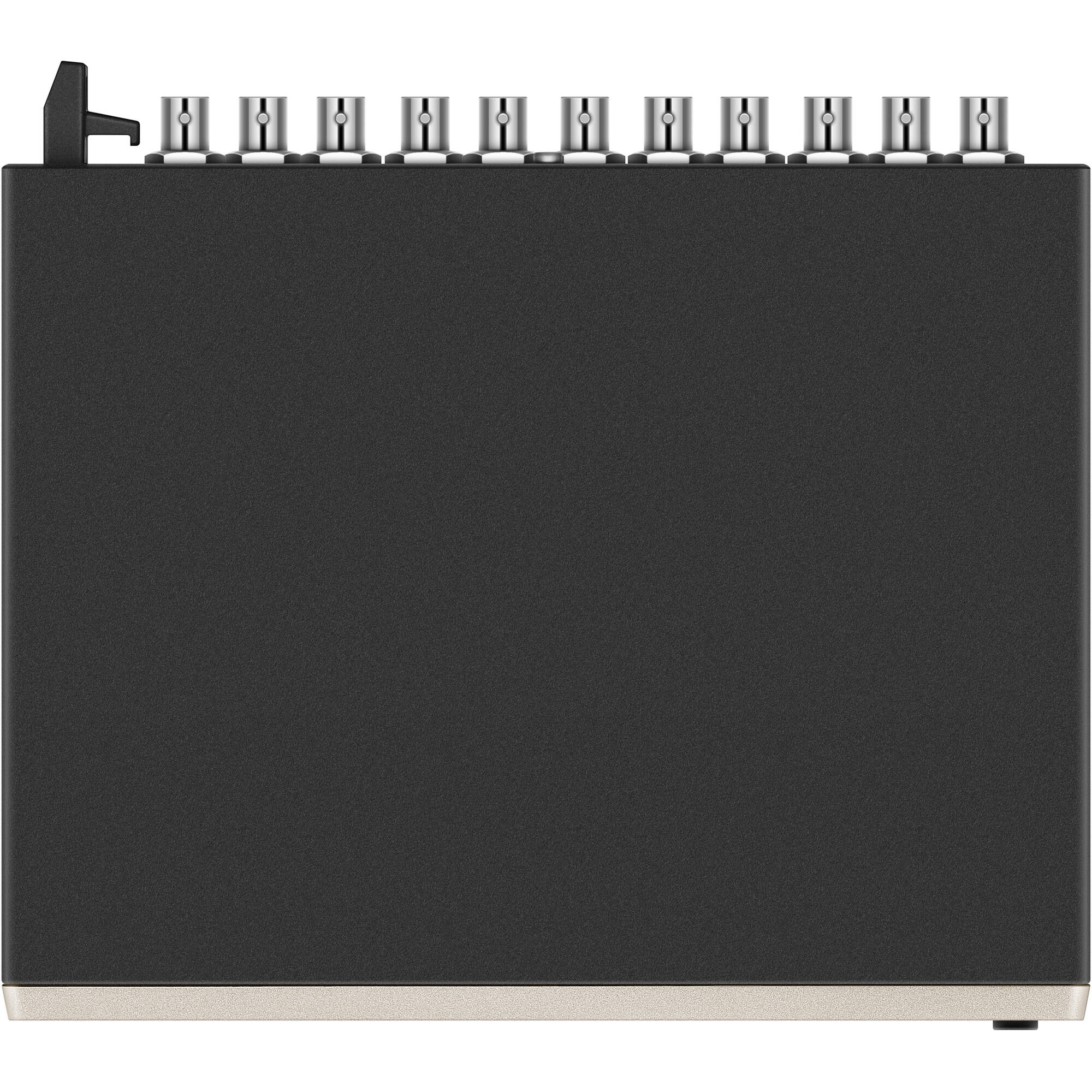

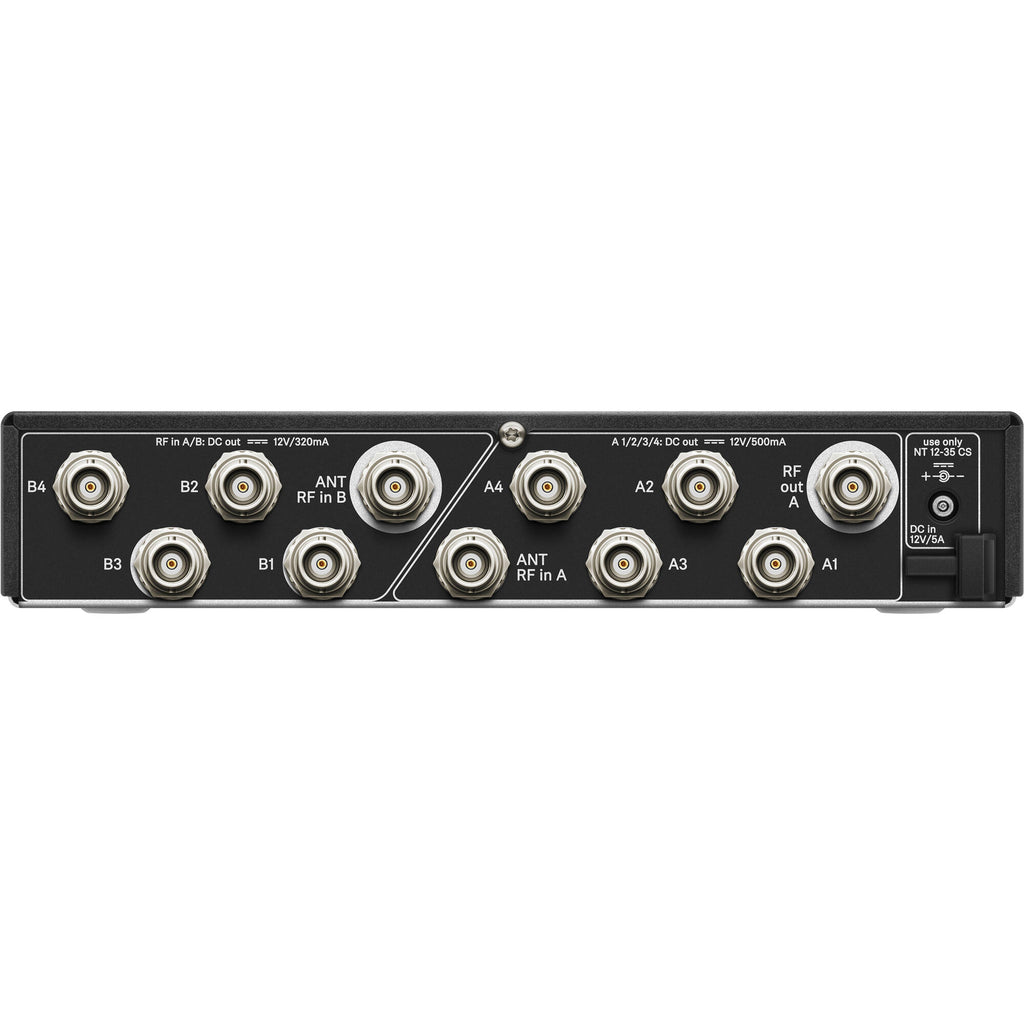

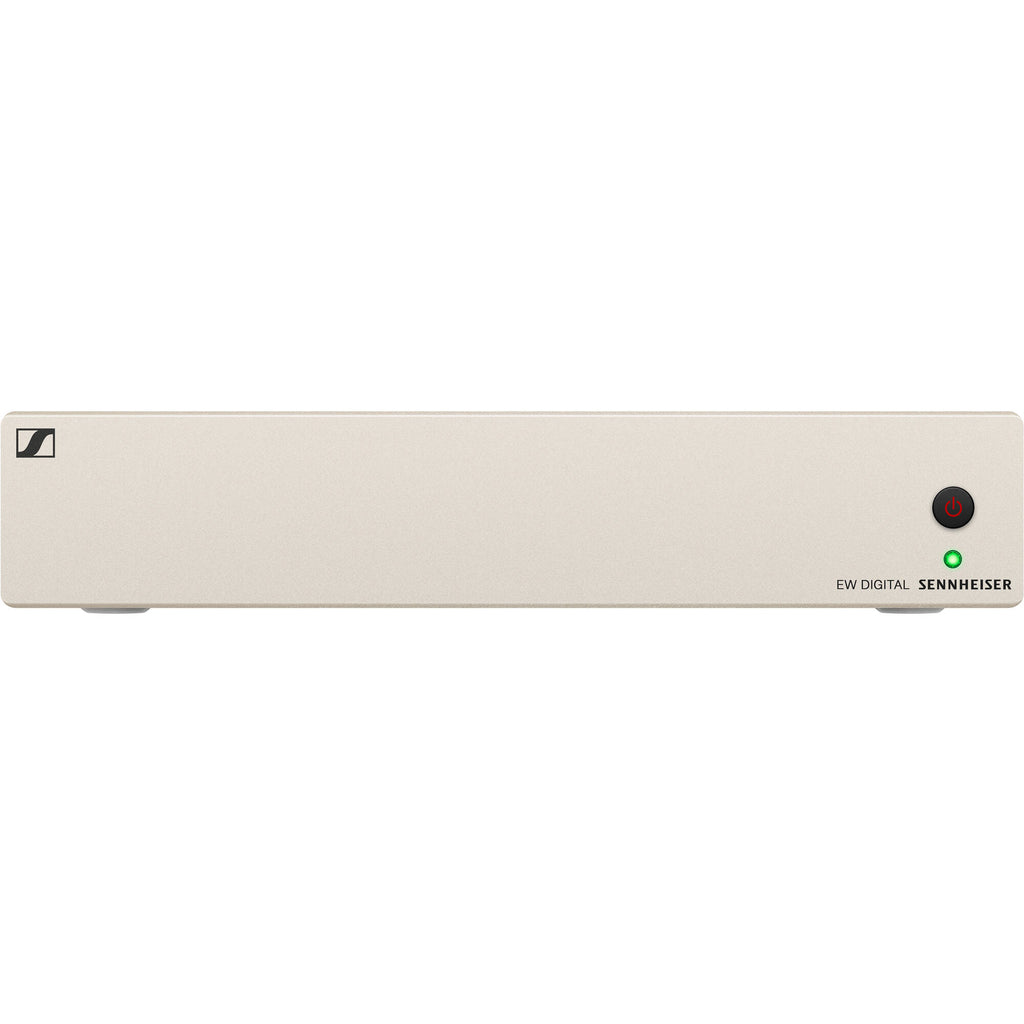

The rugged, all-metal Sennheiser EW-D ASA is a 4-way active antenna splitter that delivers diversity wireless signal distribution for up to four EW-D EM wireless receivers. It also provides DC power to the four receivers, for less clutter in your rack. The unit covers the Q, R, and S frequency ranges, from 470 to 694 MHz.

The EW-D ASA receives up to four wireless microphone signals through a single pair of antennas, split and amplifies these signals, and send each signal to their respective receiver via the included BNC cables.

You can either use a pair of 1/4 wave antenna (provided with one of the receivers) or upgrade to longer, 1/2-wave dipole antennas (available separately) for added range and reliability.

Adding the ADP UHF passive/directional remote antennas (available separately) to your system enables you to position the antennas closer to your transmitters and orient them for maximum coverage, achieving professional-quality RF signal reliability with virtually no dropouts.

Included is the NT 12-35 CS universal power supply with EU, UK and US adapters.

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability.

Features:

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Includes:

• EW-D ASA active antenna splitter (dual 1:4)
• NT 12-35 CS power supply for EW-D ASA

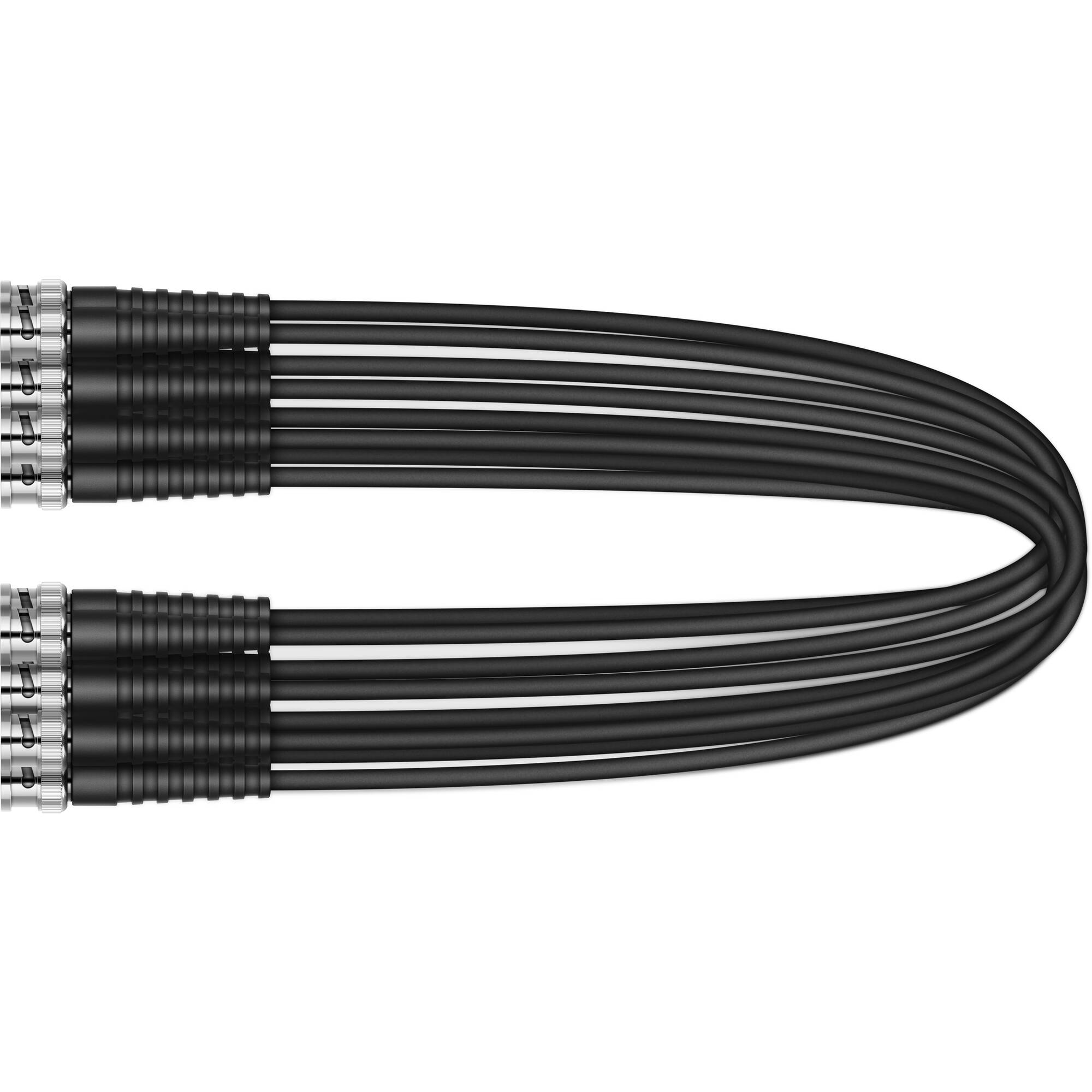

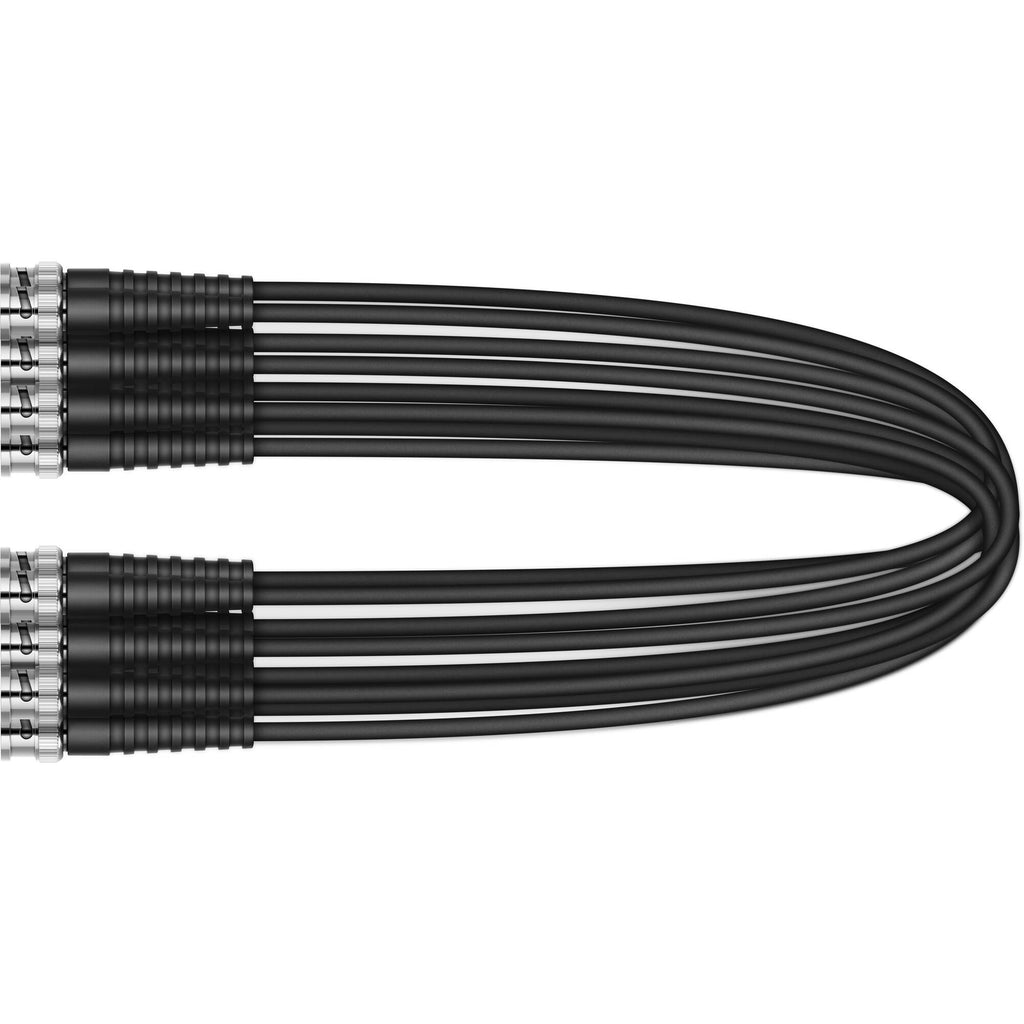

• (8) BNC antenna interconnect cables
