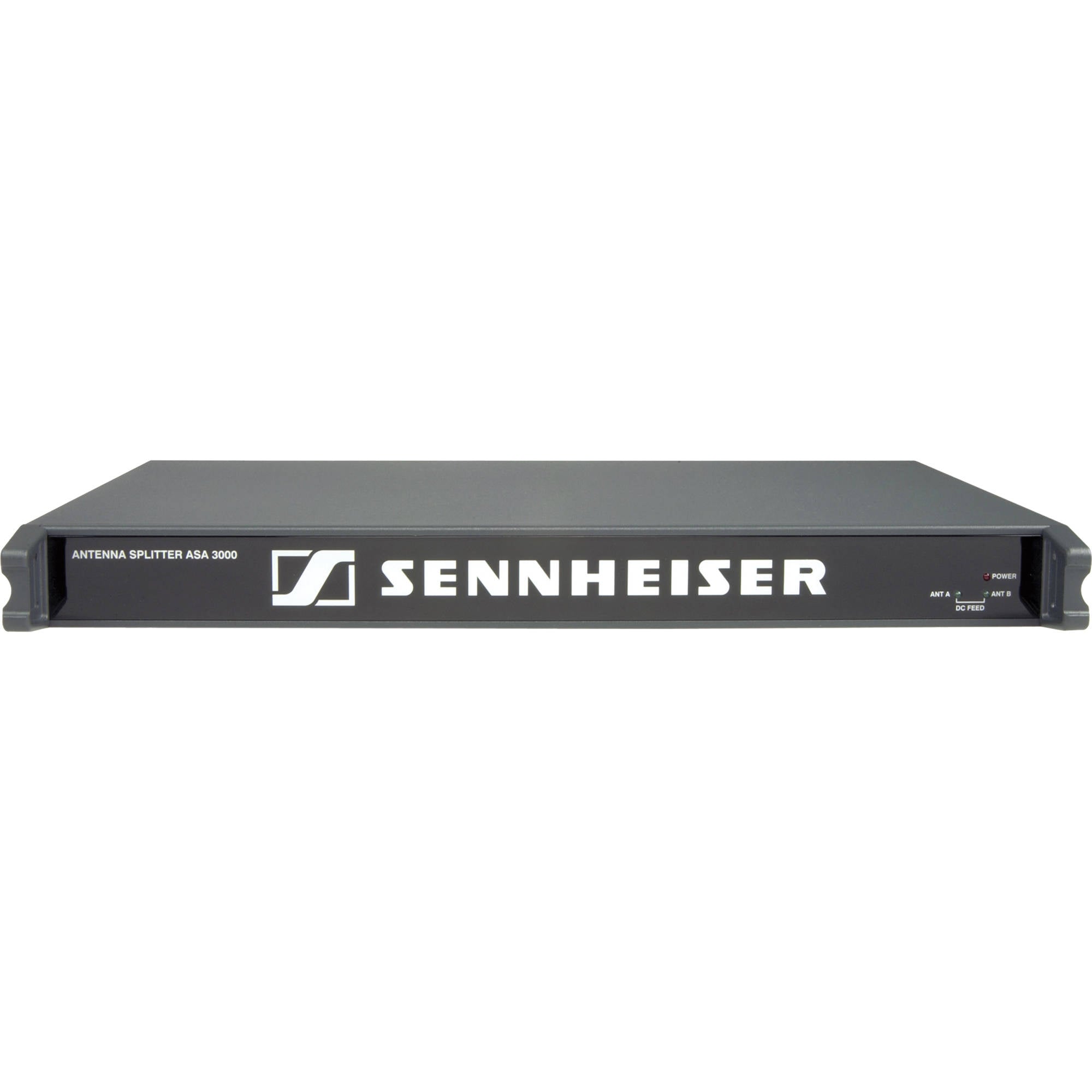

Sennheiser ASA3000 Active Antenna Splitter

Active Wideband Antenna Splitter for up to 16 Channels (8 Dual Receivers)

Active wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules - cables not included.

With the ASA3000 2 x 1:8 Active Antenna Splitter from Sennheiser, up to 8 receivers (EM3031) or twin receivers (EM3032, EM3532) can be operated with only 1 pair of diversity antennas. Each diversity section is fitted with a wideband input module, which can be exchanged for a selective input module.

Because of the built-in antenna boosters, the signals are routed without loss to the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels. The splitter is suited for use in multi-channel RF installations (fixed or mobile) or in permanent installations in small conference centers and venues.

Features:

• Active splitter
• Broadband input modules
• Optional selective input modules
• DC power supplied to antenna head amplifiers
• Robust 19" housing in 3000 Series design

Specifications:

• RF Specification
• Antenna Signal: 2 x 1:8, active
• Frequency Range: 470 to 870 MHz
• Attenuation: +3 / -1 dB
• Nominal Impedance: Inputs/Outputs: 50 Ω

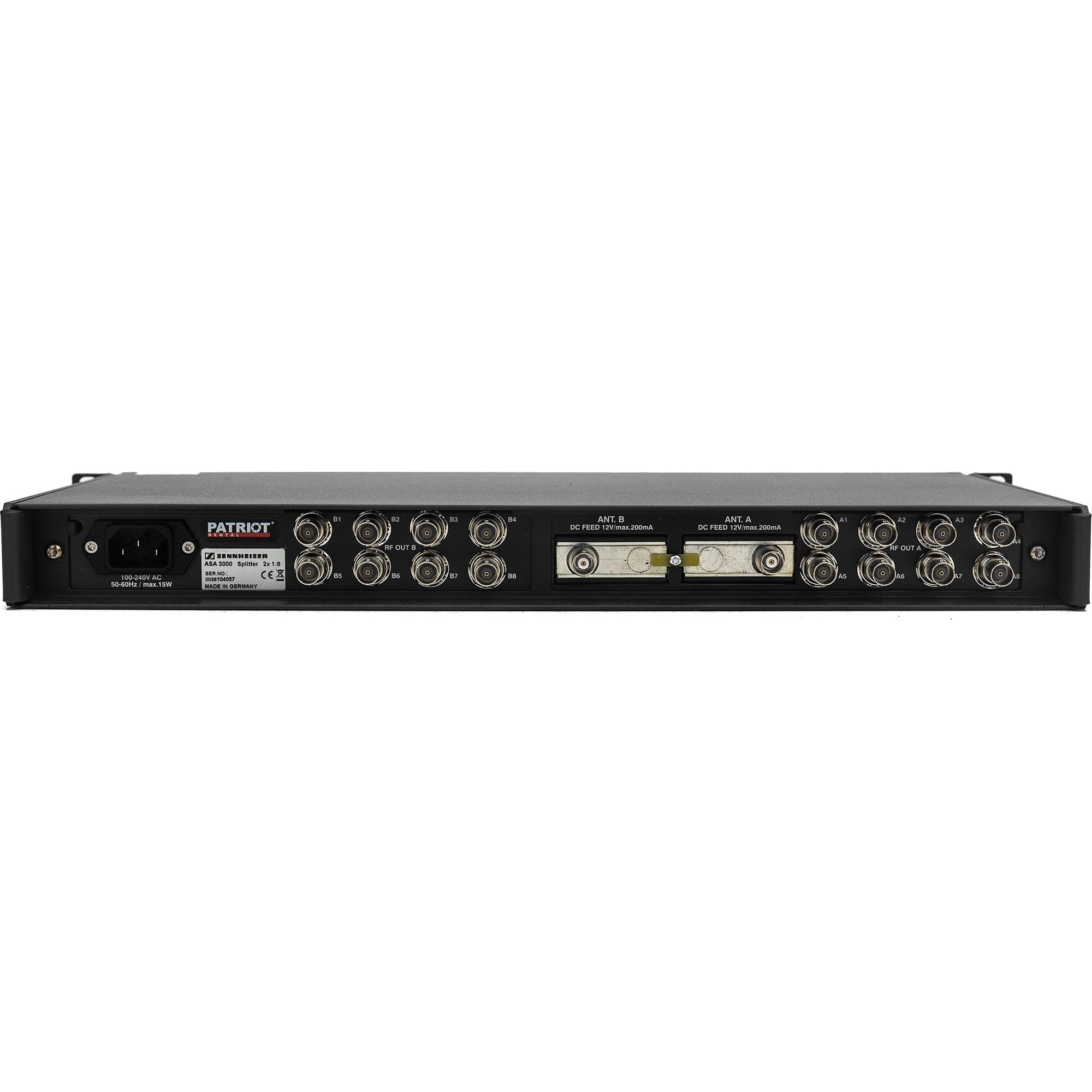

• Input Connections: A/B: BNC sockets
• Output Connections: A1-A8/B1-B8: BNC sockets
• Booster: At the Inputs A and B: 12 V, 70 mA maximum each, short circuit-proof
• Overall System
• Supply Voltage: 100 to 240 VAC, 50/60 Hz, nominal
• Power Consumption: Maximum 8 VA
• Temperature Range: 14 to 131°F (-10 to +55°C)
• Dimensions: 19.0" (482.6 mm), 1U
• Weight: Approximately 6.6 lb (3.0 kg)

Includes:

• ASA3000
• Mains Cable
• Rack-Mounting Kit
• Set of Self-Adhesive Plastic Feet
• 2 x Telescopic Antenna
• Limited 2-Year Warranty
