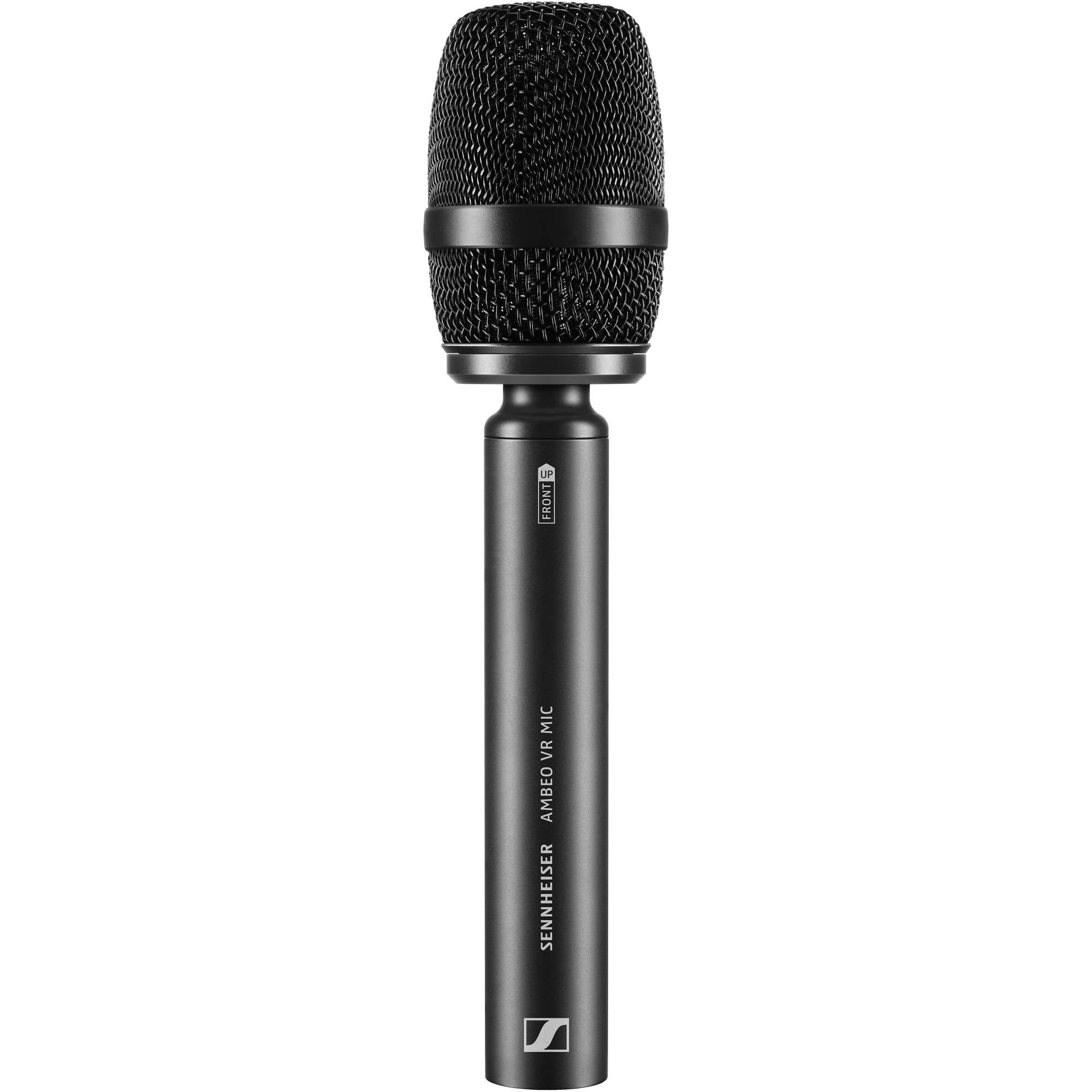

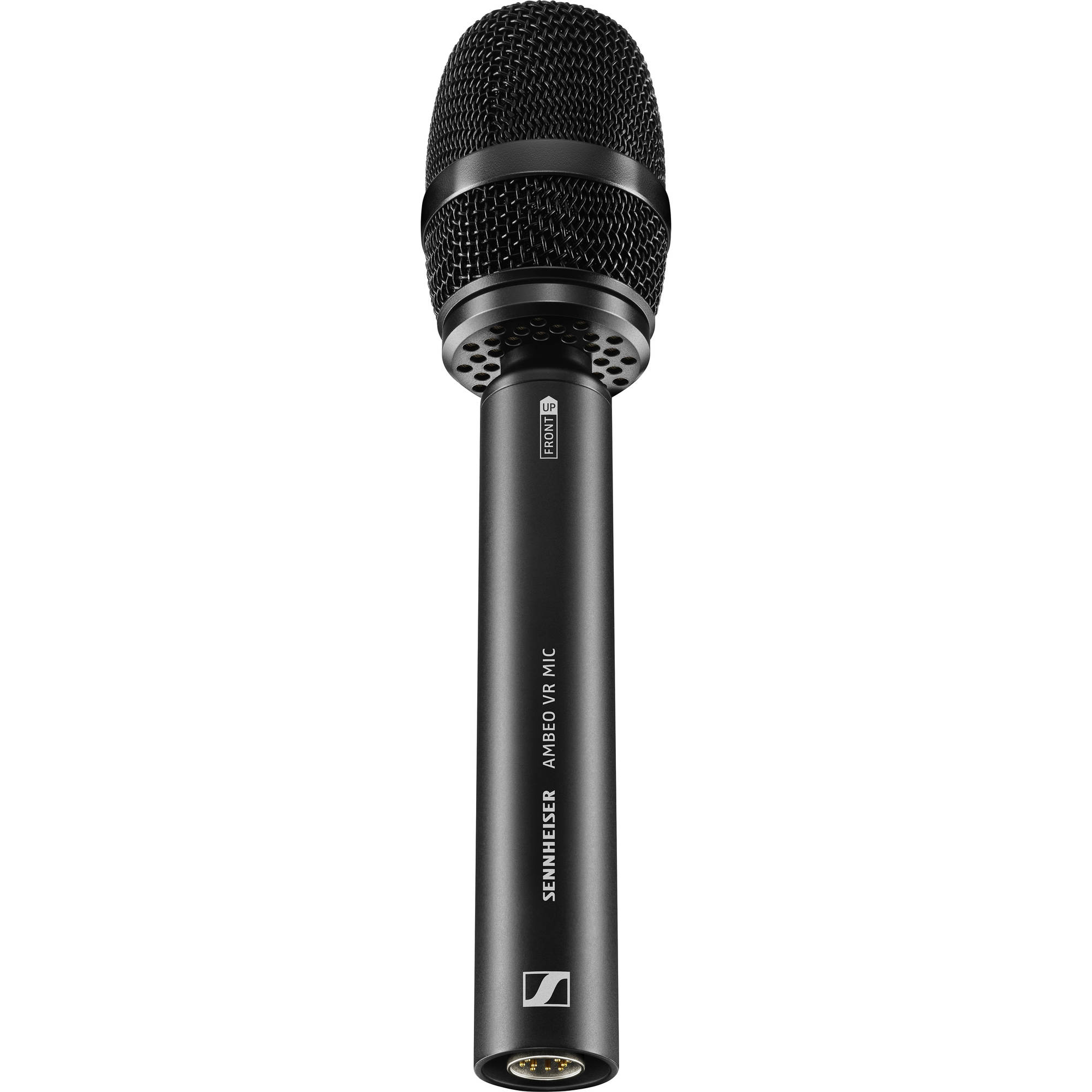

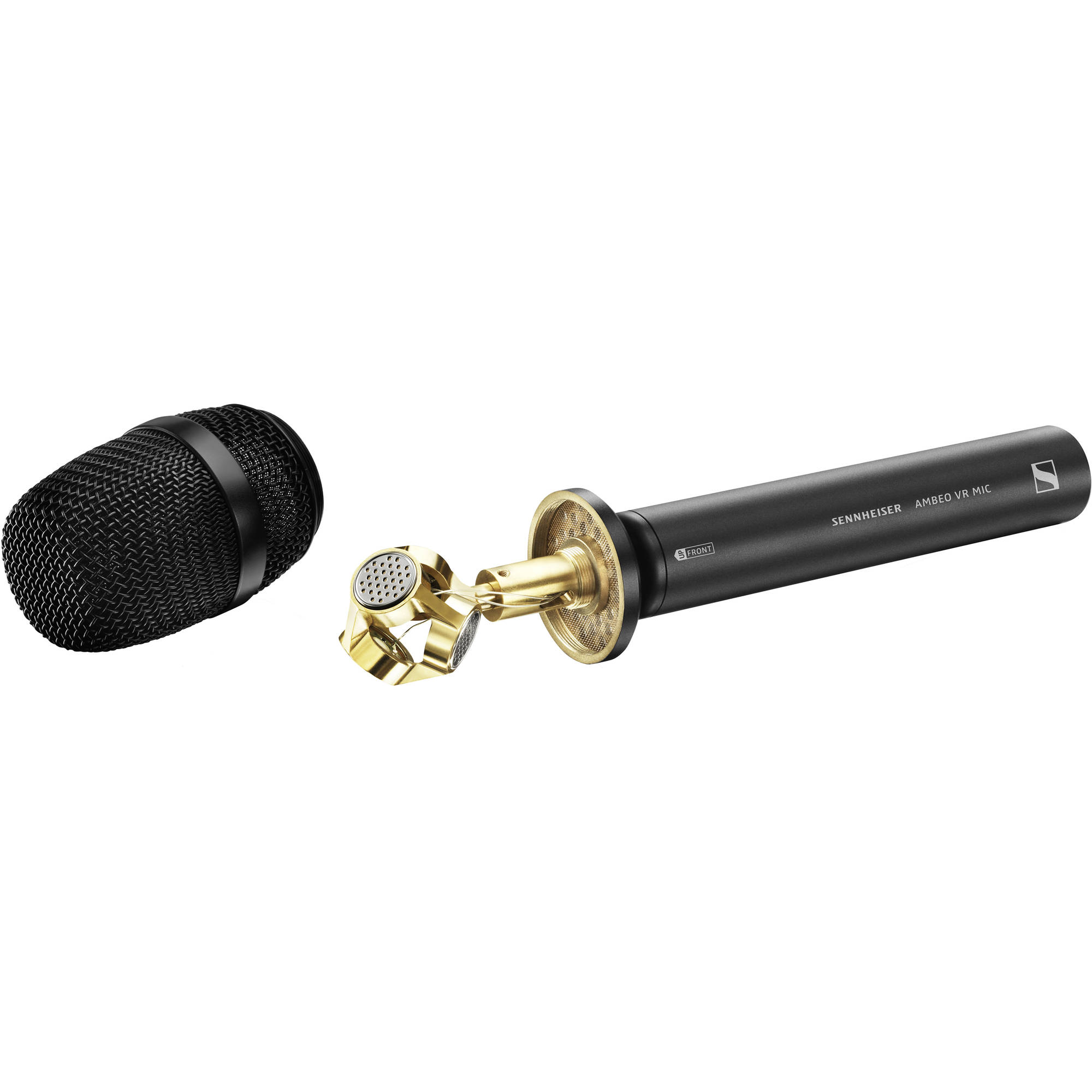

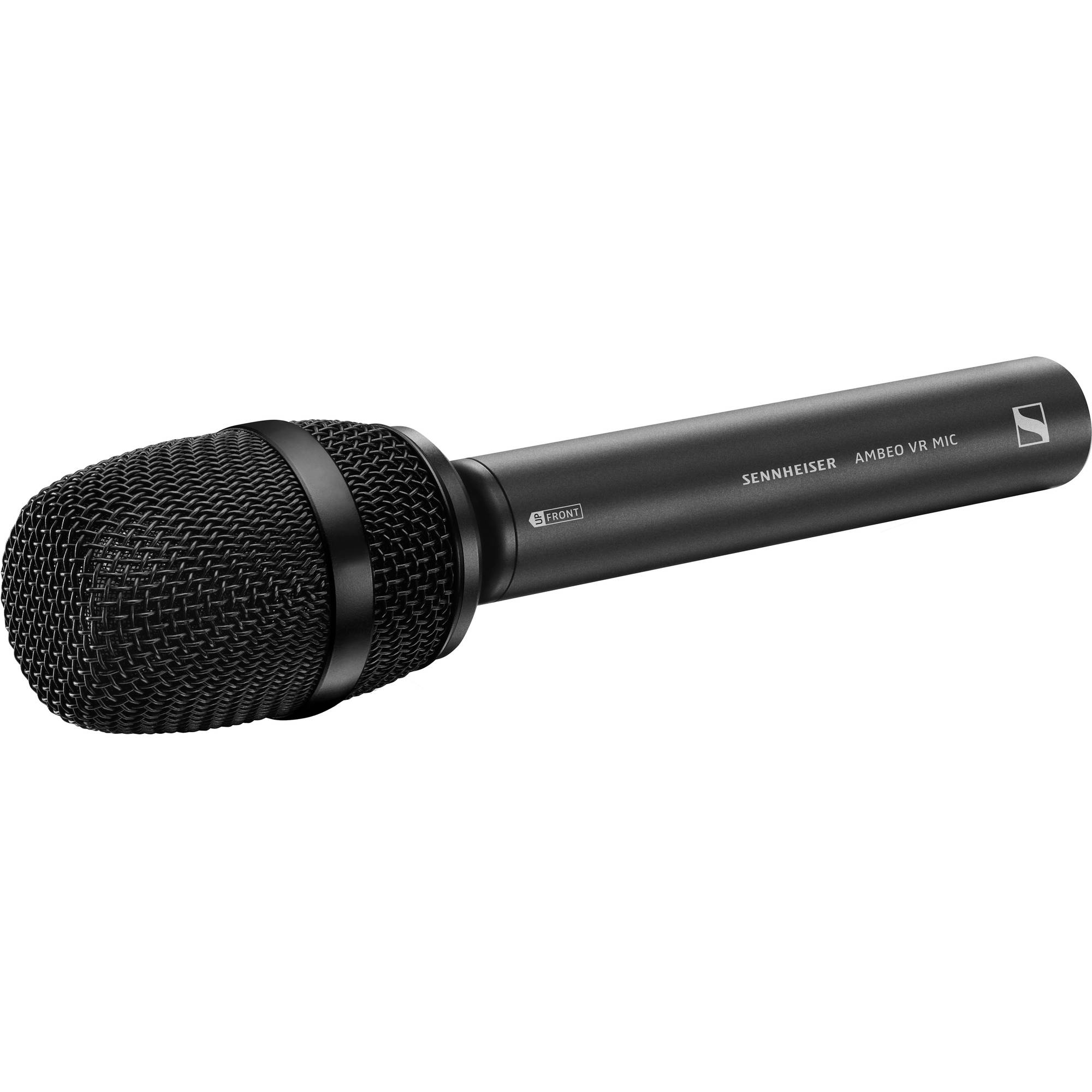

Sennheiser AMBEO VR 3D Microphone

3D Virtual Reality Microphone

The new dimension of VR audio productions. With the easy to handle AMBEO VR Mic you are able to record high-quality VR sound from just one single point. Bringing your listeners a whole new and highly emotional experience.

Features

• Captures immersive spatial audio - ideal for capturing audio used in VR

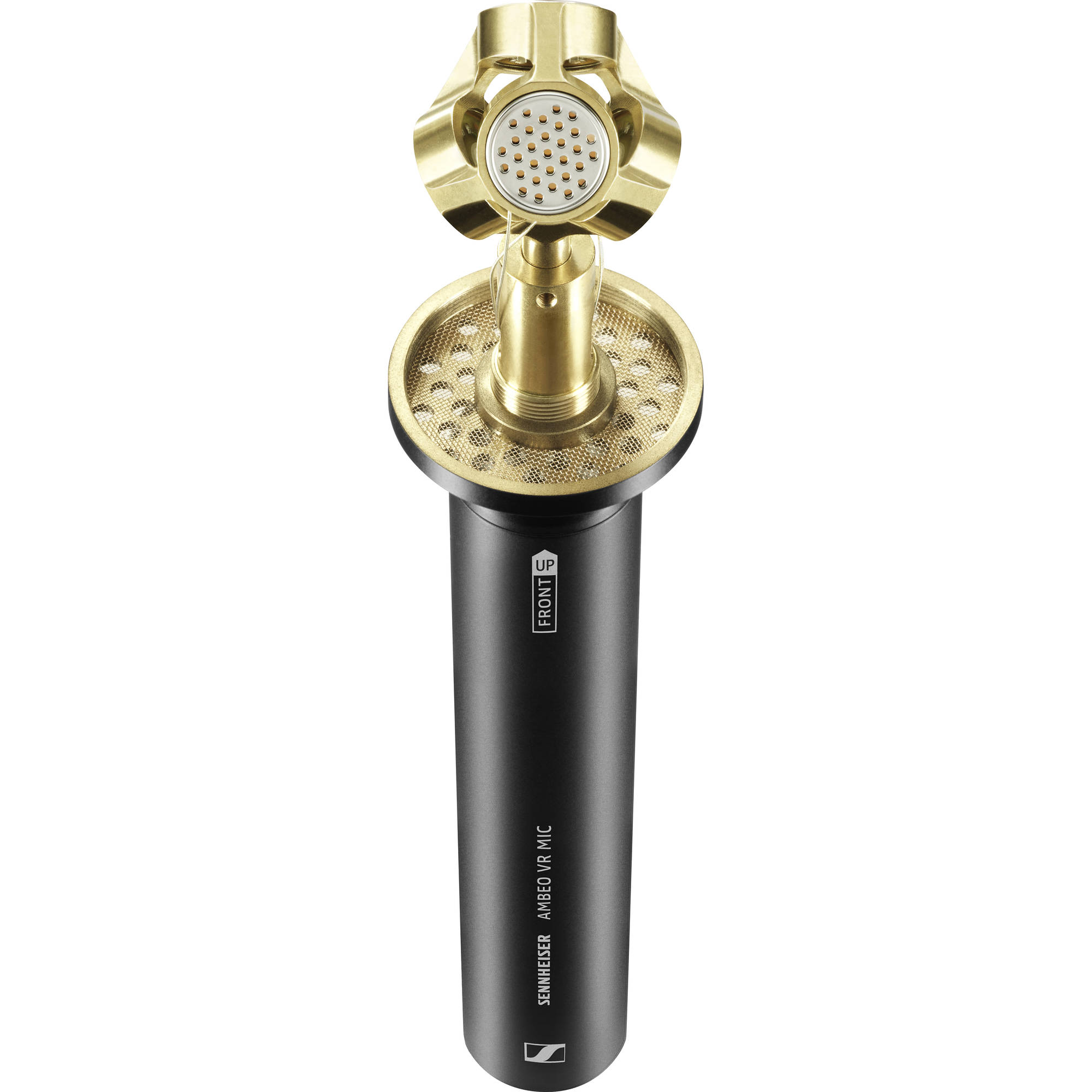

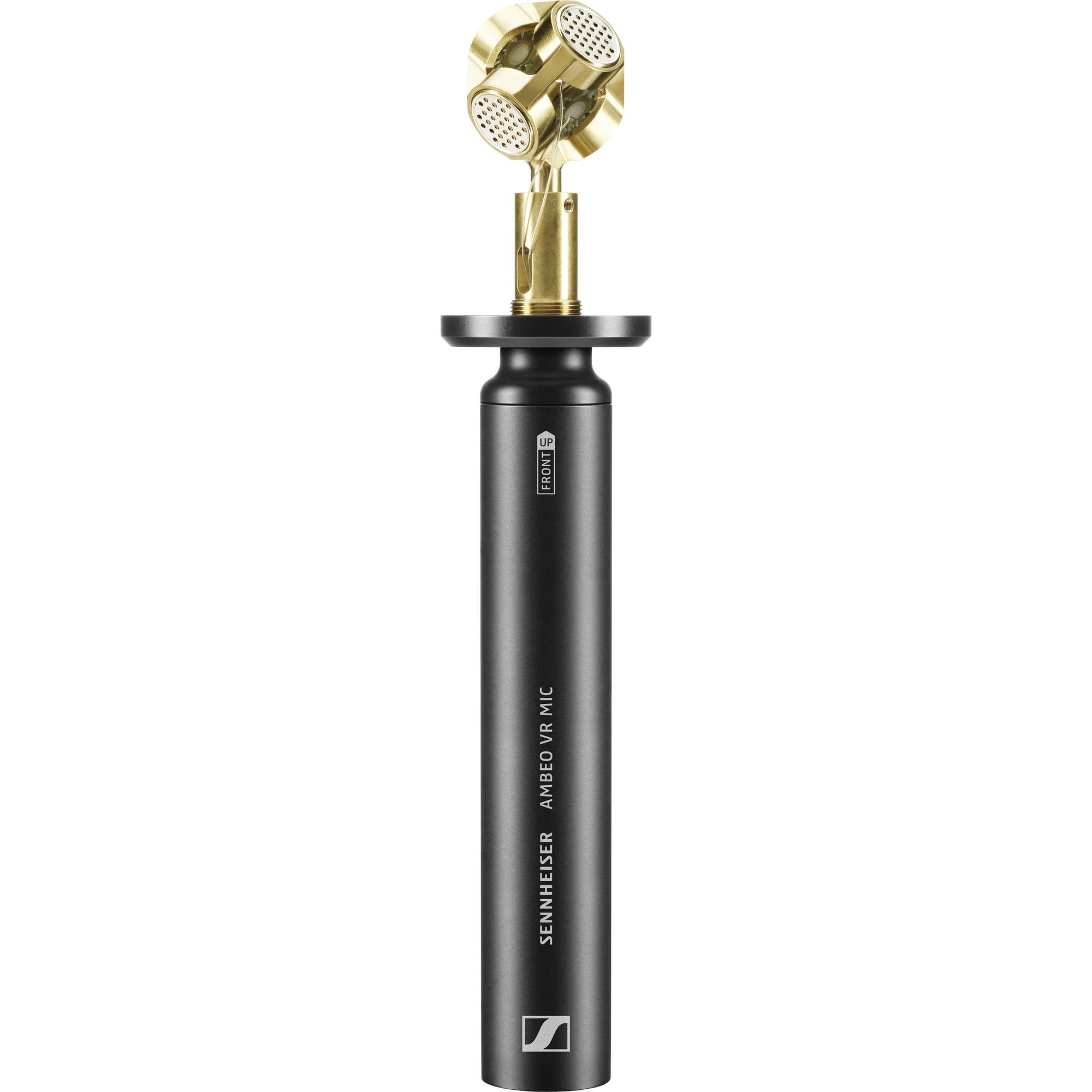

• 4 matched KE 14 cardioid capsules in tetrahedral arrangement
• Rugged & portable for various locations
• Records with Ambisonics technology
• Includes proprietary A-B converter in VST and AAX plugins
• Comes with cables, suspension mount & windshield

Specifications:

• Dimensions: 215 x 49/25 mm (L x D)
• Frequency response: 20 Hz to 20 kHz
• Max. sound pressure level: 130 dB(A) for 1 kHz
• Transducer principle: Pre-polarized condenser microphone
• Weight: 1.060 kg
• Microphone connector: DIN12M, use enclosed adapter cable to convert to 4x XLR3M Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)
• Pick-up pattern: 4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])
• Nominal impedance: Approx. 200 Ω
• Min. terminating impedance: 1000 Ω
• Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
• Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Equivalent noise level: 18 dB-A as per IEC 61672-1 / 27 dB CCIR as per CCIR 468-3
• Power supply: 4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each
• Sensitivity: 31 mV/Pa (-30 dBV)
• Operating relative humidity: Max 90% at 40 °C
• Matrix reference: Center of the capsule holder
• Mixing to B-format: W = FLU + FRD + BLD + BRU / X = FLU + FRD - BLD - BRU / Y = FLU - FRD + BLD - BRU / Z = FLU - FRD - BLD + BRU

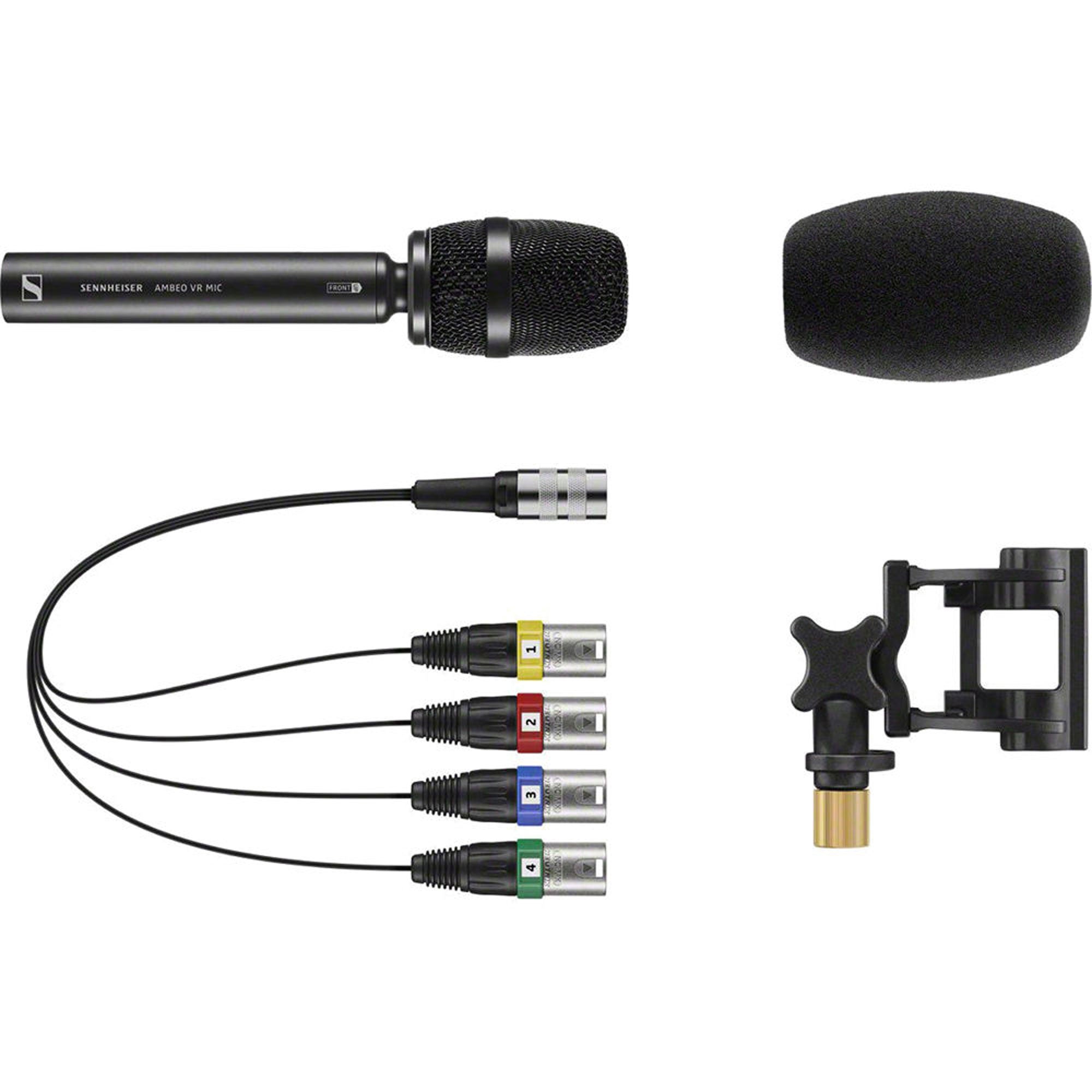

Includes:

• AMBEO VR Mic
• Balanced split cable 4x XLRs 3-pins
• Rycote suspension mount
• Foam wind shield
• Proprietary A-B format Encoder, available in VST and AAX plugins (Mac OS X and Windows)
• Extension cable, 1.5m, DIN12F to DIN12M
