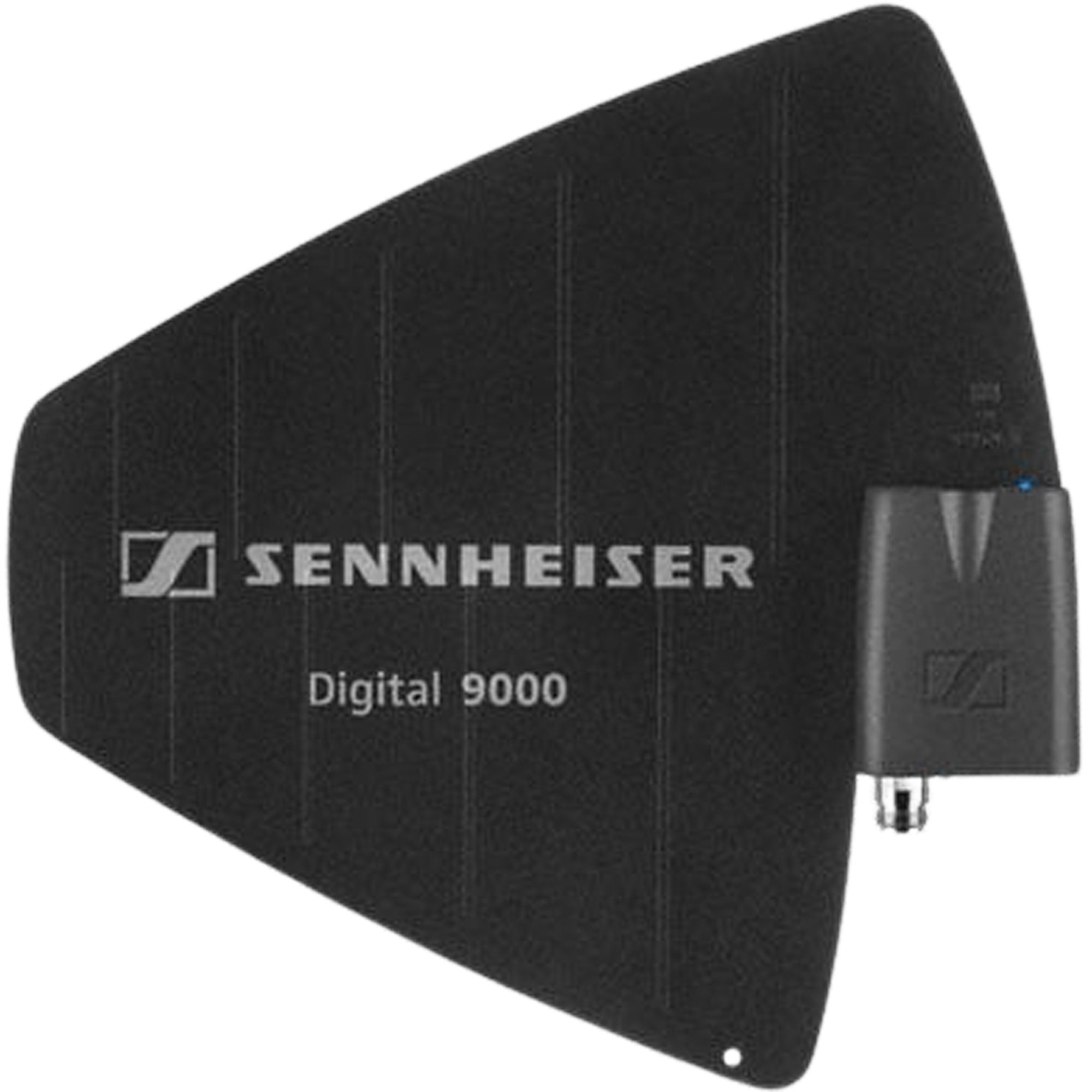

Sennheiser AD9000 A1-A8 Active Directional Antenna with Booster

Active Directional Antenna with Integrated AB 9000 Booster

The Sennheiser AD 9000 is a directional, active, and intelligent receiving antenna for the Digital 9000 Series EM 9046 receiver. It features the AB 9000 booster, which is directly mounted on the surface of the antenna.

The AD 9000 features eight highly selective bandpass filters. Each filter passes frequencies within a 24 MHz frequency window and rejects frequencies outside that range, directly blocking unwanted signals before the first active component. The frequency window can be remotely selected from the EM 9046 receiver.

The built-in linear RF amplifier offers very high resistance to intermodulation and compensates for cable losses of up to 14 dB. The booster and EM 9046 receiver work together to monitor the RF cable loss and adjust the gain automatically.

Features:

• Directional receiving antenna
• AB 9000 active, intelligent antenna booster
• Eight highly selective filters
• Automatic or manual (without EM 9046) selection of filter
• Highly linear RF amplifier with typ. 17 dB amplification
• N-type connectors

Specifications:

• Power Consumption: Max. 160 mA at 12 V
• Antenna Connector: N-type connector
• Gain: 4.6 dBi
• Frequency Range: AB 9000 B1-B8 : 630-798 MHz
