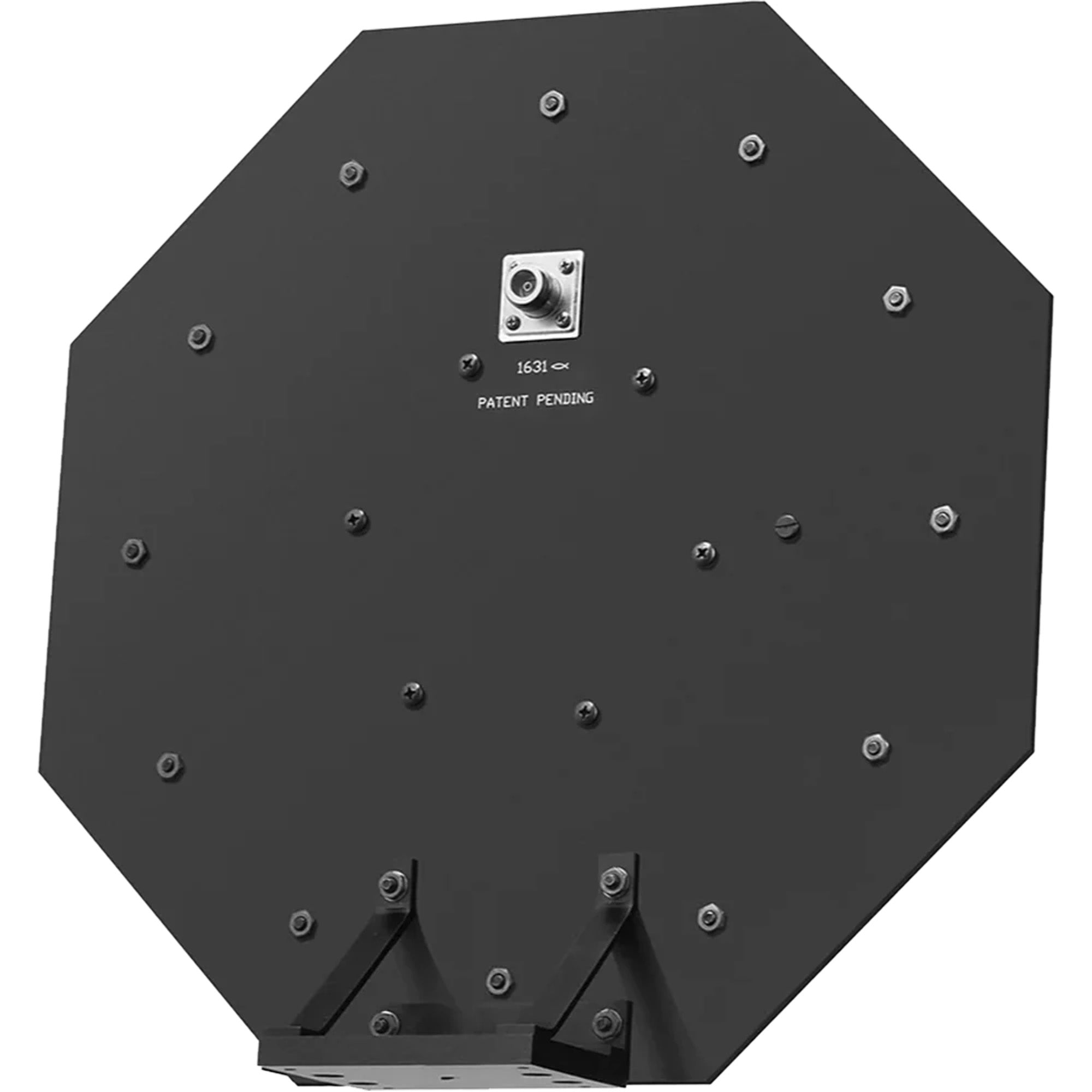

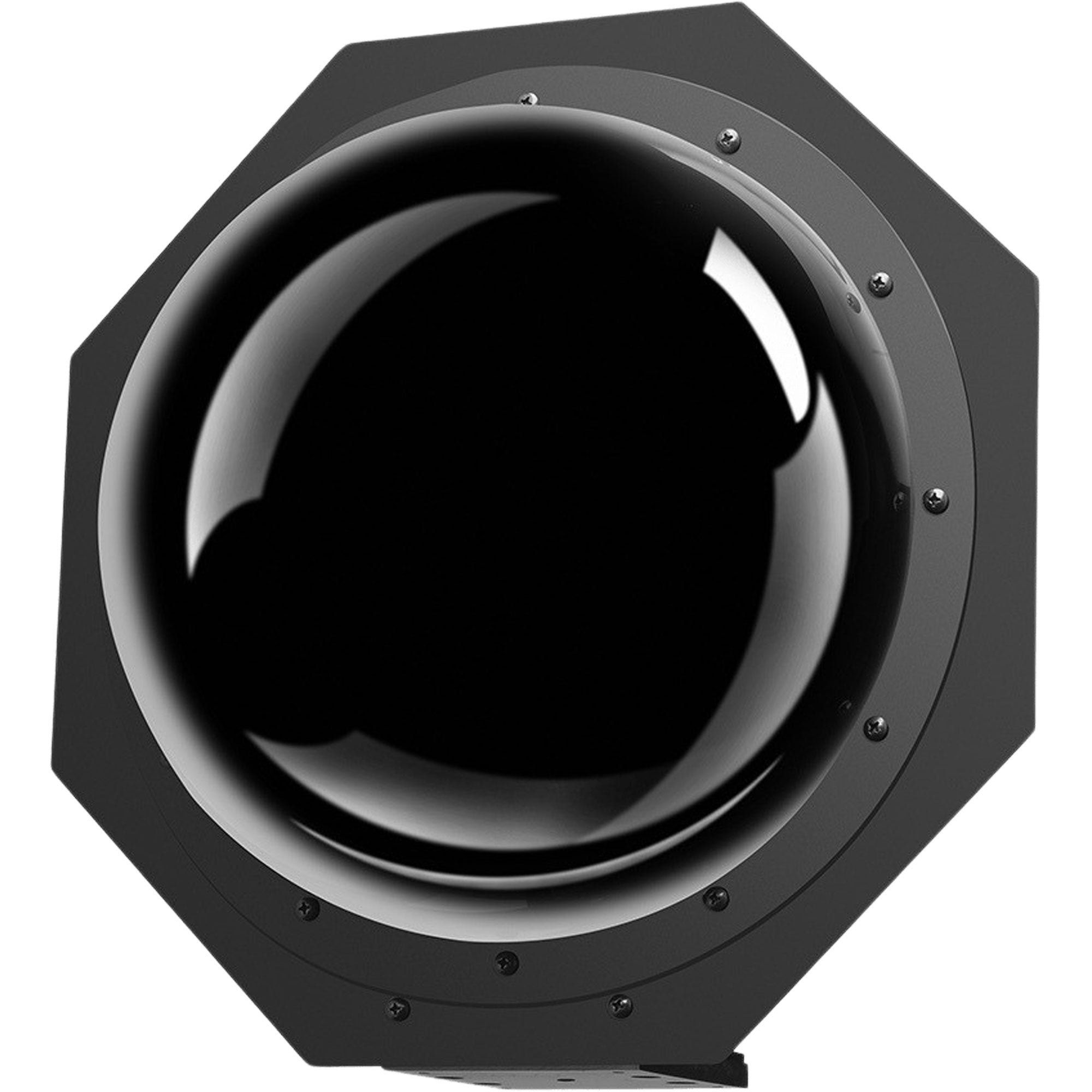

Sennheiser A5000CP Passive Wideband UHF Antenna

Passive Wideband Circularly-Polarized UHF Antenna

The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common 'off the shelf' antennas. The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems. Antenna mounting with 3/8" or 5/8" threaded connection for tripod mounts.

The Sennheiser A5000CP Circulary Polarized Antenna is designed for use with wireless microphones and monitor systems to achieve higher radio-frequency (RF) signal at long range. The A5000CP operates on a wide-band UHF frequency of 450 - 960MHz, making it universal and capable of operating with most UHF wireless systems.

The Circularly Polarized dramatically reduces interference and drop-outs when used with non-diversity wireless systems. The highly directional antenna features a 40 degree beam angle, minimizing intermodulation and interference while increasing range.

Features:

• High directional and passive performance achieves great range.
• Unique circularly polarized design reduces "drop-outs" caused by multi-path problems.
• Wideband design (450-960 MHz) works across multiple frequency ranges.

Specifications:

• Antenna: circular polarized helical Half power beam width: + / - 40-
• Antenna gain: 8 dBi
• Bandwidth (- 3 dB): 450 - 960 MHz
• Connector: N (female)
• Weight: 3.1 Ibs. (1.41 kg)
• Dimensions: 356 x 356 x 140 mm

Includes:

• A5000CP
• Adapter BNC to N
• User Manual
