Key Features
- Passive Omnidirectional Antenna
- For Evolution Series Wireless
- 360 Degree Coverage
- 430-960 MHz Frequency Range
Description

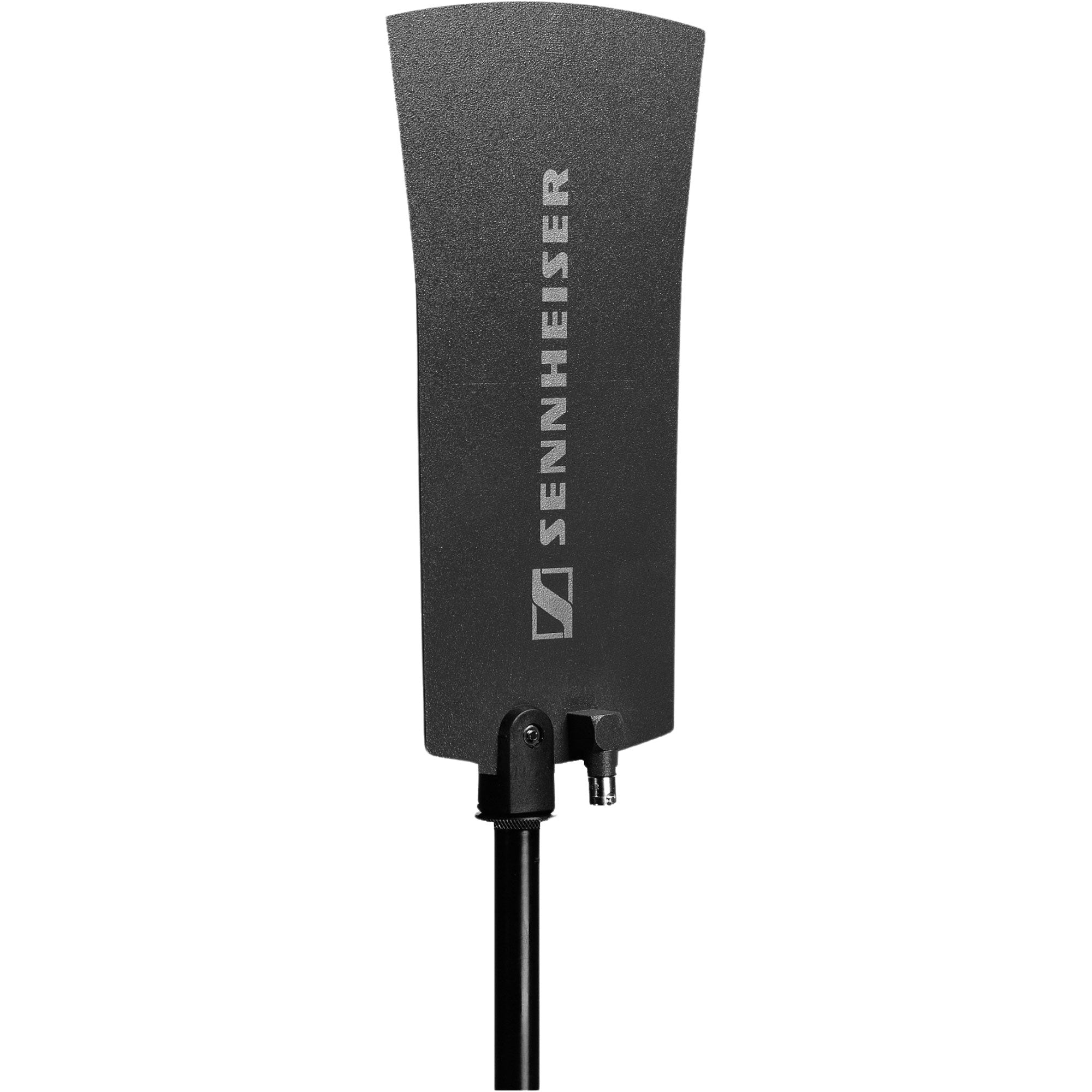

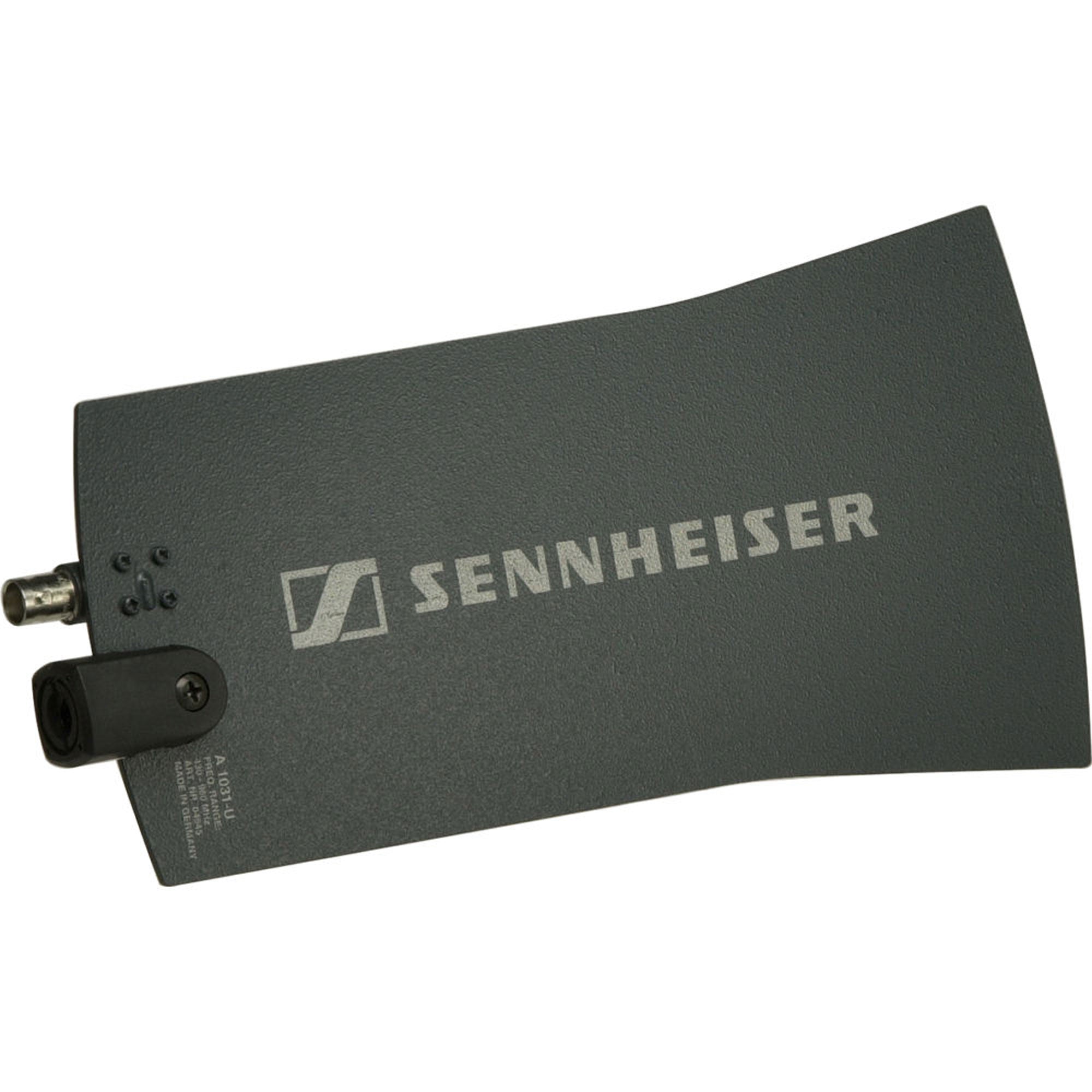

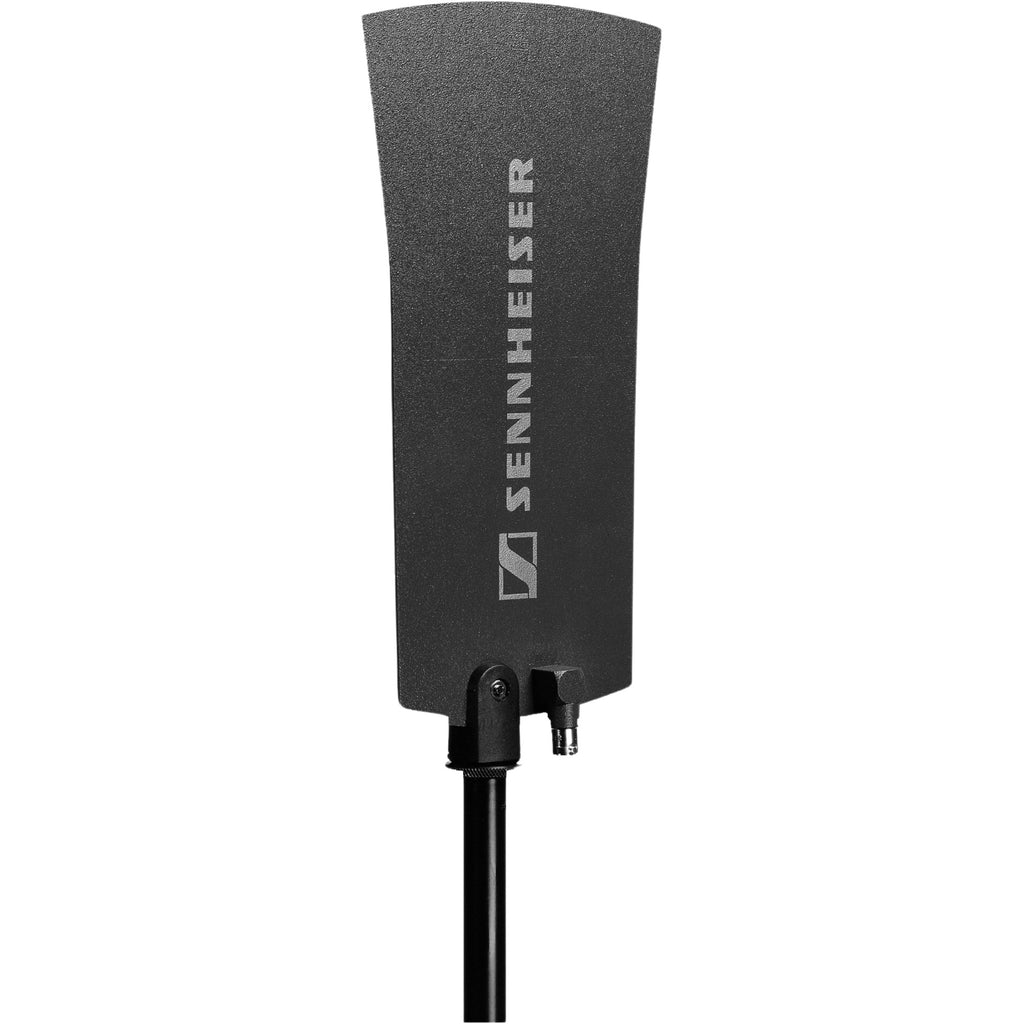

Wideband Passive Omnidirectional UHF Antenna for Evolution Series Wireless (Each)
Passive omni-directional antenna. Transmitting and receiving antenna for frequencies between 450 and 960 MHz.
The A 1031-U Sennheiser Omnidirectional Antenna is designed for use with the G2 series rack-mount receivers or RF distribution amplifiers. The omnidirectional RF pick up enables use in applications where the transmitters are constantly in motion, and RF signal is generated from various directions within a room.
Specifications:
- Frequency Range: 430 - 960MHz
- Angle of Coverage: 360°
- Gain: 0dB
- Mount: 5/8" Thread, 3/8" Thread Adapter
- Connector: BNC Socket, 50 ohms
- Max Input Signal: 10W
- Temperature: -20° - +80° C
- Dimensions: 10.63 x 5.12 x 1.38" (27 x 13 x 3.5cm)
- Weight: 5.29 oz
Details
- Manufacturer: Sennheiser
- MPN: 004645
- Model Number: A1031-U
- UPC: 615104046450
