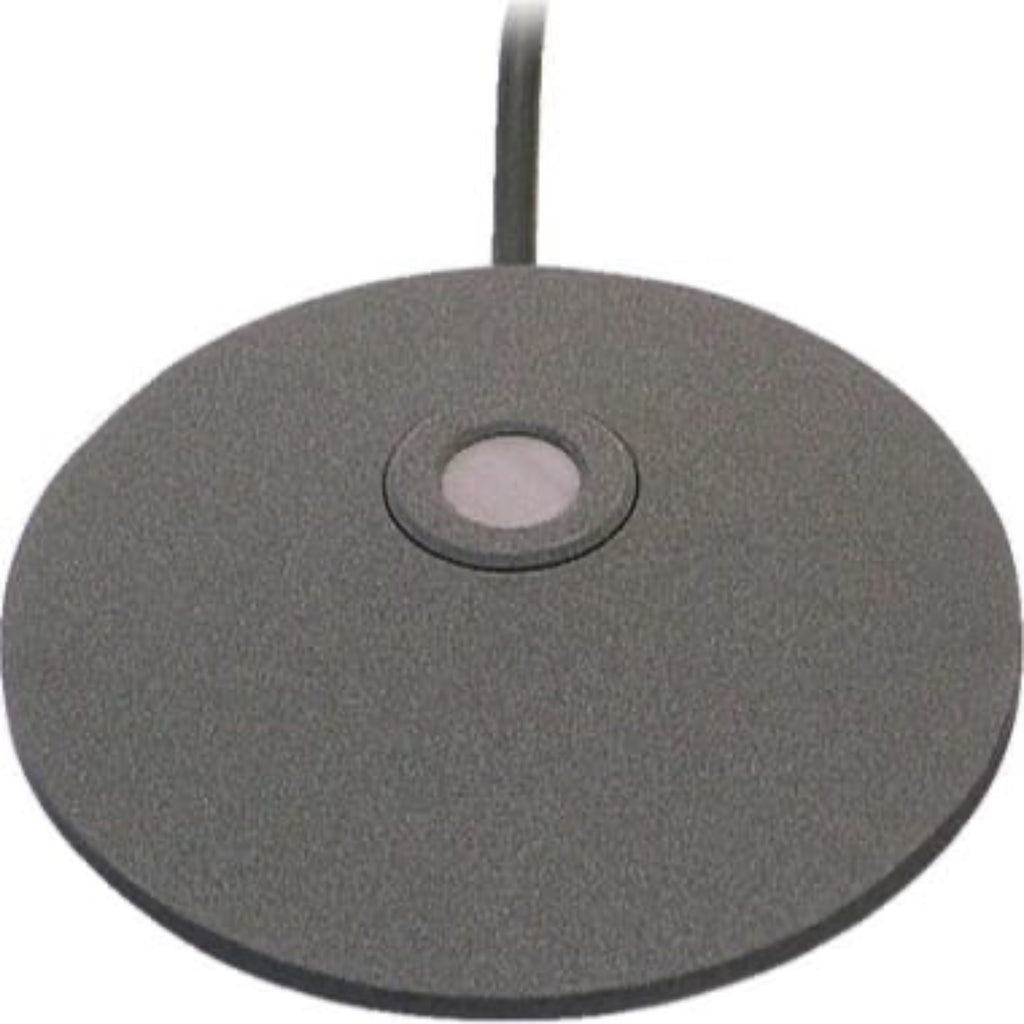

Schoeps BLM 03 Cg Boundary Layer Capsule

Boundary Layer Capsule, Matte Gray

The BLM 03 C is connected through its fixed cable to a Colette CMC microphone amplifier, thus resulting in a complete microphone. All known properties of the BLM 03 C are identical to those of the BLM 3.

It is recommended to use the BLM 03 C when the BLM 3 is too large (for example when recording for TV or film) or too heavy (for example when gluing to the roof inside a vehicle or under the lid of a grand piano).

Since the BLM 03 C includes active electronics, it is not compatible with other active accessories such as RC, KC.

The small dimensions of the BLM 03 C in combination with the matte gray Nextel surface enable a particularly discreet placement. Even completely invisible placement is possible if the microphone is hidden under a tablecloth made of lightweight fabric.

Due to its small size, however, it should be noted that the BLM 03 C should definitely rest on a sufficiently large, sound-reflecting surface. When recording a panel discussion, a table may be sufficient. For most music recordings a larger area is recommended.

The BLM 03 C can also be mounted in a grand piano with the lid open or closed.

Features:

• can be placed unobtrusively
• preferred uses: on speaker tables, altars, in a grand piano or as a room microphone
• only 80 mm in diameter
• cable length: 5 m / 16.40 ft

Specifications:

• Pickup pattern: Half-space
• Frequency range:
  20 Hz - 26 kHz
  20 Hz - 43 kHz with CMC 6xt
• Sensitivity: -36 dB (V/Pa), 16 mV/Pa
• Equivalent noise level (A-weighted): 12 dB
• Equivalent noise level (CCIR): 23 dB
• Signal-to-noise ratio (A-weighted): 82 dB
• Maximum sound pressure level (THD < 0.5 %):
  130 dB-SPL with CMC 6
  134 dB-SPL with CMC 6
• Diameter: 80 mm
• Height: 8,6 mm
• Weight: 233 g
• Surface finish: matte gray
