Key Features
- Rugged Metal Chassis
- 3 XLR Mic Inputs and 1 Output
- Individual Level Controls
- Individual Phantom Power
- Low Cut Filters
- 3.5mm Input and Output
- Includes Power Supply
Description

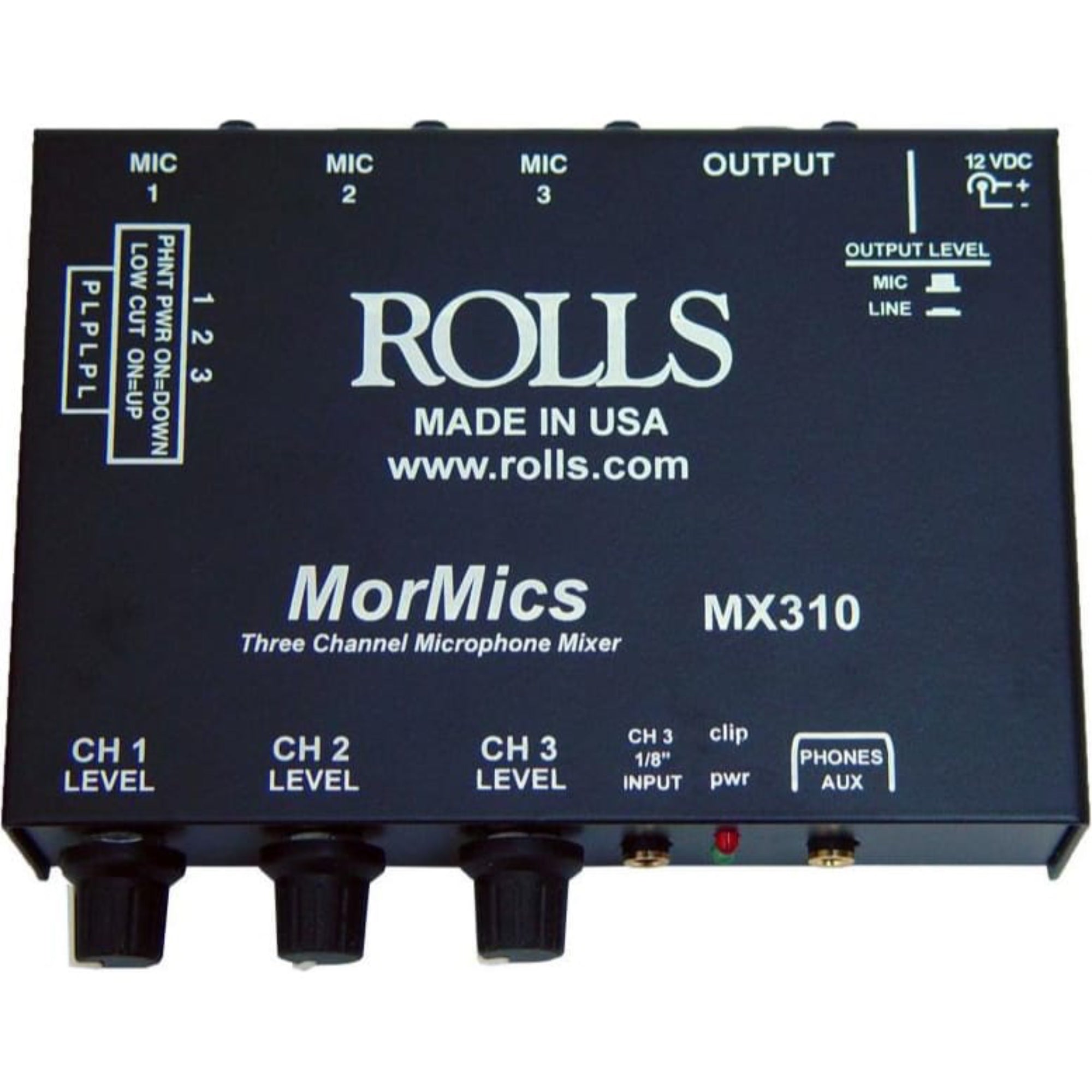

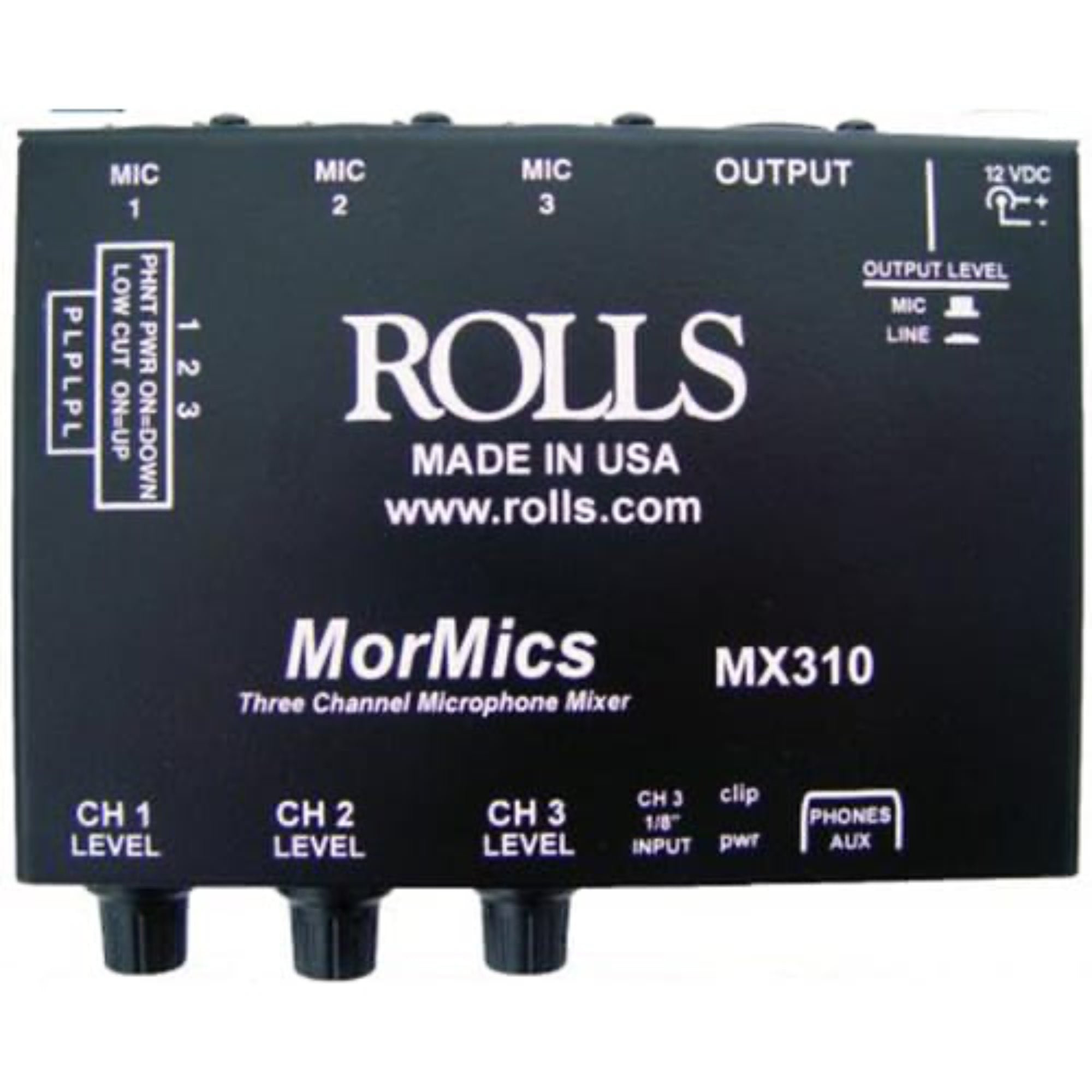

MorMics - Three Channel Microphone Mixer/Combiner
The MX310 MorMics - three channel microphone mixer. Although having many uses, this little mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input. The MX310 is a 3 channel microphone mixer with balanced XLR inputs, phantom power, and XLR Mic/Line output. It has a stereo 1/8" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. Each channel has a Level and a separate headphone circuit allows for monitoring all signals without effecting the main output signal.
Specifications:
- Input Impedance: 600 Ohms
- Output Impedance: 600 Ohms
- Voltage Gain: 50 dB Line/10 dB Mic
- Maximum Supply Voltage: 16 VDC
- THD: .05% typical
- Bandwidth: 20Hz - 20 kHz
- Size: 5.25" x 3.75" x 1.5"
- Weight: 1 lb.
Details
- Manufacturer: Rolls
- MPN: MX310
- Model Number: MX310
- UPC: 675889031003
