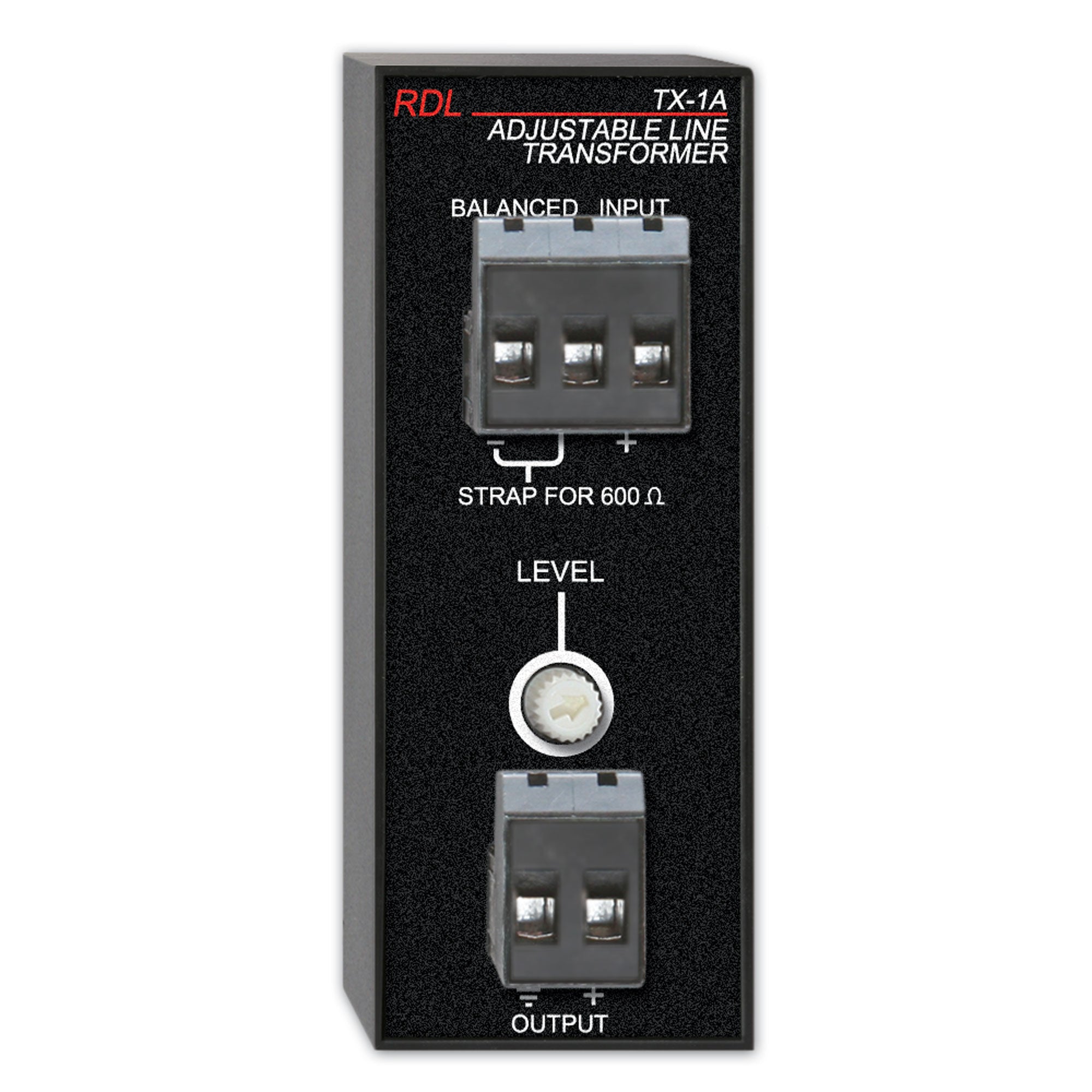

RDL TX-1A Balanced to Unbalanced Transformer Adjustable

Balanced to Unbalanced Transformer - Adjustable

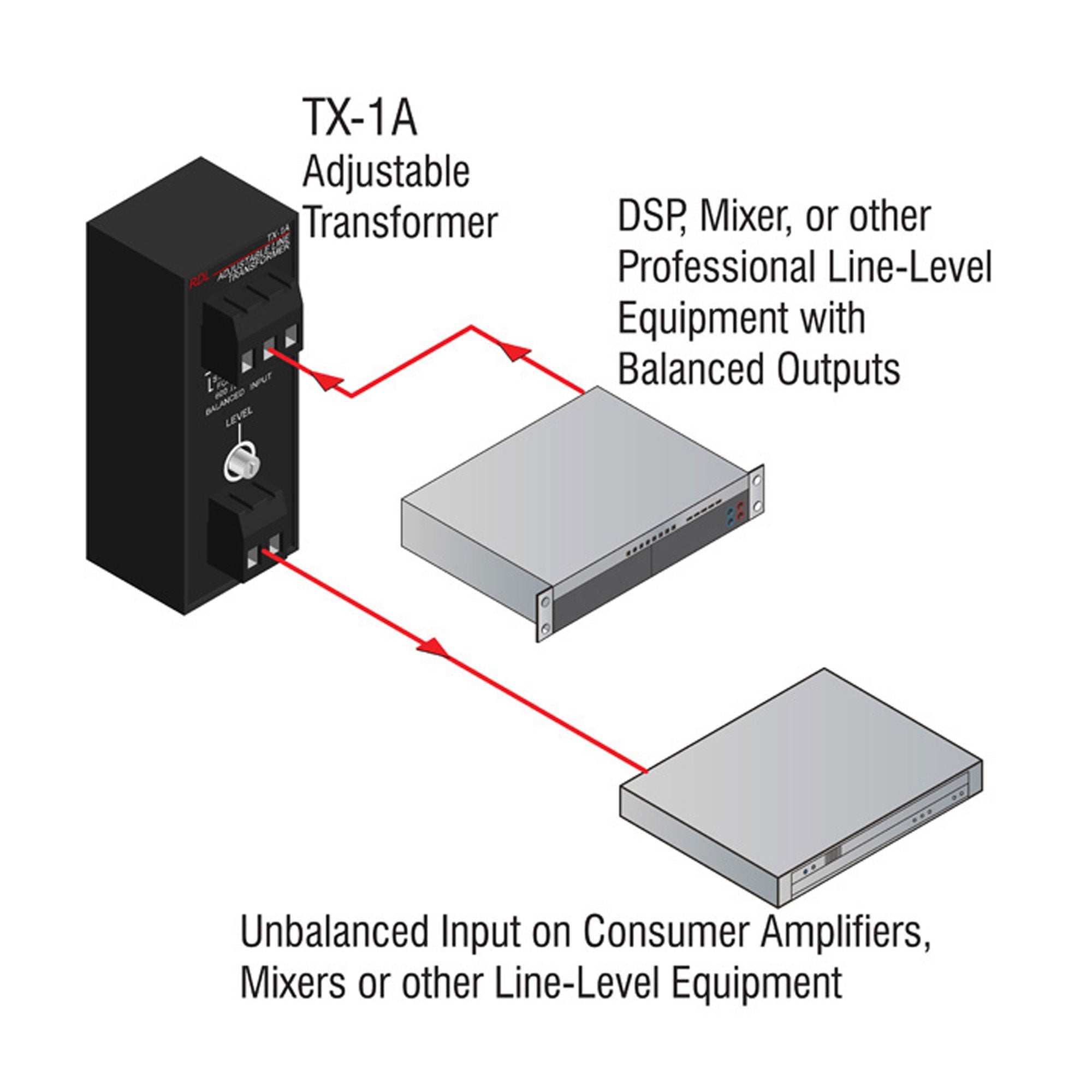

The TX-1A Balanced to Unbalanced Transformer (Adjustable) from RDL is a device that can be used to add transformer isolation between a balanced line and an unbalanced input. The input can be 10KΩ bridging or 600Ω terminated. Level output can be adjusted from 4 to 24dB below the input level.

Features:

• Provides transformer isolation between balanced line and unbalanced input
• Level trimpot adjusts output 4 to 24 dB below input level
• Input may be 10 kΩ bridging or 600 Ω terminated
• Frequency response 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)

Specifications:

• Ambient Operating Environment: 0° C to 55° C
• Package Type: Cardboard Box
• Package Dimensions: 2 x 2 x 4 in.
• Shipping Weight: 0.305 lbs.
• WEEE weight: 0.25 lbs.
• Tariff code: 8543.70.9960
