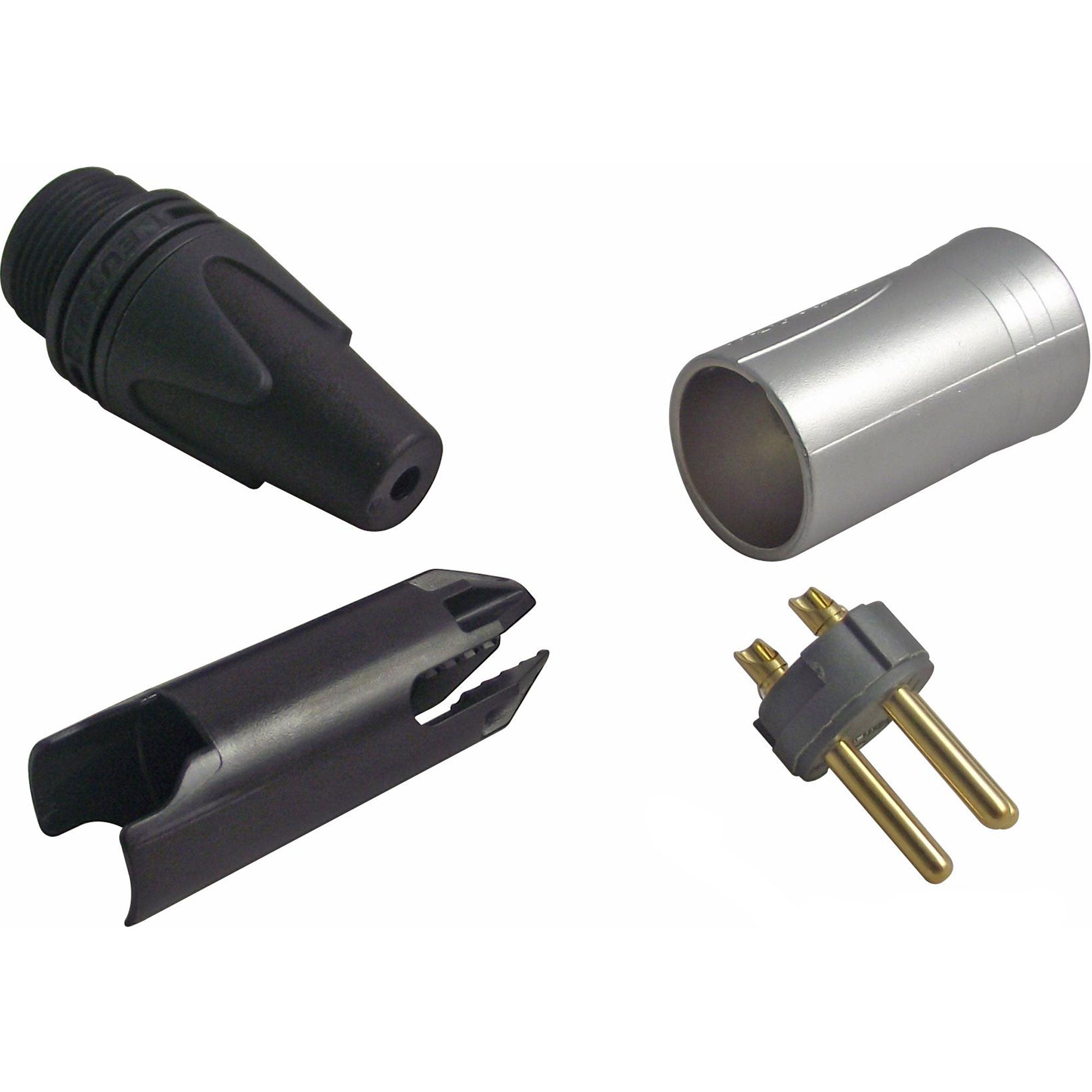

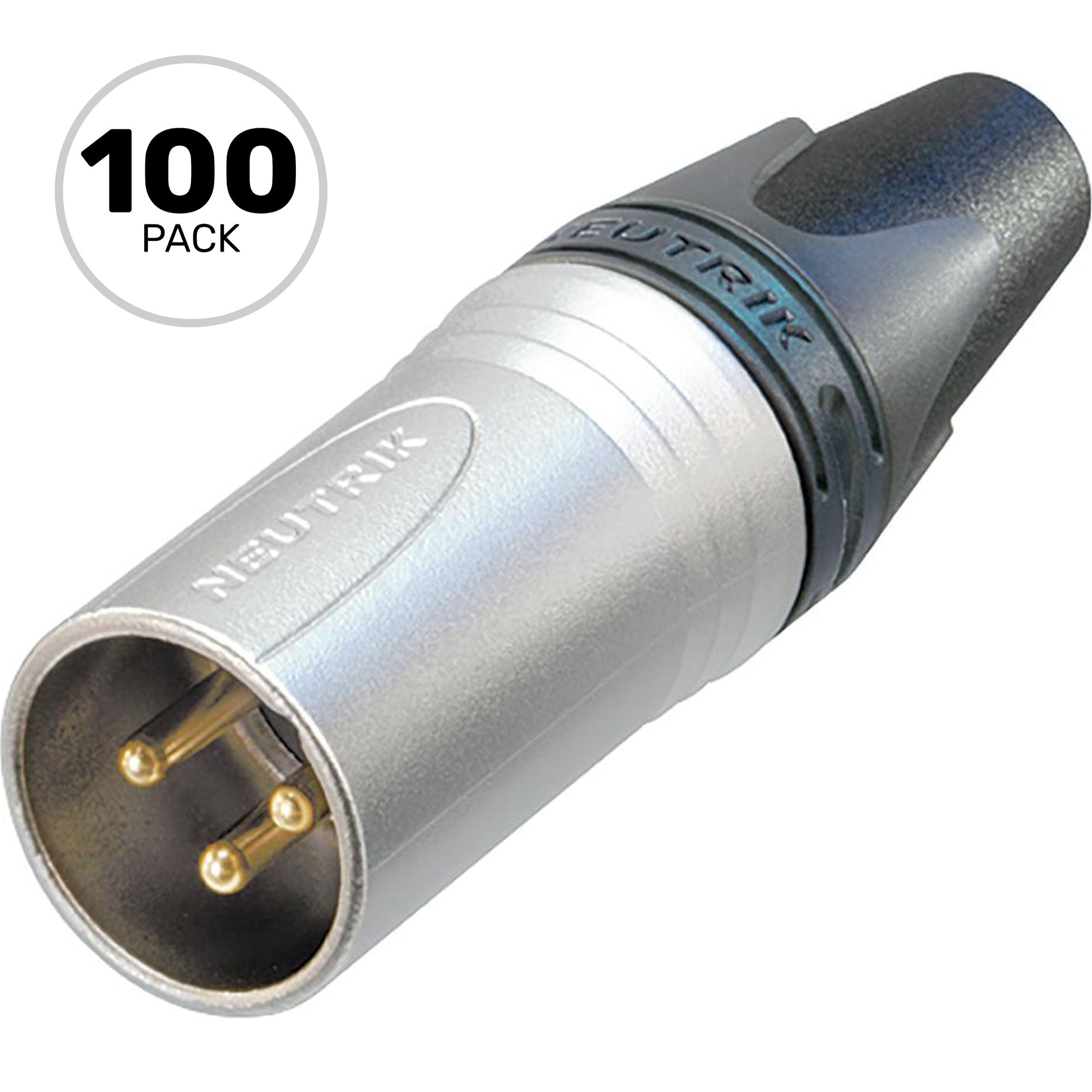

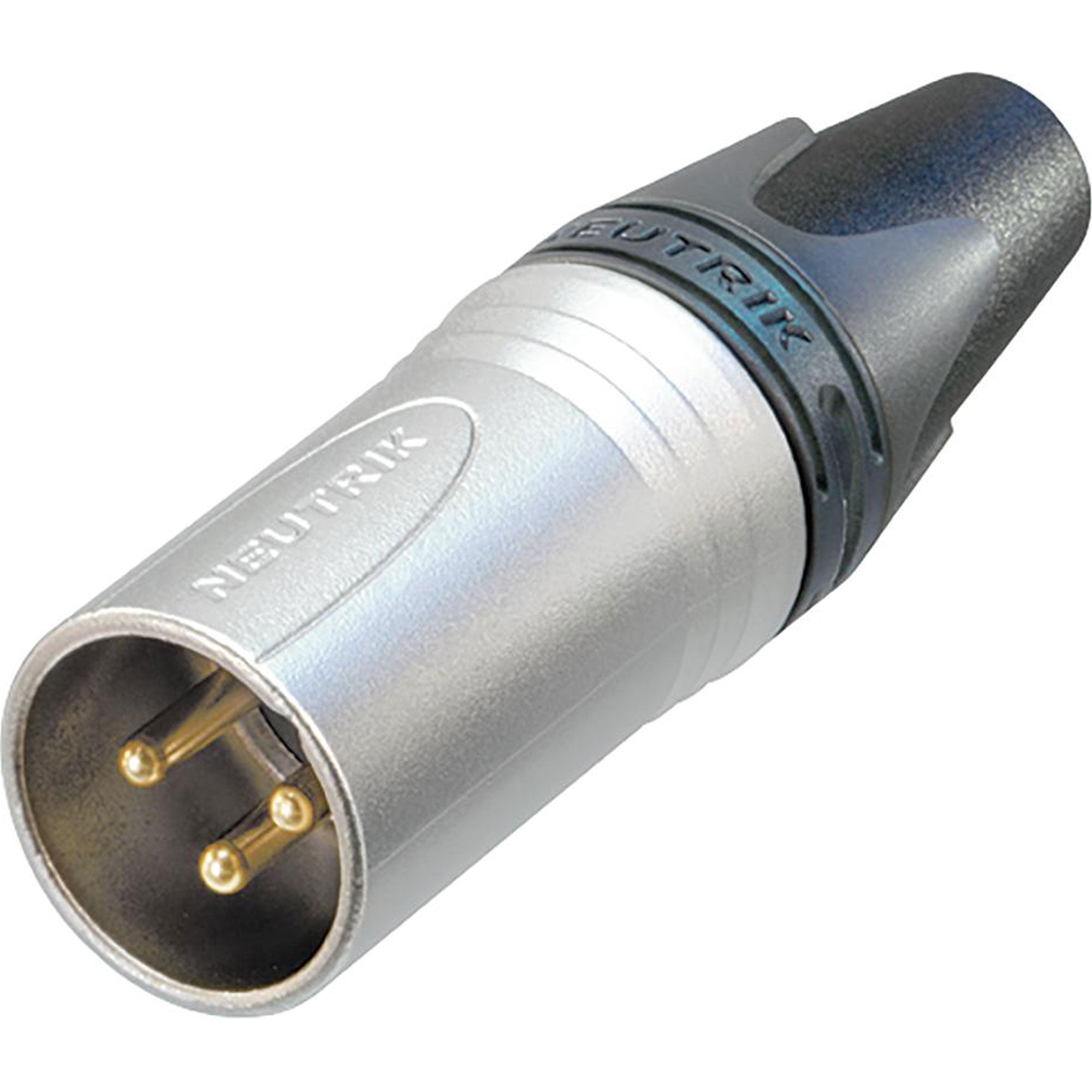

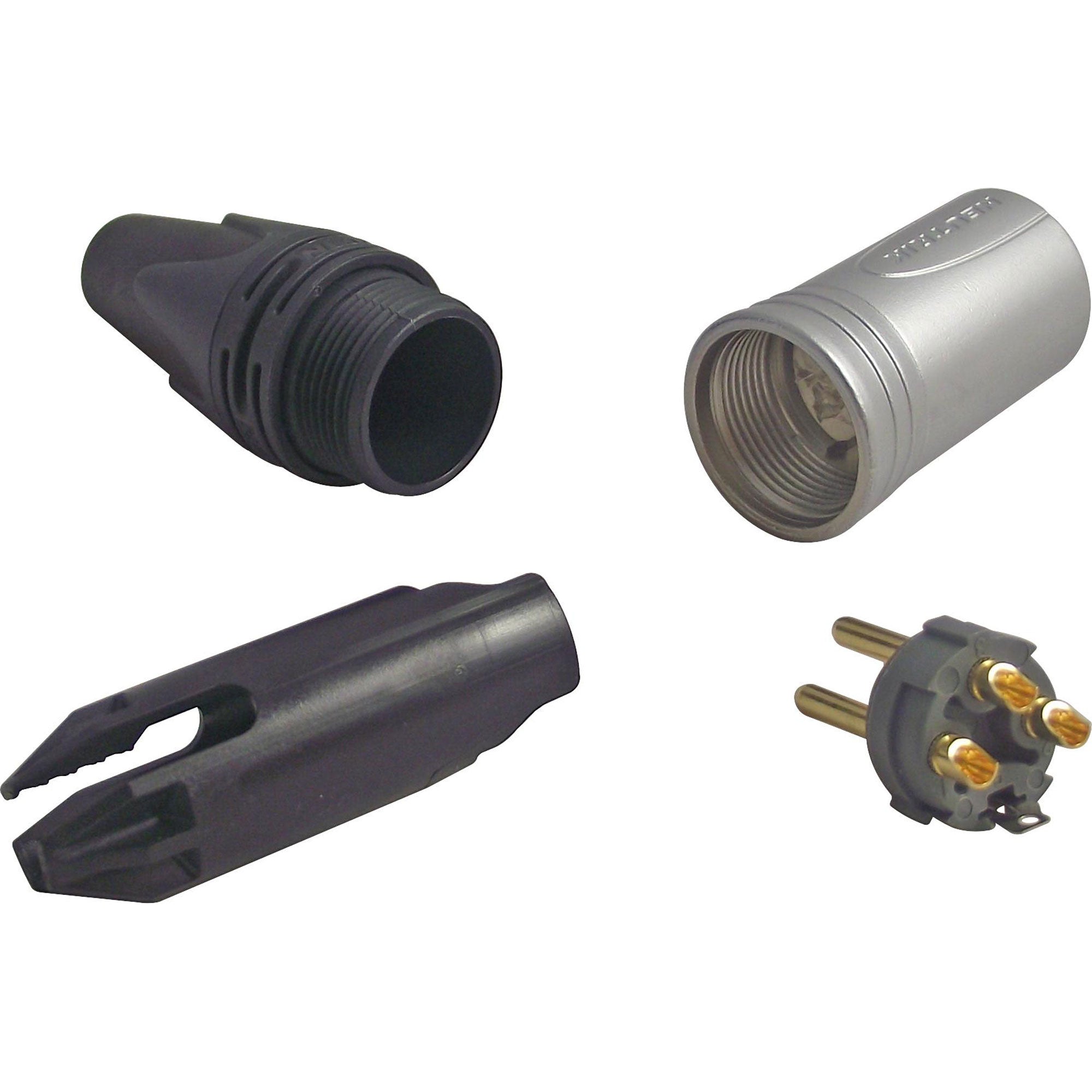

Neutrik NC3MXX-HE Male 3-Pin XLR Cable Connector (Velour-Chromium/Machined Gold, Box of 100)

Male 3-Pin XLR Cable End Connector with Solder Termination, XX Series, Velour-Chromium Housing, Machined Gold Contacts - Full Box of 100 Connectors

3 pole male cable connector, velour-chromium housing, gold contacts

Exclusive version of standard XX Series. Valuable velour chromium plating. Extra high temperature resistant insulator material.

Features:

• Extra high temperature resistant insulator material
• Valuable velour chromium plating of shell
• Male connector with improved locking recess without "window", more stringent housing increases durability
• Flammability UL94V-0
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy

Specifications:

• Product:
• Title: NC3MXX-HE
• Connection Type: XLR
• Gender: male
• Electrical:
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V
• Mechanical:
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 2.5 mm²
• Wiresize: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Material:
• Boot: Polyurethan
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyphenylene Sulfide (PPS 40% GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Velour Chromium
• Strain relief: Polyacetal (POM)
• Environmental:
• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
