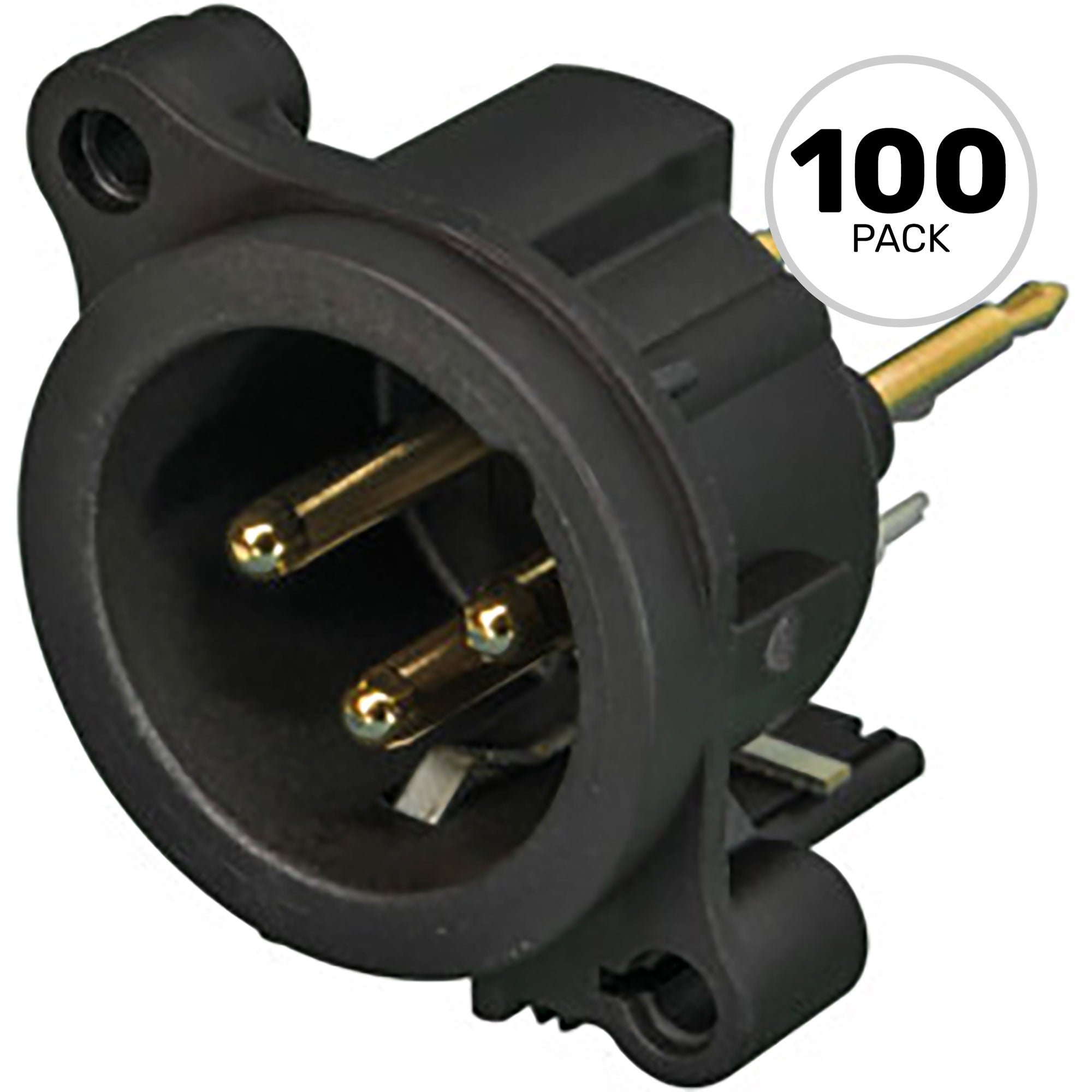

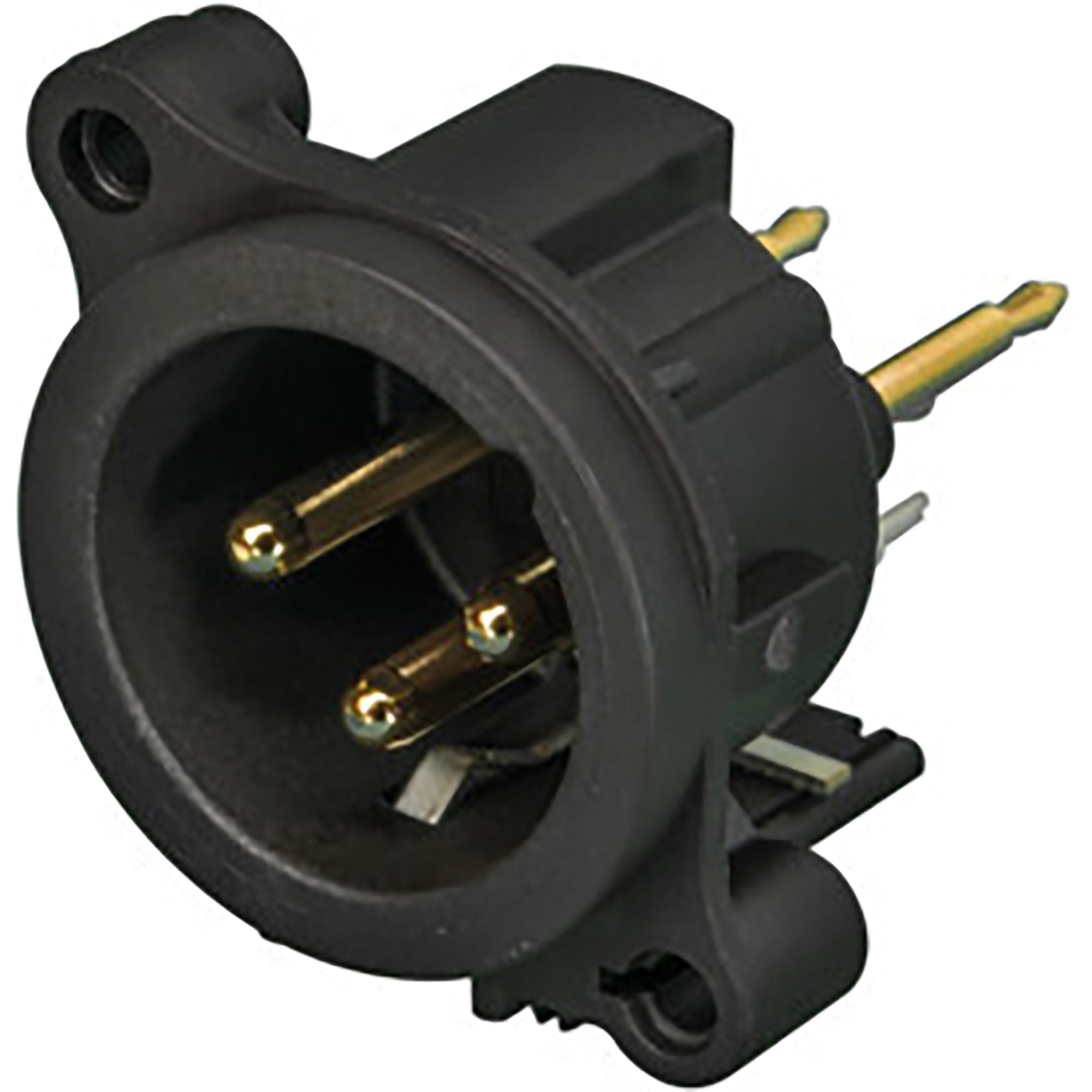

Neutrik NC3MAV-0 Vertical PCB Male 3-Pin XLR Chassis Connector (Box of 100)

3 Pole Male XLR Receptacle, Grounding: Ground Contact Connected to Shell Ground, but Not to Front Panel and Pin 1, Vertical PCB Mount - Full Box of 100 Connectors

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.

Features:

• Smallest XLR receptacles, highest packing density
• Plastic housing
• Polished contact areas and hard gold plating
• Housing flammability UL94V-0

Specifications:

• Product:
• Title: NC3MAV-0
• Connection Type: XLR
• Gender: male
• Electrical:
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 6 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 6 A
• Rated voltage: < 50 V
• Grounding Options: Ground contact connected to shell ground, but not to chassis and Pin 1
• Mechanical:
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Locking force: > 20 separating force N
• Wiresize:
• Wiring: vertical PCB mount
• Locking device: Latch lock
• Mounting direction: Rear mounting
• Chassis shape: A
• Mounting: A-Screw
• Material:
• Contacts: Brass (CuZn39Pb3)
• Shell: Polyamide (PA 6.6 30 % GR)
• Environmental:
• Approvals: UL
• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
