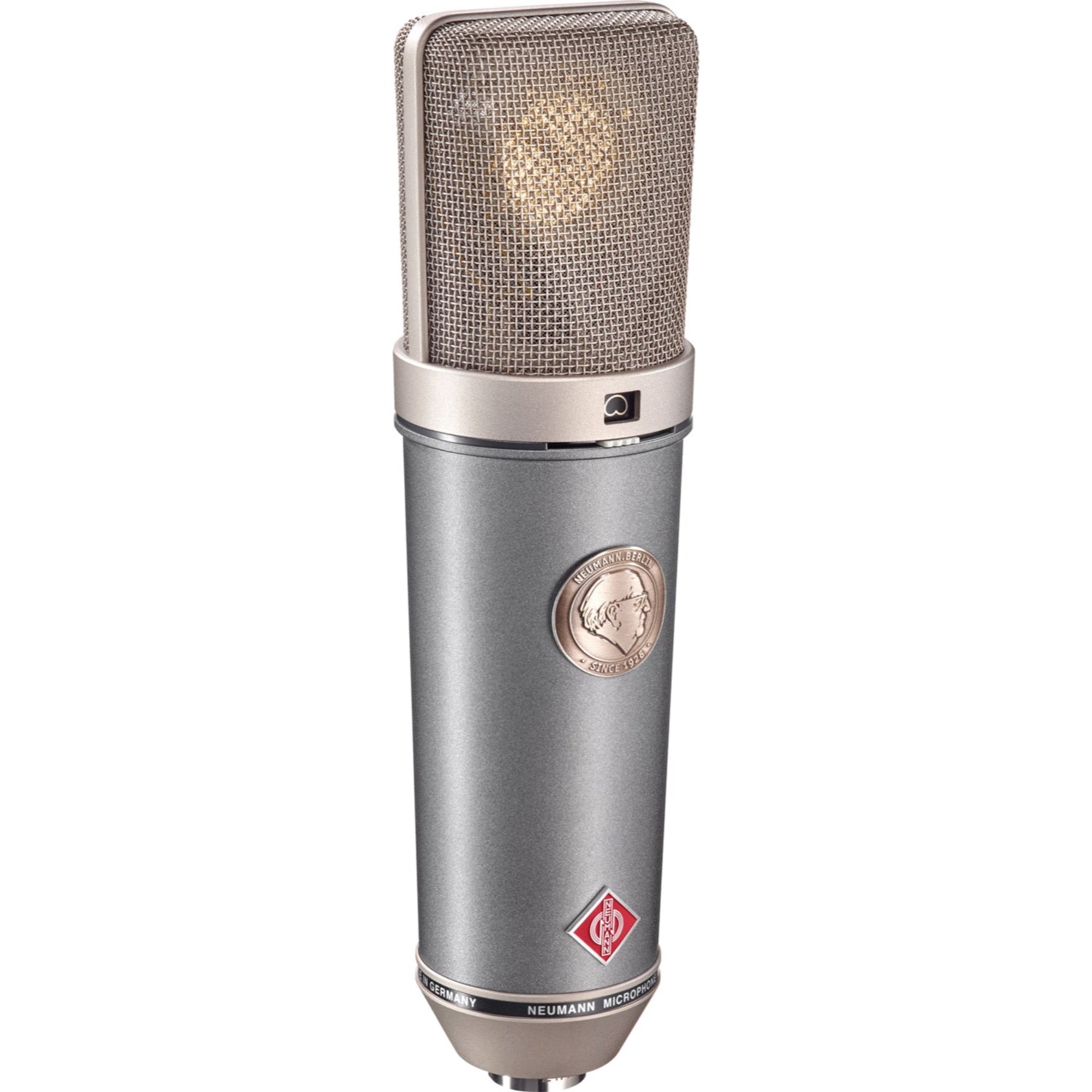

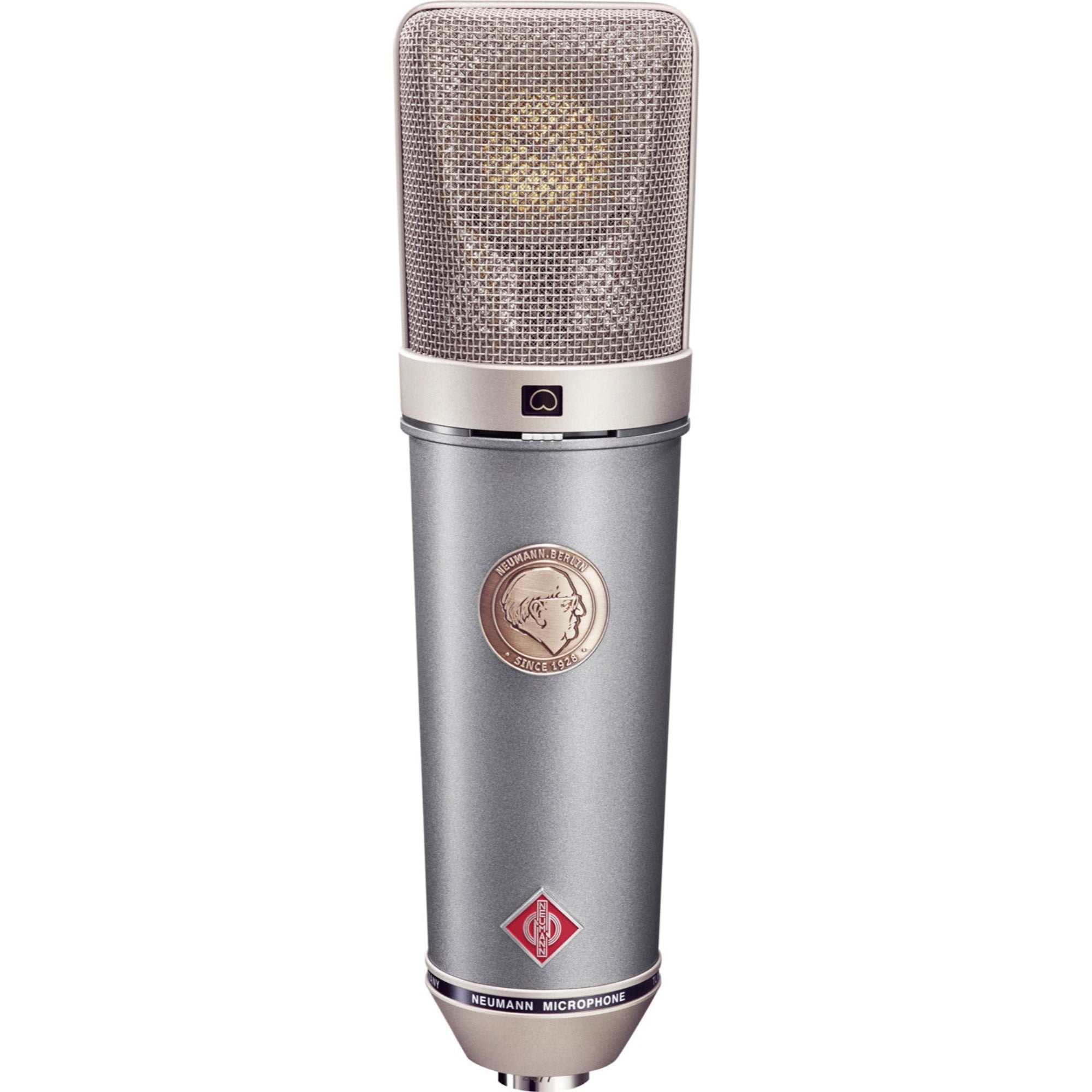

Neumann TLM 67 Large-Diaphragm Multipattern Condenser Microphone

Multi-Pattern Switchable Studio Condenser Microphone

The Neumann TLM67 Multi-Pattern Switchable Studio Microphone is a descendant of their legendary U67 microphone, with a solid-state transformerless output stage (over the original tube stage). The TLM67 features 3 switchable polar patterns that feature omnidirectional, cardioid and figure 8 polar patterns.

In addition, the -10dB pad enhances headroom and minimizes noise while capturing transient (peaking) signals. A high-pass filter switch further minimizes low-frequency noise and hum. The TLM67 delivers all the quality and professional crafstmanship expected of a Neumann microphone that features the coveted K 67 capsule. The microphone is ideally suited for general vocal capturing, orchestral recordings, spot capturing of individual instruments and more.

Features:

• Sound characteristics based on the legendary U 67
• Three switchable directional characteristics (omnidirectional, cardioid and figure-8)
• Switchable high-pass filter and pre-attenuation
• Transformerless circuit technology
• New dual-color exterior design

Specifications:

• Transducer: Pressure Gradient Transducer
• Polar Pattern: Omni / Cardioid / Figure-8
• Sensitivity: 10/18/9 mV/Pa (at 1 kHz into 1k ohm)
• Frequency Response: 20Hz - 20kHz
• Dynamic Range (Typical):
  Dyn. range of the mic. amplifier (A-weighted, 0.5 %2)): 94 dB
  Dyn. range of the mic. amplifier (A-weighted, 5 %2)): 114 dB
• Signal-to-Noise Ratio:
  Equivalent noise level, CCIR1): 29/24/30 dB
  Equivalent noise level, A-weighted1): 16/11/17 dB-A
  Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 65/70/64 dB
  Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 78/83/77 dB-A
• Maximum Input Sound Level: Maximum SPL (tube characteristic) for THD < 0.5 %2): 110/105/111 dB
• Maximum SPL (tube characteristic) for THD < 5 %2): 130/125/131 dB
• Power Requirements: 48V Phantom
• Output Impedance:
  Rated impedance: 50 ohms
  Rated load impedance: 1k ohms
• Output Connectors: 3-pin XLR (AES/EBU)
• Pad: -10dB
• Dimensions (LxDiameter): 7.87 x 2.20" (200 x 56mm)
• Weight: 17.28 oz (490g)
