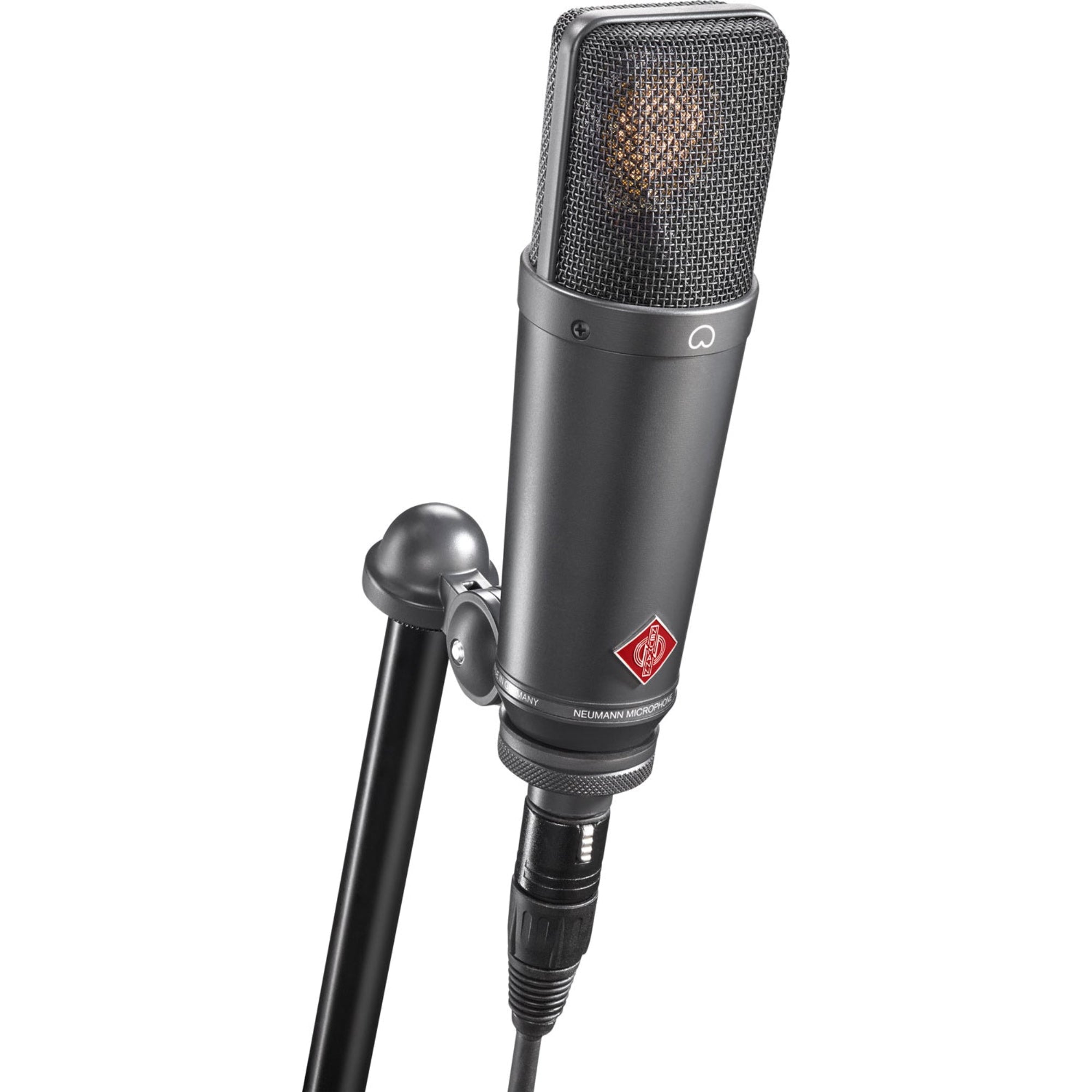

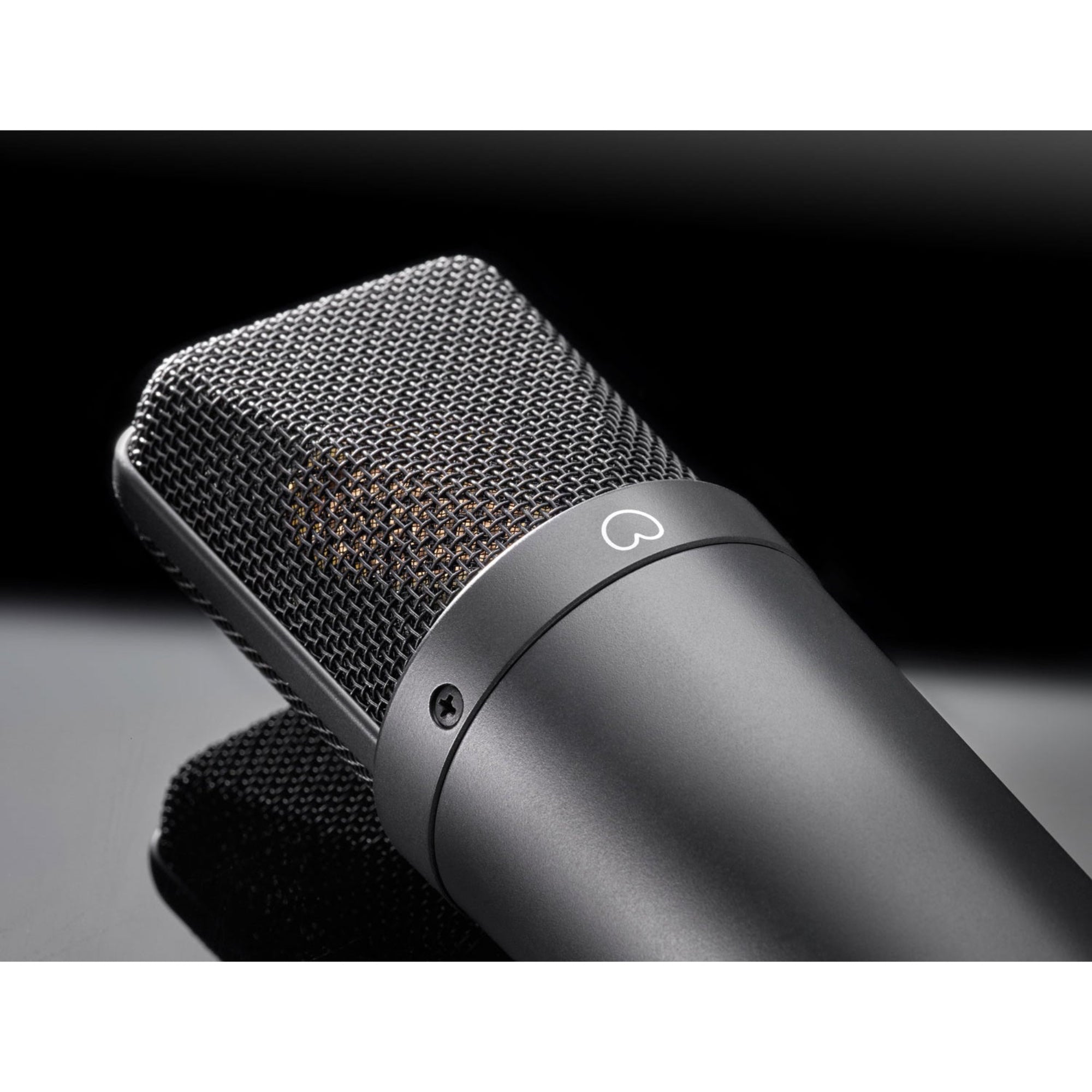

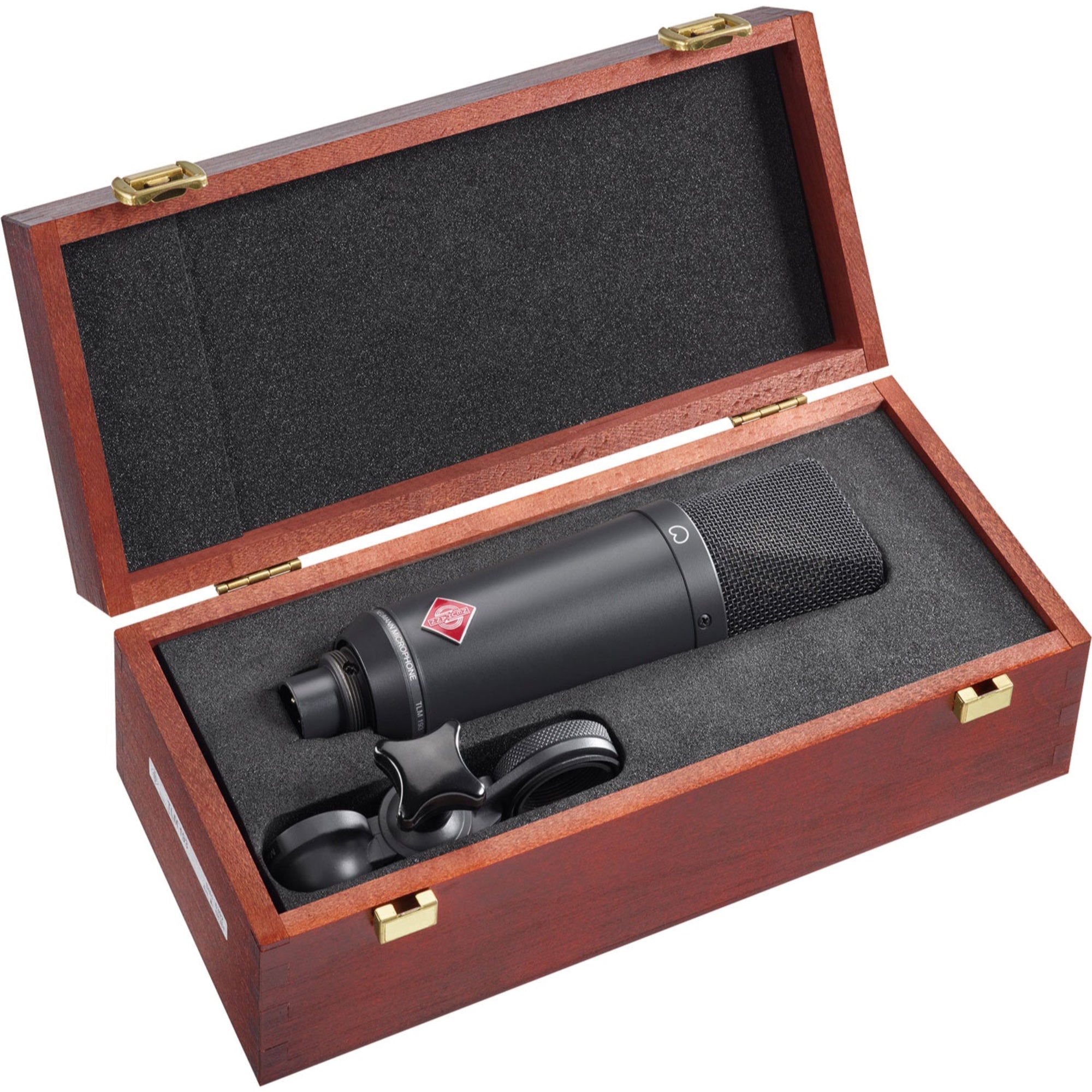

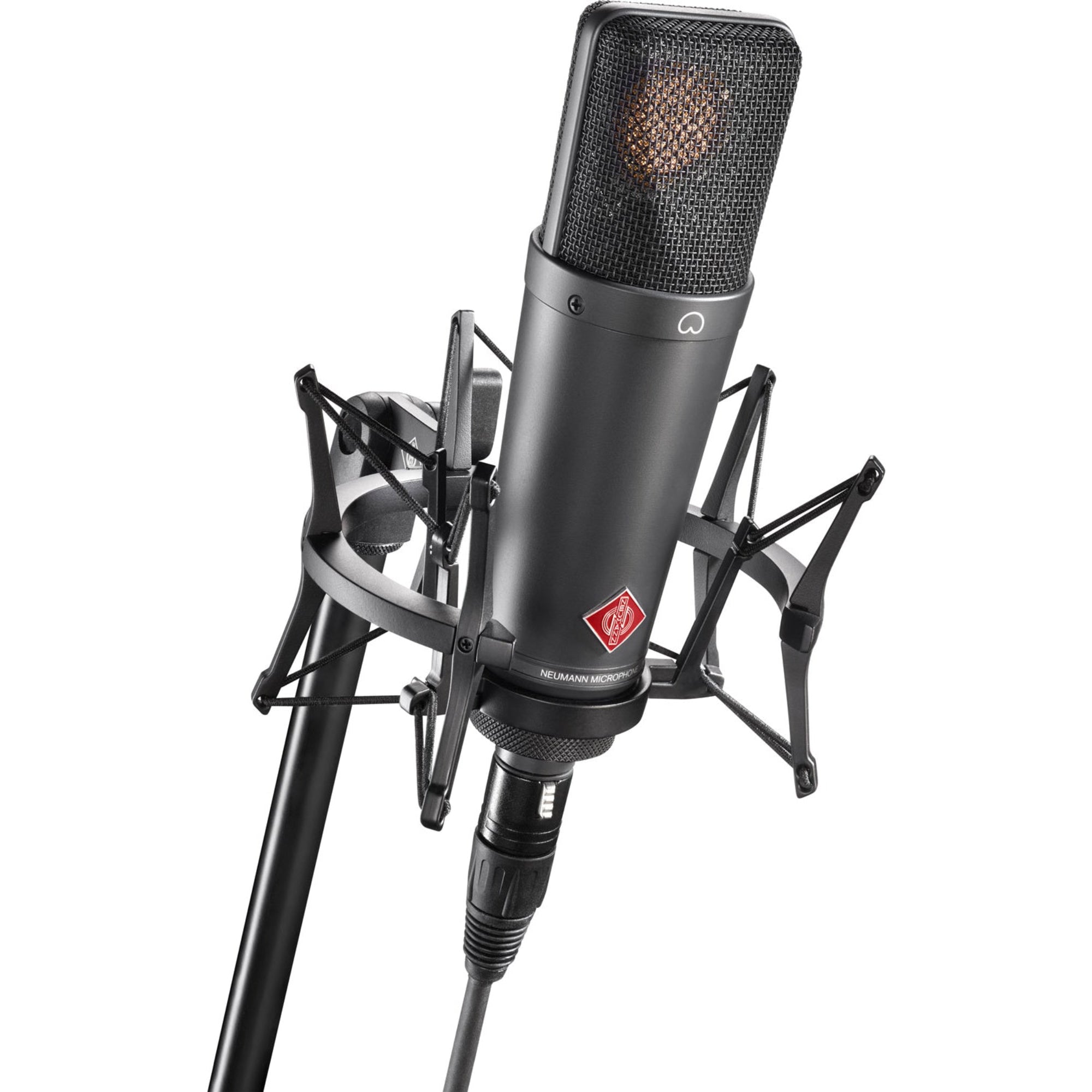

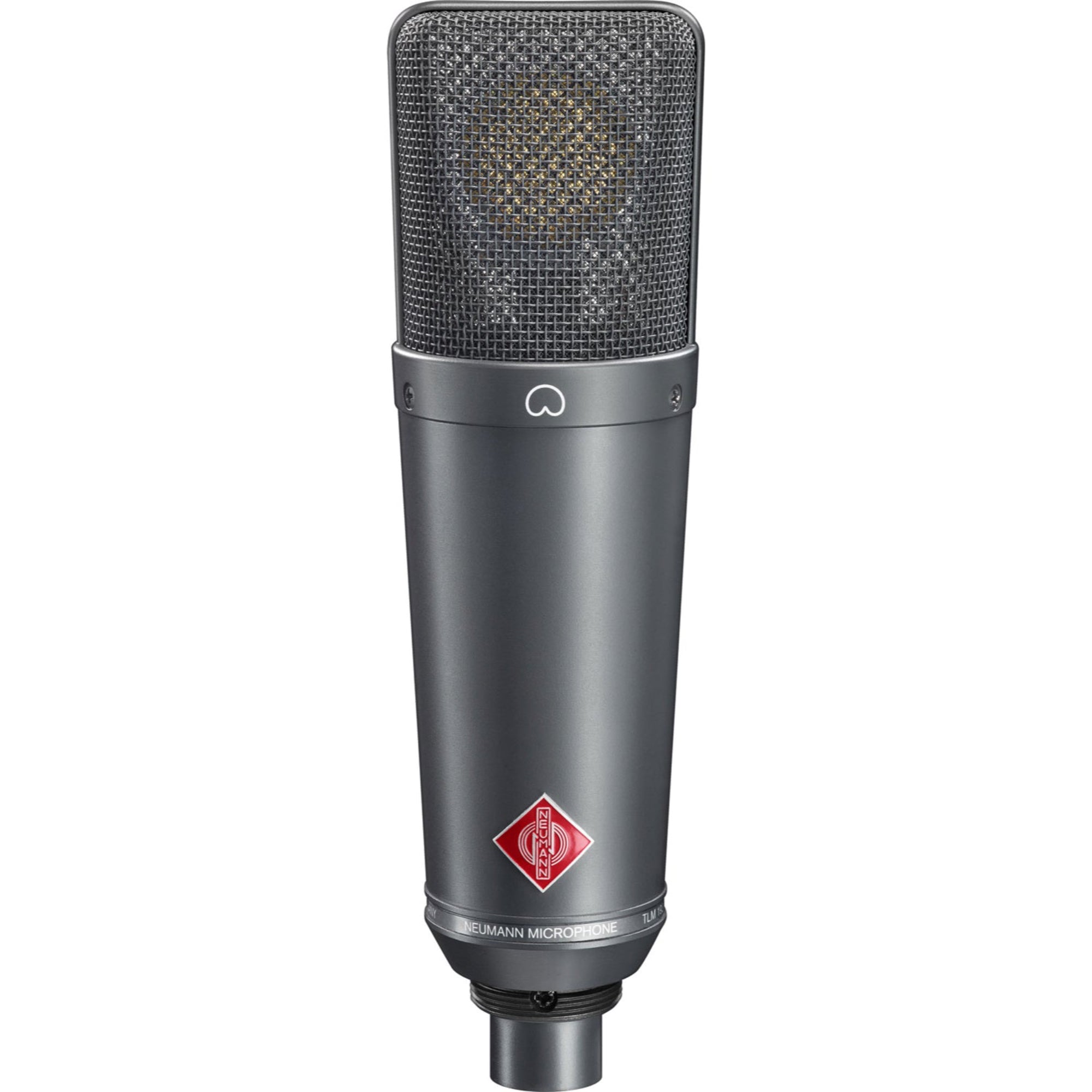

Neumann TLM 193 Large Diaphragm Condenser Microphone

Large Diaphragm Cardioid Studio Condenser Microphone

The Neumann TLM 193 is a large diaphragm cardioid microphone designed for vocal and general instrument recording and sound reinforcement. The capsule features a cardioid element that effectively eliminates off-axis noise due to room ambiance, monitors etc. The capsule is elastically mounted to avoid structure born noise due to shock and handling. The frequency response is linear down to 20Hz. Even low frequency signals are reproduced without any coloration. The TLM 193 features a dynamic range of 130dB and handles sound pressure levels up to 140dB without distortion. The transformer-less output circuitry provides pristine, noise-free output without any signal coloration.

Features:

• Cardioid Polar Pattern
  The cardioid polar pattern effectively minimizes off-axis sound due to room ambiance and noise caused from instruments, monitors etc.
• Transformer-less Output
  Neumann's transformer-less output design offers clean output without noise or coloration to the audio signal.
• Shock Mounted Diaphragm
  The capsule is elastically mounted to avoid any structure borne noise due to shock and handling.

Specifications:

• Transducer: Pressure Gradient Condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range (Typical): 130 dB
• Signal-to-Noise Ratio:
  73 dB: CCIR 468-3
  84 dB: DIN/IEC 651
• Maximum Input Sound Level: 140 dB
• Power Requirements: Phantom 48v
• Output Impedance: 50 Ohms
• Output Connectors: 3-Pin XLR Type
• Pad: None
• Low Frequency Roll-Off: None
• Dimensions: 6.9 x 1.9" (175 x 49mm) Maximum LxDdiameter
• Weight: 16.9 oz. (480 g)
