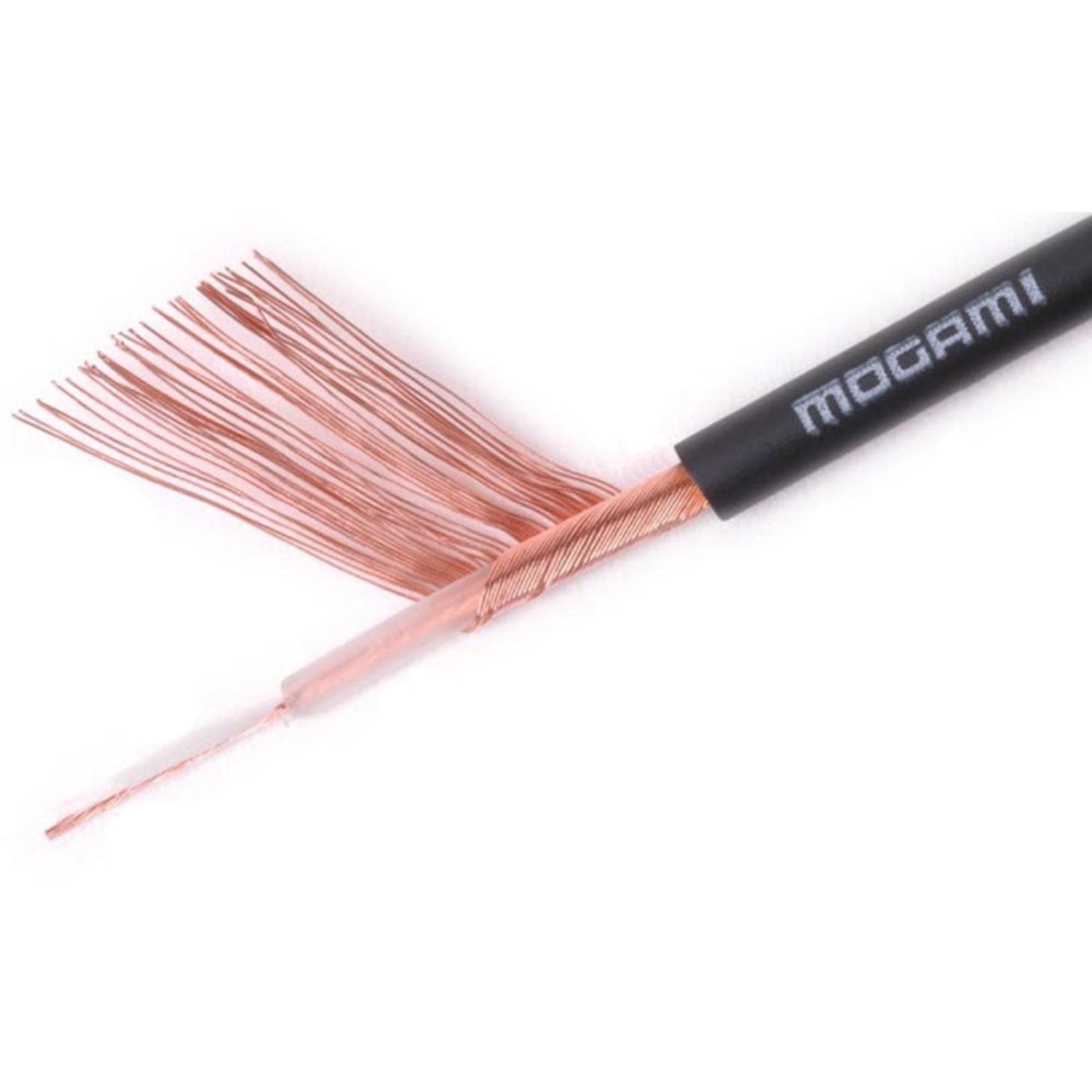

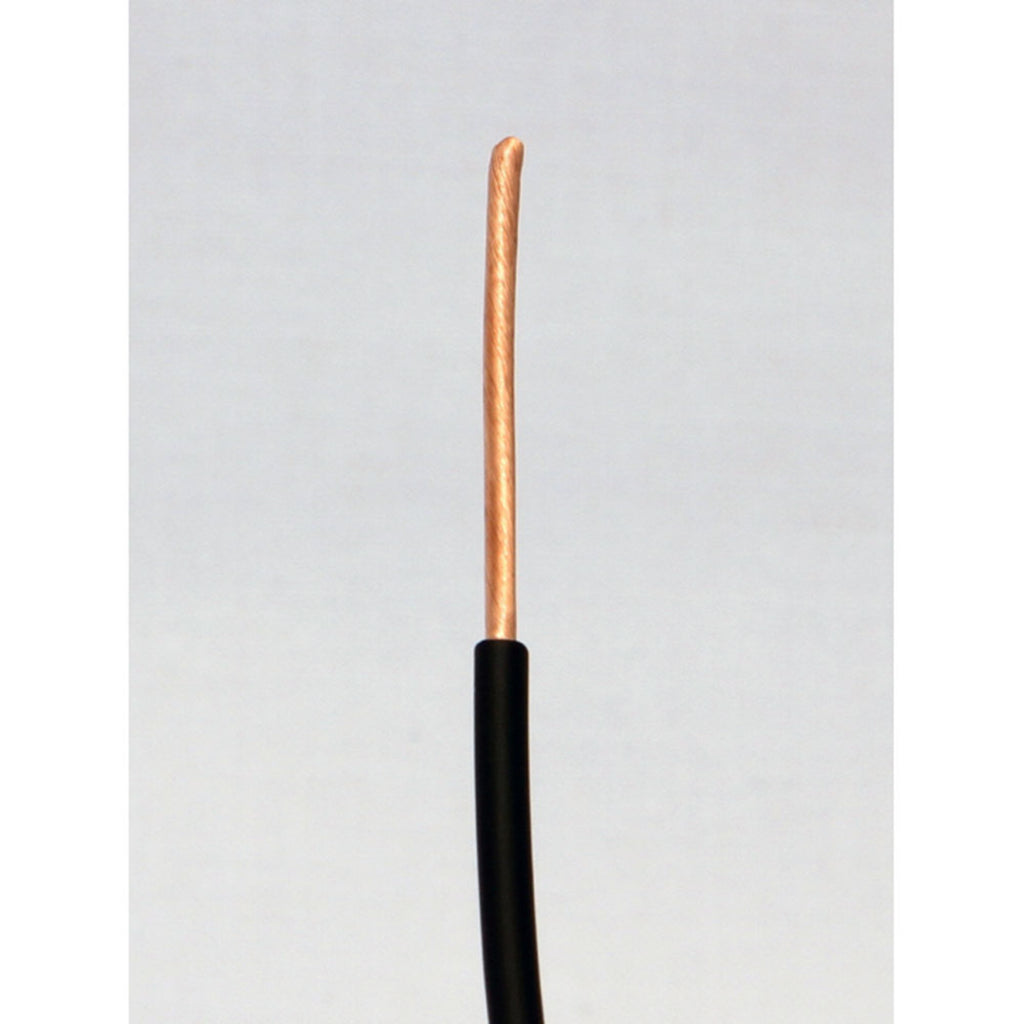

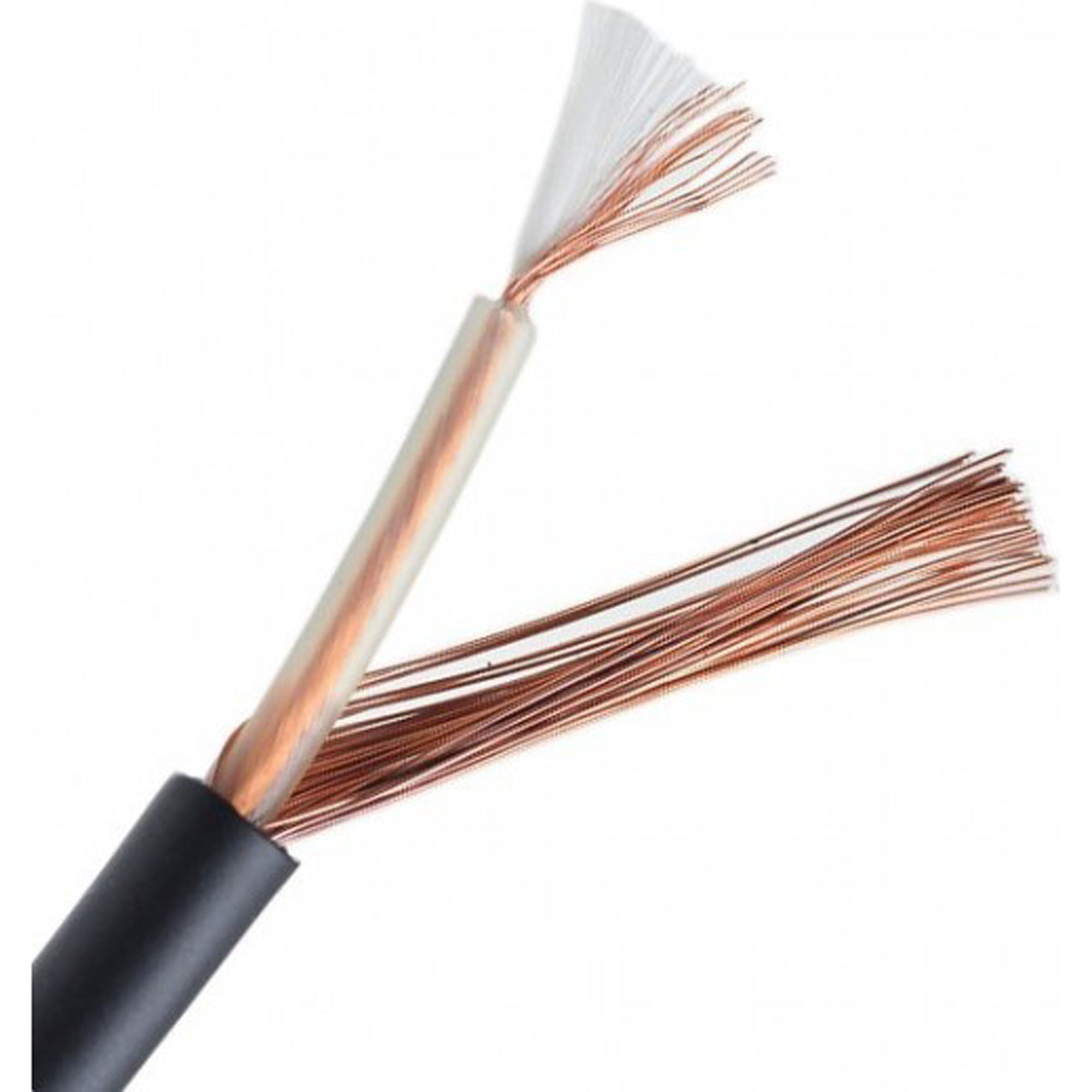

Mogami W2330 Miniature Unbalanced Lavalier Mic Cable (328'/100m Roll)

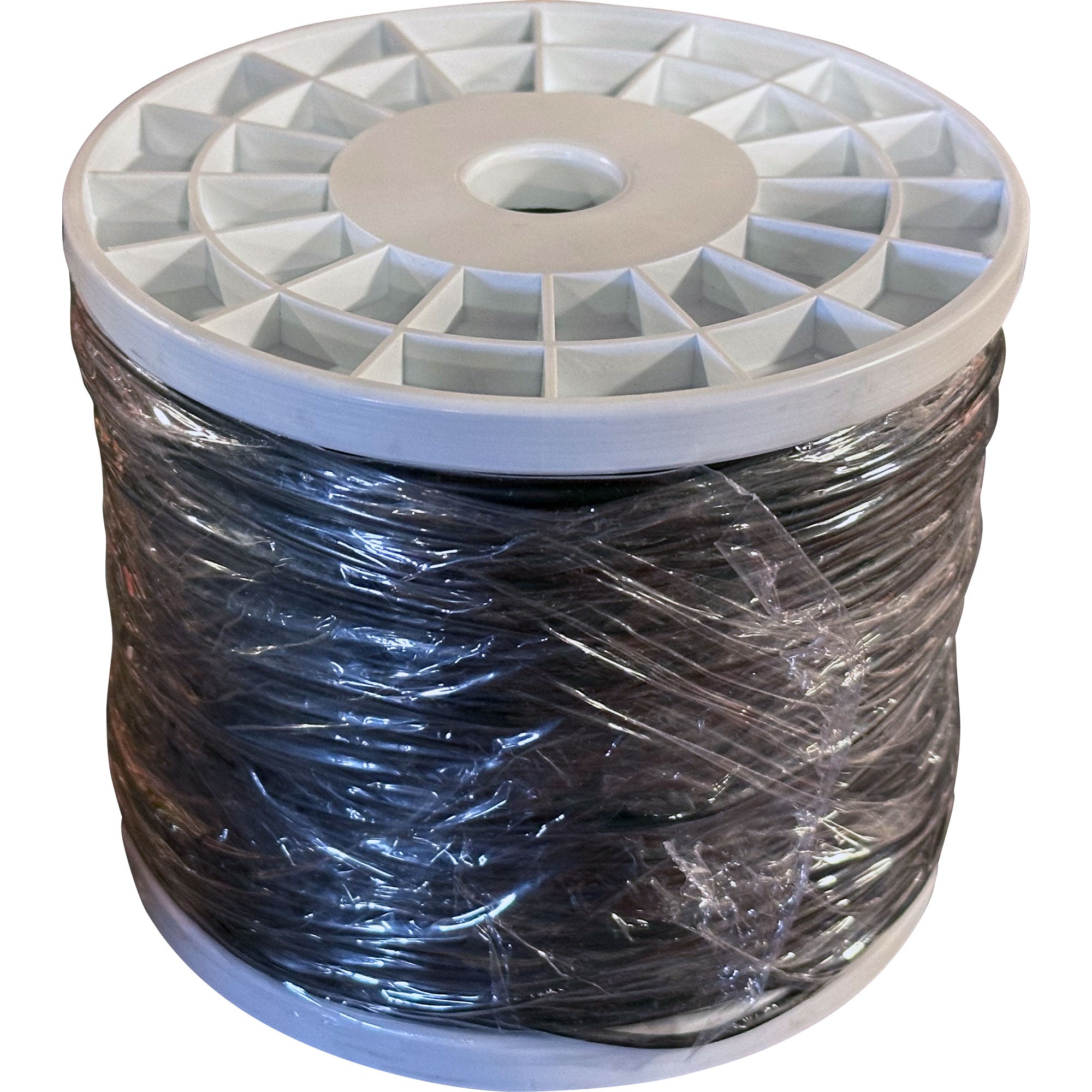

Unbalanced Lavalier Mic Cable - Full 328'/100m Roll

These cables show Mogami's manufacturing and cable design expertise in creating an economical unbalanced cables which maintain necessary mechanical strength (tensile strength and long flex life) and flexibility for a microphone cable.

Specifications:

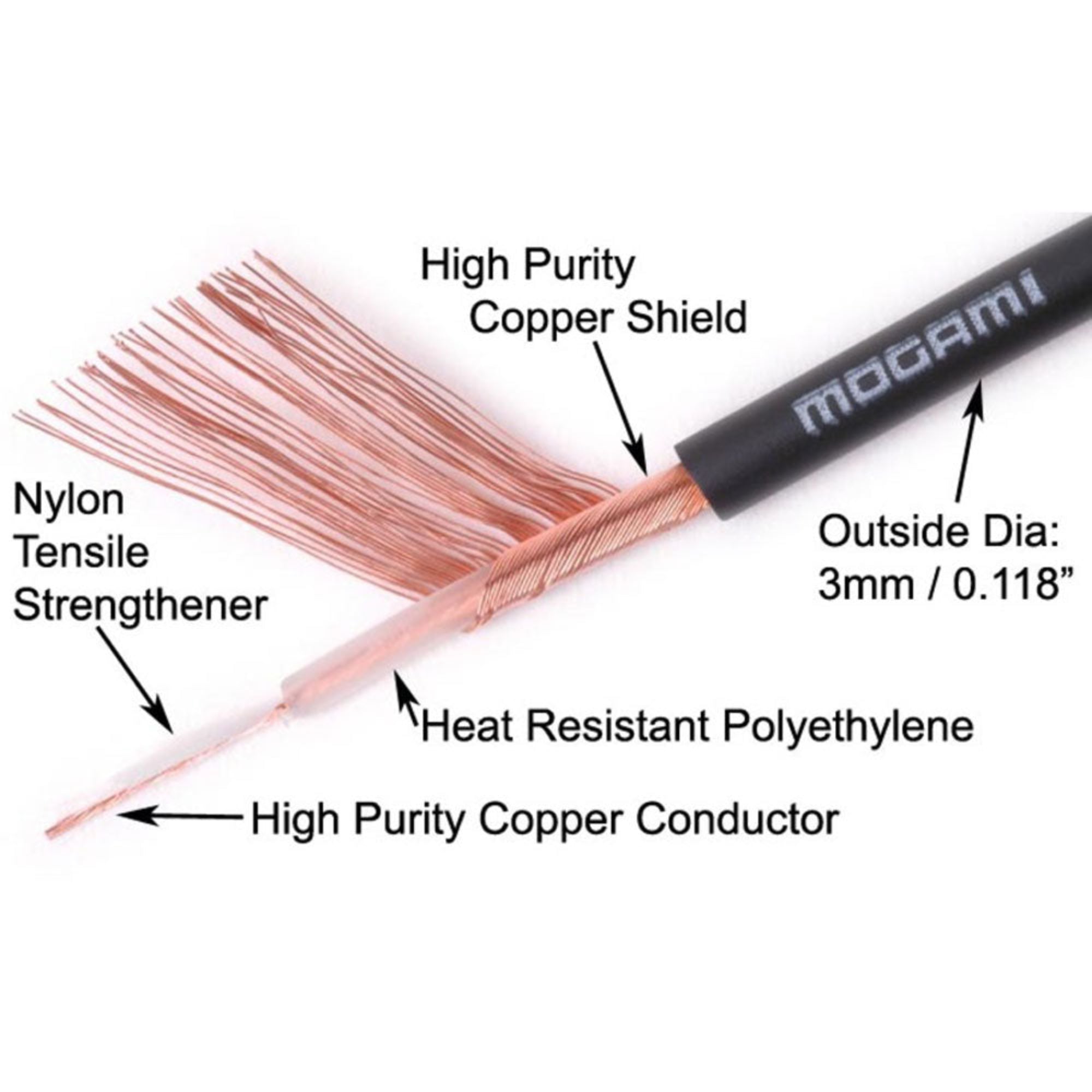

• Part No.: W2330
• No. of Conductor: 1
• Conductor Details: 16/0.08 A
• Conductor Size(mm2): 0.08mm2(#28 AWG)
• Insulation Ov.Dia.(mm): 1.5Ø (0.059")
• Insulation Material: LNXLPE (Low Noise Cross - Linked polyethylene)
• Insulation Color: Clear

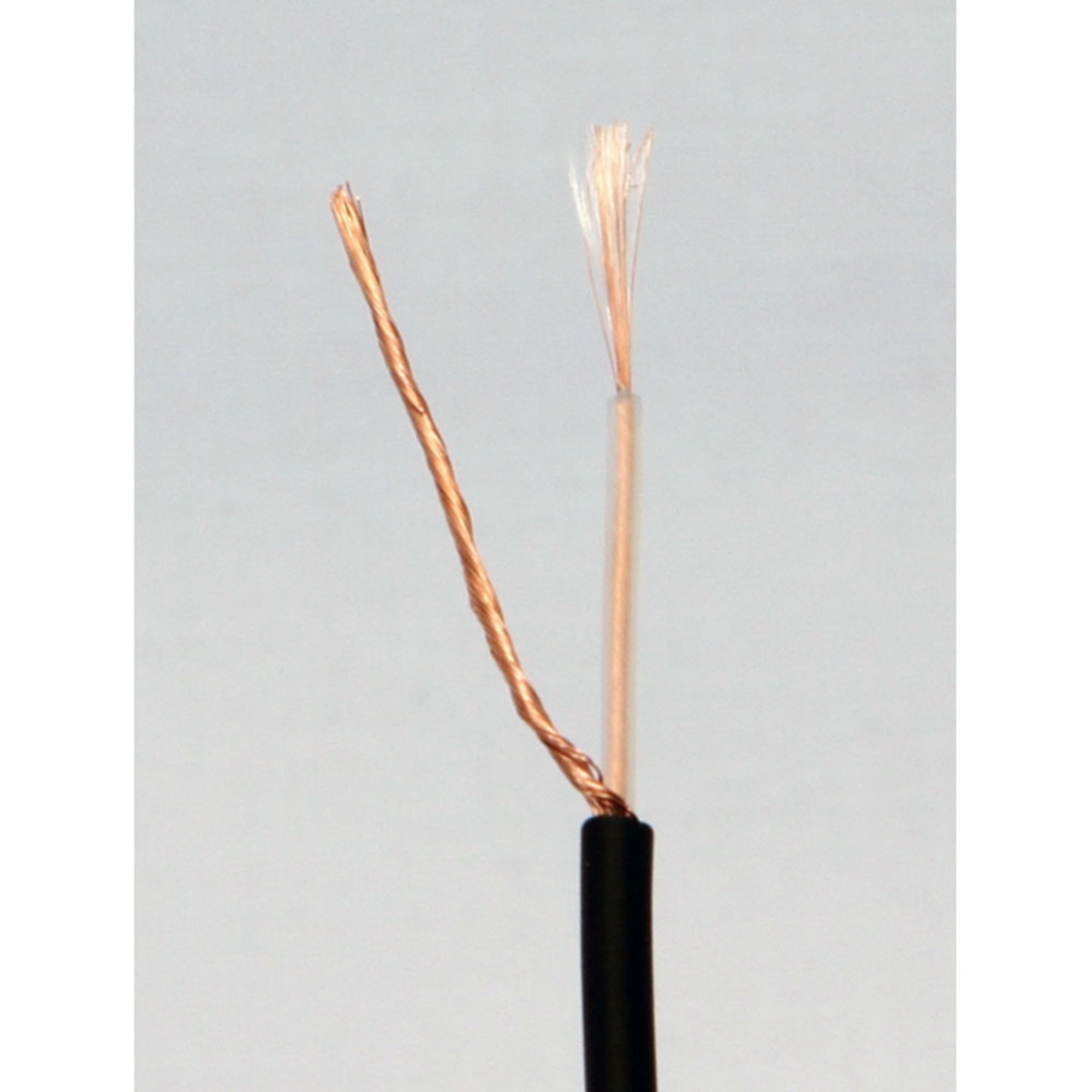

• Served Shield: Approx. 36/0.12A
• Jacket Ov. Dia.(mm): 3.0Ø (0.118")
• Jacket Material: Flexible PVC
• Jacket Color: Black
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• DC Resistance at 20ºC Inner Cond.: 0.23O/m(0.070O/Ft)
• DC Resistance at 20°C Shield: 0.05O/m(0.015O/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value): 115pF/m(35pF/Ft)
• Inductance between conductors at 1kHz. 20°C: 0.3µH/m(0.092µH/Ft)
• Electrostatic Noise**: 50mV Max.
• Electromagnetic Noise**: 0.05mV Max.
• Microphonics at 50KW Load**: 300mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance 100000 MO × m: Min. at DC 125V, 20°C
• Flex Life**: 15,500 cycles
• Tensile Strength: 255N
