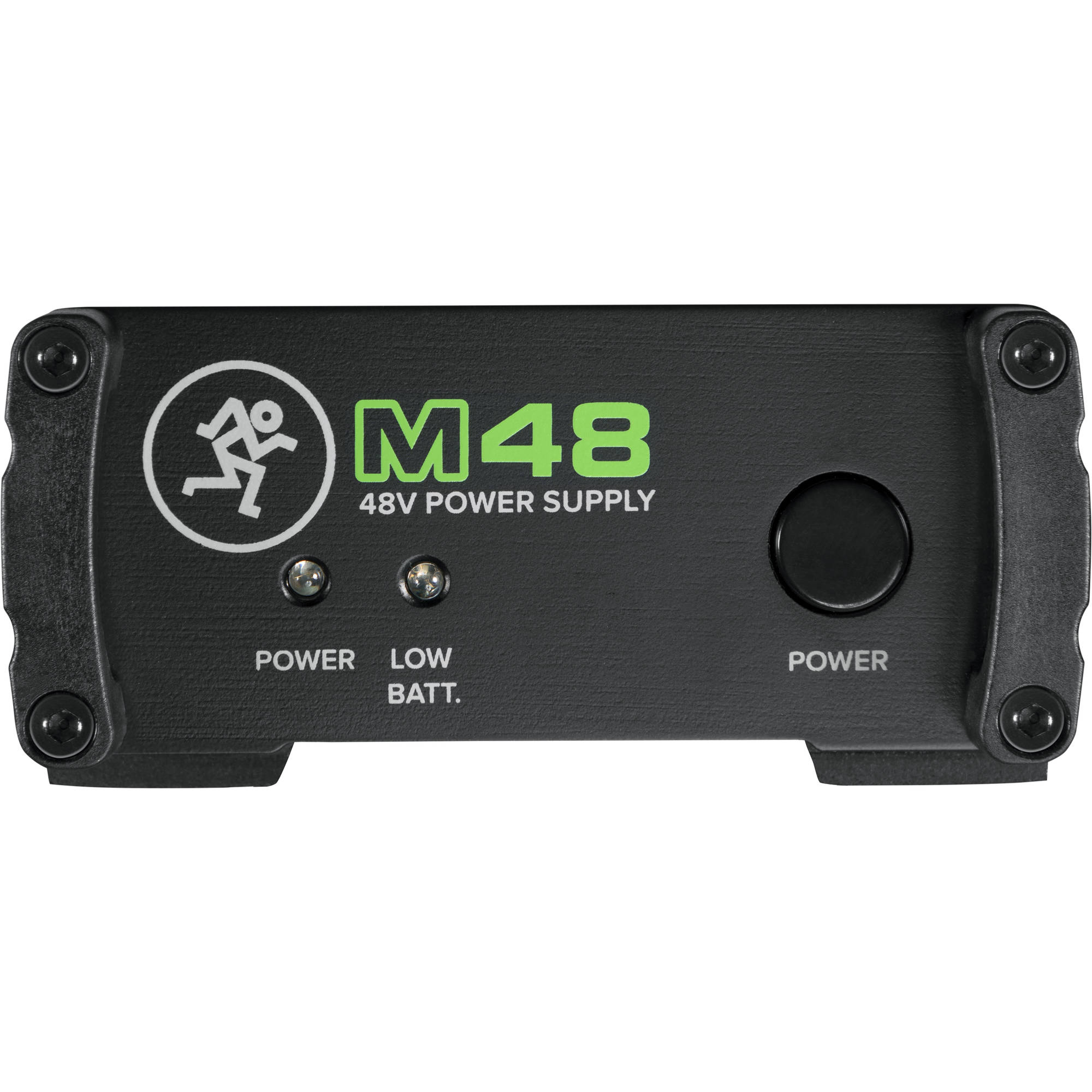

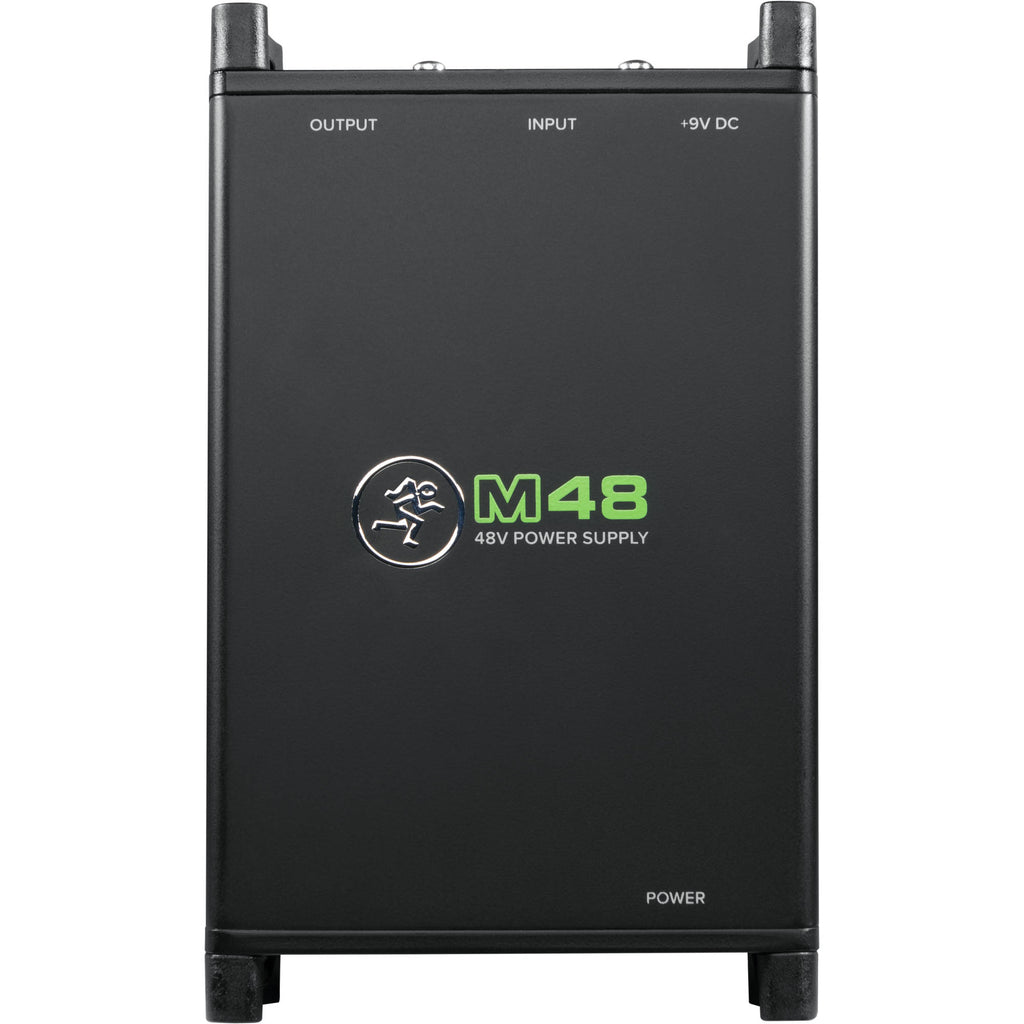

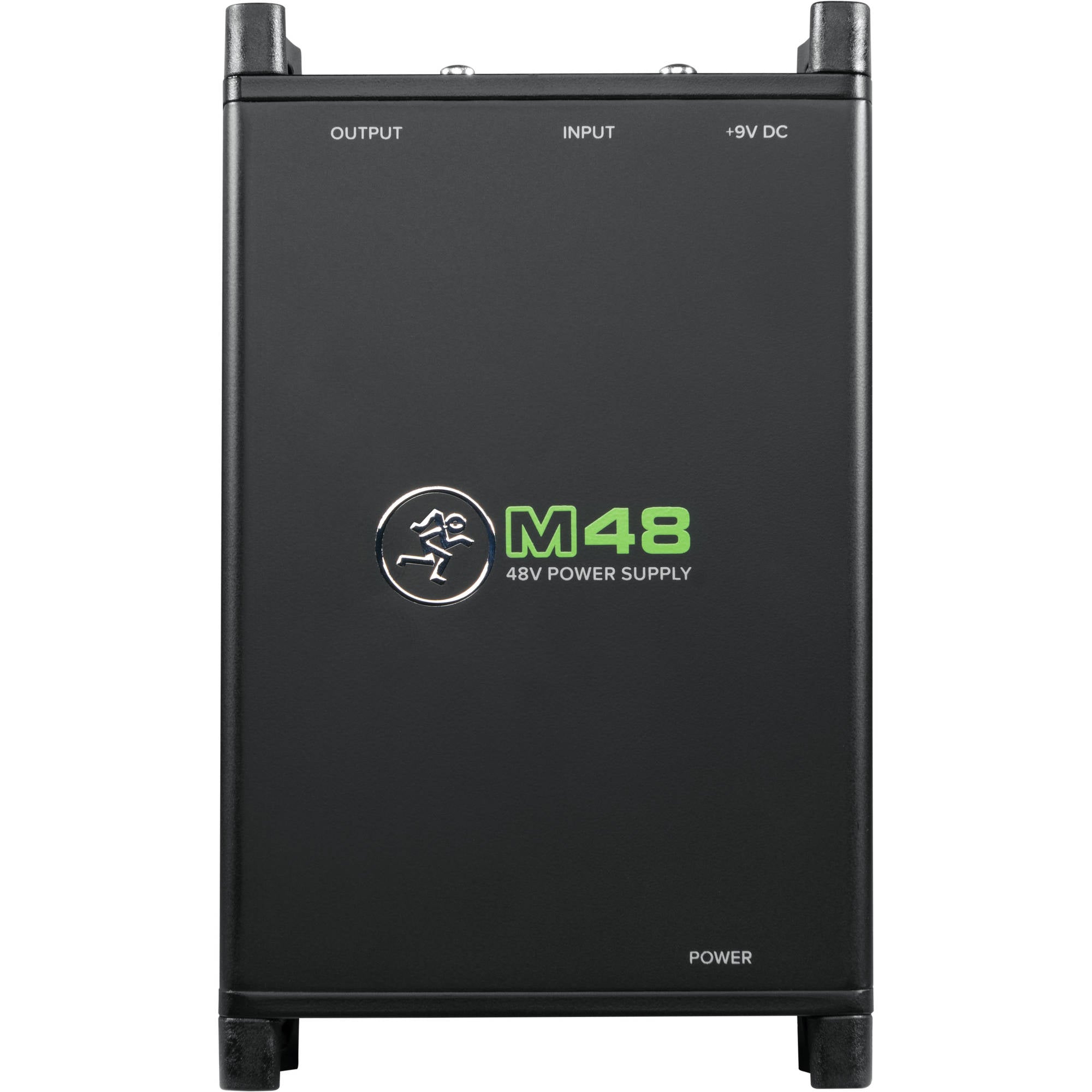

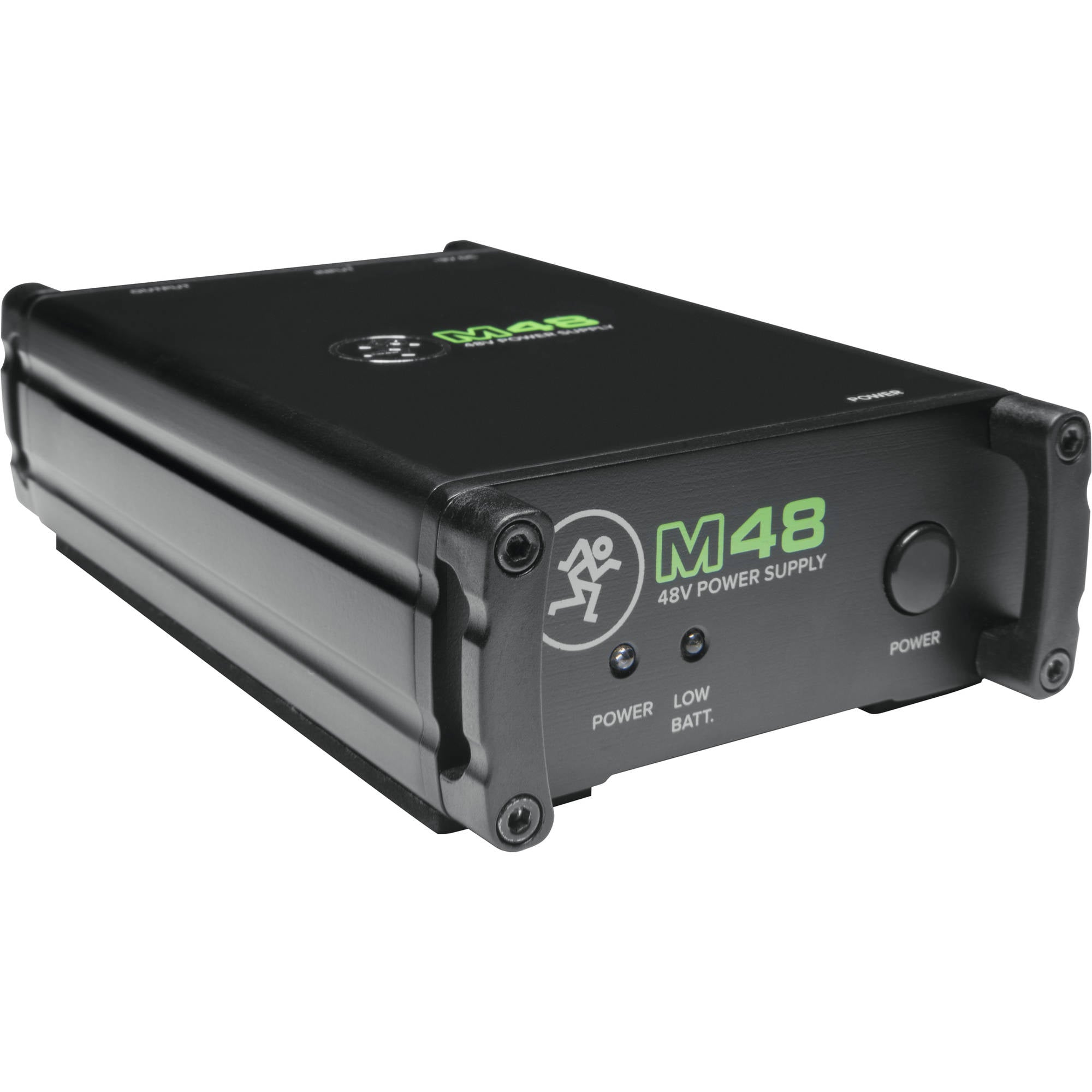

Mackie M48 Single-Channel 48V Phantom Power Supply

Single-Channel 48V Phantom Power Supply

The Mackie M48 is a phantom power supply designed to provide 48 VDC phantom power to a single microphone for musicians, producers, and audio engineers in live stage applications and home, project, and mobile-recording studios. Connect it between your microphone and preamp to supply a steady stream of phantom power. It features a balanced XLR 3-pin input and output for compatibility with most microphones and sturdy heavy-gauge steel construction for dependable use on the road or in the studio.

Its circuitry yields noise-free operation that won't color your sound. Power it via a 9V battery or the supplied AC adapter and check power and low-battery status via LED indicators.

Features:

• Ideal between condenser microphones and consoles or interfaces that do not supply phantom power
• Supplies 48 VDC phantom power for one microphone

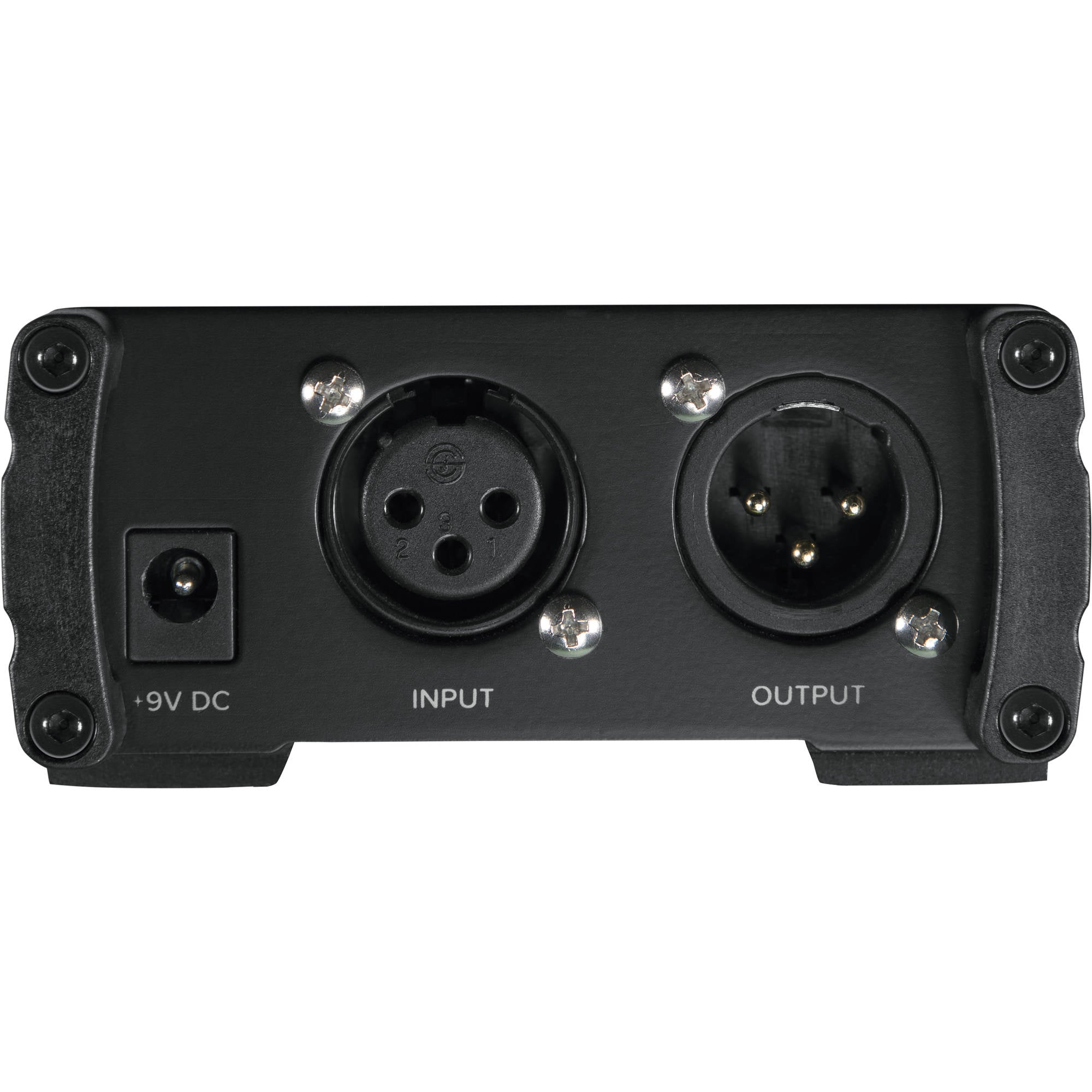

• Balanced XLR 3-pin input and output
• Dedicated LED indicators for power and low-battery status
• Powered via 9V battery or supplied power adapter

Specifications:

• Inputs: 1 x XLR 3-pin balanced
• Outputs: 1 x XLR 3-pin balanced
• Output Voltage: +48 V (±3 V)
• Maximum Output Current: 40 mA
• Power Requirement: 9 V battery or 9 to 12 VDC external power supply
• Construction Material: Heavy-gauge steel chassis
• Dimensions (H x W x D): 1.5 x 3.4 x 5.8" / 38 x 86 x 147 mm
• Weight: 0.8 lb / 0.4 kg
• Specialties: LED indicators for power and low-battery status
