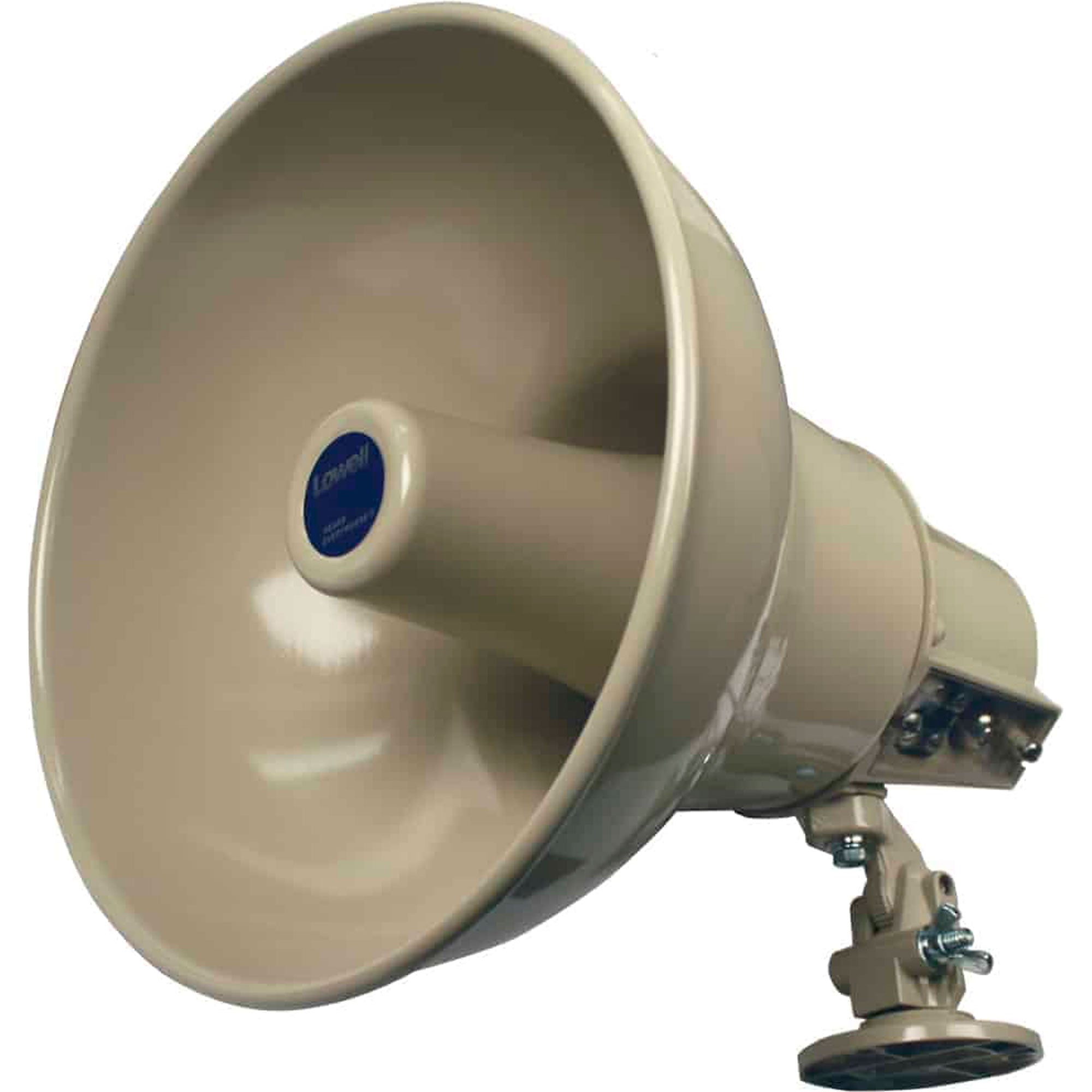

Lowell LH-30TA 30W Re-entrant Horn with Transformer, Enclosure and Bracket (6 Pack)

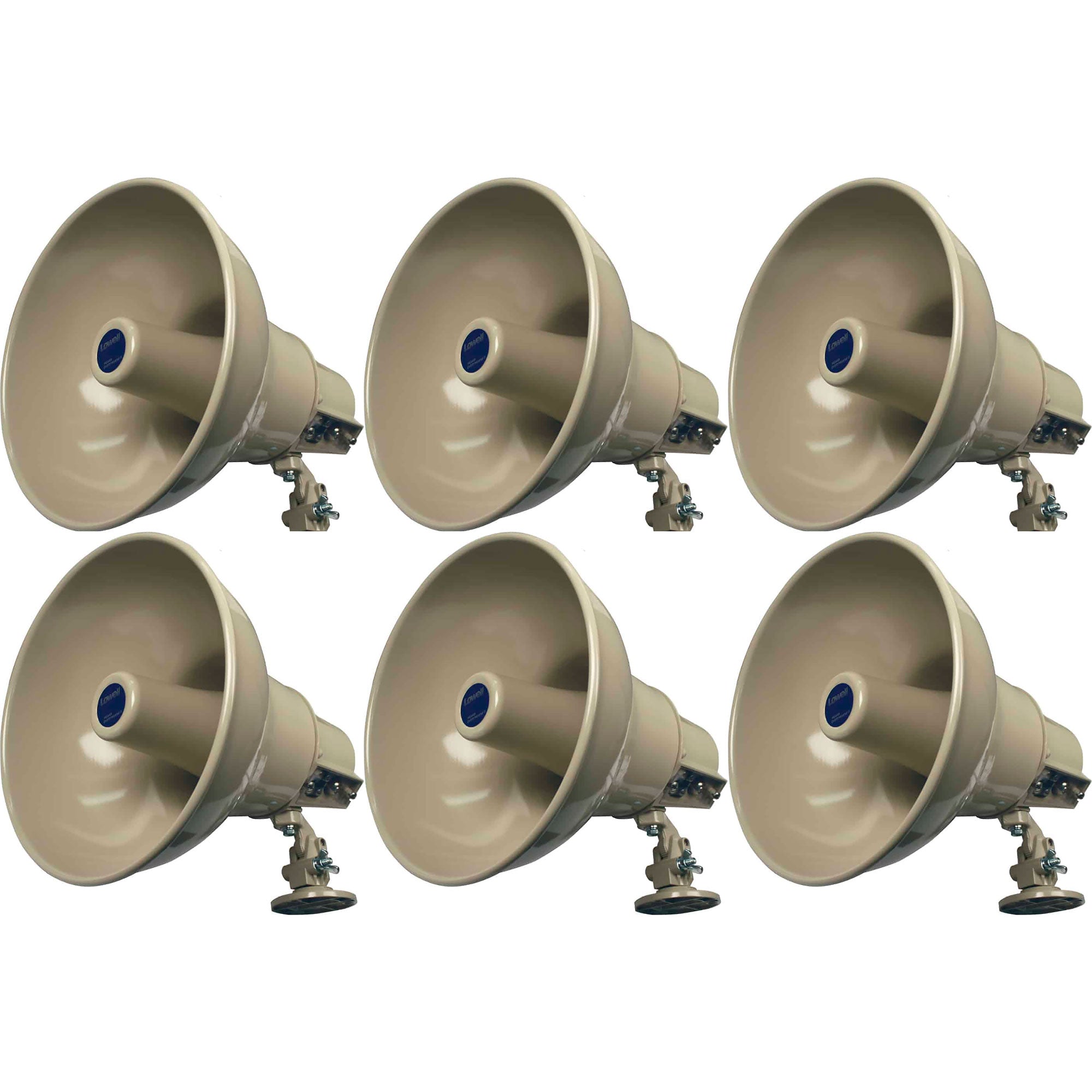

30W Reentrant Horn with Xfmr, Enclosure, Bracket - Case of 6 Horns

Lowell Model LH30TA is a double re-entrant metal horn with a high efficiency 30W compression driver to achieve clear voice paging and tone signaling in indoor or outdoor applications. The horn is ideal for use where a weather-resistant speaker is specified for public address/signaling applications that require high intelligibility (such as schools, recreational facilities, warehouses, distribution centers, parking facilities and commercial buildings). Model LH-30TA operates within a frequency range of 411Hz4.0kHz (+6dB) with a sensitivity of 118.1 log average (1W/1M) 138.8dB maximum SPL (calculated based on power rating and measured sensitivity).

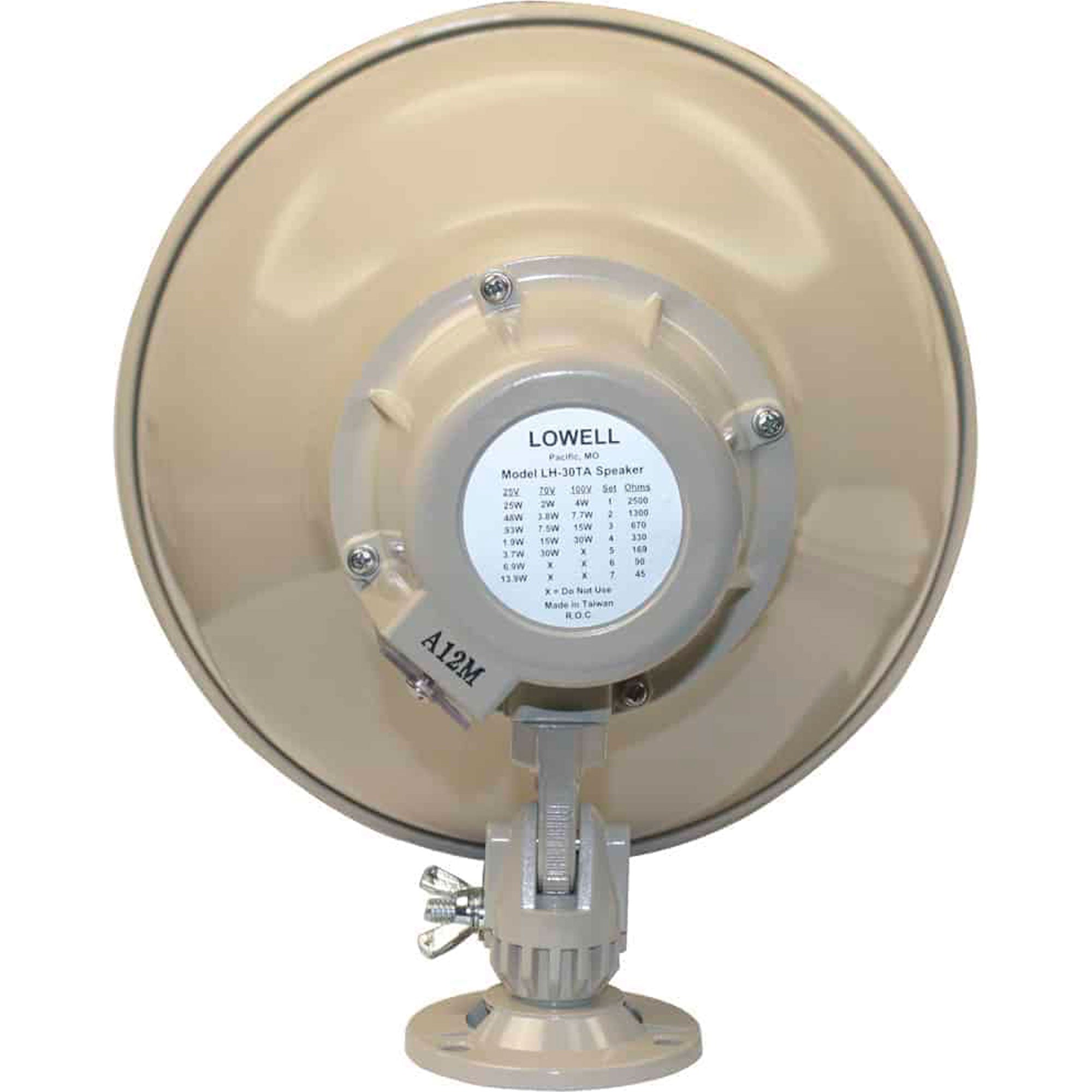

Horn includes high quality transformer for use in 25V, 70V or 100V distributed applications (taps are selected with a screwdriver). Tap selector and screw terminal connections are located on rear, in recessed area with integral strain relief and protective plastic cover. Horn mounts using universal, swivel bracket for efficient installation and positioning. Mounting bracket base measures 2.875" dia. with three equally spaced holes (.28" dia.). Horn assembly measures 10.37" dia x 10.63" deep and features all-metal construction with a durable beige epoxy finish for long service life.

Features:

• Clear, loud paging and tone signaling.
• Versatile application in 25V, 70V or 100V systems with built-in transformer (screwdriver adjustable).
• Weather-resistant assembly suitable for indoor or outdoor use.
• Universal swivel mounting bracket for easy installation and precise adjustment of orientation.
• Easy 2-wire hook-up to rear access screw terminals.
• Operating temperature range: -40 °F (-40 °C) to 158 °F (70 °C)
• Assembly weighs 4.85 lbs.
• Ships ready for installation.
• IP66 rated (IEC 60529) for water-resistant and dust-resistant operation when optional LHA-30G or LHA-30C adaptors are used.
