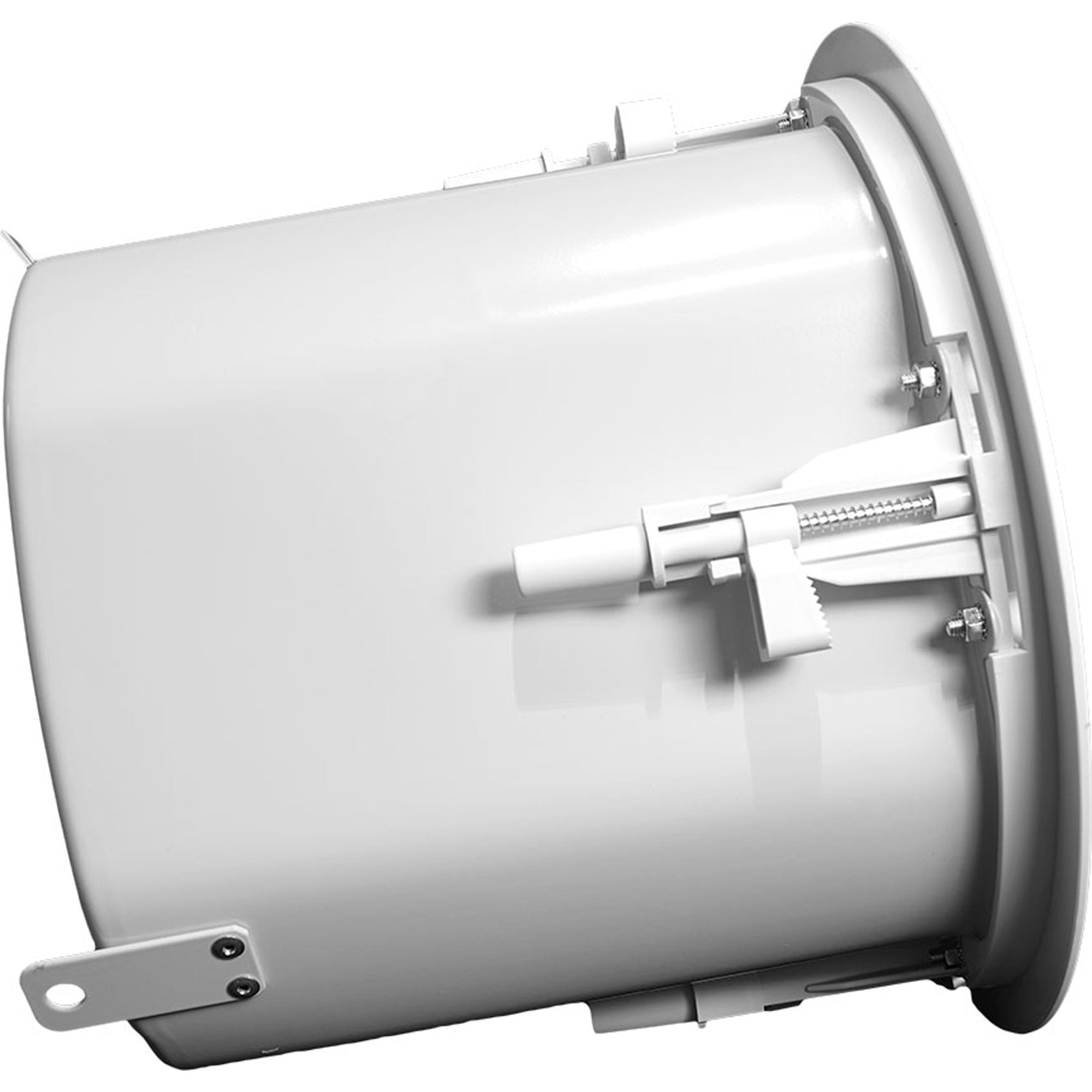

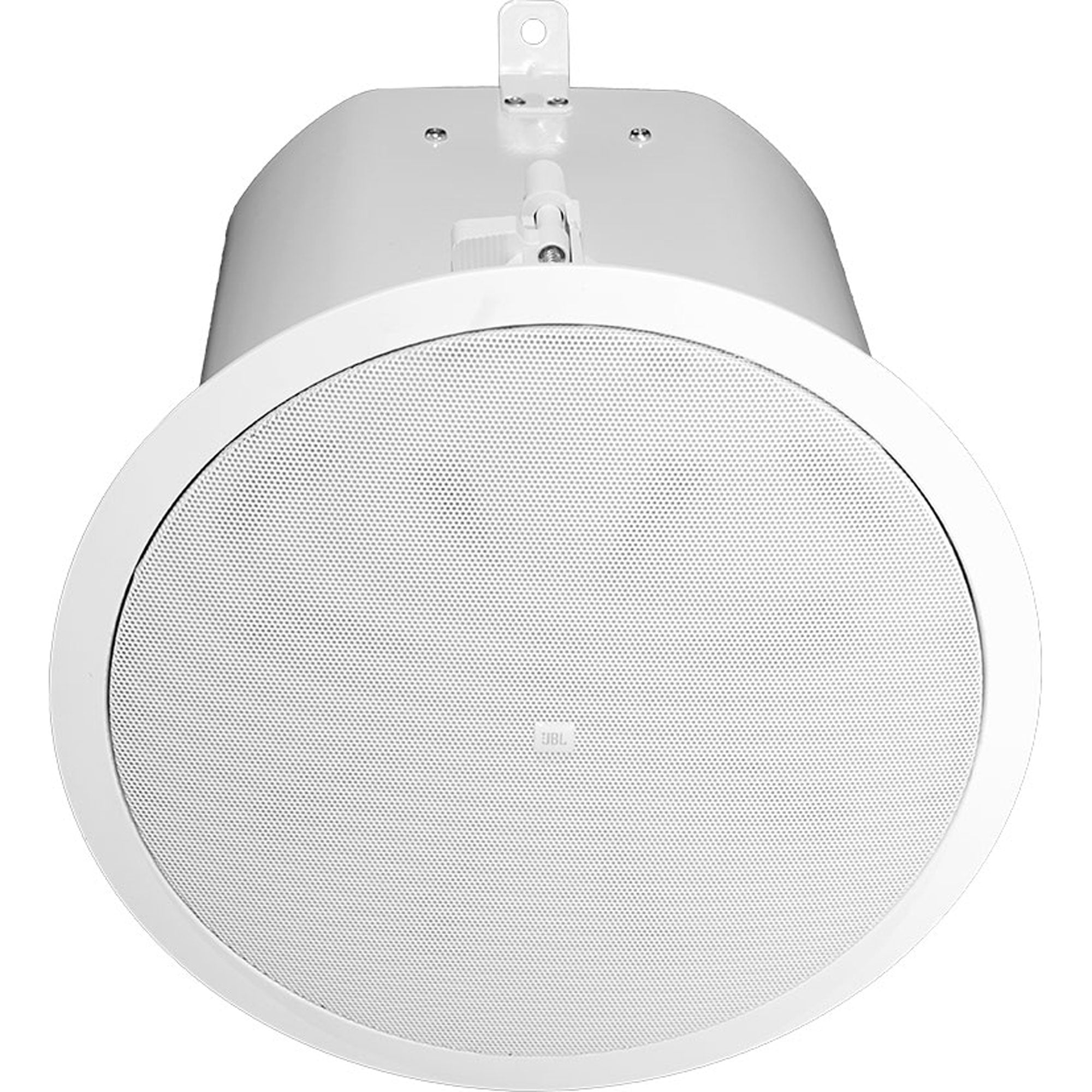

JBL Control 47C/T 6.5" 2-Way Coaxial In-Ceiling Loudspeaker (White, Pair)

6.5" 2-Way Consistent Coverage Extended Bass Ceiling Speaker - White - Pair

Consistent Coverage Extended Bass
The JBL Control 47C/T in-ceiling loudspeaker features extended bass performance with a wide 120° of conical coverage that allows for fewer speakers to cover a larger space. Ideal for a wide variety of applications, the JBL Control 47C/T is the perfect choice for settings ranging from restaurant and retail settings to large casinos and beyond.

The Control 47C/T from JBL is a premium in-ceiling professional loudspeaker system designed for applications that need extraordinarily wide bandwidth in conjunction with very consistent coverage.

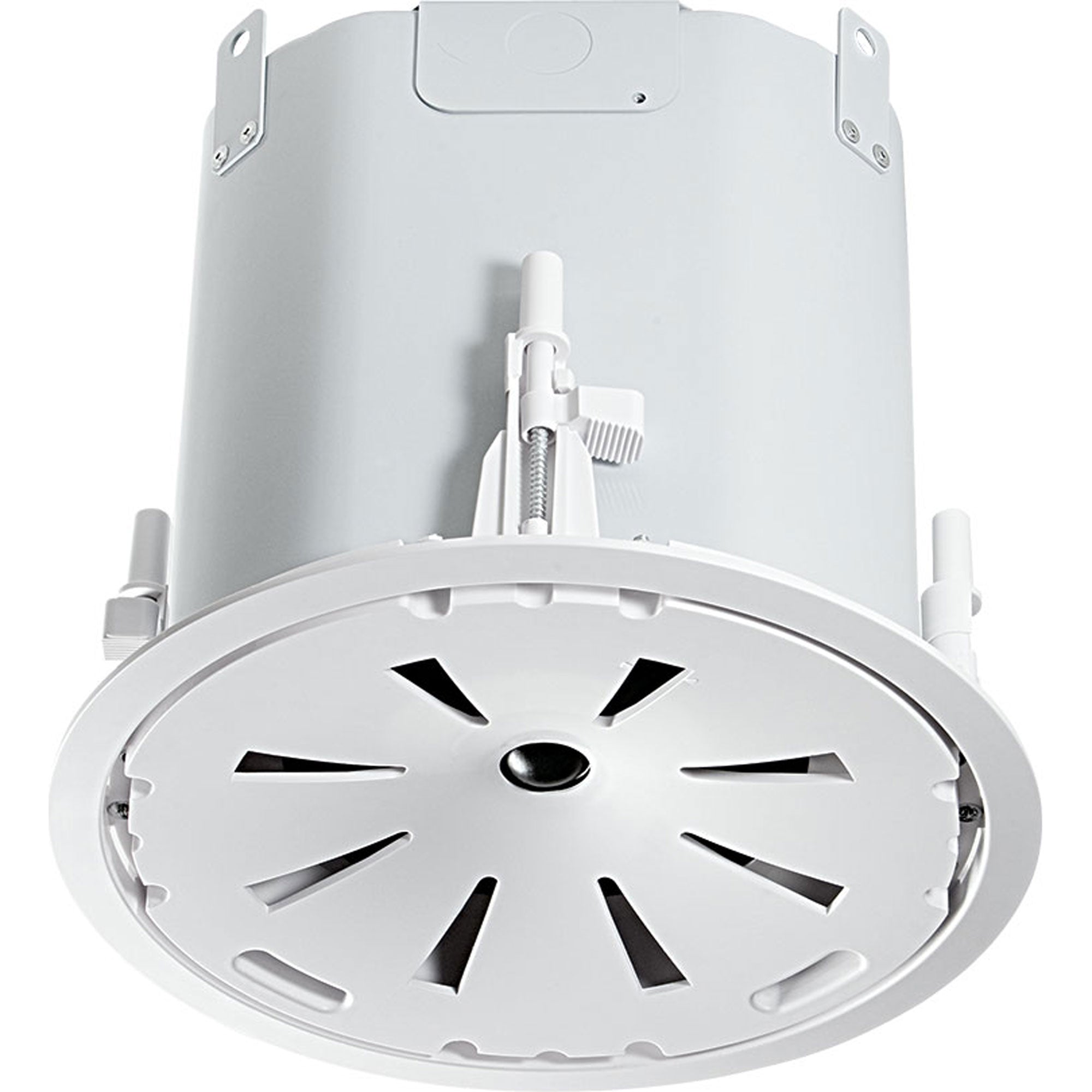

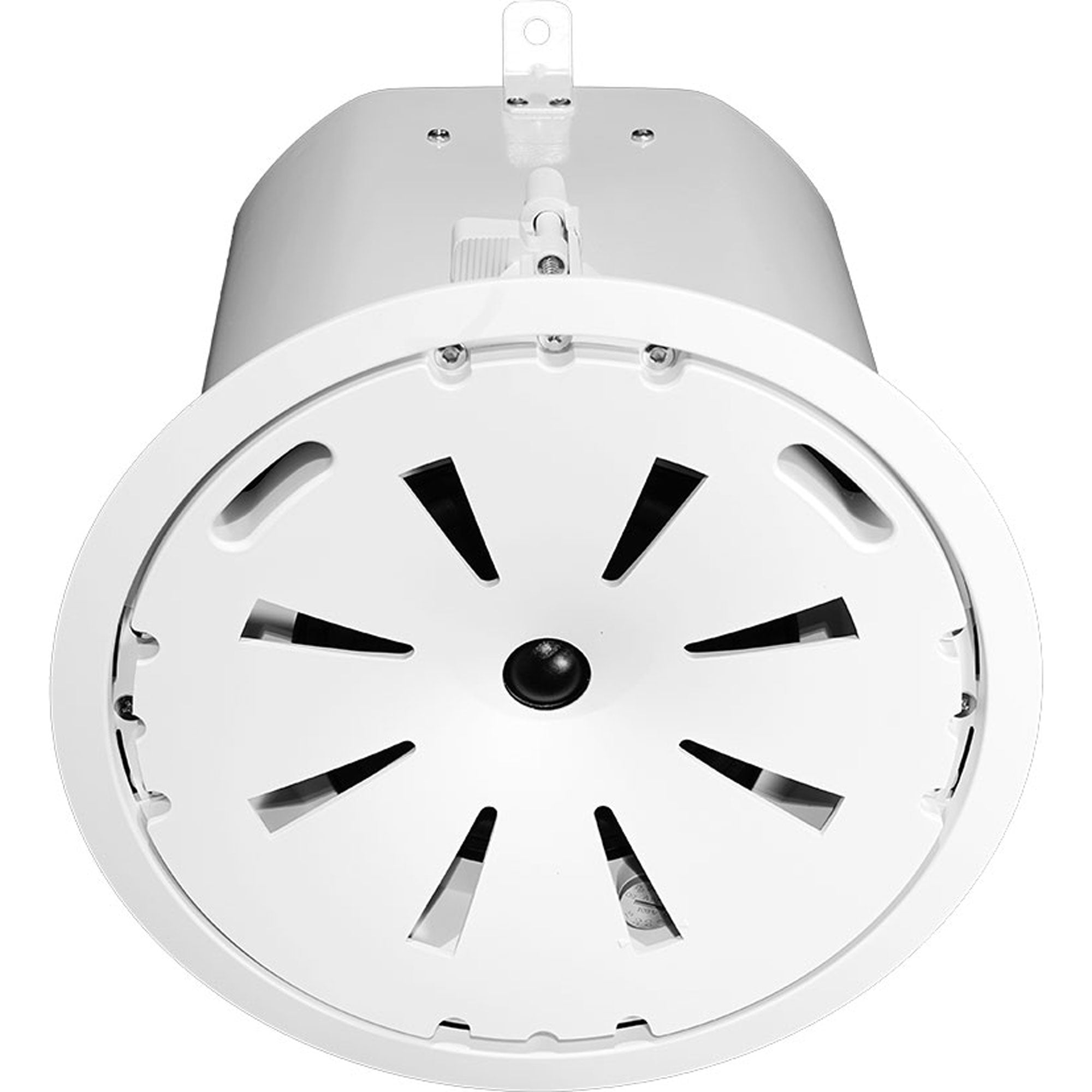

Featuring JBL's exclusive conical Radiation Boundary Integrator (RBI), the RBI provides an oversized waveguide for the loudspeaker whereas low-frequency sound comes through specially-designed apertures within the RBI, providing a seamless integration of coverage between the 2 coaxially-mounted drivers. The result is a very consistent sound character with little or no variation throughout your listening area. The wide coverage permits for the utilization of fewer loudspeakers as compared to speakers with less consistent coverage management, while at the same time providing higher coverage of the space.

The large backcan on the JBL Control 47C/T in-ceiling loudspeaker, in conjunction with the design of the low frequency driver, allows for extended bass response resulting in a warm full-bodied tone. The system's 165 millimeter (6.5 inch) woofer features a polypropylene cone and a pure butyl-rubber surround for long life. The copper-clad aluminum voice coil is wound around a vented aluminum former, providing low distortion and high sensitivity. The coaxially mounted 25 millimeter (1 inch) soft dome tweeter boasts internal damping for smooth extended frequency response and ferrofluid cooling for added power handling and reduced power compression. This all adds up to crisp, clear highs.

Great for small and huge projects alike, the JBL Control 47C/T in-ceiling loudspeaker is switchable for use as either an 8-ohm low-impedance speaker, or as a part of a 70V/100V distributed speaker system.

Features:

• Proprietary Conical RBI Technology Provides Wide, Consistent Coverage
• Flat Frequency Response and Superior Performance
• Large Backcan for Bass Response to 55 Hz
• Elegant design fits any décor

Specifications:

• Frequency Range: 55 Hz - 20 kHz
• Power Capacity: 150W program, 75W pink noise
• Sensitivity: 91 dB, 1W, 1m
• 70V/100V Taps: 60W, 30W, 15W (7.5W at 70V only)
• Coverage: 120° conical, consistent broadband
• Nominal Impedance: 8 ohms
• Component: 6.5 inch (135 mm) woofer, 1" tweeter

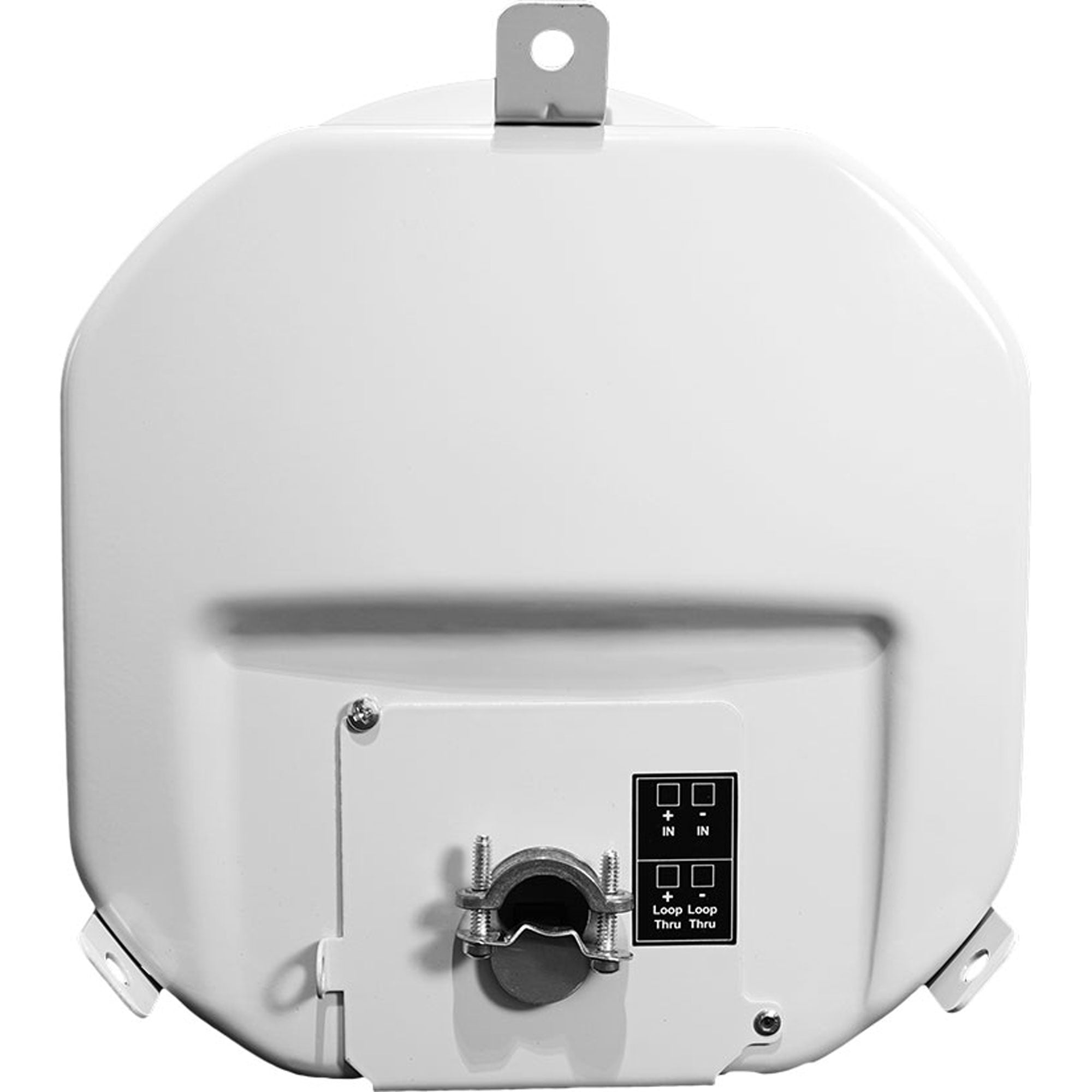

• Termination: Screw-down removable locking clip-in connector
• Included Accessories: C-rings, tile rails, paint shield, cutout template, Grille
• Suspension Tabs: Three, on top panel
• Dimensions (Diameter x Depth): 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)

Includes:

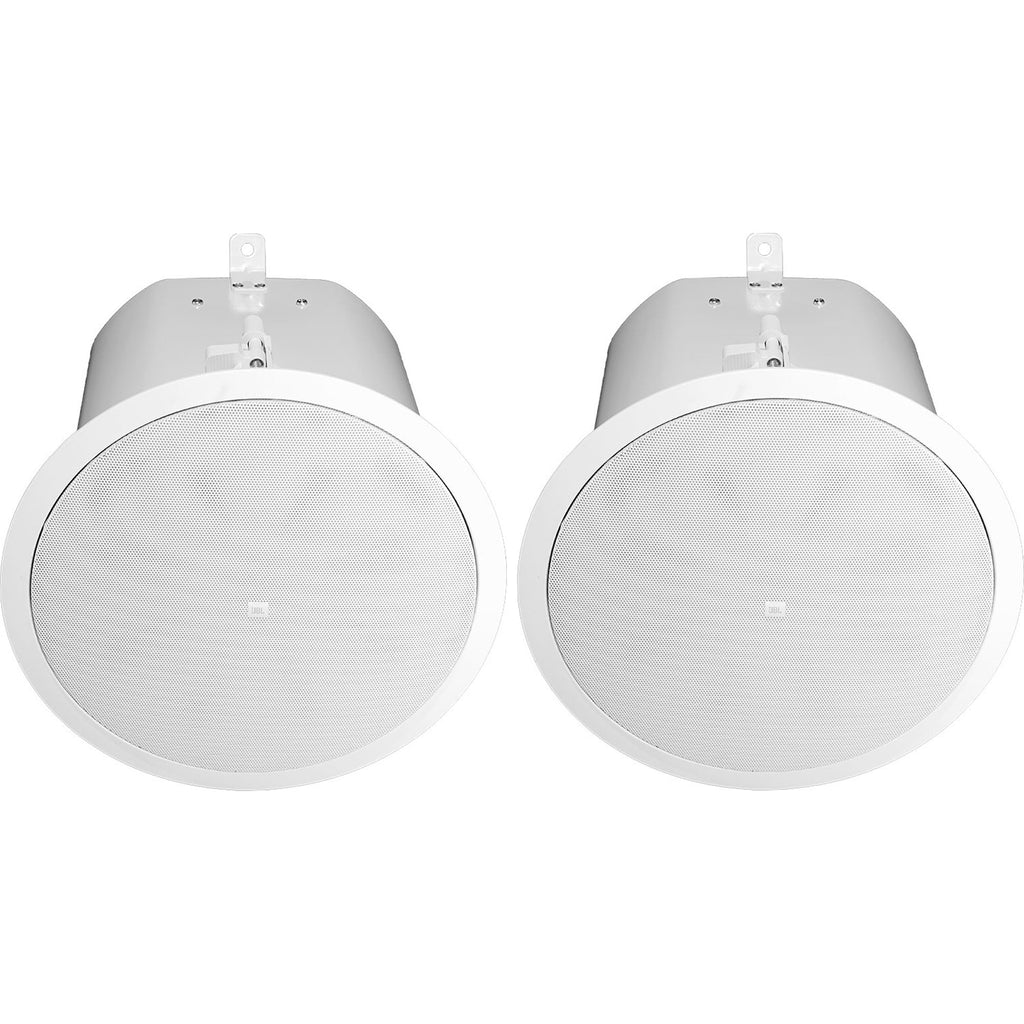

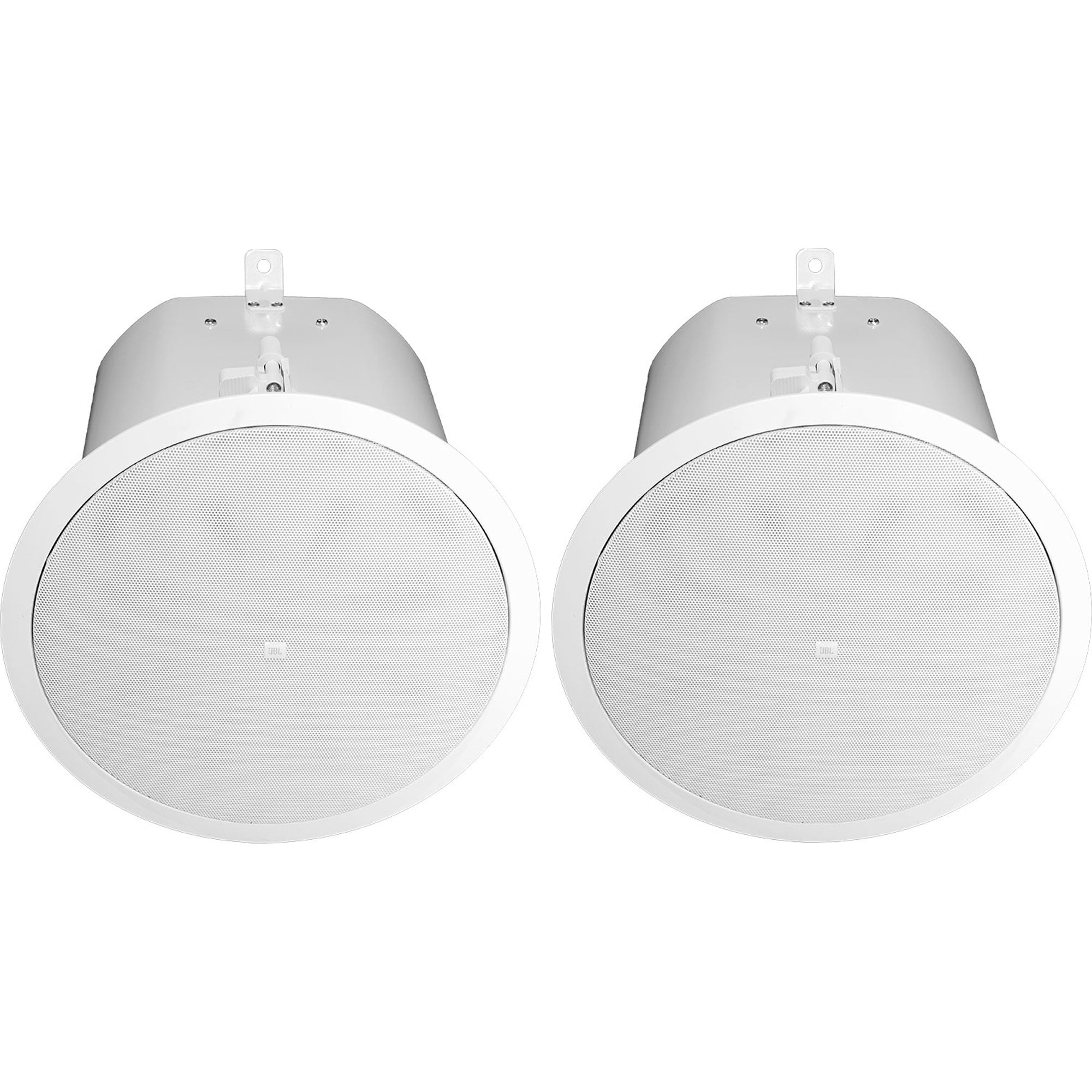

• JBL Control 47C/T 6.5" 2-Way In-Ceiling Loudspeaker (Pair)
• C-Ring Support Backing Plate
• 2 x Tile Support Rails
• Knockout Strain Relief
• Cutout Template
• Paint Shield
• 2 x Removable Locking Connectors
• 5-Year Limited Warranty
