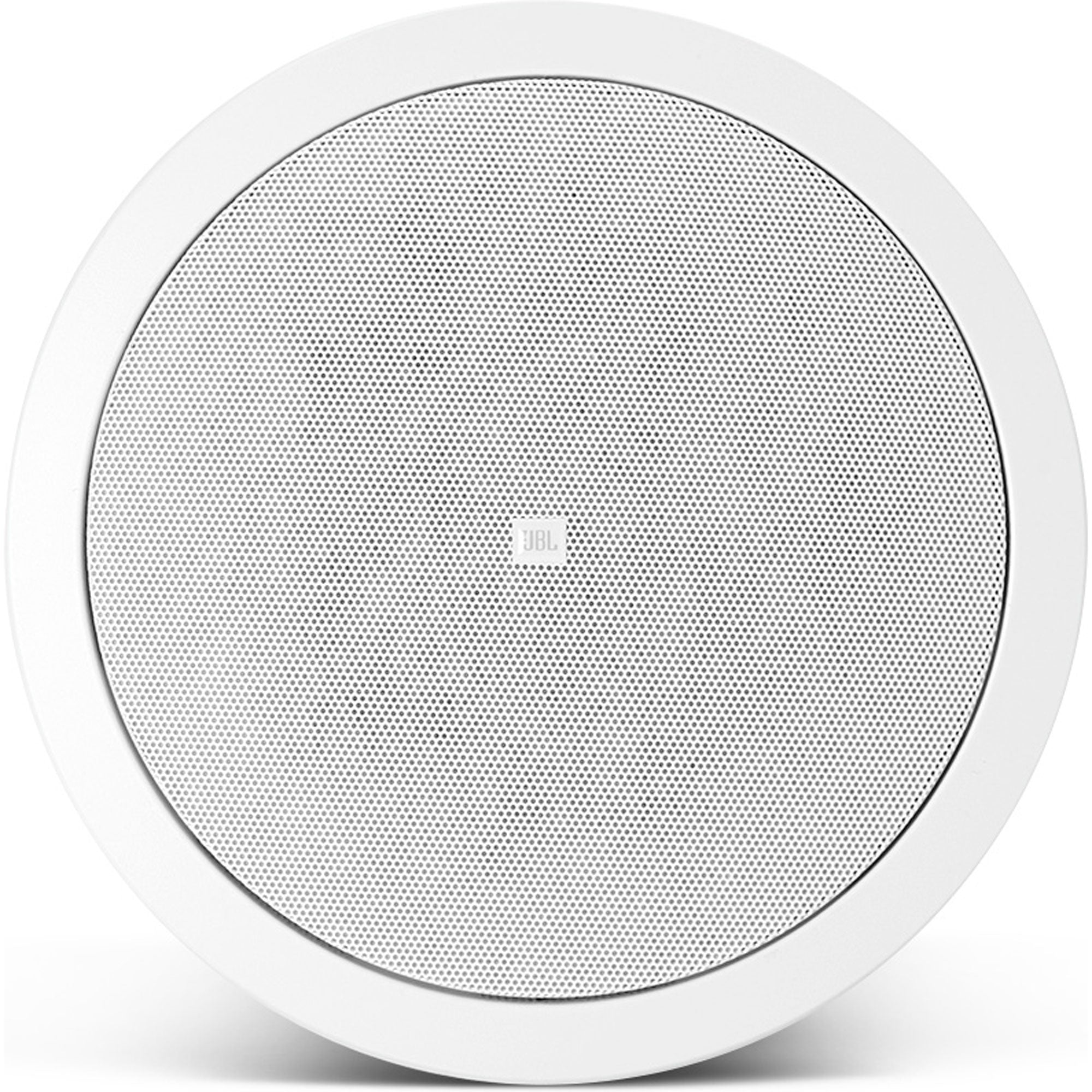

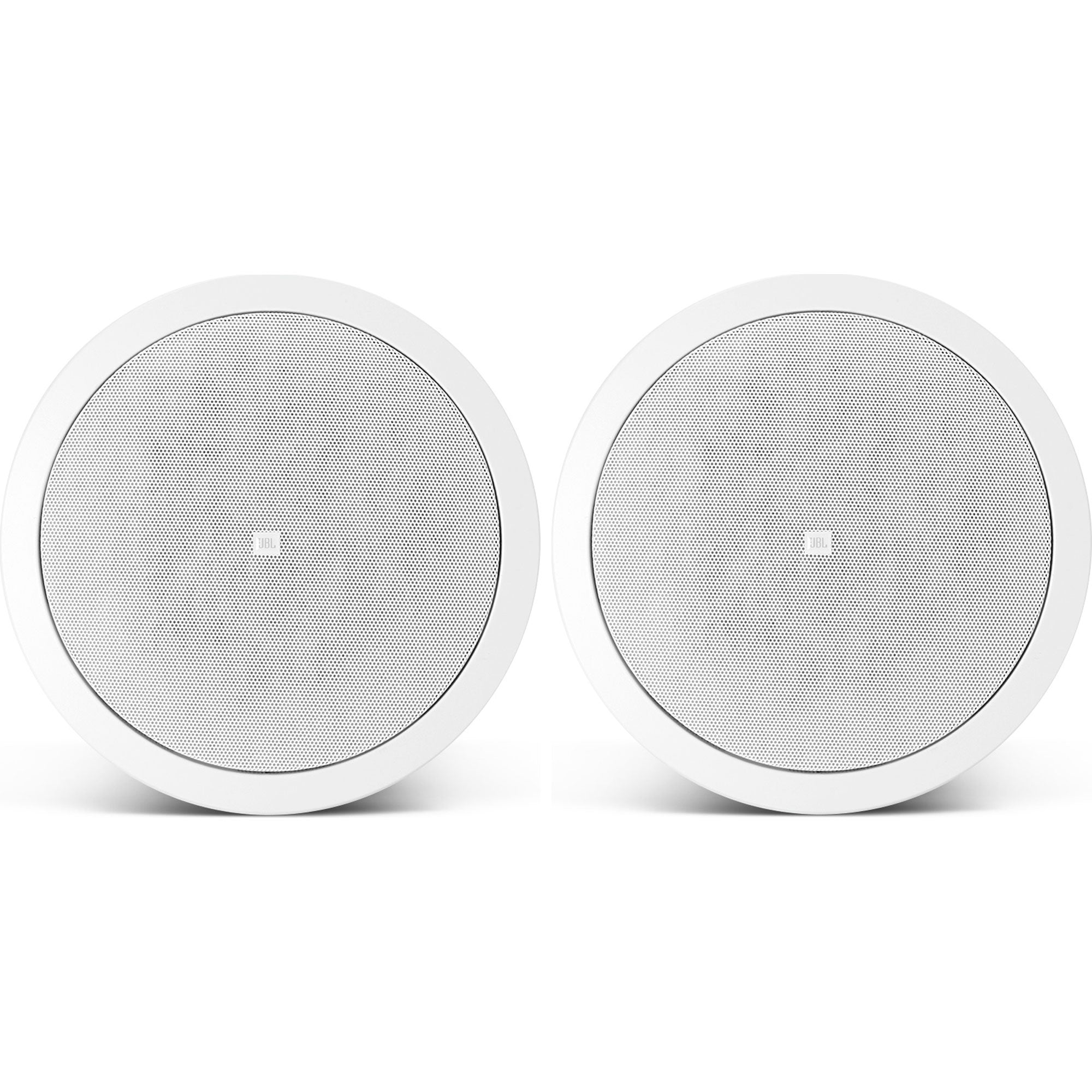

JBL Control 26CT-LS 6.5" 2-Way In-Ceiling Life Safety Loudspeaker with Transformer (White, Pair)

Ceiling Loudspeaker Assembly for Life Safety Applications - White - Pair

Ceiling Loudspeaker Assembly for Life Safety Applications
The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Features:

• UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.

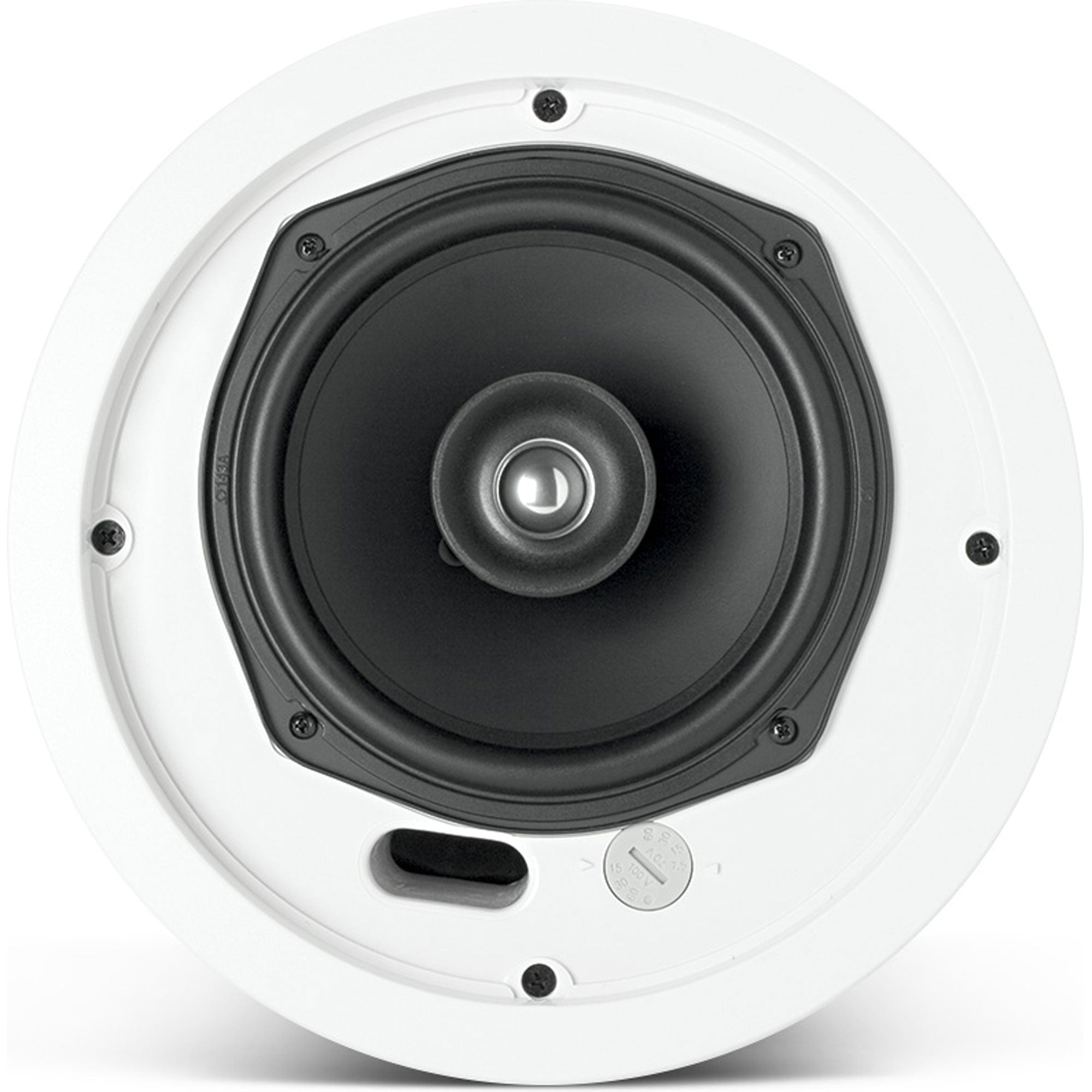

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (3/4 in) titanium coated diffraction-loaded tweeter
• High power, wide frequency response and low distortion for high sound level capability
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Specifications:

• Frequency Range: 80 Hz - 20 kHz
• Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
• Transformer Taps: 70V: 60W, 30W, 15W & 7.5W
• 100V: 60W, 30W, & 15W
• Nominal Coverage Angle: 110° conical coverage
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
• Rated Maximum SPL: 107 dB @ 1 m (3.3 ft)
• Low-Frequency: 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
• High-Frequency: 19 mm (¾ in) Titanium coated polyester
• Termination: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
• Outside Dimensions (H x Dia): 210 x 252 mm (8.3 x 9.9 in)
• 190 mm (7.5 in) front of ceiling tile to back of backcan
• Net Weight (ea): 4.2 kg (10 lb)
• Shipping Weight (pair): 9.7 kg (21 lb)
