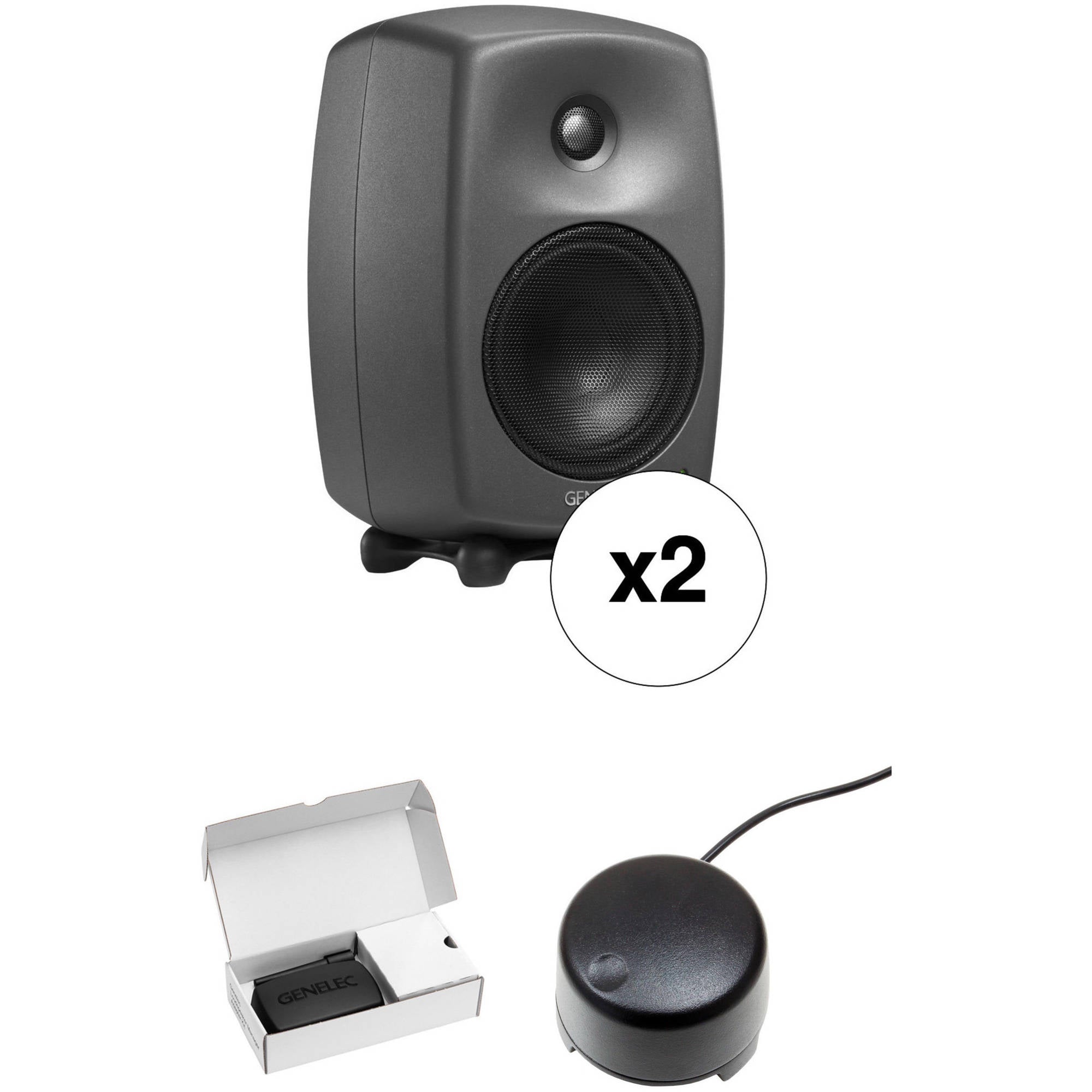

Genelec 8330 Stereo SAM Kit Active Stereo Monitoring System (Dark Grey)

Two 8330A 5" Monitors, GLM 2.0 User Kit & 9310A Volume Controller

The Genelec 8330 Stereo SAM Kit is designed for mixing engineers who want accurate sound reproduction in a relatively compact design. This package provides two 8330A active 2-way monitors with 5" woofer, DSP crossovers, analog inputs, and digital inputs. Use it with the GLM 2.0 User Kit, which helps you digitally tune these monitors to your room, accounting for frequency issues and time-alignment problems. The Genelec 9310A, which also ships with this kit, is a hardwired volume control for both monitors and for precise command over your speaker's levels.

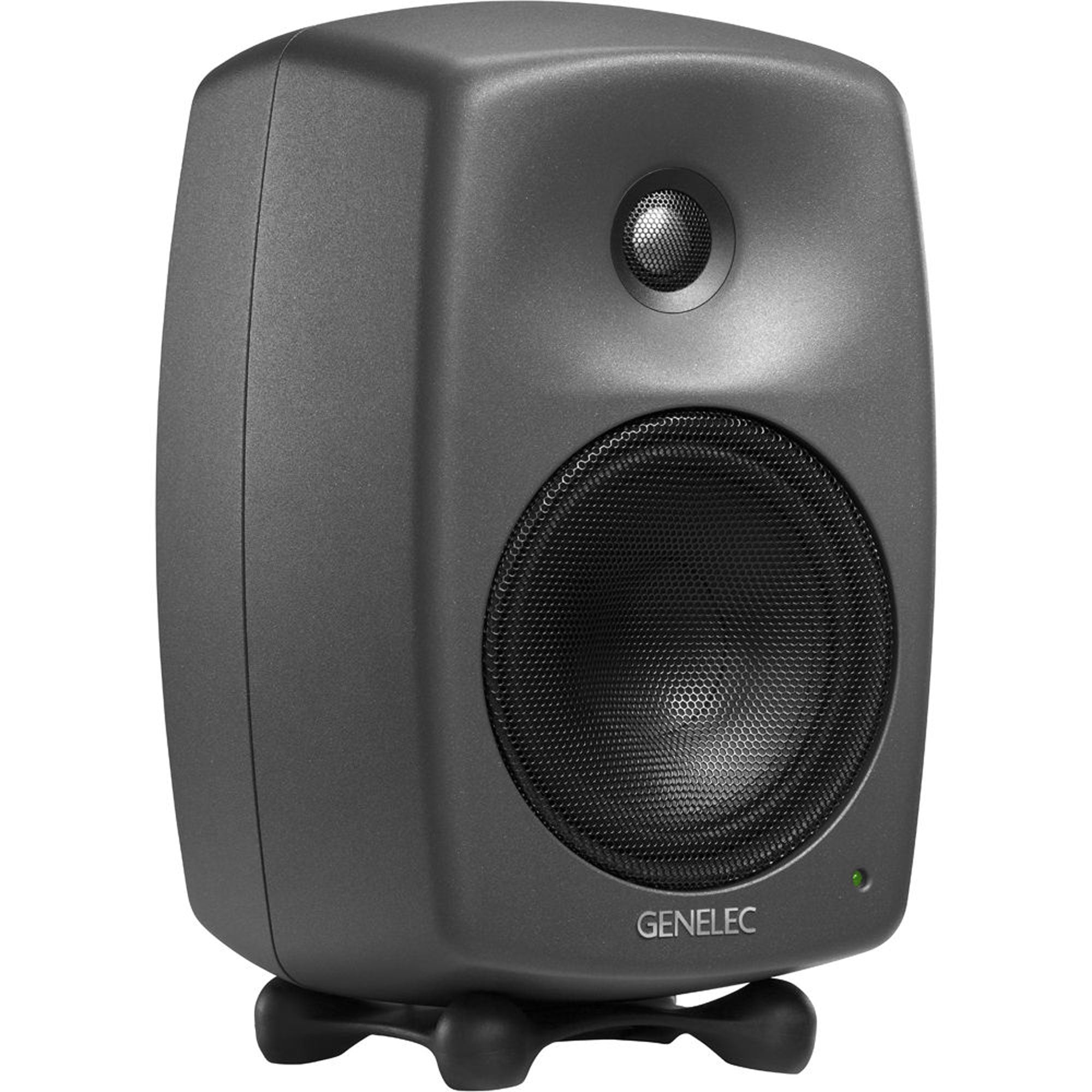

Genelec 8330A SAM Series 5" 2-Way 100W Active Studio Monitor (Single, Producer Finish / Dark Gray)
Styled in a dark gray Producer Finish, the Genelec 8330A is a single SAM-Series, 2-way active studio monitor designed to provide accurate mix referencing with software control capabilities for audio engineers, musicians, and producers in project studios, small control rooms, edit suites, or mobile setups. It features 100W of Class-D amplification driving a 5" woofer and 3/4" tweeter, producing a frequency response of 45 Hz to 23 kHz.

A proprietary waveguide enhances imaging, while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. XLR connectors are provided for the balanced analog input and AES/EBU digital input and output. Built-in signal overload protection enhances dependability and protects the speaker. Detailed frequency adjustments and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software and the GLM User Kit (available separately). A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.

The 8330A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with mic stands and various wall/ceiling brackets.

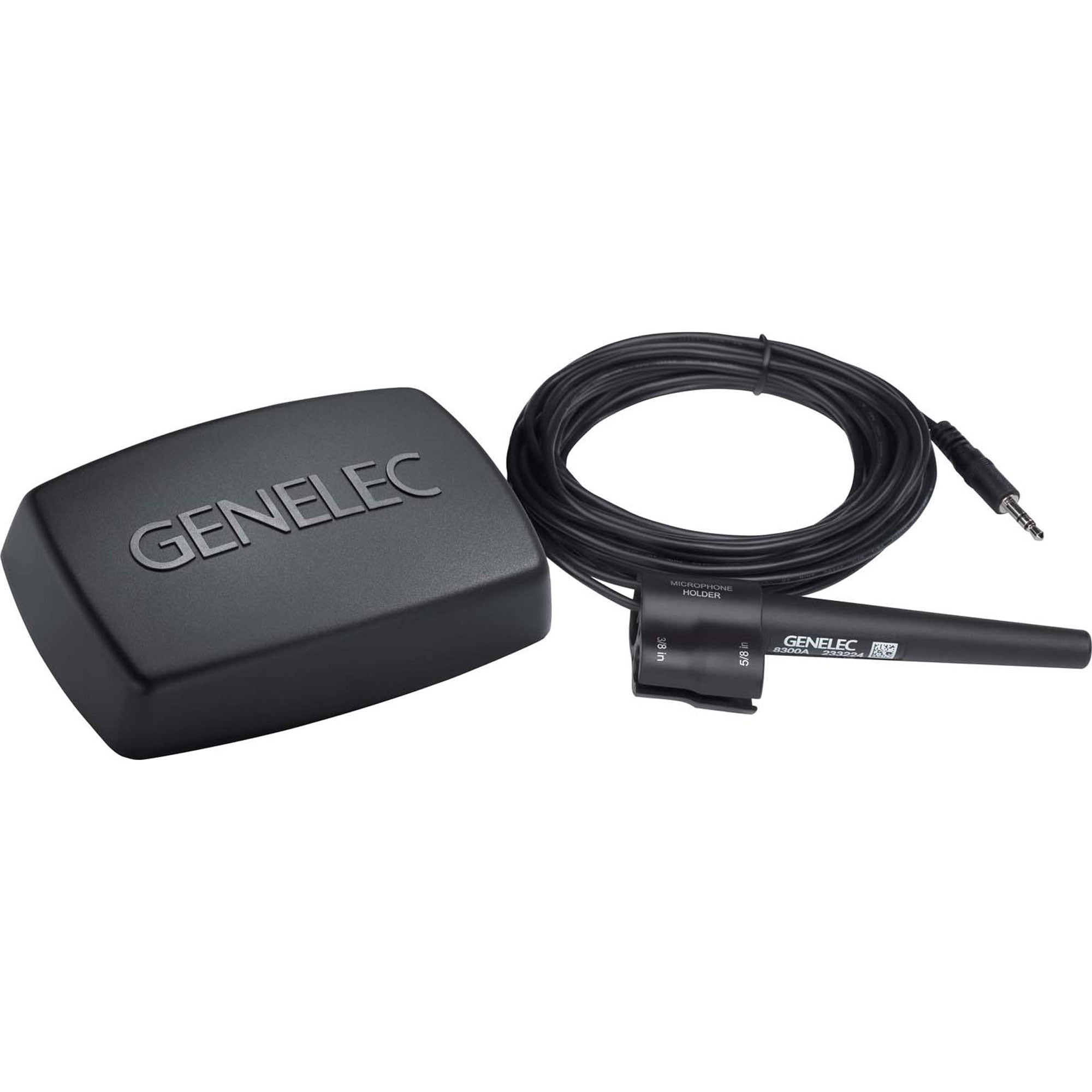

Genelec GLM 2.0 User Kit
The GLM 2.0 User Kit from Genelec is an accessories kit designed for Genelec's SAM Monitors. It helps you calibrate the monitors to the room for the most optimal frequency and phase response. This kit includes a GLM network adapter, a calibration microphone with a holder, a USB cable, and a quick-connection cable.

You'll need this kit to enable GLM software with your SAM monitors. The network adapter will connect to your computer via the USB cable. Each SAM monitor in your possession can interface with the network adapter over an Ethernet cable, which is provided with your SAM monitor (available separately).

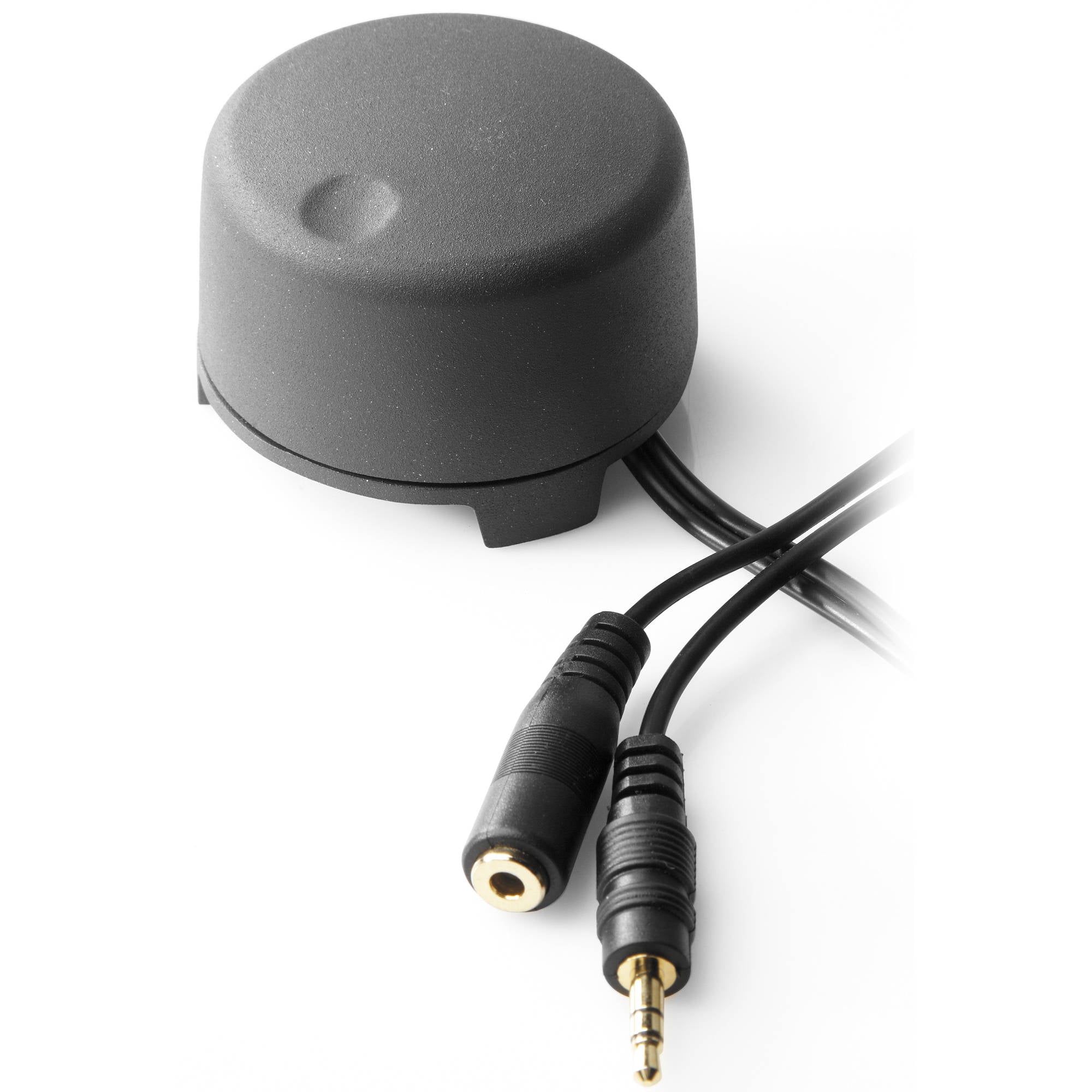

Genelec 9310A Volume Controller for GLM 2.0
Control all your SAM Studio monitors with the Genelec 9310A Volume Controller, which connects to a separately available GLM Network Adapter through a 3.5mm connection. Use this stylish knob to control the levels of your compatible Genelec studio monitors.

Features:

• Genelec 8330A SAM Series 5" 2-Way 100W Active Studio Monitor (Single, Producer Finish / Dark Gray)
• 5" woofer and 3/4" tweeter
• 50W LF amp and 50W HF amp
• 45 Hz to 23 kHz frequency response (-6 dB), 58 Hz to 20 kHz frequency response (±1.5 dB)
• Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
• Bass reflex port provides extended low-frequency response
• Supports automatic calibration via software control
• Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
• XLR connections for balanced analog input and digital AES/EBU input and output
• ISS (Intelligent Signal Sensing) automatic power-saving mode
• Multiple mounting options: Iso-Pod and threaded holes that are compatible with mic stands and various wall/ceiling brackets
• Includes Iso-Pod isolation stand for vibration decoupling
