Key Features
- 200 Watt RMS Power Handling
- 8 Ohm Nominal Impedance
- 60 to 4,900 Hz Frequency Response
- Aluminum Voice Coil
- 80 oz. Ferrite Magnet
Description

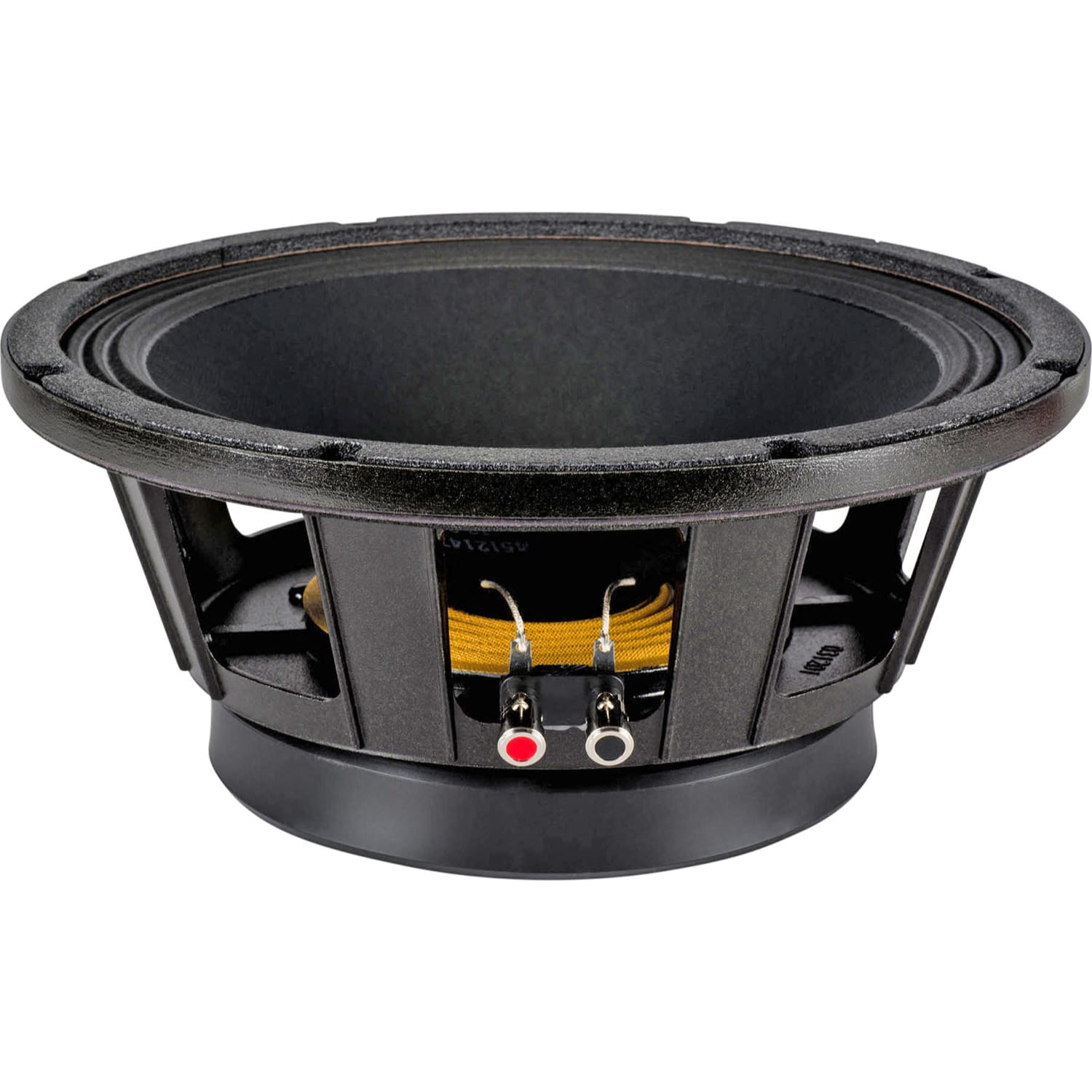

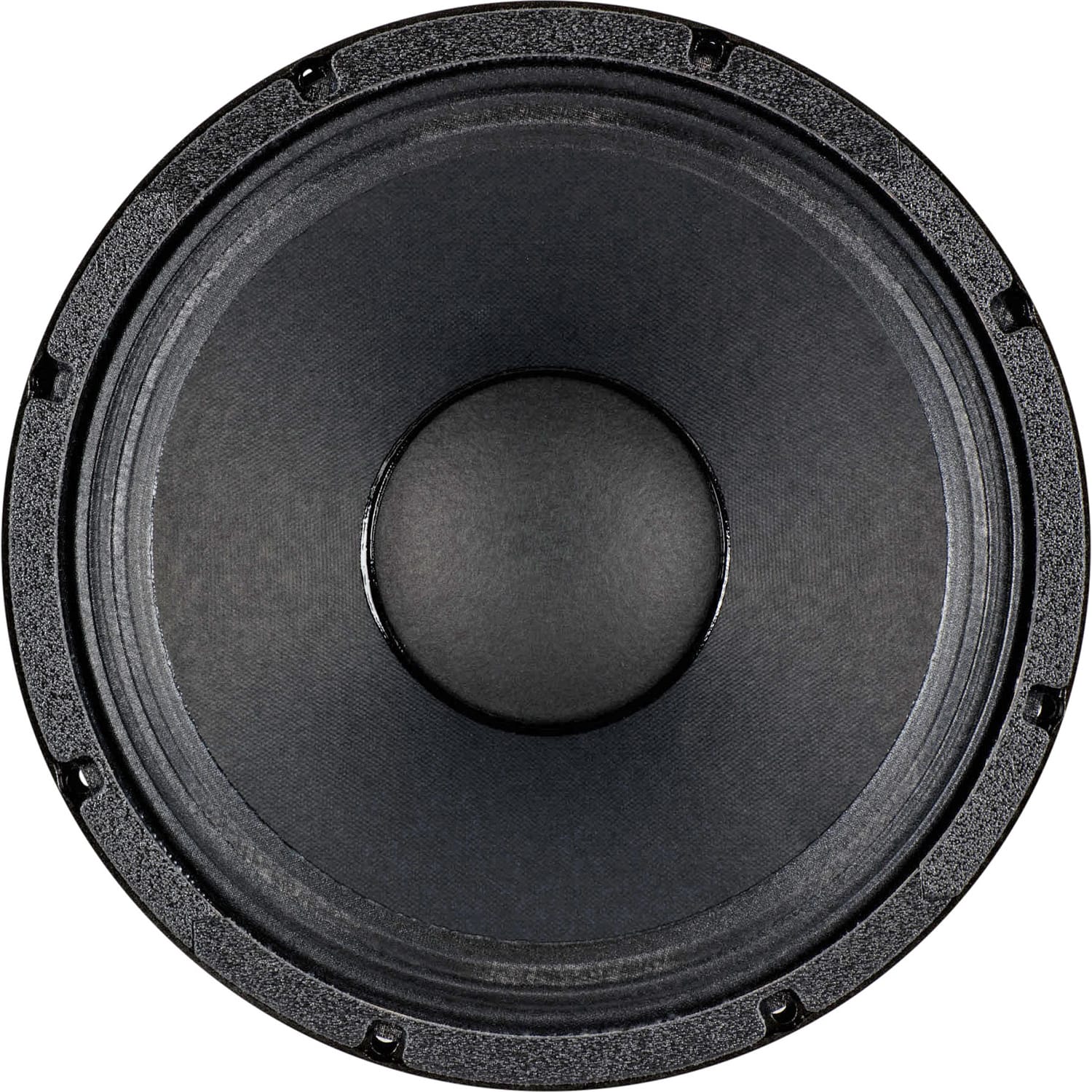

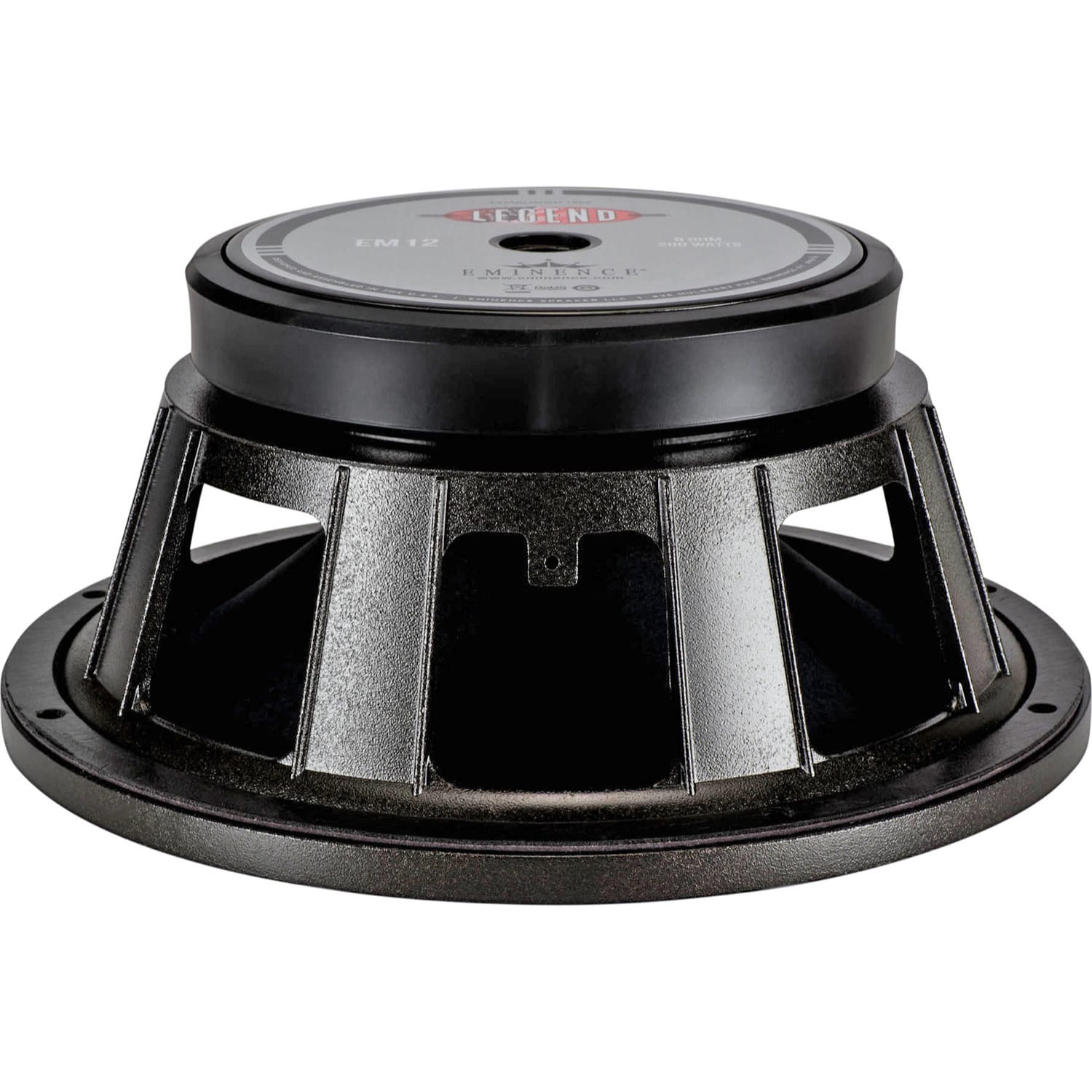

12" Bass Guitar Driver, 8 Ohm, 200 Watt
A high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.
Features:
- Clean, neutral tone for use with high-end guitars and amplifiers
- Stout 200 watt RMS power handling
- Over 101 dB sensitive for amazing maximum output
- Designed and assembled in the USA with a 7-year manufacturer's warranty
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 200 W
- Music Program: N/A
- Resonance: 49 Hz
- Usable Frequency Range: 60 Hz - 4.9 kHz
- Sensitivity***: 101.1 dB
- Magnet Weight: 80 oz.
- Gap Height: 0.375", 9.5 mm
- Voice Coil Diameter: 2.5", 64 mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 49 Hz
- DC Resistance (Re): 6.6 ohms
- Coil Inductance (Le): 0.49m H
- Mechanical Q (Qms): 7.39
- Electromagnetic Q (Qes): 0.29
- Total Q (Qts): 0.28
- Compliance Equivalent Volume (Vas): 102.31 liters / 3.61 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 68 cc
- Mechanical Compliance of Suspension (Cms): 0.26 mm/N
- BL Product (BL): 16.9 T-M
- Diaphragm Mass Inc. Airload (MMs): 40 grams
- Efficiency Bandwidth Product (EBP): 170
- Maximum Linear Excursion (Xmax): 1.27 mm
- Surface Area of Cone (Sd): 532.4 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 0.09 cu.ft. / 2.55 liters
- Overall Diameter: 12.38", 314.5 mm
- Baffle Hole Diameter: 11.07", 281.2 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.26", 6.6mm
- Mounting Holes B.C.D.: 11.57", 293.9mm
- Depth: 5.38", 136.5 mm
- Net Weight: 16.3 lbs, 7.39 kg
- Shipping Weight: 18 lbs, 8.16 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Edge wound aluminum voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Vented core
- Basket Materials: Die cast aluminum basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth edge
- Dust Cap Composition: Paper dust cap
Details
- Manufacturer: Eminence
- MPN: LEGEND EM12
- Model Number: Legend EM12
- UPC: 876358002382
