Description

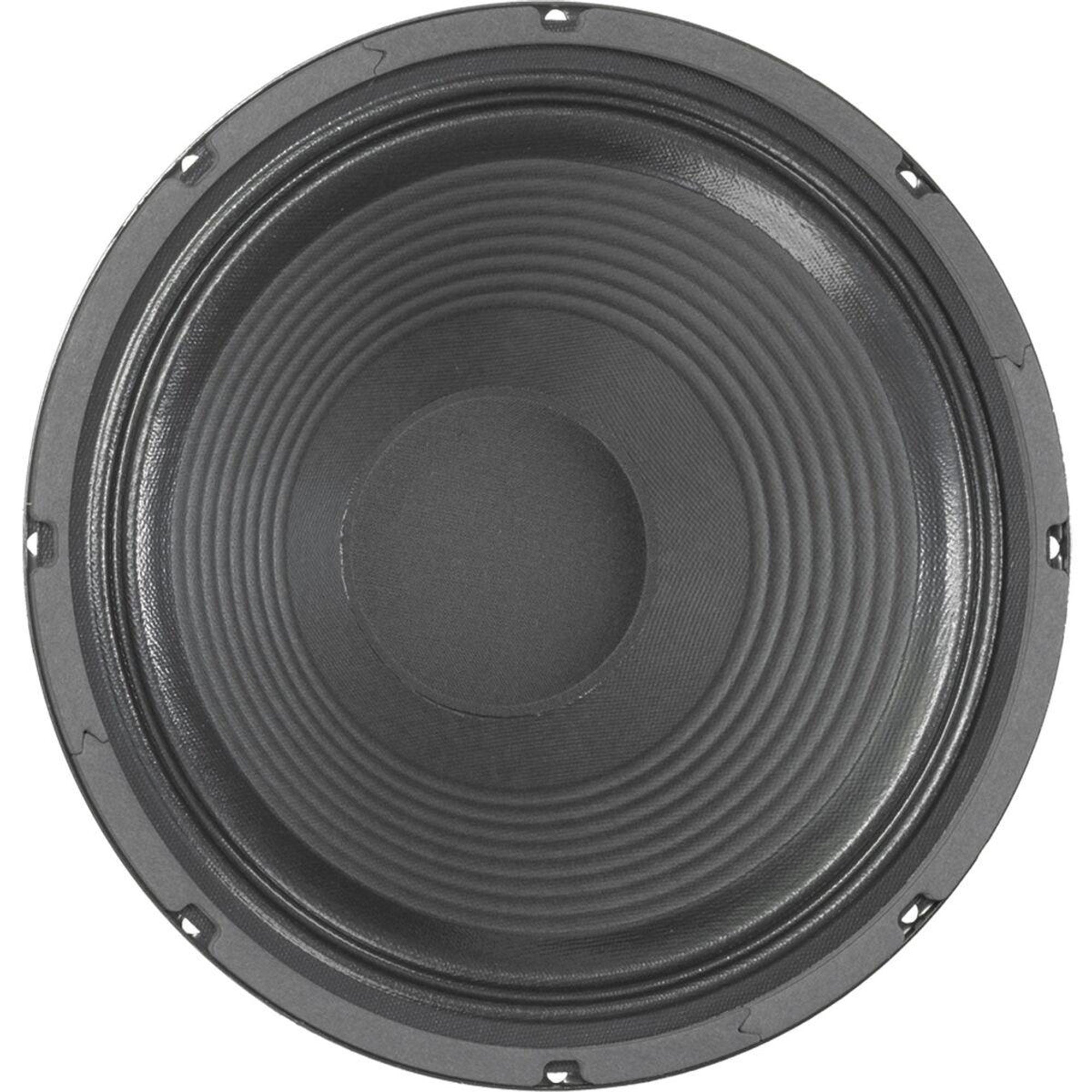

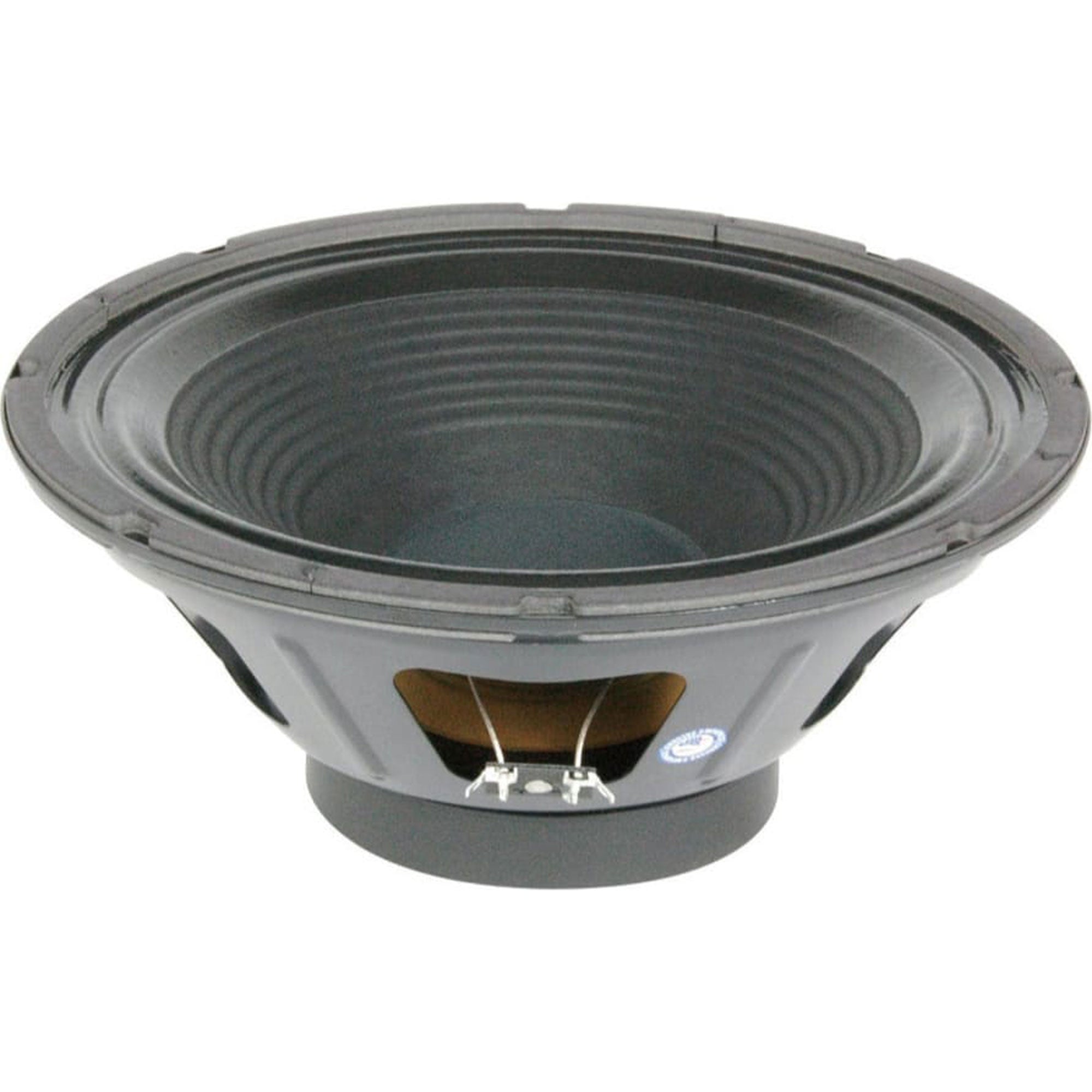

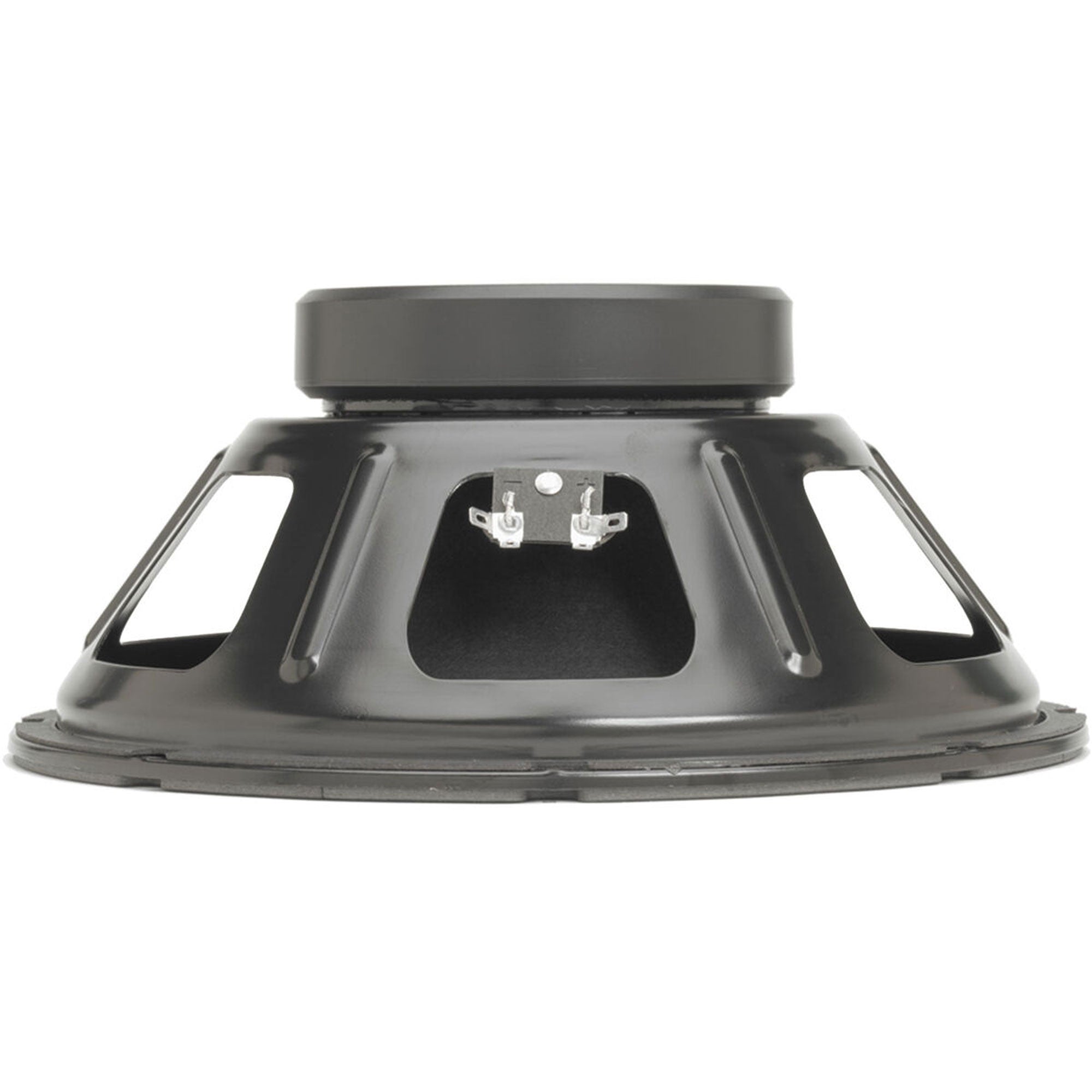

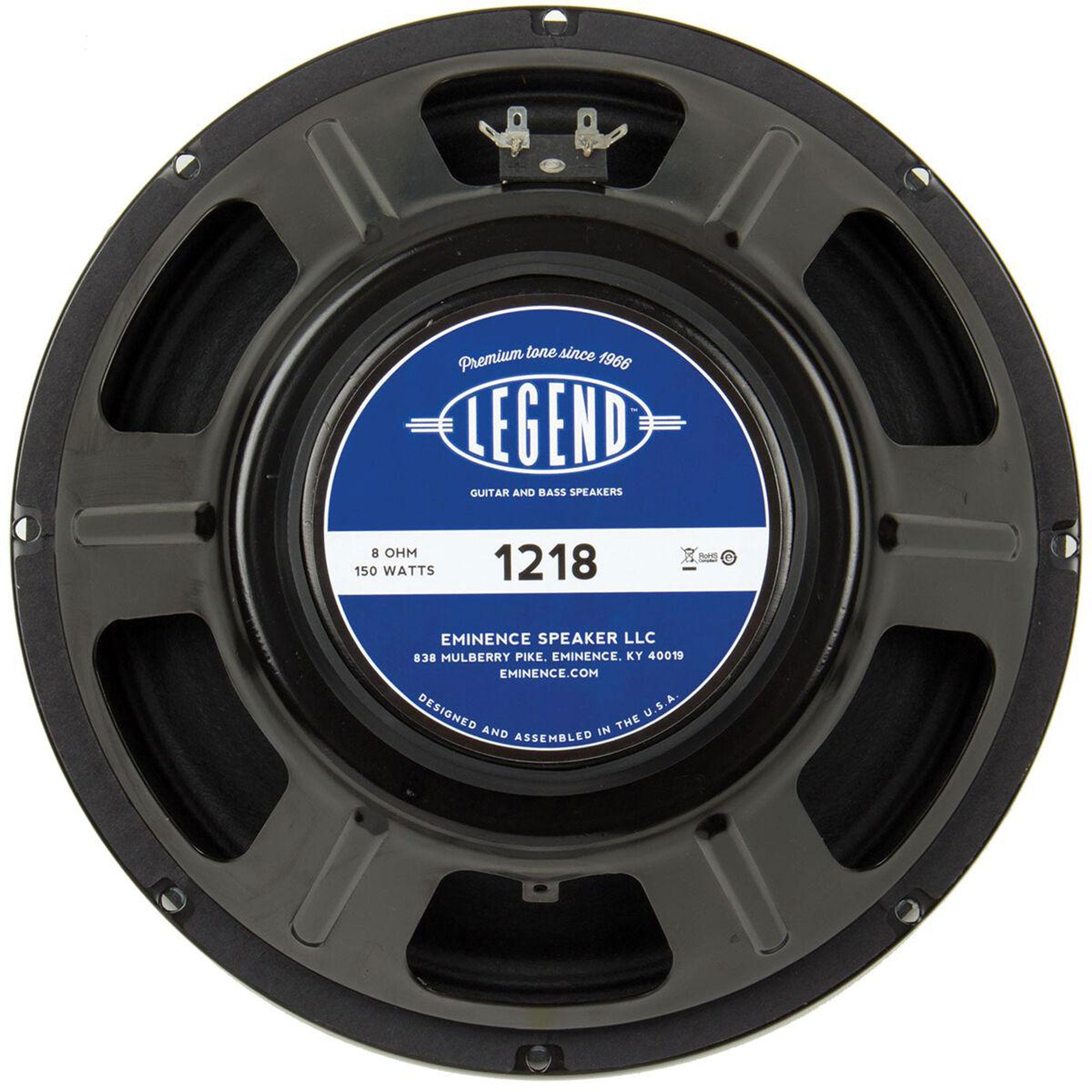

12" Guitar Driver, 8 Ohm, 150 Watt
Warm, rich low end, with smooth mids and strong highs. High power, British flavored guitar tone. Great replacement or upgrade. Made in the USA. 7-year manufacturer's warranty!
Features:
- Coloration: Warm, smooth, and fat American tone, with a hint of smooth British break-up
- Genre: Country, Blues, Jazz
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 150W
- Music Program: N/A
- Resonance: 100Hz
- Usable Frequency Range: 80Hz - 4.2kHz
- Sensitivity***: 98.68dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 2", 50.8mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 100Hz
- DC Resistance (Re): 6.95
- Coil Inductance (Le): 0.69mH
- Mechanical Q (Qms): 15.51
- Electromagnetic Q (Qes): 0.95
- Total Q (Qts): 0.89
- Compliance Equivalent Volume (Vas): 31.2 liters / 1.1 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 40.5cc
- Mechanical Compliance of Suspension (Cms): 0.09mm/N
- BL Product (BL): 11.6 T-M
- Diaphragm Mass Inc. Airload (MMs): 29 grams
- Efficiency Bandwidth Product (EBP): 105
- Maximum Linear Excursion (Xmax): 0.8mm
- Surface Area of Cone (Sd): 506.7 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: N/a
- Vented: Acceptable
- Driver Volume Displaced: 122 cu.in. / 2 liters
- Overall Diameter: 12.03", 305.5mm
- Baffle Hole Diameter: 11.07", 281.1mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.59", 294.3mm
- Depth: 5.1", 130mm
- Net Weight: 8.4 lbs, 3.8 kg
- Shipping Weight: 10.6 lbs, 4.8 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Zurette dust cap
Details
- Manufacturer: Eminence
- MPN: LEGEND 1218
- Model Number: Legend 1218
- UPC: 876358000708
