Description

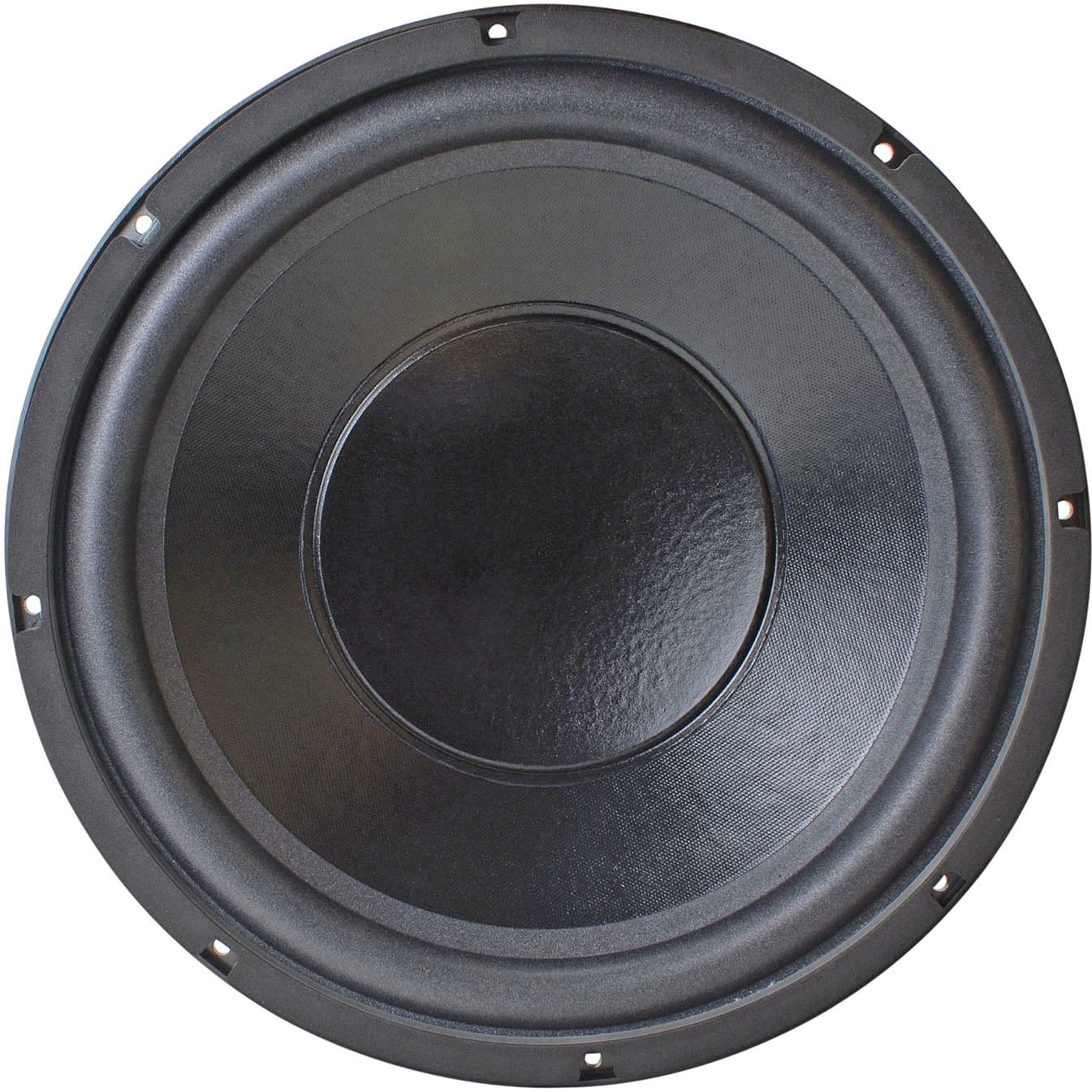

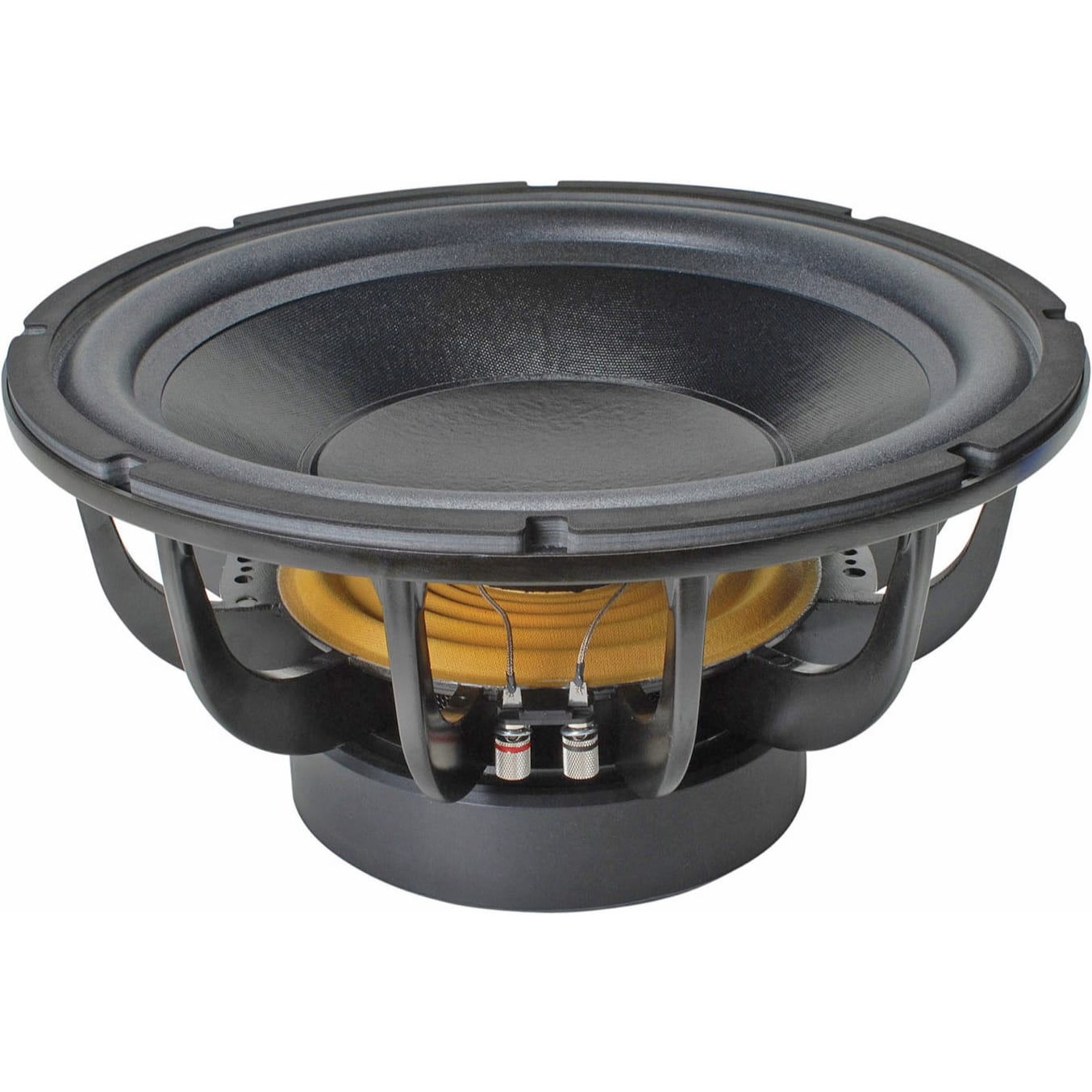

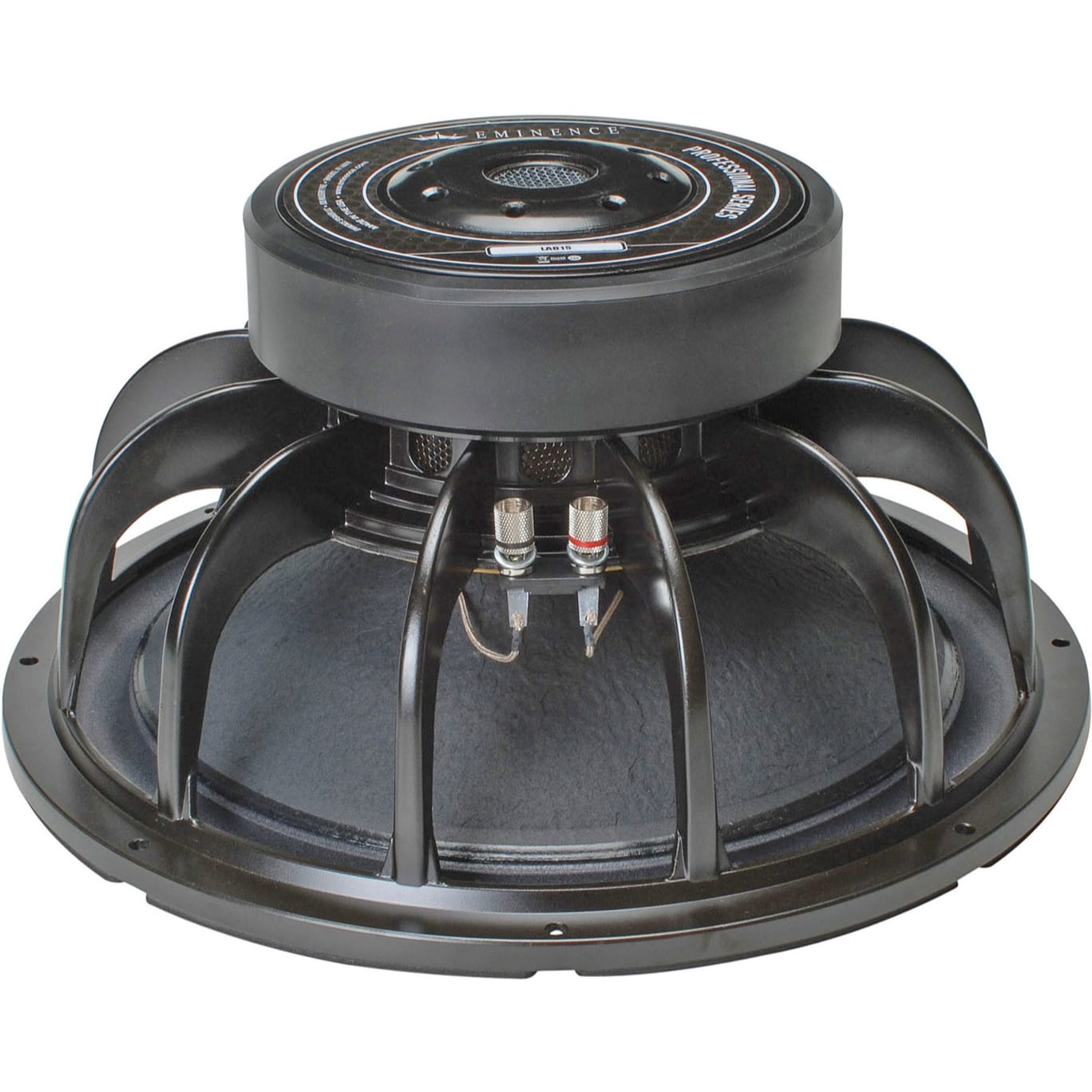

15" Subwoofer, 6 Ohm, 600 Watt
The Lab15 is a high-power, high excursion 15" subwoofer driver for applications requiring very deep bass at pro sound levels. Features include a 3" voice coil wound on a double layer aluminum former, an epoxy-reinforced apex/neck joint, and a double-laminated spider. This speaker also features a vented motor, both under the spider and through the backplate. Recommended for medium to large sized vented cabinets or horn-loaded designs for PA, sound reinforcement, or dance club applications. The Lab 15 is also suitable for small sealed cabinets for automotive use.
Features:
- Double stacked 80 oz. ferrite magnets
- Copper voice coil on Polyimide former
- 12-spoke die-cast aluminum basket
- Kevlar reinforced paper cone with foam cone edge
- Vented and extended pole piece
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 15", 381mm
- Nominal Impedance*: 6 ohms
- Power Rating**
- Watts: 600W
- Music Program: 1200W
- Resonance: 28Hz
- Usable Frequency Range: 20Hz - 0.12kHz
- Sensitivity***: 88.5dB
- Magnet Weight: 160 oz.
- Gap Height: 0.37", 9.53mm
- Voice Coil Diameter: 3", 76.2mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 28Hz
- DC Resistance (Re): 4.9
- Coil Inductance (Le): 3.23mH
- Mechanical Q (Qms): 5.36
- Electromagnetic Q (Qes): 0.37
- Total Q (Qts): 0.35
- Compliance Equivalent Volume (Vas): 103.61 liters / 3.7 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 968cc
- Mechanical Compliance of Suspension (Cms): 0.11mm/N
- BL Product (BL): 26.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 308 grams
- Efficiency Bandwidth Product (EBP): 75
- Maximum Linear Excursion (Xmax): 11.8mm
- Surface Area of Cone (Sd): 823.7 cm2
- Maximum Mechanical Limit (Xlim): 22mm
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: 35-108 liters / 1.2-3.8 cu.ft.
- Vented: 71-290 liters / 2.5-10.3 cu.ft.
- Driver Volume Displaced: 272.1 cu.in. / 4.46 liters
- Overall Diameter: 15.34", 389.6mm
- Baffle Hole Diameter: 14", 355.5mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: N/A
- Mounting Holes Diameter: 0.26", 6.6mm
- Mounting Holes B.C.D.: 14.7", 373.5mm
- Depth: 7.75", 197mm
- Net Weight: 23.8 lbs, 10.8 kg
- Shipping Weight: 26 lbs, 11.8 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Aluminum former
- Magnet Composition: Double stacked 80 oz. ferrite magnets
- Core Details: Vented and extended core
- Basket Materials: Die-cast aluminum basket
- Cone Composition: Kevlar-reinforced paper cone
- Cone Edge Composition: Foam cone edge
- Dust Cap Composition: water resistant treated solid composition paper
Details
- Manufacturer: Eminence
- MPN: LAB 15
- Model Number: LAB15
- UPC: 876358001729
