Description

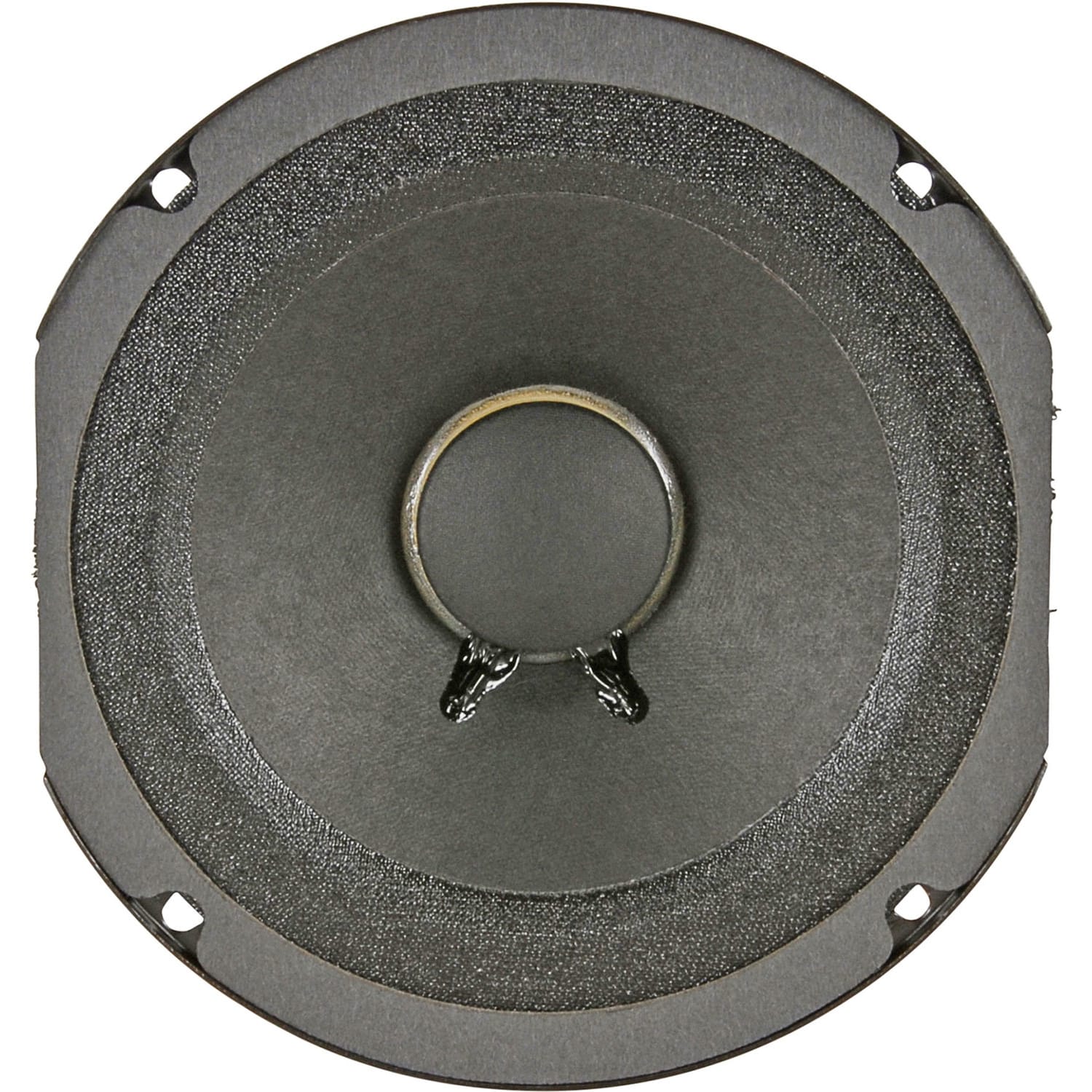

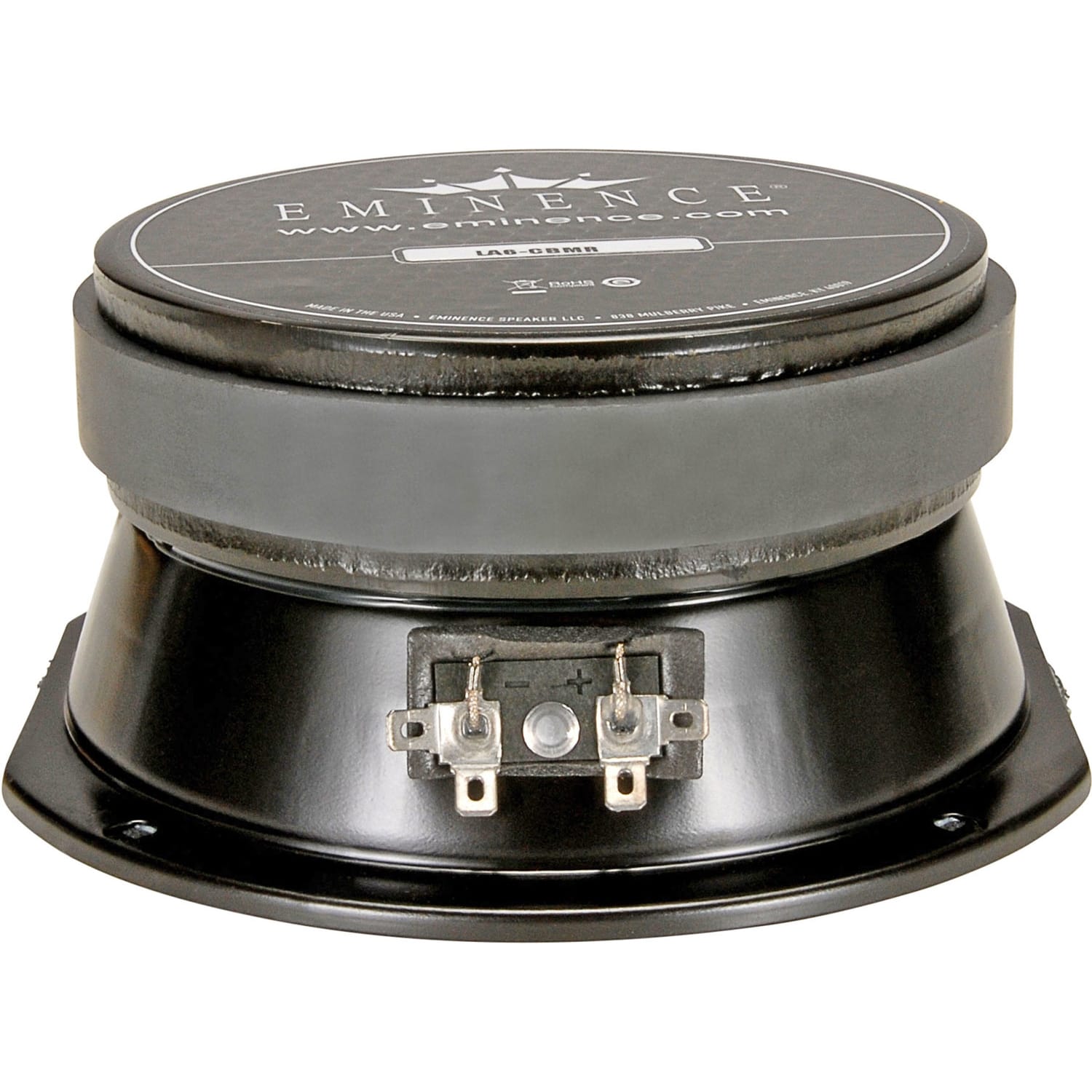

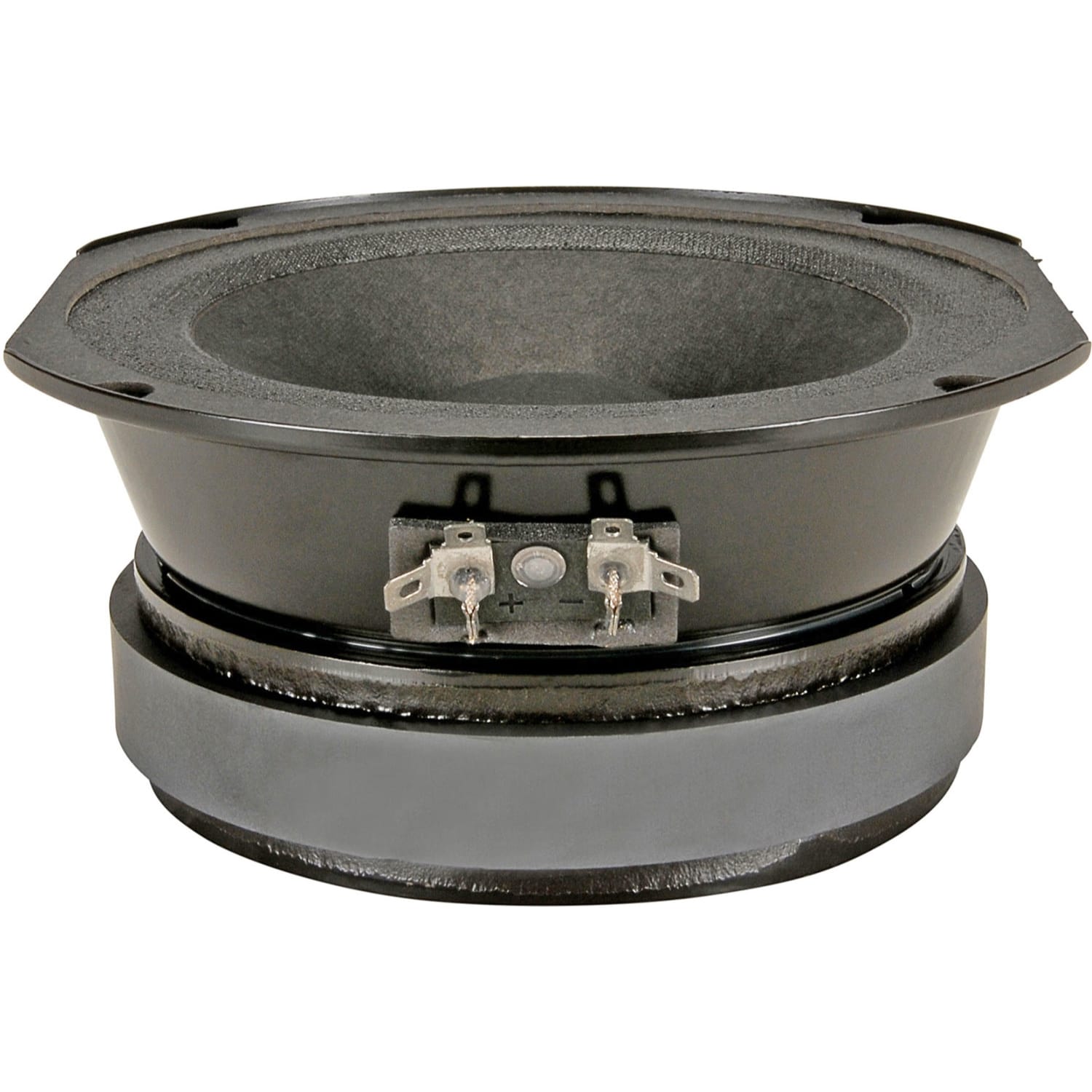

6-1/2" Sealed-Back Midrange Line Array Series Driver, 8 Ohm, 150 Watt
Recommended for professional audio midrange from 500 Hz-3 kHz. Basket is closed. The truncated basket is designed to minimize acoustical center spacing and modeling specific to line arrays.
Features:
- Designed to cover 500 Hz-3 kHz. Also practical for standard three-way designs.
- Two-layer copper voice coil with Kapton coil former
- Premium pressed steel basket for maximum strength
- Vented and extended core
- Paper cone with cloth cone edge
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 6.5", 165mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 150W
- Music Program: 300W
- Resonance: 460Hz
- Usable Frequency Range: 500Hz - 5.4kHz
- Sensitivity***: 97.8dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.5", 38.1mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 460Hz
- DC Resistance (Re): 6.3
- Coil Inductance (Le): 0.33mH
- Mechanical Q (Qms): 3.13
- Electromagnetic Q (Qes): 1.24
- Total Q (Qts): 0.89
- Compliance Equivalent Volume (Vas): 0.4 liters / 0.01 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 2.7cc
- Mechanical Compliance of Suspension (Cms): 0.01mm/N
- BL Product (BL): 11.1 T-M
- Diaphragm Mass Inc. Airload (MMs): 8.6 grams
- Efficiency Bandwidth Product (EBP): 371
- Maximum Linear Excursion (Xmax): 0.2mm
- Surface Area of Cone (Sd): 133.1 cm2
- Maximum Mechanical Limit (Xlim): 0.8mm
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 38.1 cu.in. / 0.62 liters
- Overall Diameter: 6.59", 167mm
- Baffle Hole Diameter: 5.65", 143.5mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: N/A
- Mounting Holes Diameter: 0.23", 5.7mm
- Mounting Holes B.C.D.: 6.06", 154mm
- Depth: 2.77", 70mm
- Net Weight: 6.7 lbs, 3 kg
- Shipping Weight: 7.2 lbs, 3.3 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Vented and extended core
- Basket Materials: Pressed steel basket with truncated sides
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Solid composition paper dust cap
Details
- Manufacturer: Eminence
- MPN: LA6-CBMR
- Model Number: LA6-CBMR
- UPC: 876358000456
