Description

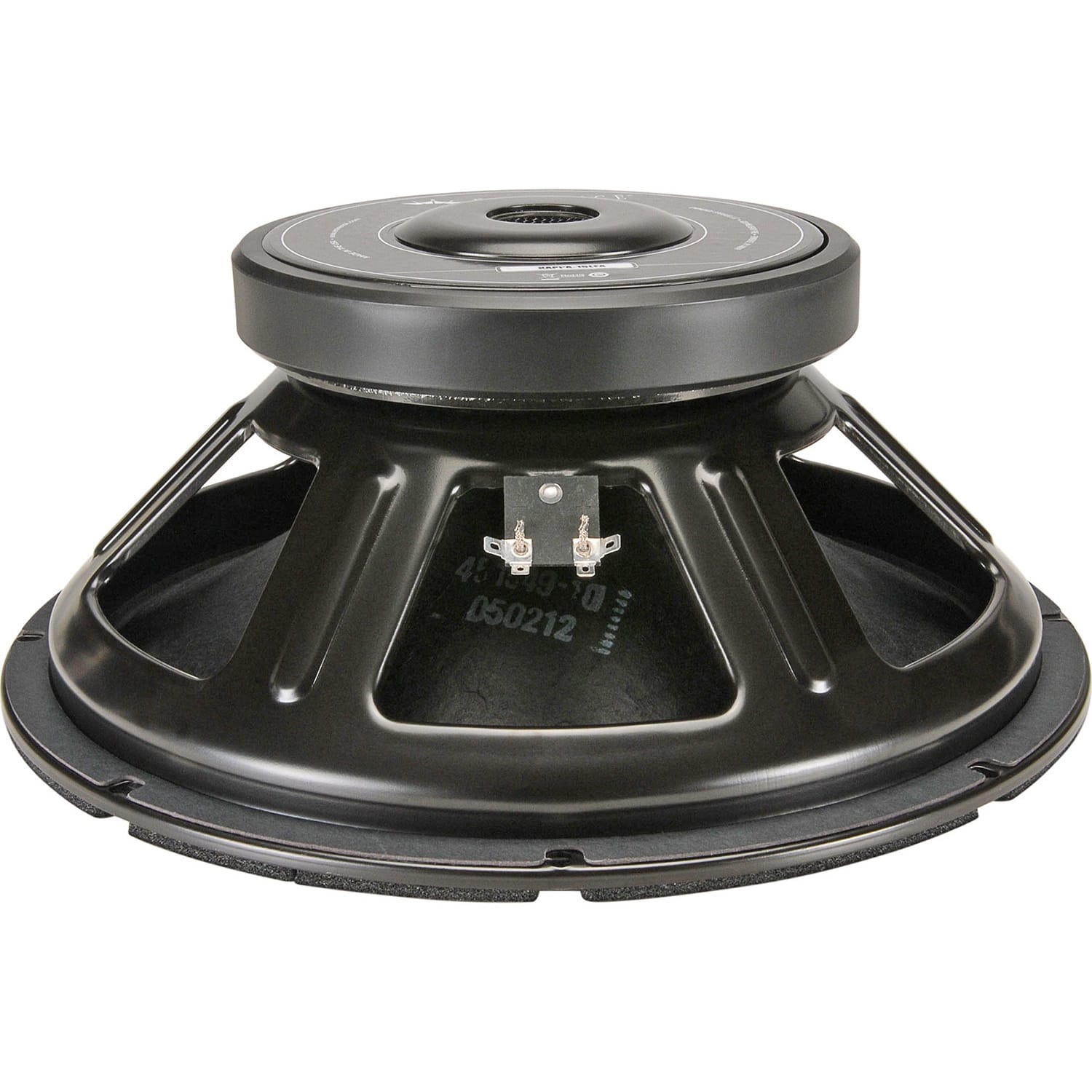

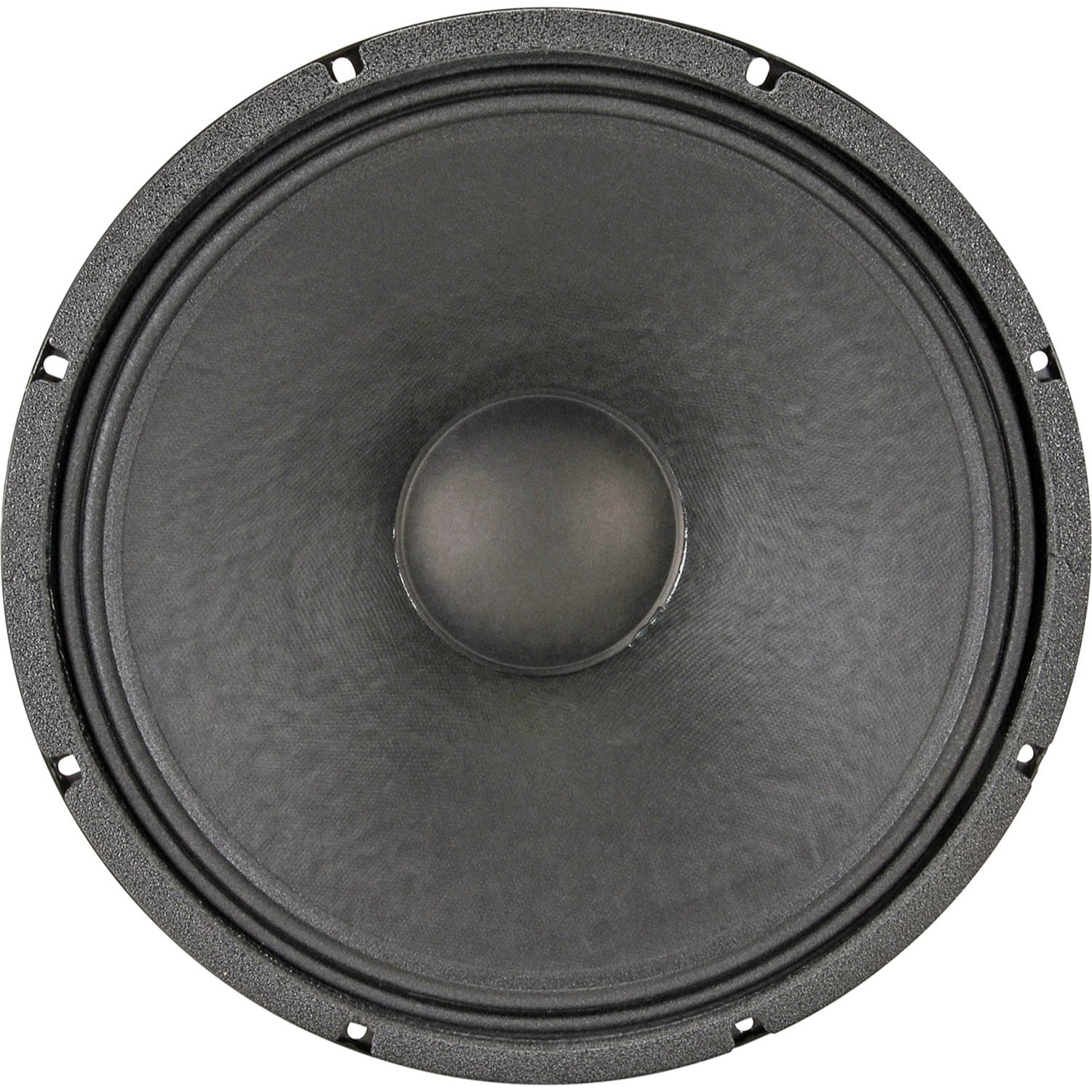

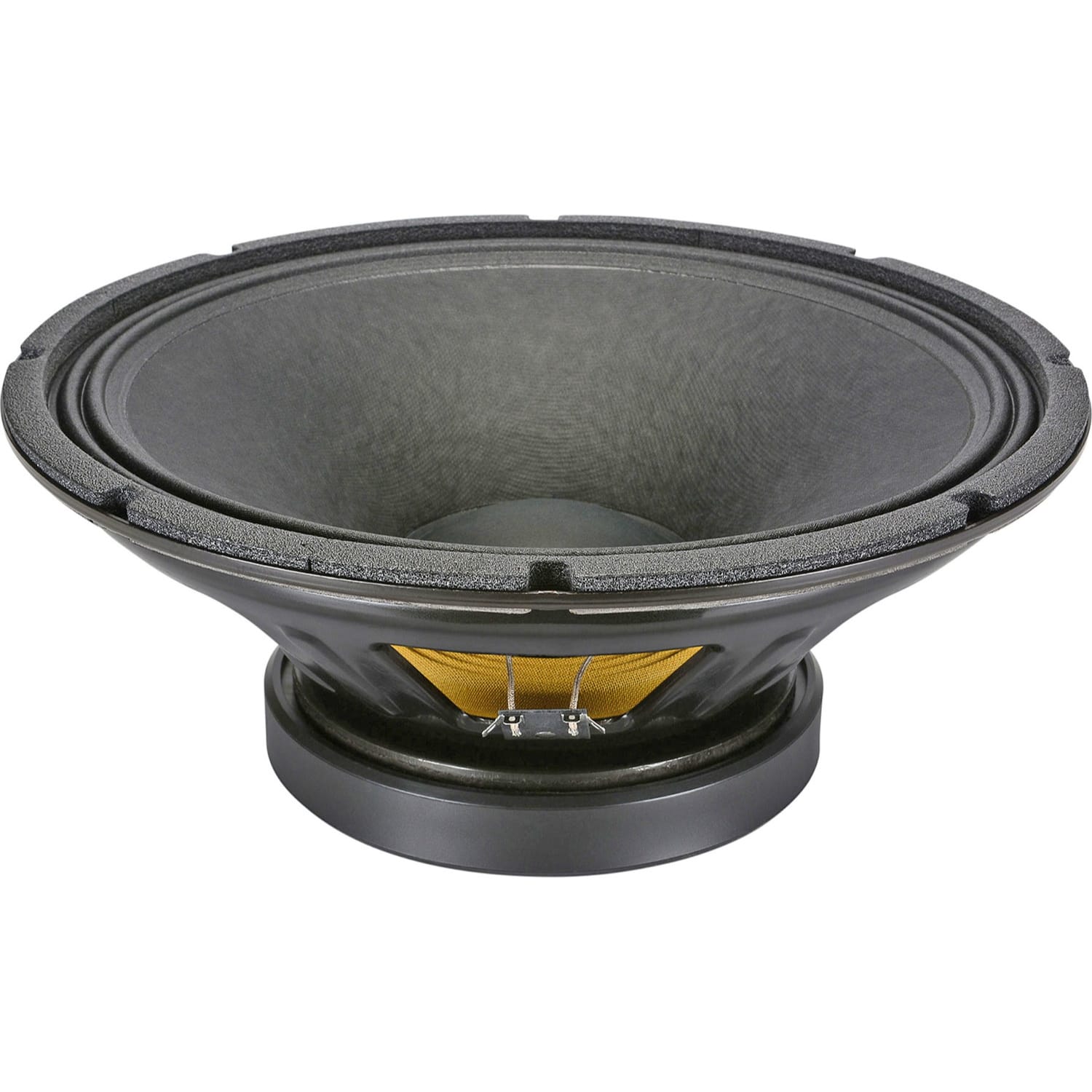

15" Low Frequency Driver, 8 Ohm, 600 Watt
The Eminence Kappa-15LFA 15" low frequency speaker is recommended for professional audio in a vented mid-bass or bass enclosure; also suitable for bass guitar. Eminence LF models are specifically designed with extended Xmax to deliver more bass than standard models and provide a "true woofer" for three-way applications. Made in the USA. 7-year manufacturer's warranty!
Features:
- Kapton coil former
- Polyamide-imide coated copper voice coil
- Ferrite magnet
- Vented pole piece
- Pressed steel basket
- Paper cone
- Cloth accordian surround
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 15", 381mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 600W
- Music Program: 1200W
- Resonance: 39Hz
- Usable Frequency Range: 38Hz - 2.7kHz
- Sensitivity***: 99dB
- Magnet Weight: 95 oz.
- Gap Height: 0.37", 9.53mm
- Voice Coil Diameter: 3", 76.2mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 39Hz
- DC Resistance (Re): 5.4
- Coil Inductance (Le): 1.27mH
- Mechanical Q (Qms): 6.08
- Electromagnetic Q (Qes): 0.41
- Total Q (Qts): 0.38
- Compliance Equivalent Volume (Vas): 159 liters / 5.6 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 471cc
- Mechanical Compliance of Suspension (Cms): 0.15mm/N
- BL Product (BL): 18.6 T-M
- Diaphragm Mass Inc. Airload (MMs): 105 grams
- Efficiency Bandwidth Product (EBP): 95
- Maximum Linear Excursion (Xmax): 5.5mm
- Surface Area of Cone (Sd): 856.3 cm2
- Maximum Mechanical Limit (Xlim): 10.4mm
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: N/a
- Vented: 62-193 liters / 2.2-6.8 cu.ft.
- Driver Volume Displaced: 251.7 cu.in. / 4.12 liters
- Overall Diameter: 15.16", 384.9mm
- Baffle Hole Diameter: 13.87", 352.3mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 14.56", 369.9mm
- Depth: 6.38", 162mm
- Net Weight: 20 lbs, 9.1 kg
- Shipping Weight: 22.3 lbs, 10.1 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Solid composition paper dust cap
Details
- Manufacturer: Eminence
- MPN: KAPPA-15LFA
- Model Number: Kappa-15LFA
- UPC: 876358000319
