Key Features
- 40 Watt RMS Power Handling
- 8 Ohm Nominal Impedance
- 80 to 5,300 Hz Frequency Response
- Copper Voice Coil
- 38 oz. Ferrite Magnet
Description

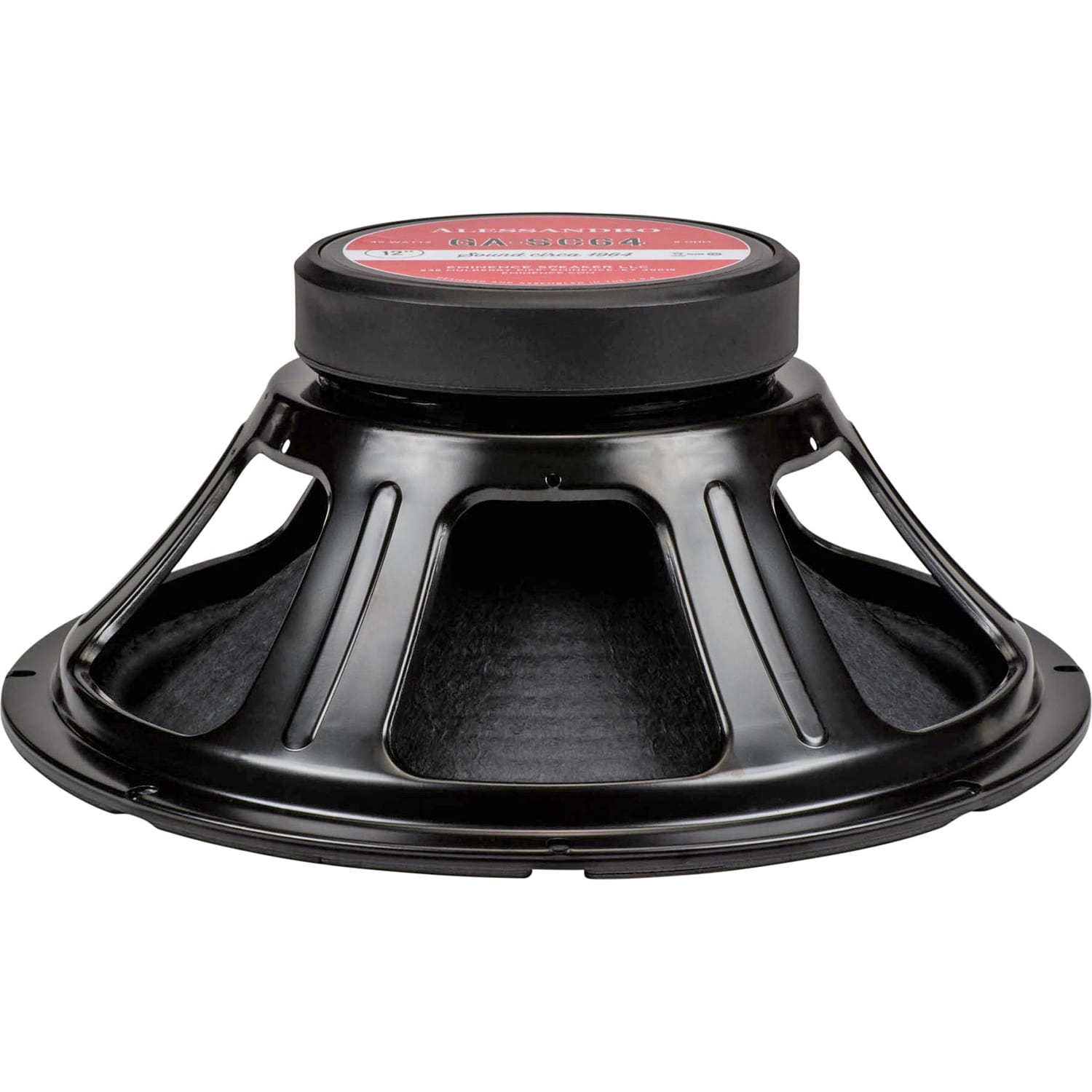

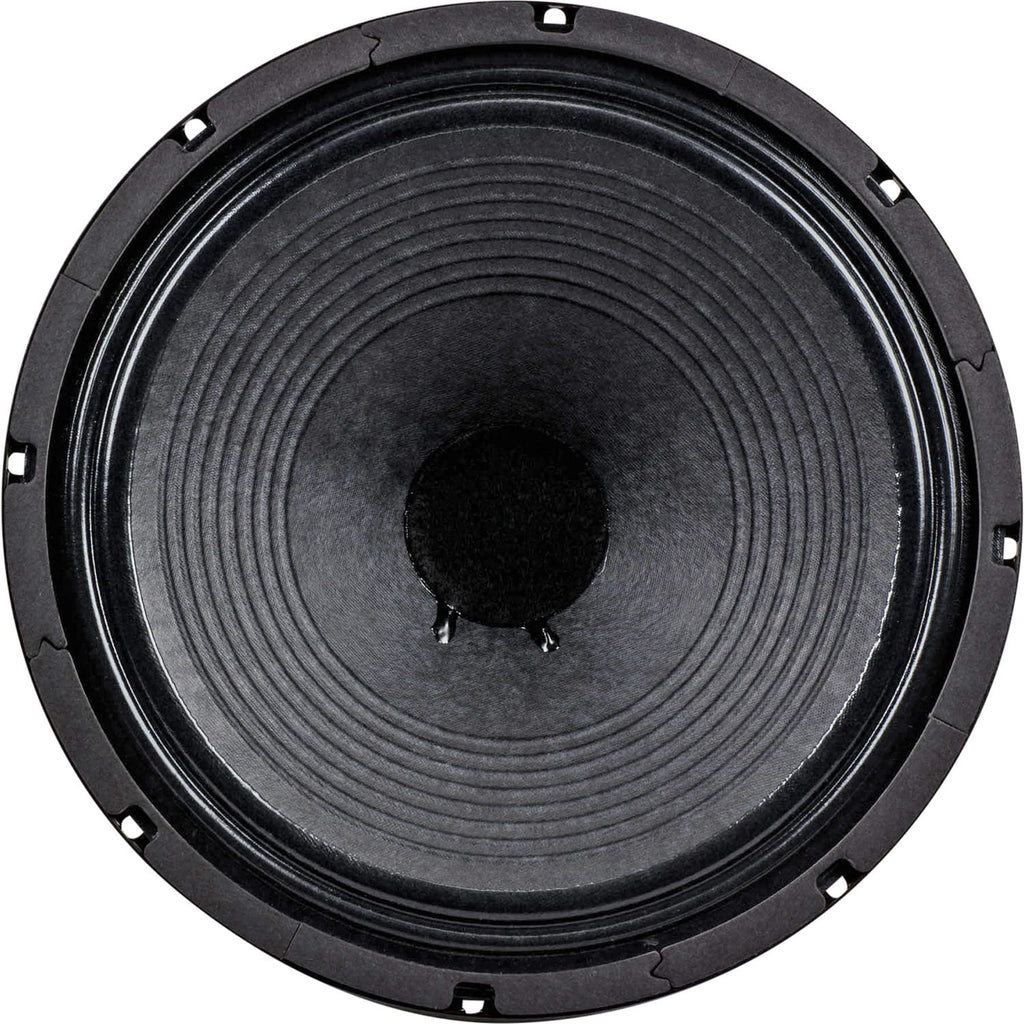

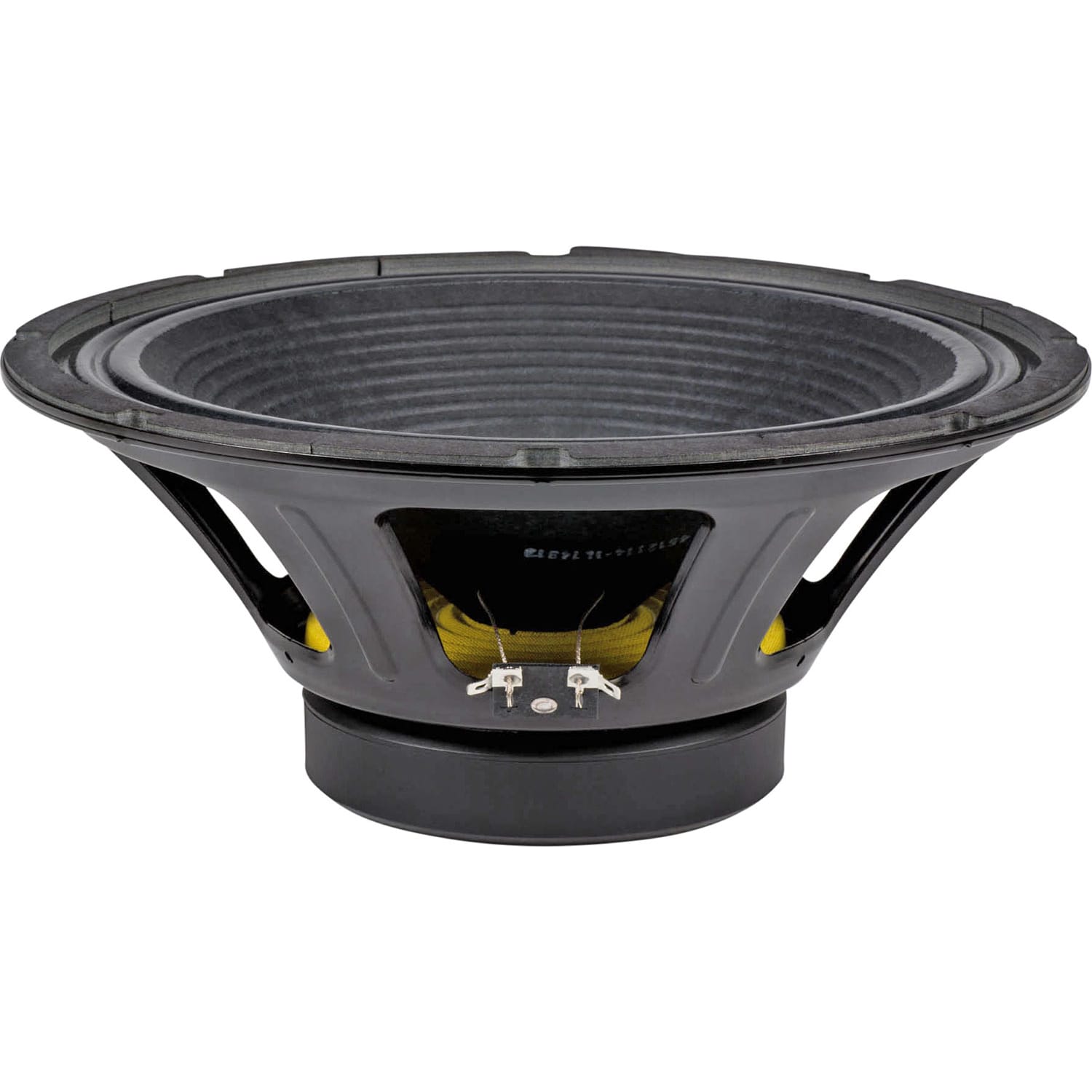

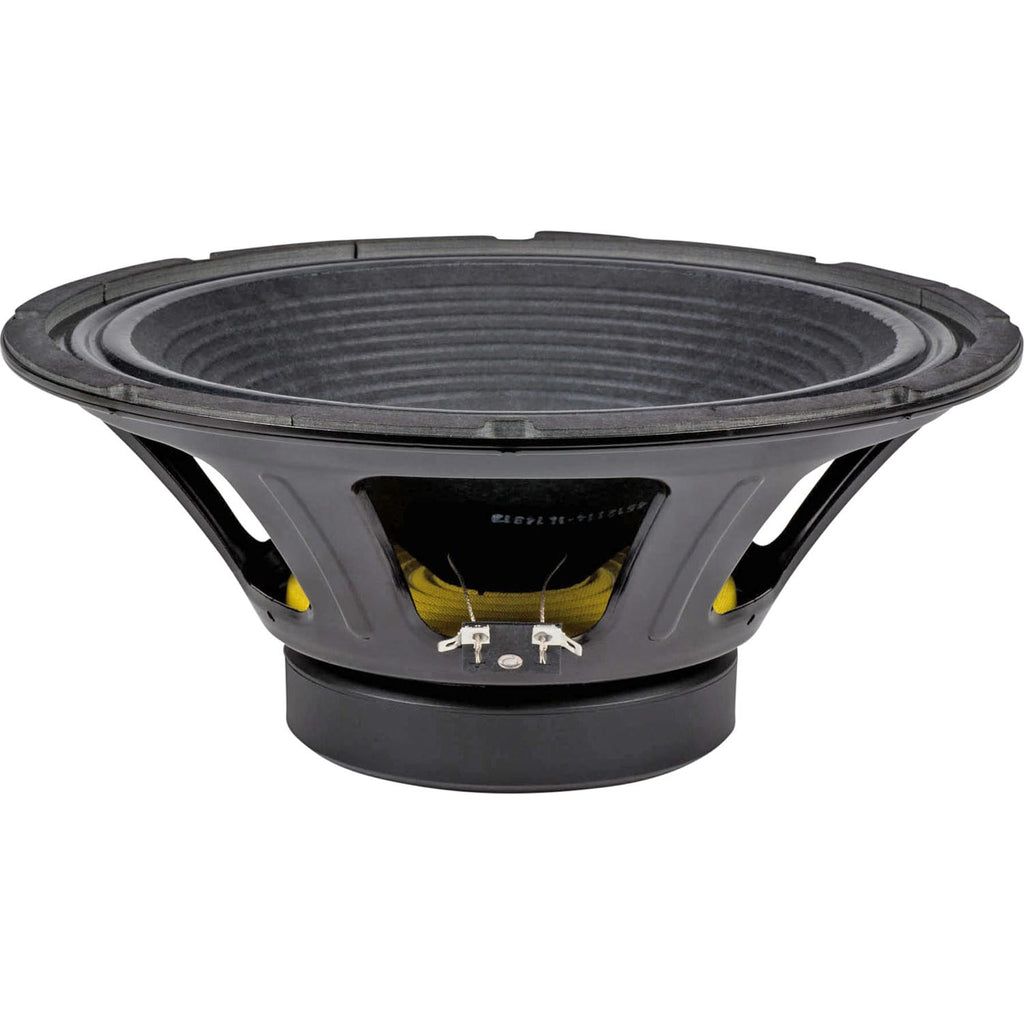

12" Signature Guitar Driver, 8 Ohm, 40 Watt
Vintage American ceramic magnet tone approved by legendary amp builder, George Alessandro. Well-balanced from top to bottom with tight, full lows, warm mids, and warm, but open highs.
Features:
- Lightweight 12" neo-powered pedal steel guitar speaker
- High senstivity, clean output, and 225 watts RMS power handling
- Designed and assembled in the USA
- 7-year manufacturer's warranty
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 40 W
- Music Program: N/A
- Resonance: 88 Hz
- Usable Frequency Range: 80 Hz - 5.3 kHz
- Sensitivity***: 100.5 dB
- Magnet Weight: 38 oz.
- Gap Height: 0.313", 8 mm
- Voice Coil Diameter: 1.75", 44 mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 88 Hz
- DC Resistance (Re): 7.63 ohms
- Coil Inductance (Le): 0.67m H
- Mechanical Q (Qms): 16.82
- Electromagnetic Q (Qes): 0.6
- Total Q (Qts): 0.58
- Compliance Equivalent Volume (Vas): 44.96 liters / 1.59 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 83.8 cc
- Mechanical Compliance of Suspension (Cms): 0.12 mm/N
- BL Product (BL): 13.8 T-M
- Diaphragm Mass Inc. Airload (MMs): 27 grams
- Efficiency Bandwidth Product (EBP): 146
- Maximum Linear Excursion (Xmax): 1.23 mm
- Surface Area of Cone (Sd): 519.5 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 0.071 cu.ft. / 2 liters
- Overall Diameter: 12.17", 309.1 mm
- Baffle Hole Diameter: 11.13", 282.7 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: N/A
- Mounting Holes Diameter: 0.24", 6.1mm
- Mounting Holes B.C.D.: 11.75", 298.5mm
- Depth: 5.13", 130.2 mm
- Net Weight: 7.5 lbs, 3.4 kg
- Shipping Weight: 8.4 lbs, 3.81 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Paper former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Solid composition felt dust cap
Details
- Manufacturer: Eminence
- MPN: GA-SC64
- Model Number: GA-SC64
- UPC: 876358002474
