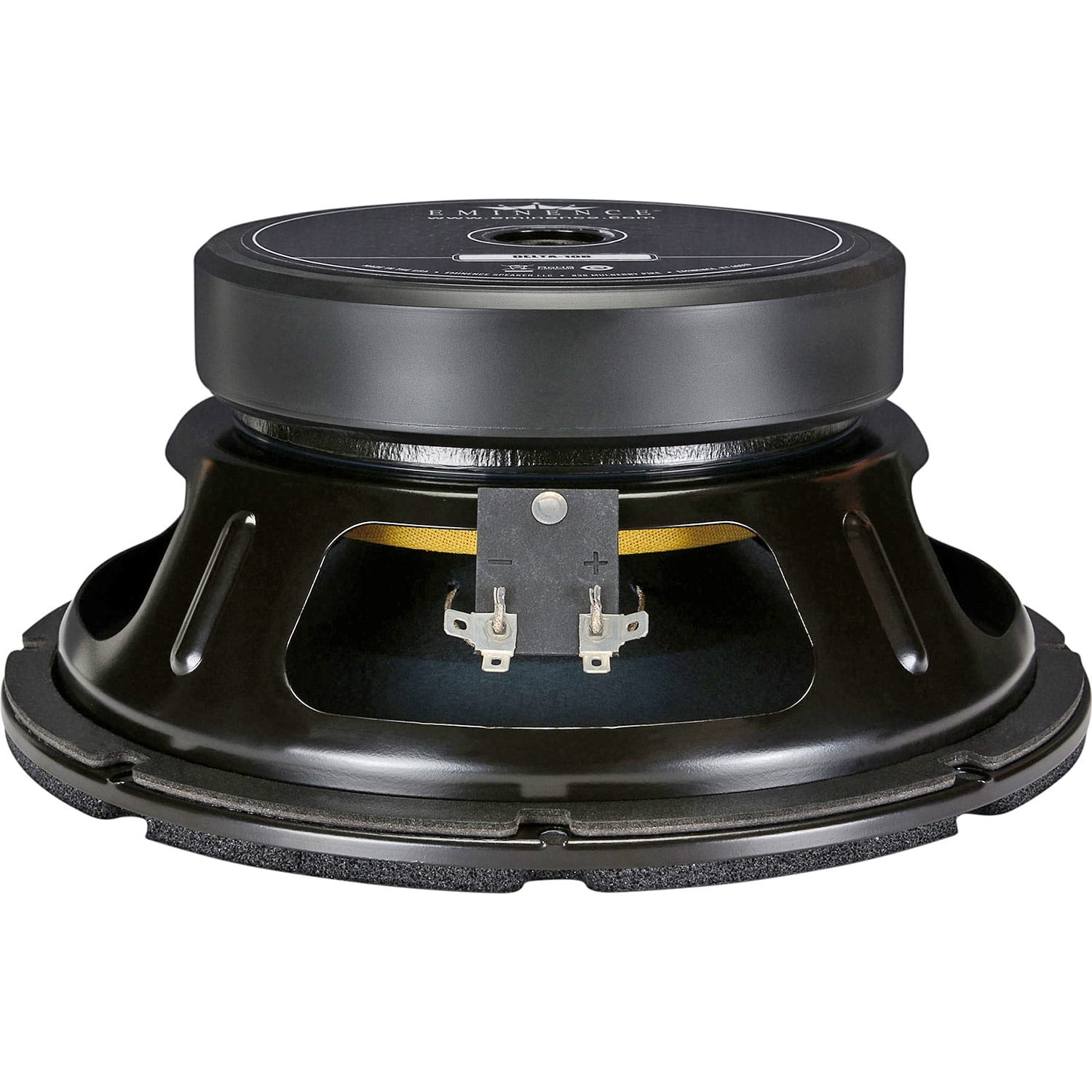

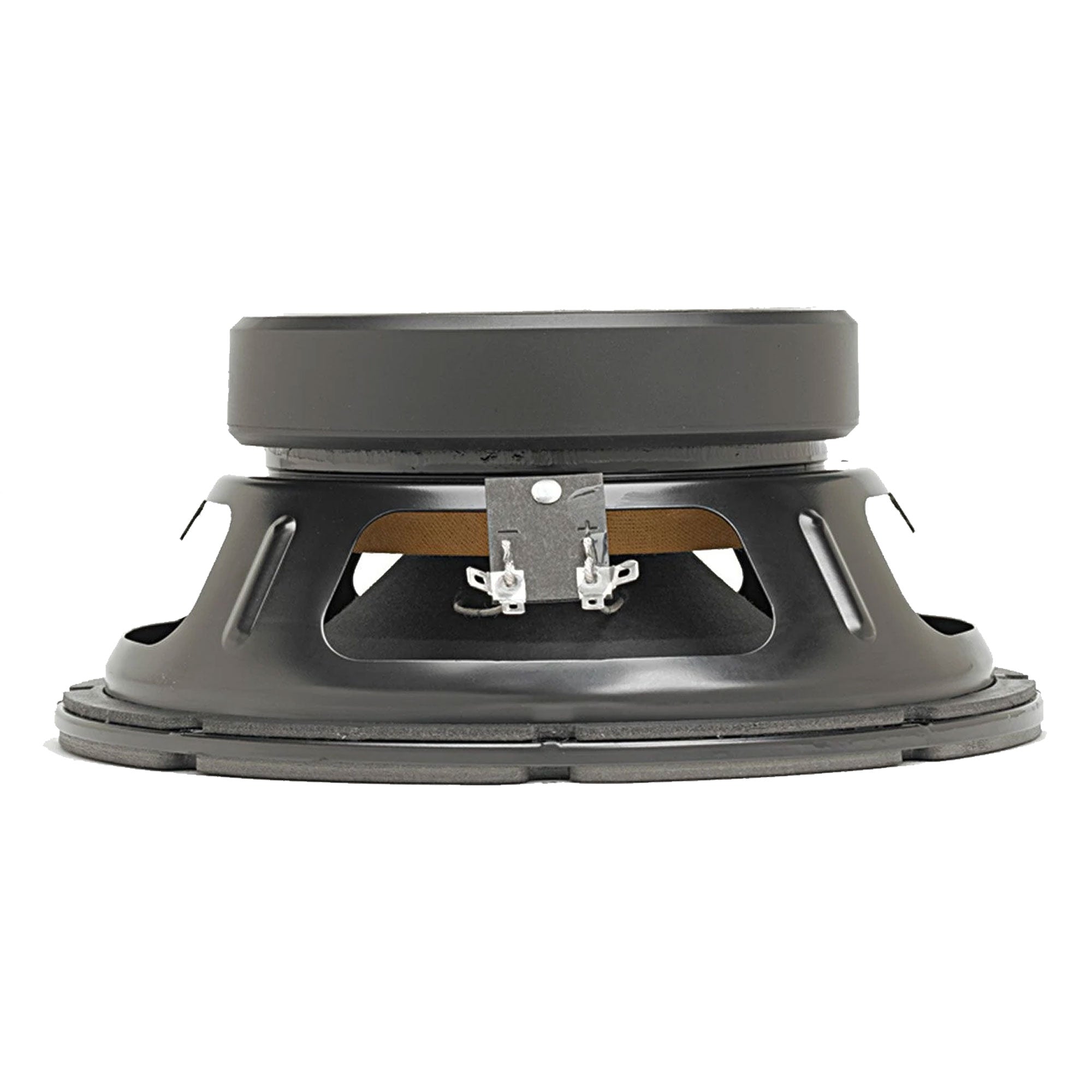

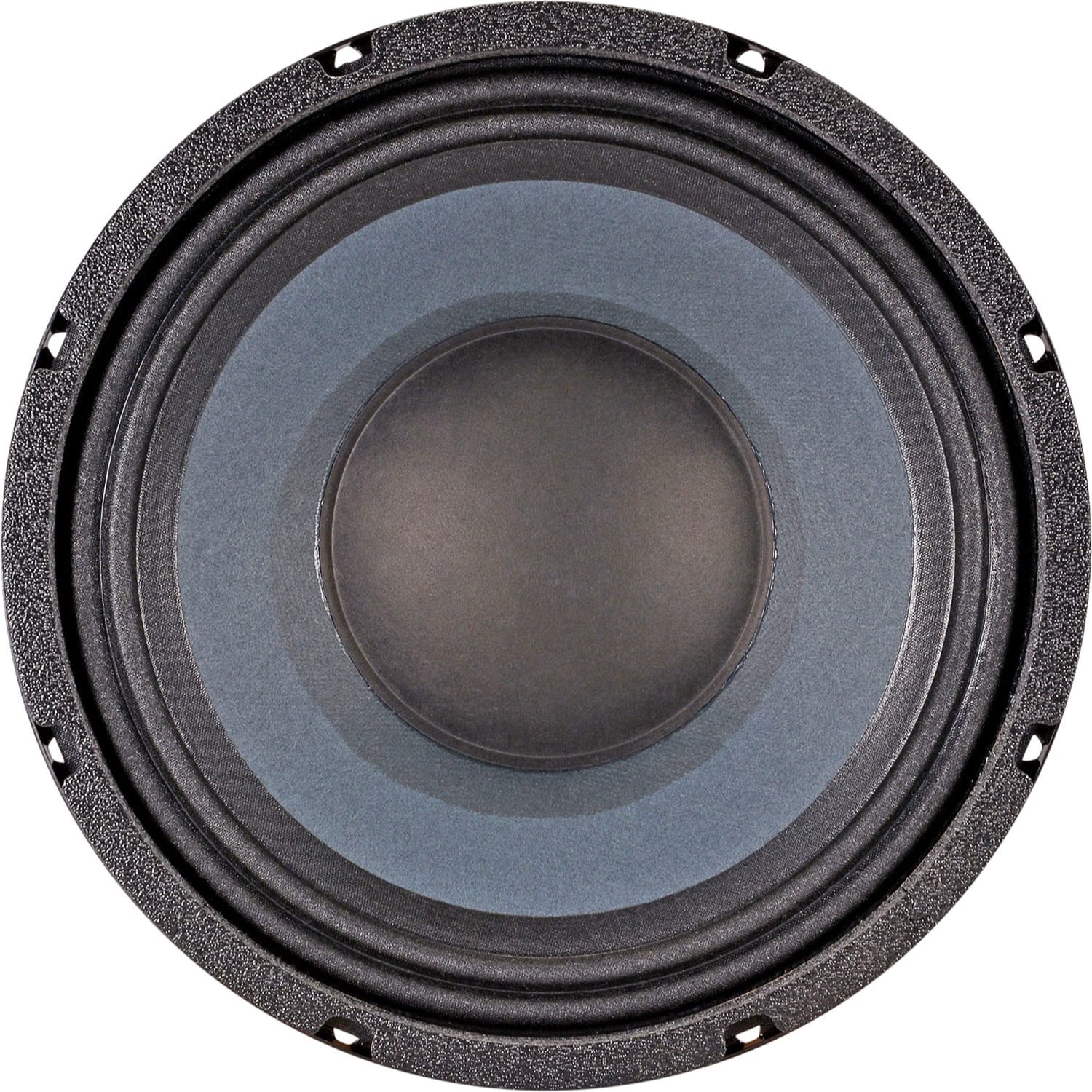

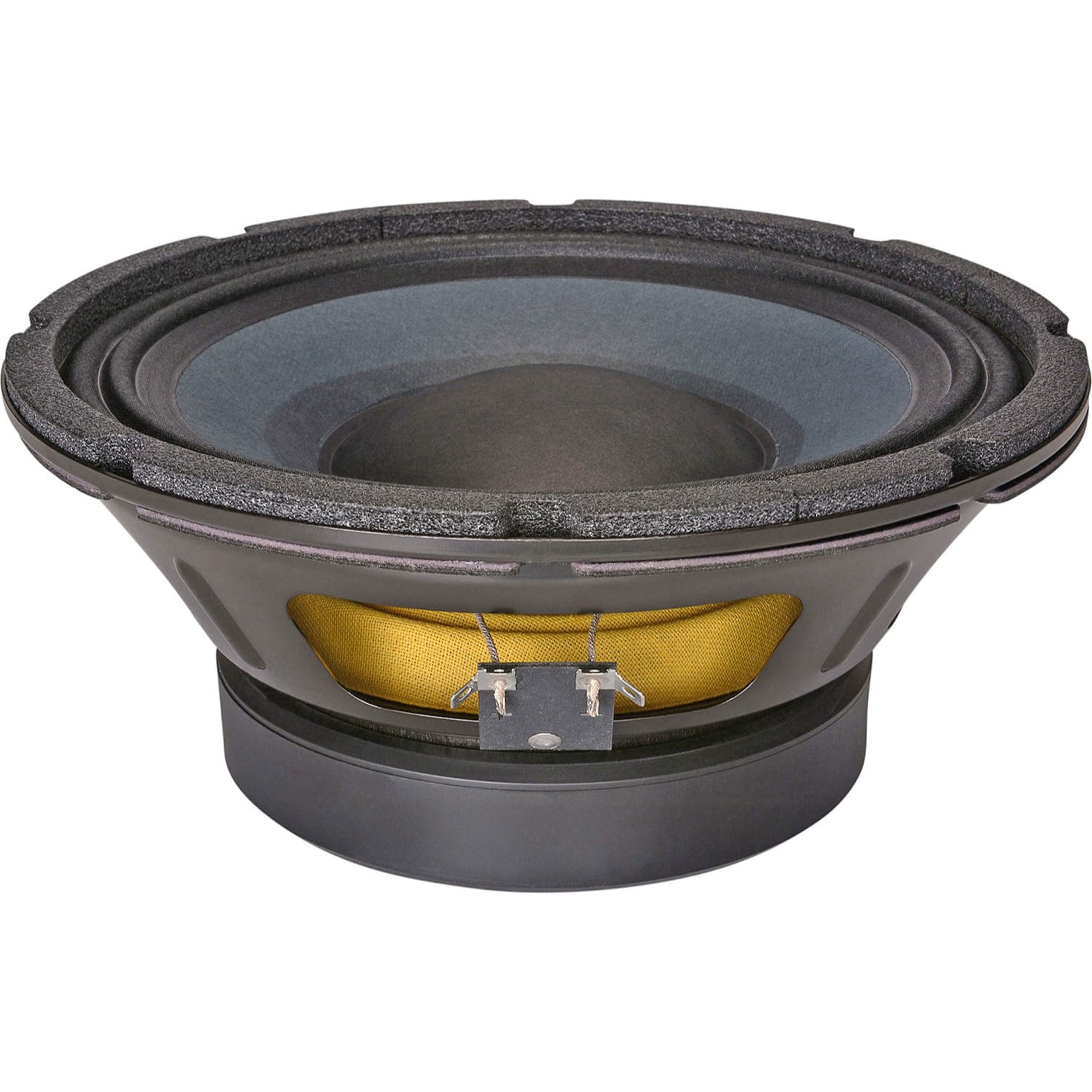

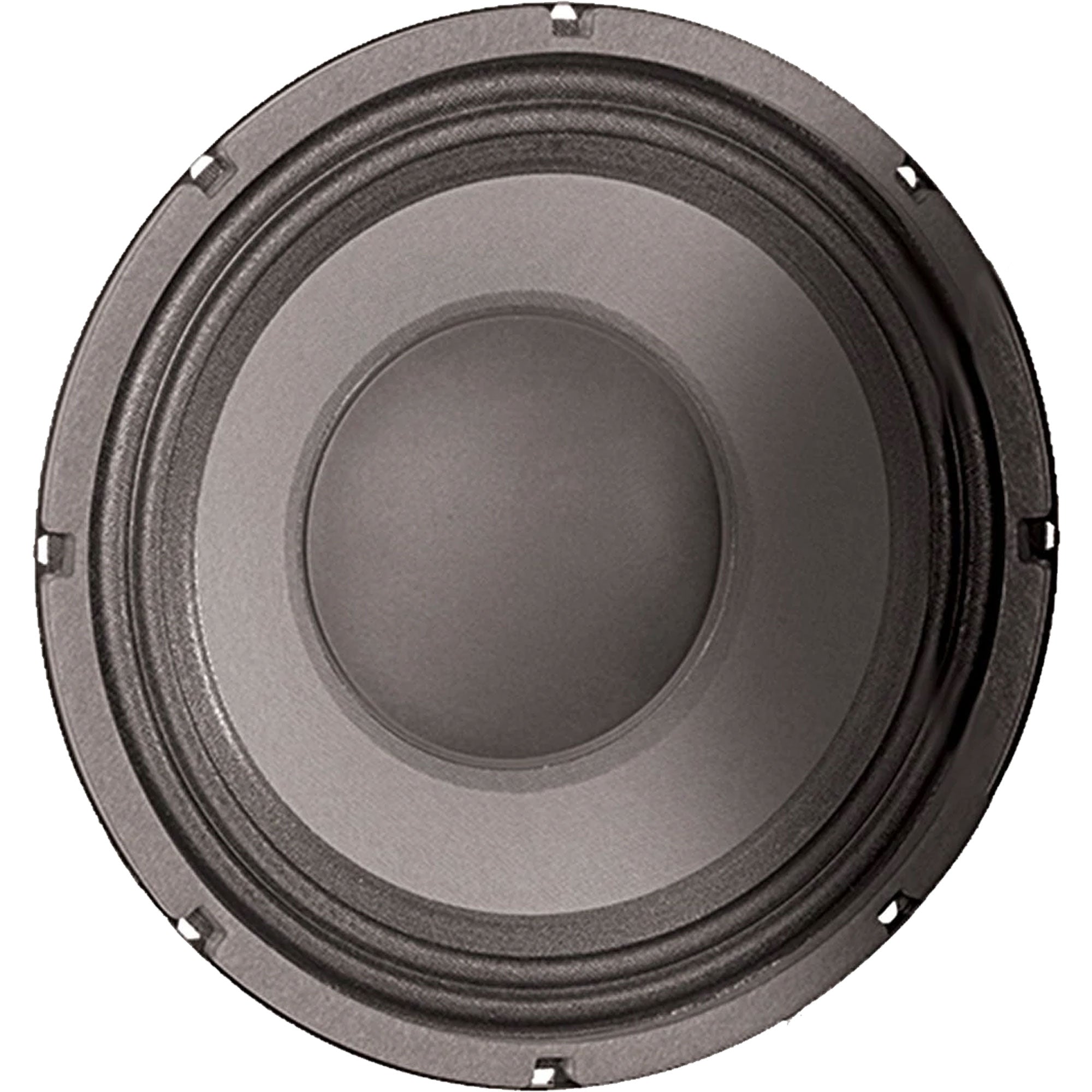

Eminence Delta-10B 10" Mid-Range Speaker, 16 Ohm

10" Midrange Driver, 16 Ohm, 350 Watt

The Eminence Delta-10B 16 ohm 10" speaker is optimized for outstanding midrange performance in 3-way systems, and midbass in 2-way systems. Also suitable for bass guitars, keyboards, club music systems, and stage monitors. Made in the USA. 7-year manufacturer's warranty!

Features:

• Kapton coil former
• Polyamide-imide coated copper voice coil
• Ferrite magnet
• Vented Pole Piece
• Pressed steel basket
• Paper cone
• Cloth accordian surround

Specifications:

• SPECIFICATION
• Nominal Basket Diameter: 10", 254mm
• Nominal Impedance*: 16 ohms
• Power Rating**
• Watts: 350W
• Music Program: 700W
• Resonance: 65Hz

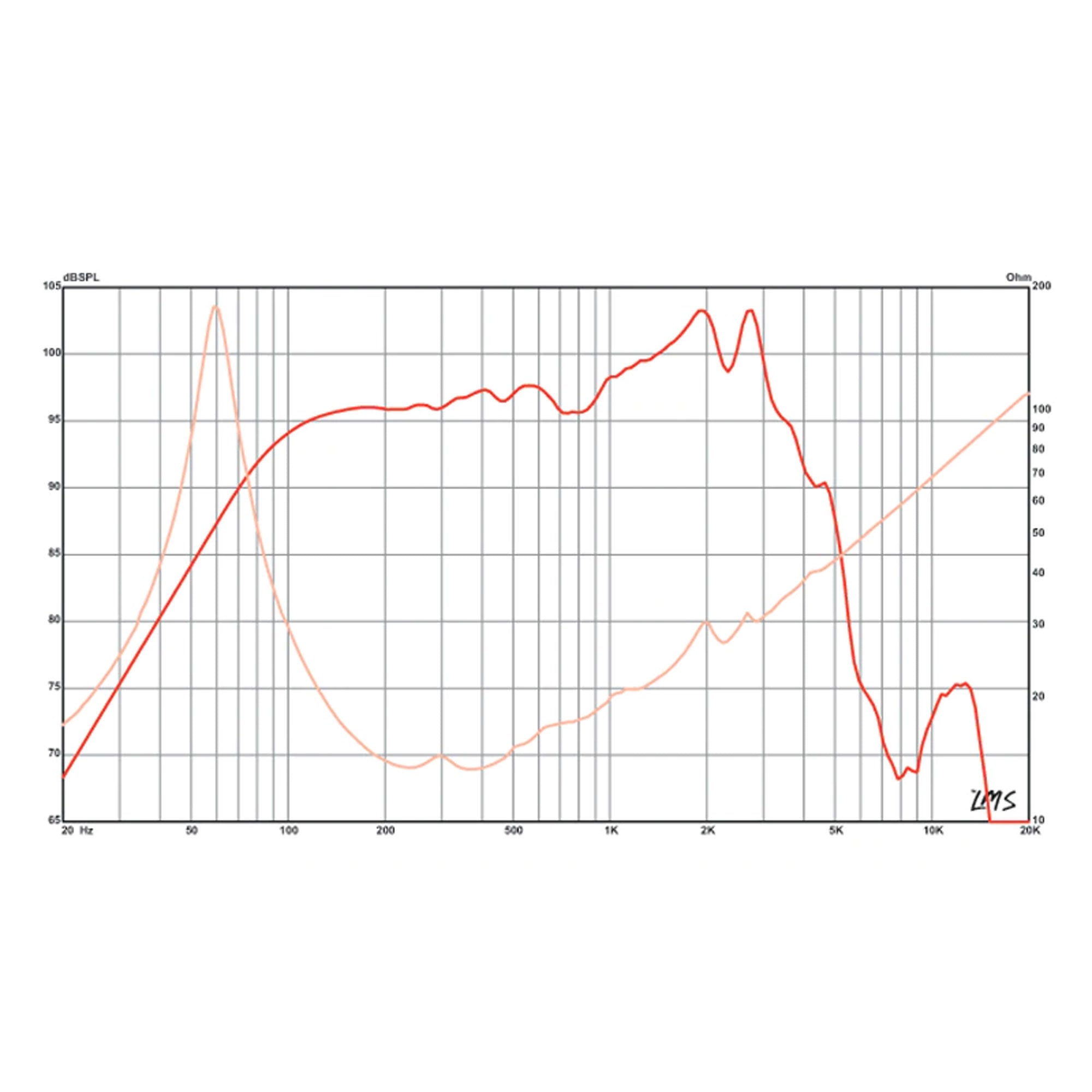

• Usable Frequency Range: 71Hz - 3.7kHz
• Sensitivity***: 98dB
• Magnet Weight: 56 oz.
• Gap Height: 0.37", 9.53mm
• Voice Coil Diameter: 2.5", 63.5mm
• THIELE & SMALL PARAMETERS
• Resonant Frequency (fs): 65Hz
• DC Resistance (Re): 11.6
• Coil Inductance (Le): 0.79mH
• Mechanical Q (Qms): 8.34
• Electromagnetic Q (Qes): 0.35
• Total Q (Qts): 0.33
• Compliance Equivalent Volume (Vas): 36 liters / 1.27 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 62cc
• Mechanical Compliance of Suspension (Cms): 0.21mm/N
• BL Product (BL): 19.5 T-M
• Diaphragm Mass Inc. Airload (MMs): 28 grams
• Efficiency Bandwidth Product (EBP): 186
• Maximum Linear Excursion (Xmax): 3.5mm
• Surface Area of Cone (Sd): 344.9 cm2
• Maximum Mechanical Limit (Xlim): 9mm
• MOUNTING INFORMATION
• Recommended Enclosure Volume
• Sealed: 9.9-12.7 liters / 0.35-0.45 cu.ft.
• Vented: 10.8-34 liters / 0.38-1.2 cu.ft.
• Driver Volume Displaced: 86.5 cu.in. / 1.42 liters
• Overall Diameter: 10.09", 256.2mm
• Baffle Hole Diameter: 9.18", 233.17mm
• Front Sealing Gasket: Fitted as standard
• Rear Sealing Gasket: Fitted as standard
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D.: 9.66", 245.4mm
• Depth: 4.25", 108mm
• Net Weight: 10.8 lbs, 4.9 kg
• Shipping Weight: 12 lbs, 5.4 kgs
• MATERIALS OF CONSTRUCTION
• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Ferrite magnet
• Core Details: Vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Cloth cone edge
• Dust Cap Composition: Solid composition paper dust cap
