Description

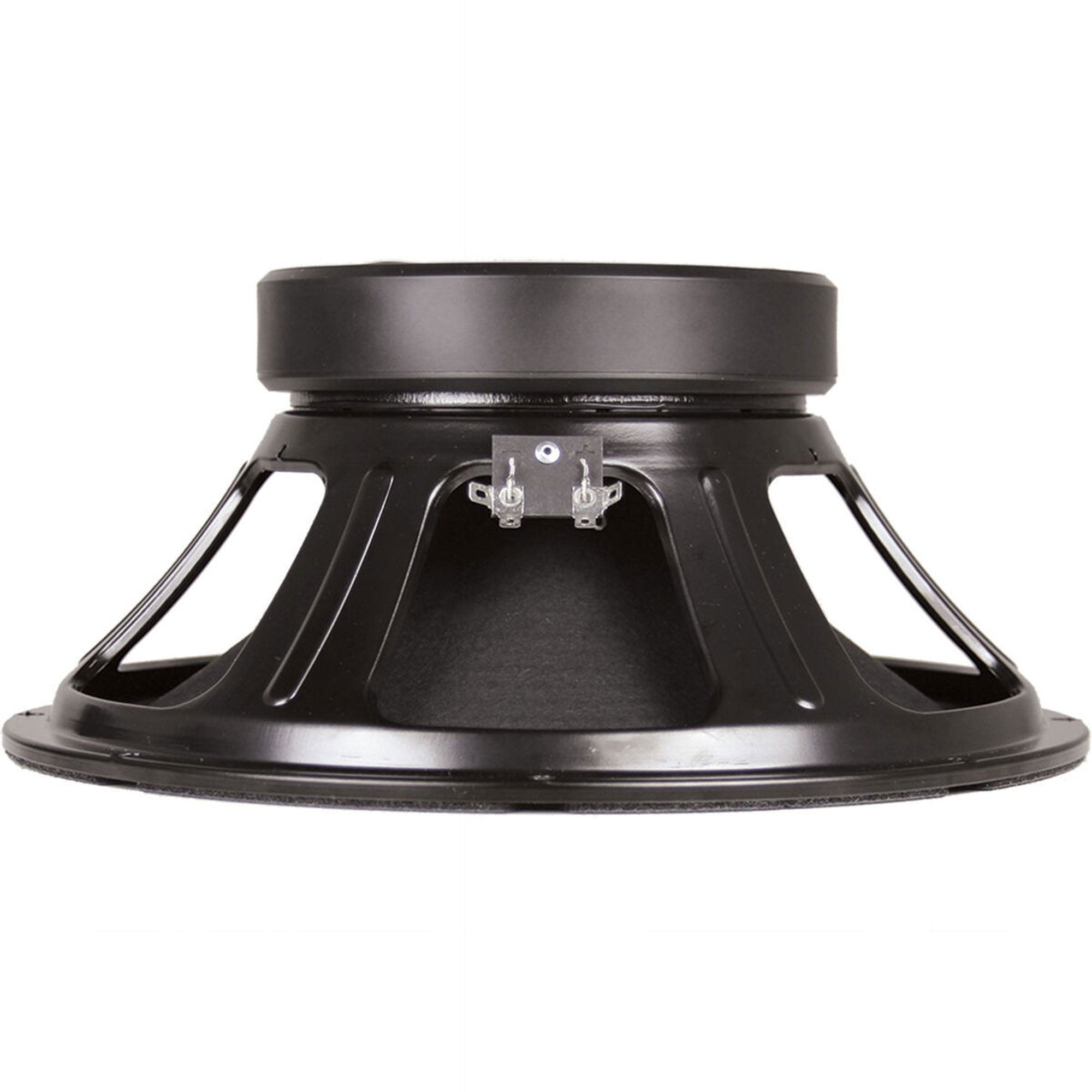

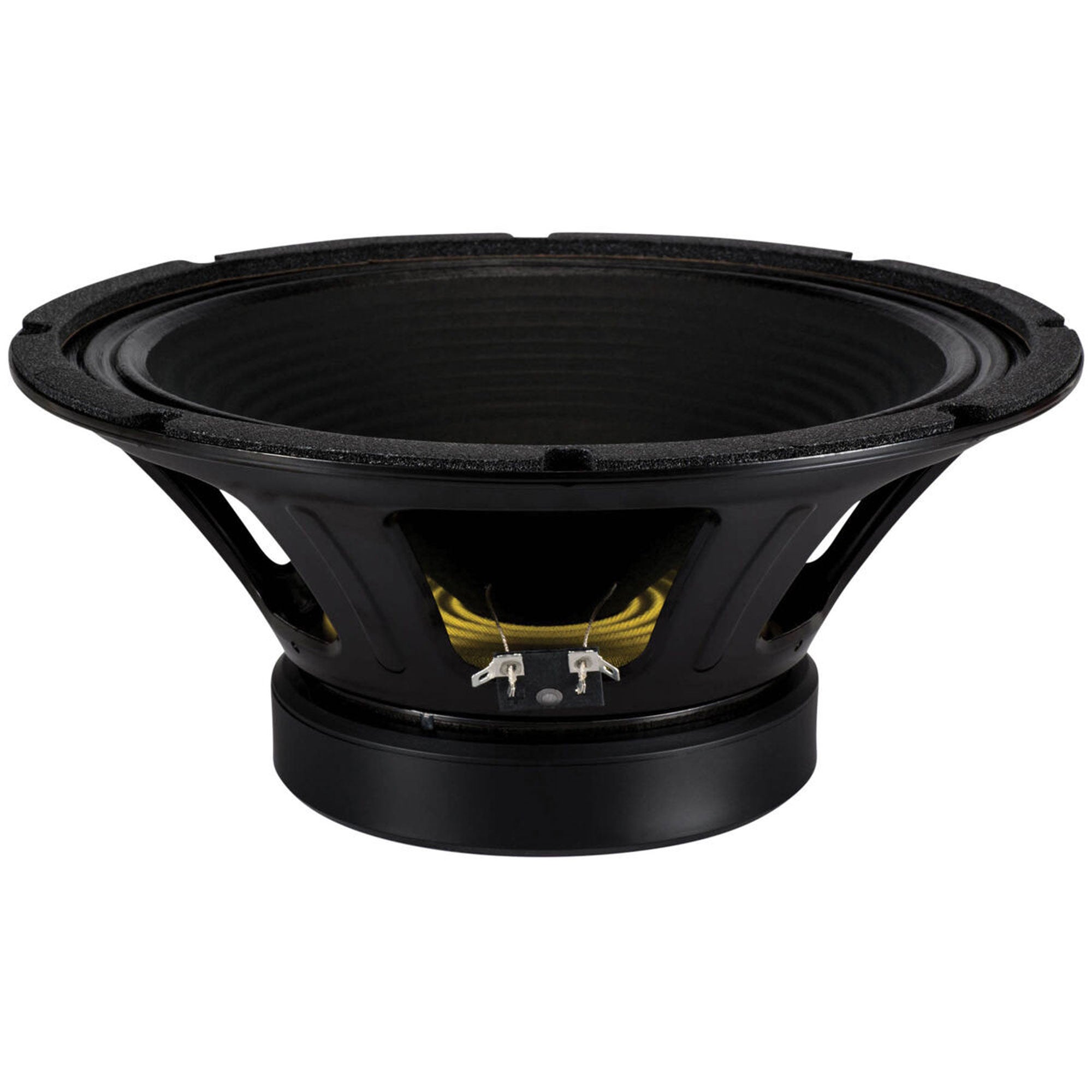

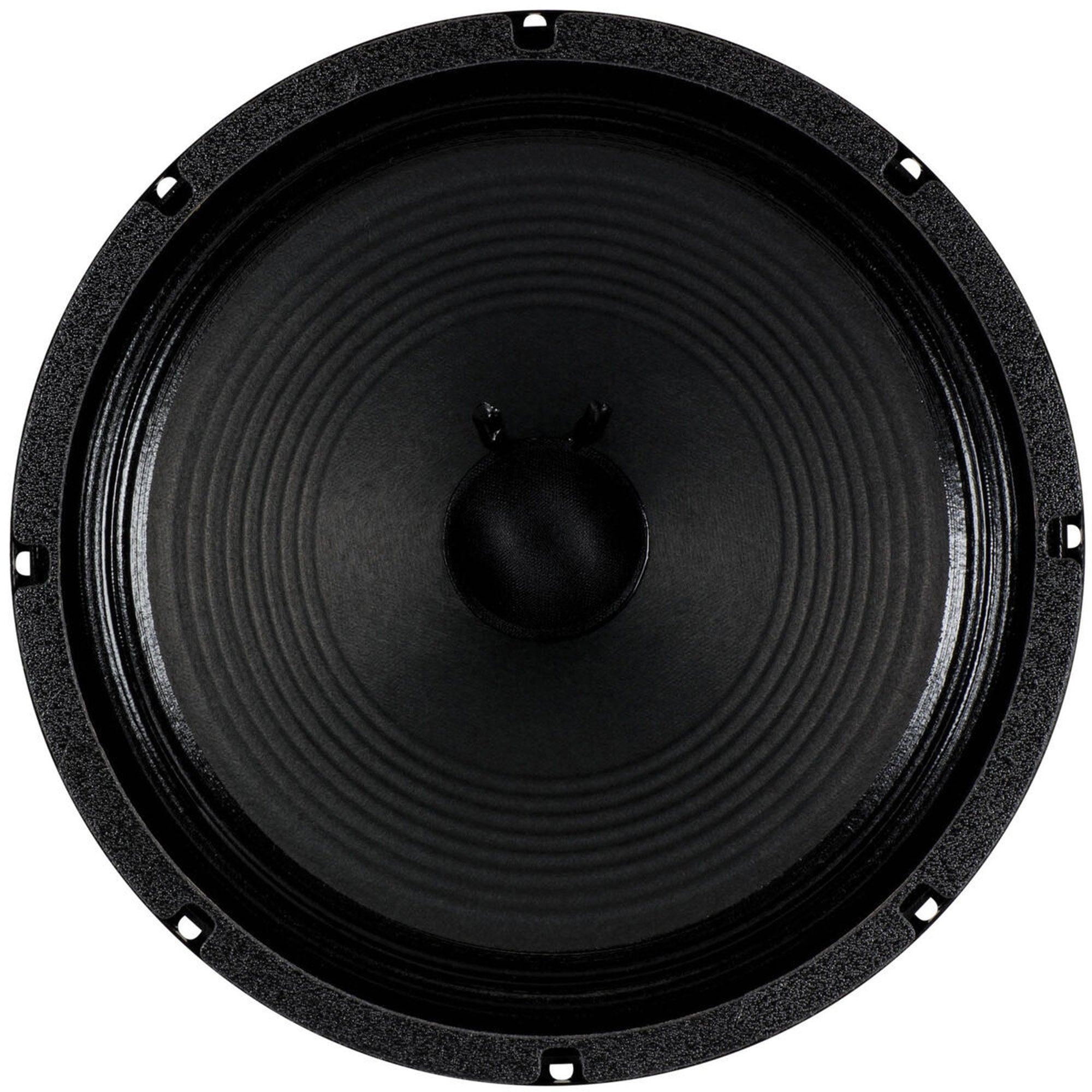

12" Guitar Speaker, 16 Ohm, 75 Watt
The epitome of British tone with a complete tonal balance. Grunt and punch in the lows, warm/tailored mids, and nice, clear, open/airy highs.
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance*: 16 ohms
- Power Rating**
- Watts: 75 W
- Music Program: N/A
- Resonance: 80 Hz
- Usable Frequency Range: 80 Hz - 5.7 kHz
- Sensitivity***: 101.9 dB
- Magnet Weight: 56 oz.
- Gap Height: 0.313", 8 mm
- Voice Coil Diameter: 1.75", 44 mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 80 Hz
- DC Resistance (Re): 14.23 ohms
- Coil Inductance (Le): 0.85m H
- Mechanical Q (Qms): 21.33
- Electromagnetic Q (Qes): 0.49
- Total Q (Qts): 0.48
- Compliance Equivalent Volume (Vas): 56.2 liters / 1.98 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 64 cc
- Mechanical Compliance of Suspension (Cms): 0.15 mm/N
- BL Product (BL): 20.05 T-M
- Diaphragm Mass Inc. Airload (MMs): 28 grams
- Efficiency Bandwidth Product (EBP): 163
- Maximum Linear Excursion (Xmax): 1.23 mm
- Surface Area of Cone (Sd): 519.5 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: N/a
- Vented: N/a
- Driver Volume Displaced: 0.079 cu.ft. / 2.25 liters
- Overall Diameter: 12.17", 309.1 mm
- Baffle Hole Diameter: 11.13", 282.7 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.24", 6.1mm
- Mounting Holes B.C.D.: 11.75", 298.5mm
- Depth: 5.25", 133.4 mm
- Net Weight: 10.8 lbs, 4.9 kg
- Shipping Weight: 12.5 lbs, 5.67 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Nomex former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Zurette dust cap
Details
- Manufacturer: Eminence
- MPN: CV-7516
- Model Number: CV-7516
- UPC: 876358002559
