Description

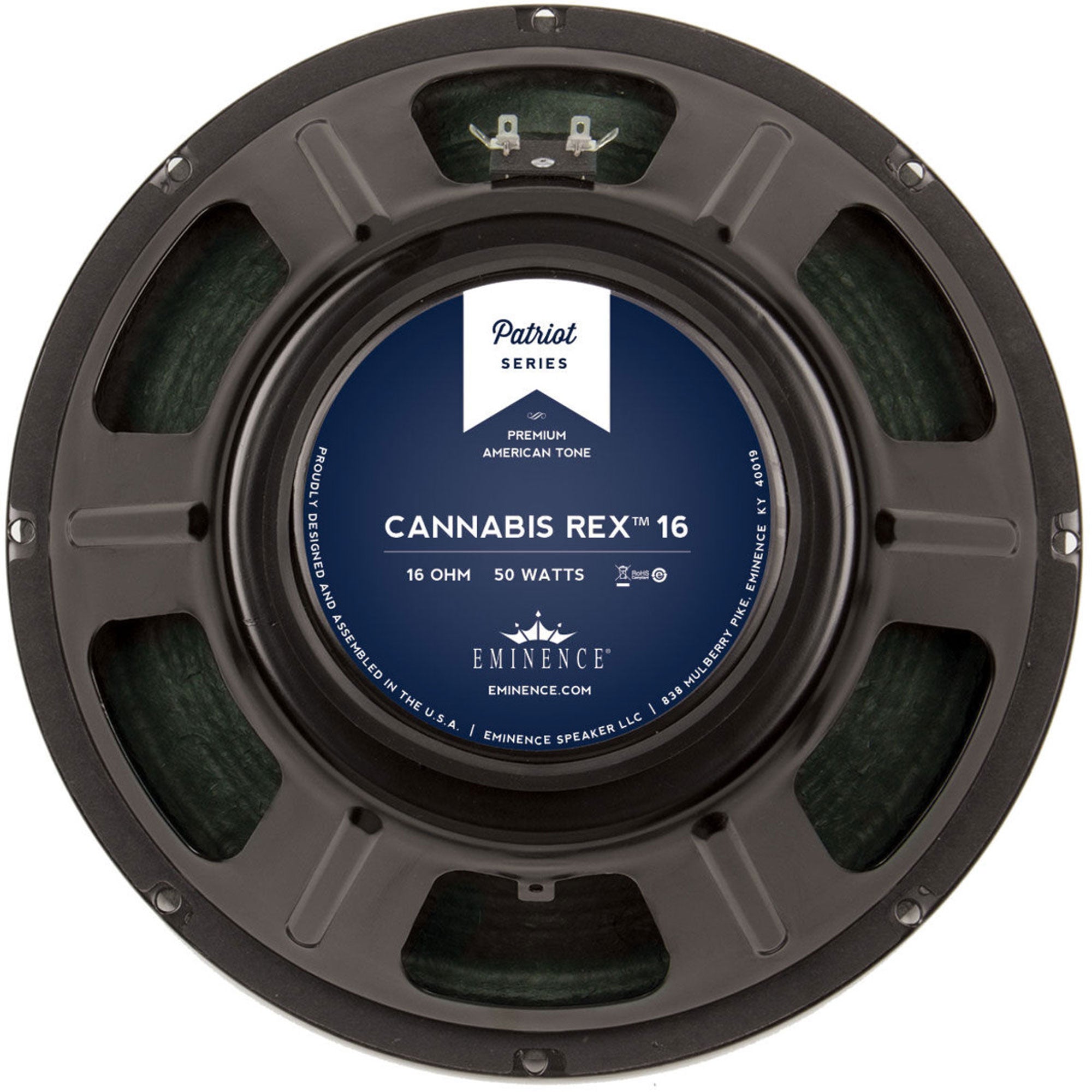

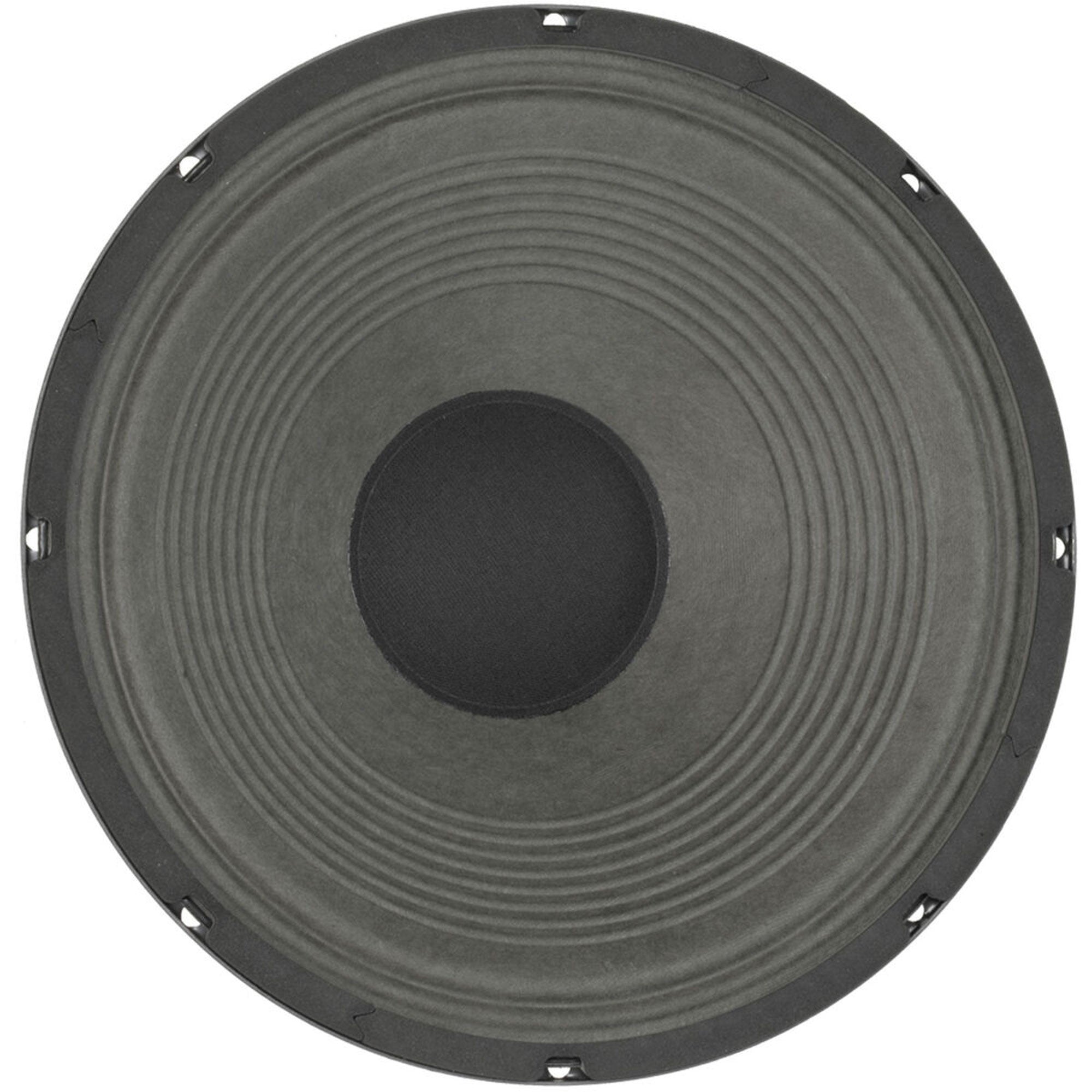

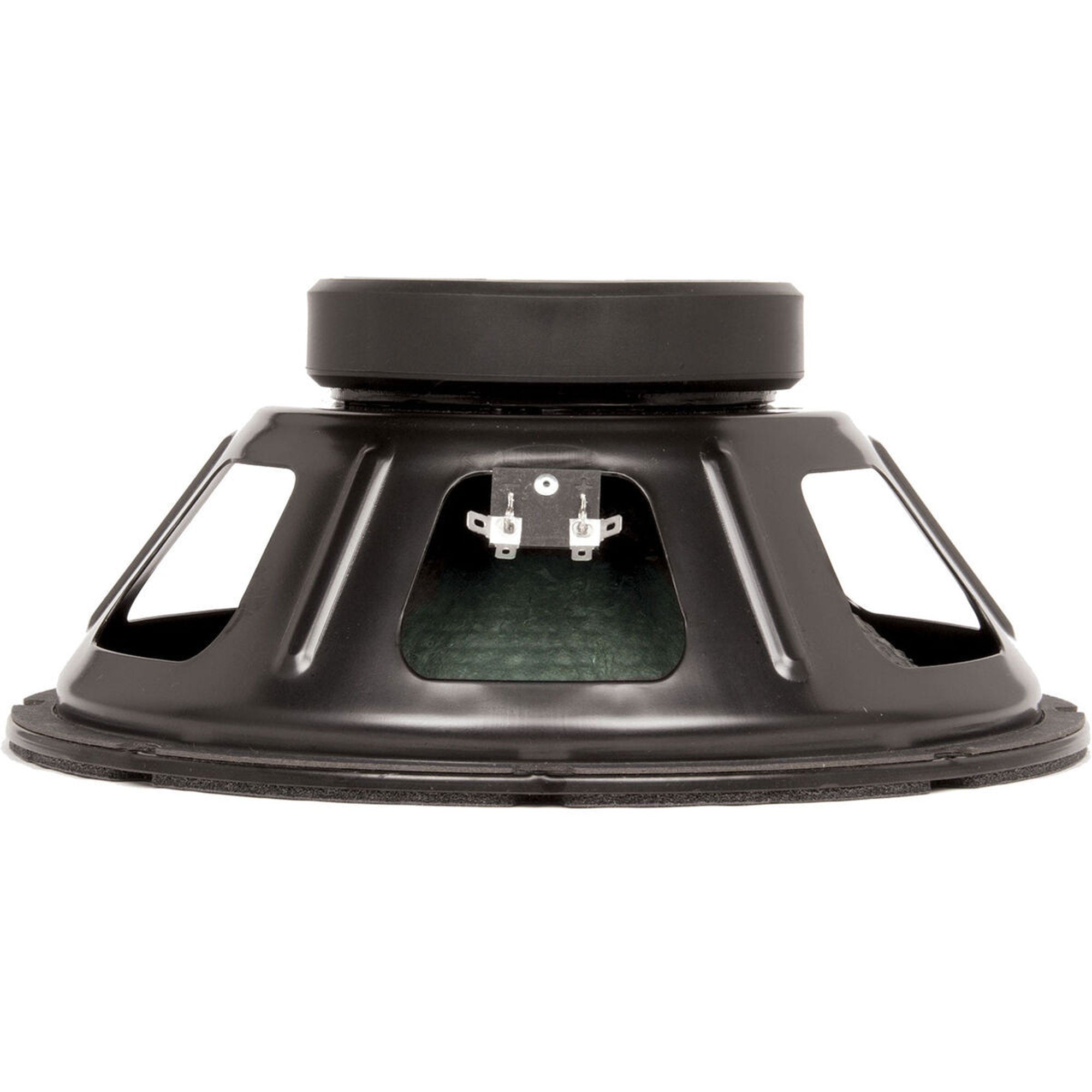

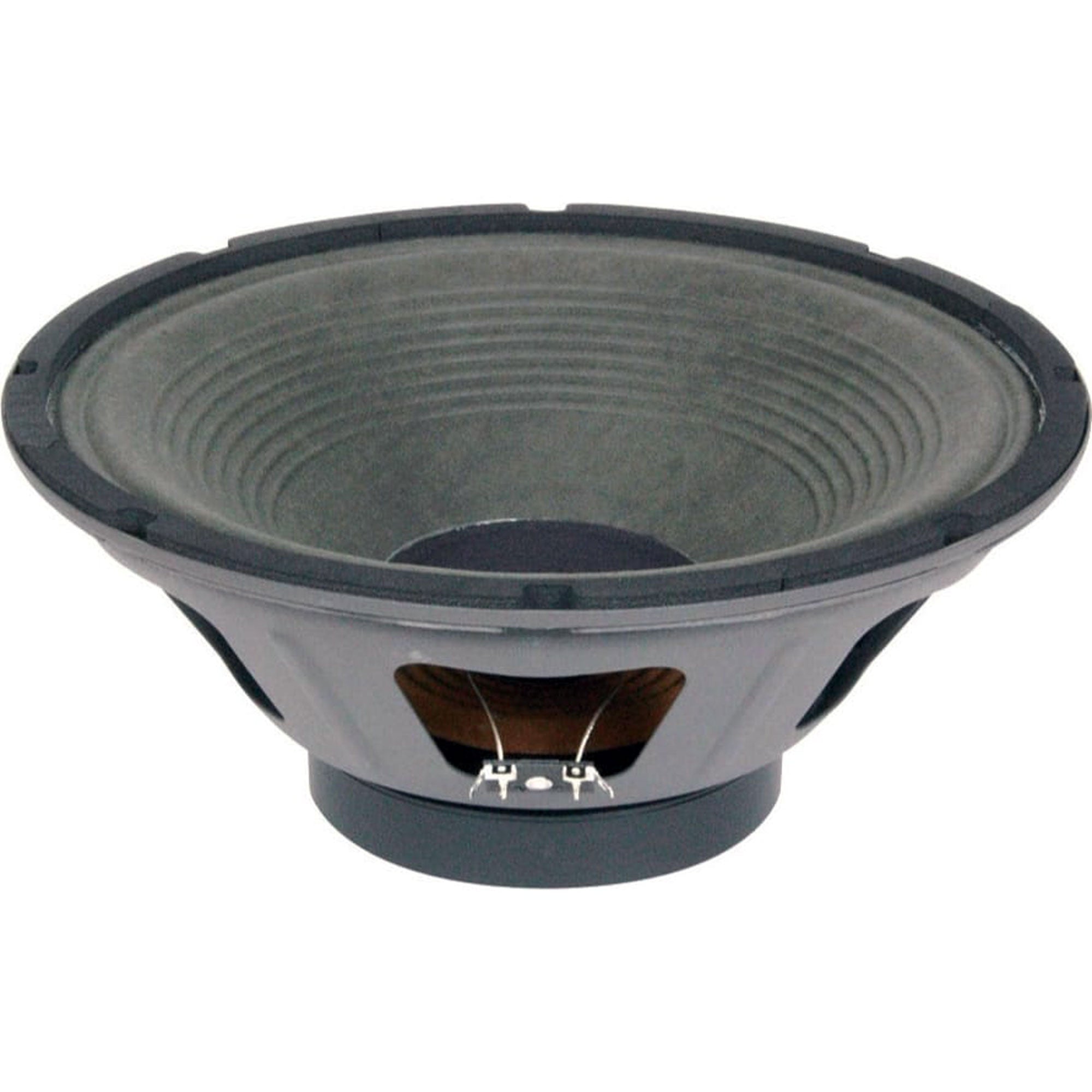

12" Guitar Speaker, 16 Ohm, 50 Watt
Nothing says "American Made" like rock 'n roll or blues. And nothing says "Classic" tone like the Patriot Series of guitar amp speakers from Eminence. Made in the U.S.A. for stand-up volume and reliable rockin' clarity. Seven-year manufacturer's warranty.
Features:
- Application: 12" Open or Closed Back
- Configuration: 1, 2, or 4 x 12"
- Coloration: Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition.
- Genre: Country, Jazz, Classical
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance*: 16 ohms
- Power Rating**
- Watts: 50W
- Music Program: N/A
- Resonance: 101Hz
- Usable Frequency Range: 80Hz - 4.2kHz
- Sensitivity***: 101.7dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.75", 44.5mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 101Hz
- DC Resistance (Re): 13.1
- Coil Inductance (Le): 0.75mH
- Mechanical Q (Qms): 9.95
- Electromagnetic Q (Qes): 0.82
- Total Q (Qts): 0.75
- Compliance Equivalent Volume (Vas): 36.4 liters / 1.29 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 42.6cc
- Mechanical Compliance of Suspension (Cms): 0.09mm/N
- BL Product (BL): 16.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 27.3 grams
- Efficiency Bandwidth Product (EBP): 124
- Maximum Linear Excursion (Xmax): 0.8mm
- Surface Area of Cone (Sd): 532.36 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 122 cu.in. / 2 liters
- Overall Diameter: 12.03", 305.5mm
- Baffle Hole Diameter: 11.07", 281.1mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.59", 294.3mm
- Depth: 5.1", 130mm
- Net Weight: 8.2 lbs, 3.7 kg
- Shipping Weight: 9.8 lbs, 4.5 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Paper former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Hemp cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Zurette dust cap
Details
- Manufacturer: Eminence
- MPN: CANNABIS REX 16
- Model Number: Cannabis Rex 16
- UPC: 876358001118
