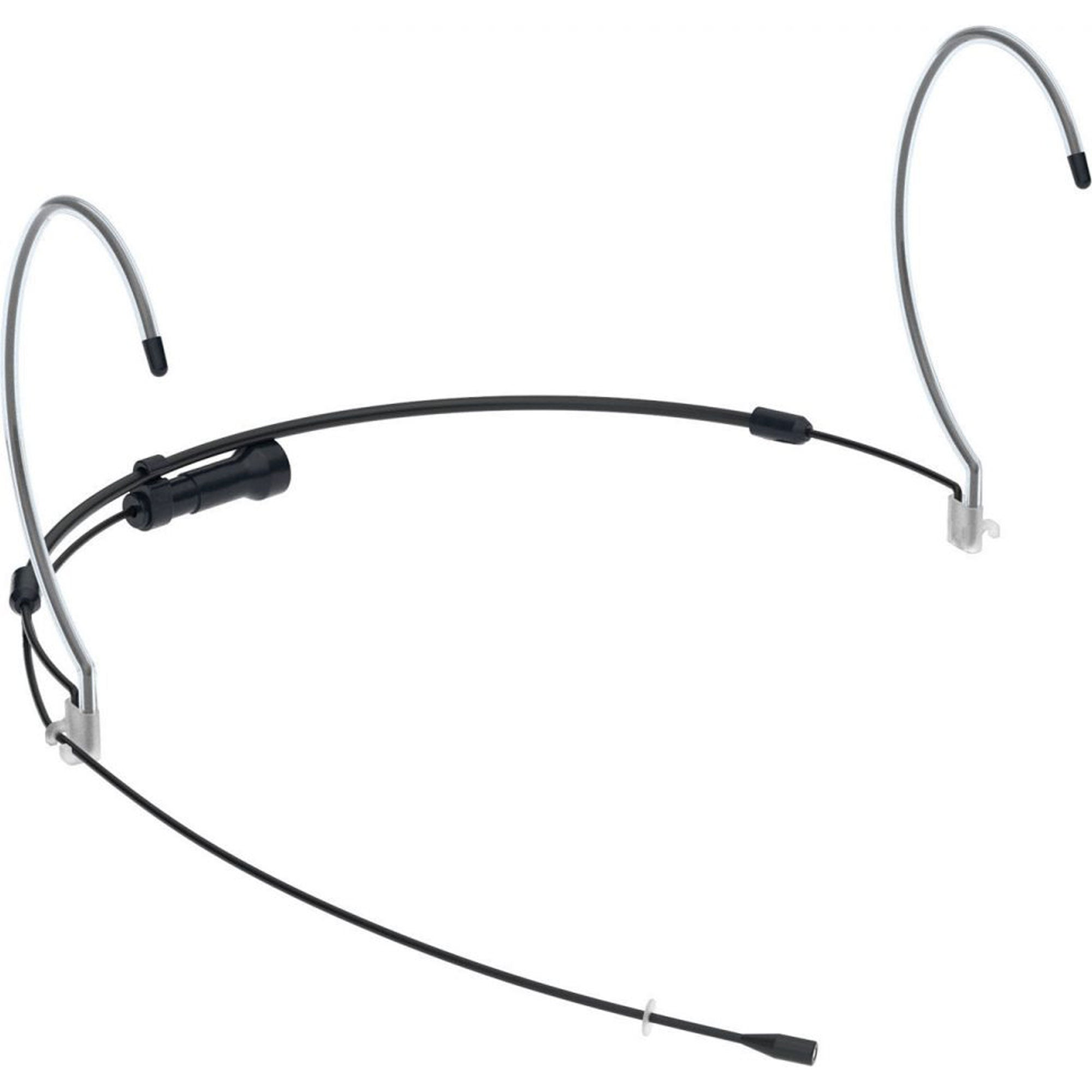

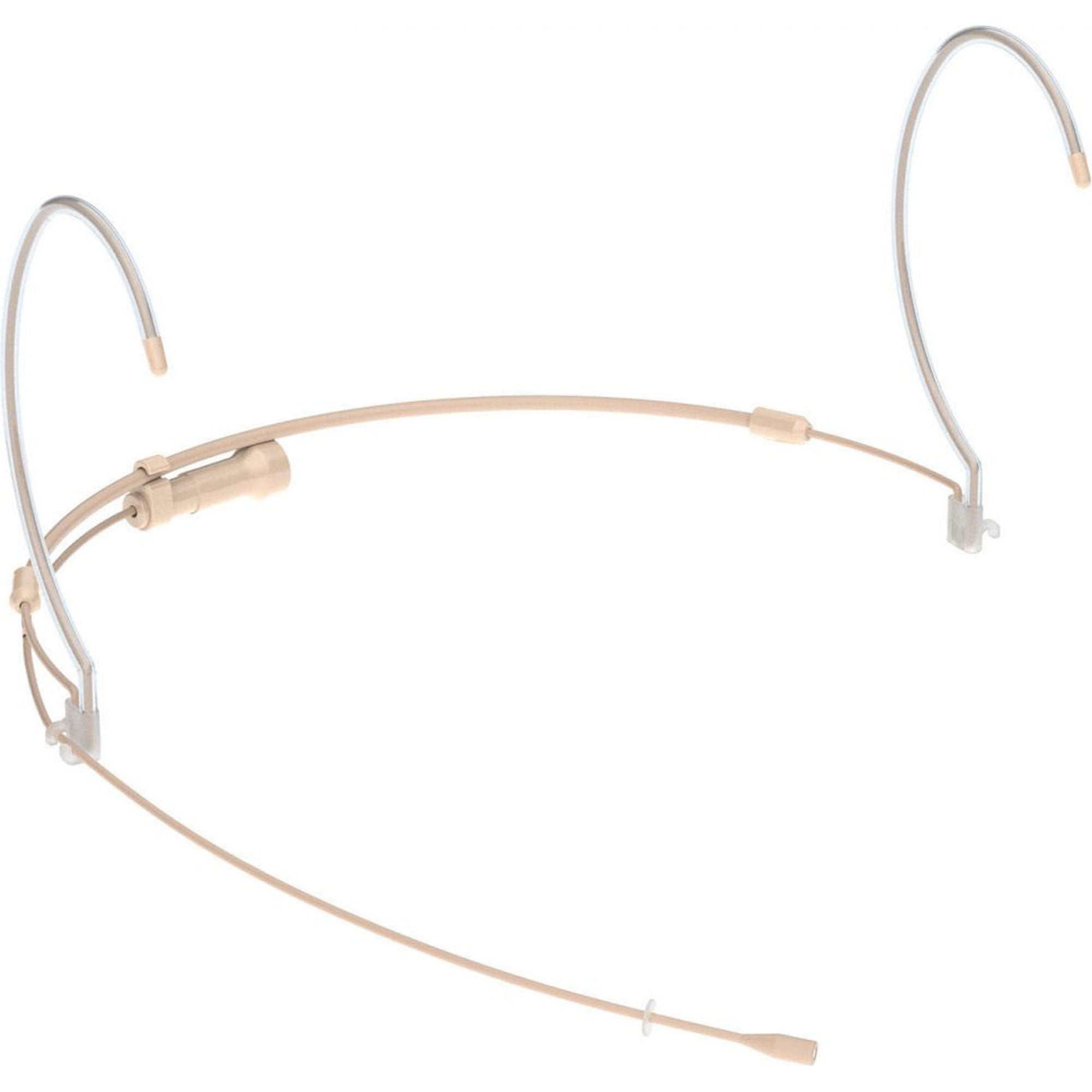

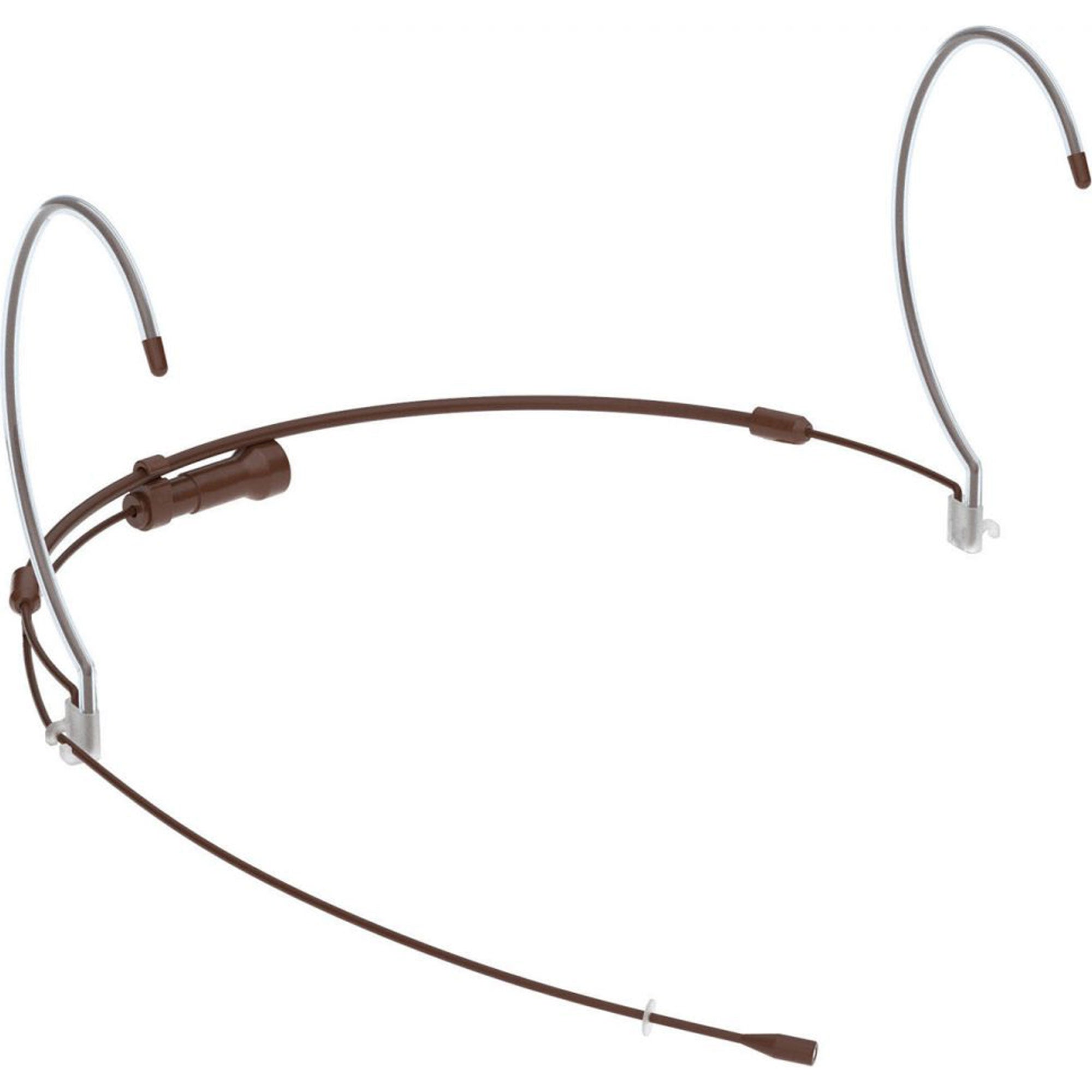

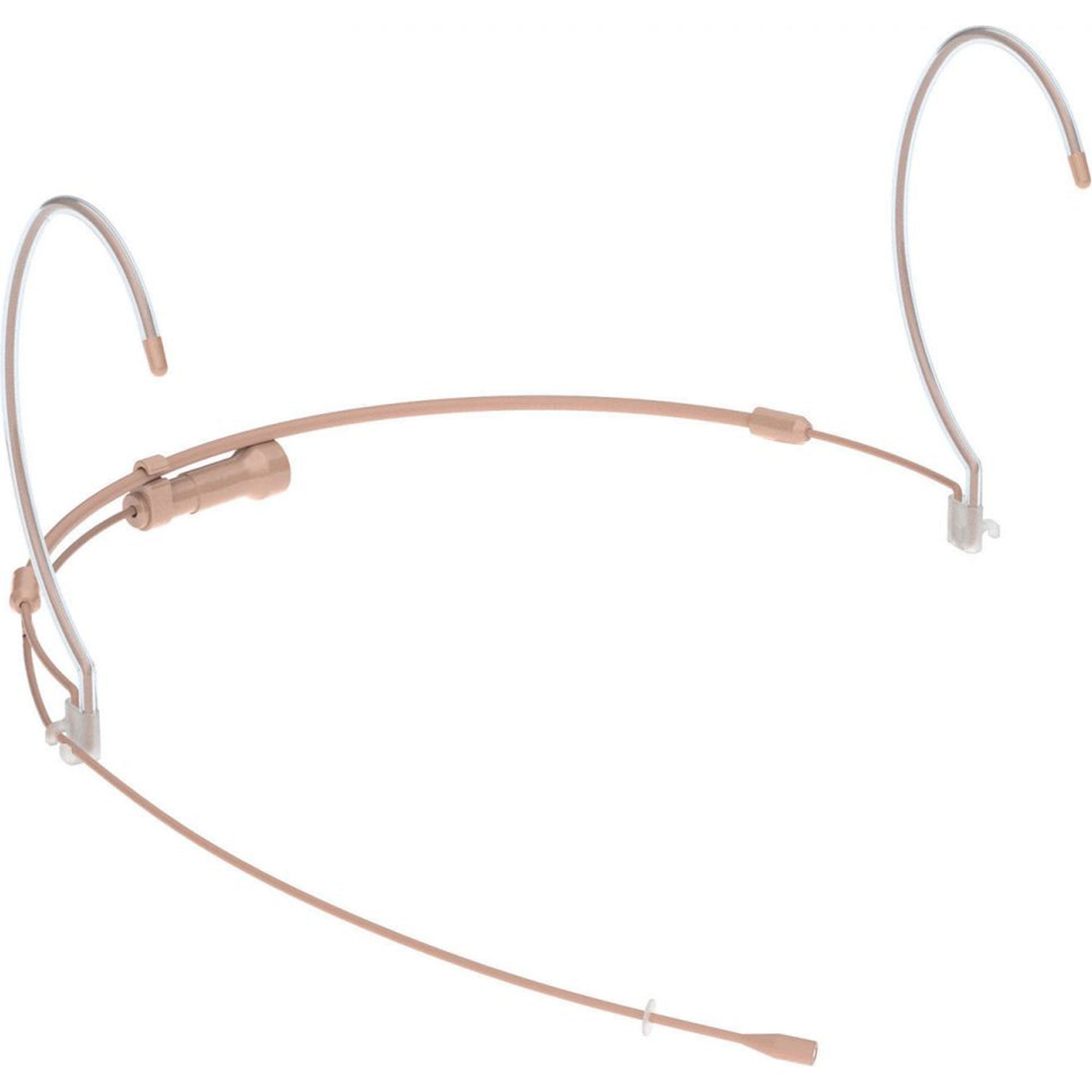

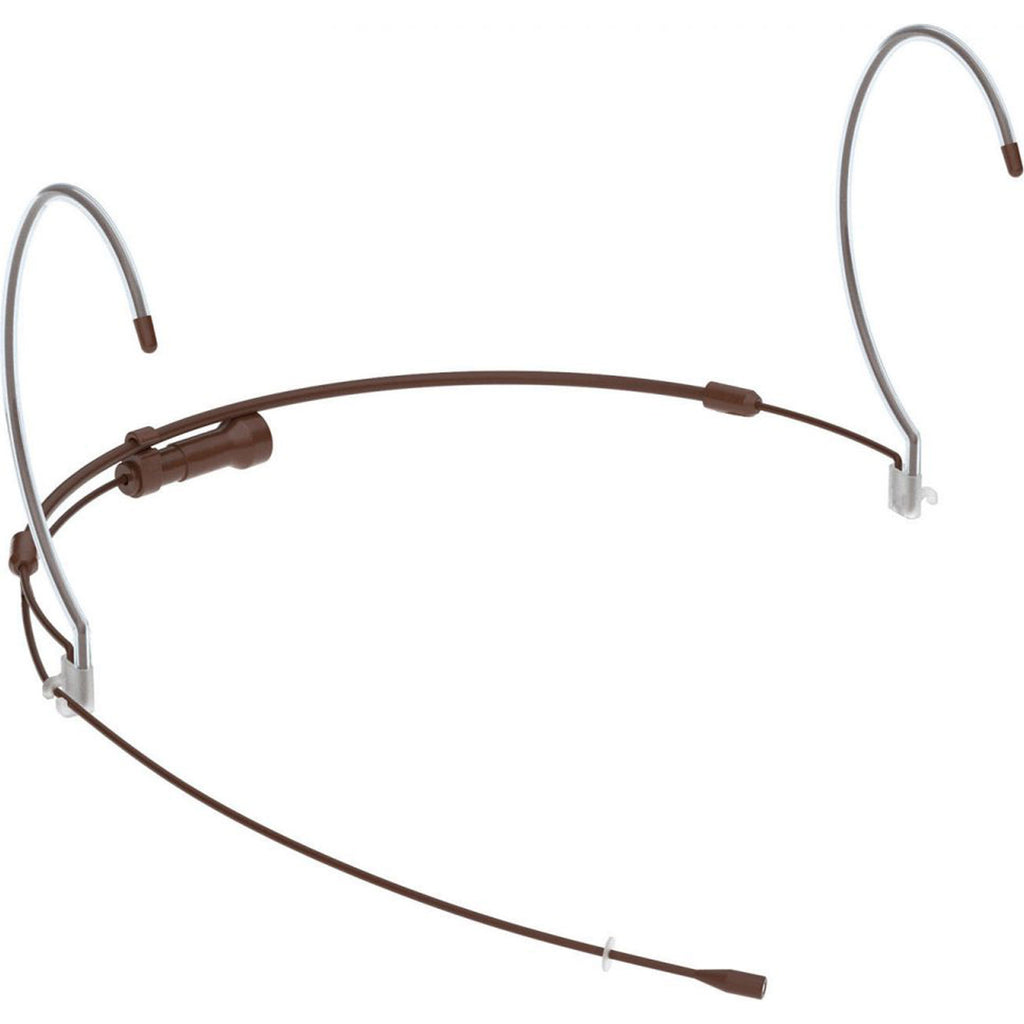

Countryman H6 Directional Headset Microphone

Miniature Directional Headset Microphone

The H6 Headset is the lowest profile headset microphone in the world. Combining the transparent sound quality and moisture-resistant capsule design of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe, the H6 Headset is perfect for houses-of-worship, theaters, broadcasters, and presenters. The H6, available in both omnidirectional or directional versions, features a new double-sealed connector with exceptional moisture resistance, a slim and nearly indestructable cable, and three sensitivity options.

Features:

• Lowest profile headset mic in the world with 0.1" (2.5mm) diameter capsule
• Exceptional audio quality, clear and transparent
• Comfortable and lightweight adjustable headframe
• Interfaces to nearly all wireless transmitters, digital recorders, or XLR mic inputs with phantom power
• Field replaceable detachable cables
• New double-sealed moisture-resistant connector
• New high-strength 1.2mm diameter cable
• Four color options to blend in against the skin

Specifications:

• Frequency Response : 30 Hz to 15 kHz Operating Current : 500 muA
• Operating Voltage : 1 to 2 Volts
• Power Supply Voltage :
• +3V with 2.7 kOhm Load +5V with 6.8 kOhm Load +9V with 15 kOhm Load
• Weight : 0.23 oz (6.5 grams)
• Cable Break Strength : > 44 lbs (20 kg)
• The H6D Headset is available in three sensitivities:
• Model H6DW5 for general speaking Sensitivity: 6.0 mV/Pascal
• Equivalent Acoustic Noise: 24 dBA SPL Overload Sound Level: 125 dB SPL
• Model H6DW6 for loud speaking and vocals Sensitivity: 1.9 mV/Pascal
• Equivalent Acoustic Noise: 29 dBA SPL Overload Sound Level: 135 dB SPL
• Model H6DW7 for powerful vocals Sensitivity: 0.60 mV/Pascal
• Equivalent Acoustic Noise: 39 dBA SPL Overload Sound Level: 145 dB SPL3

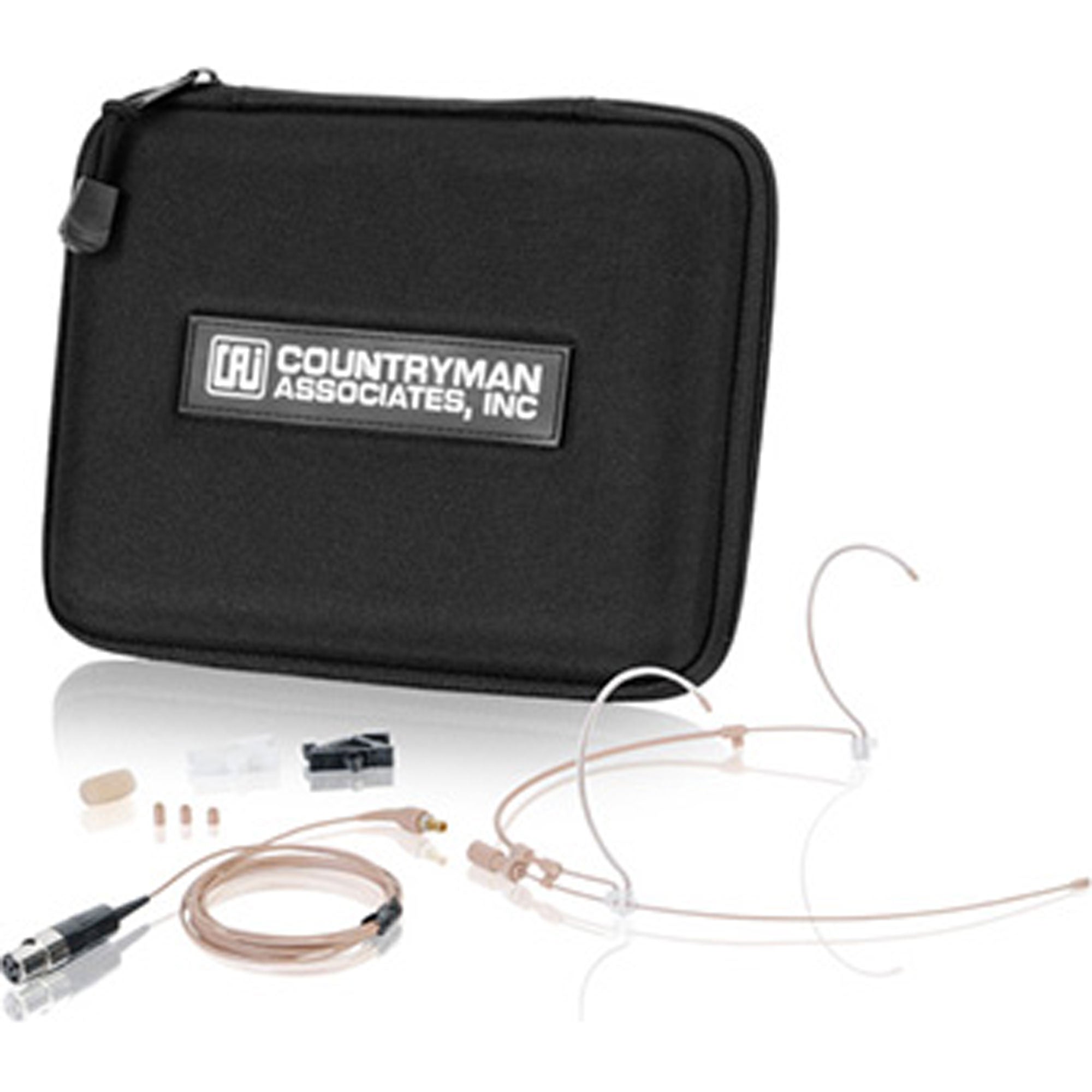

Includes:

• Detachable cable
• Carrying case
• Black and white cable clips
• Windscreen
• Protective caps
