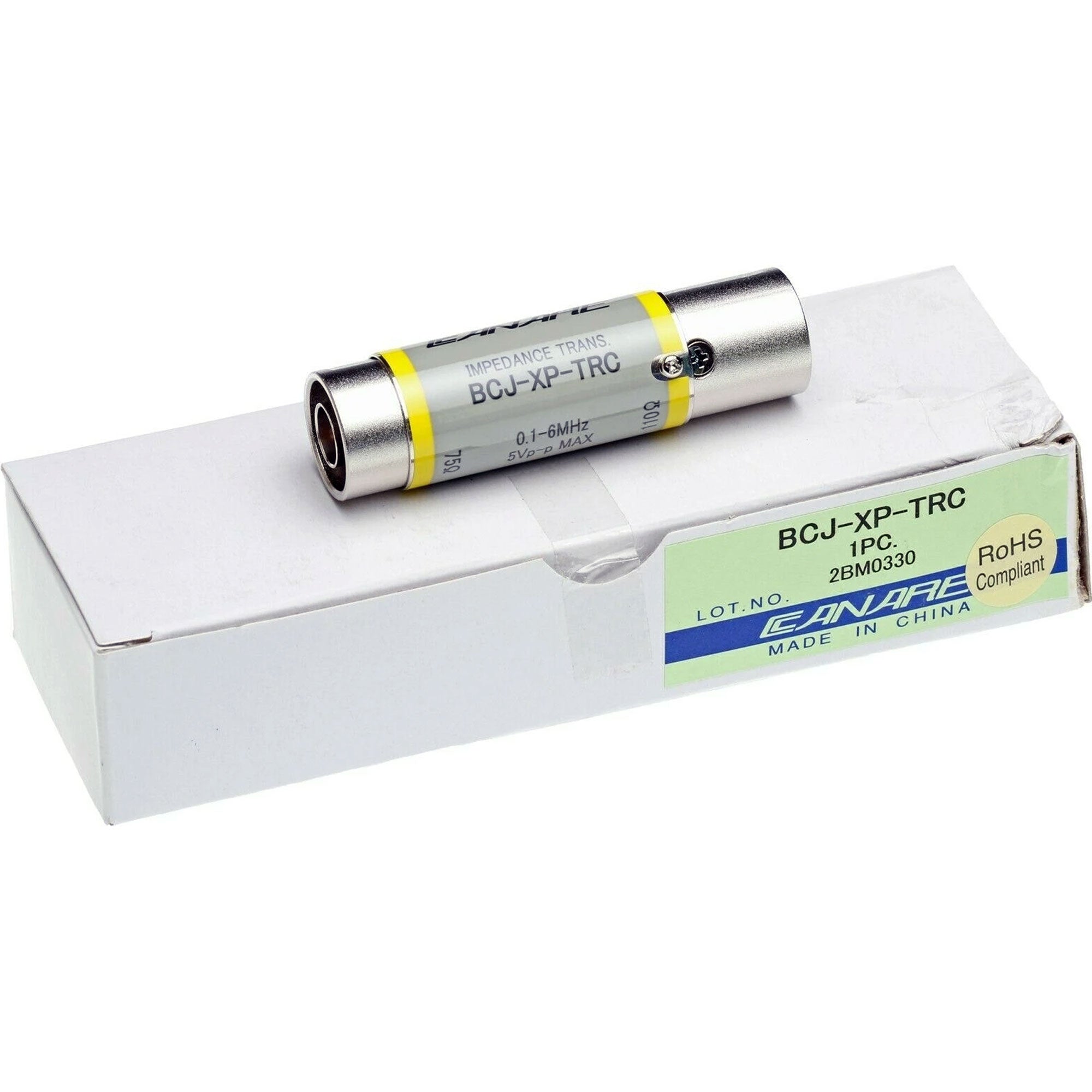

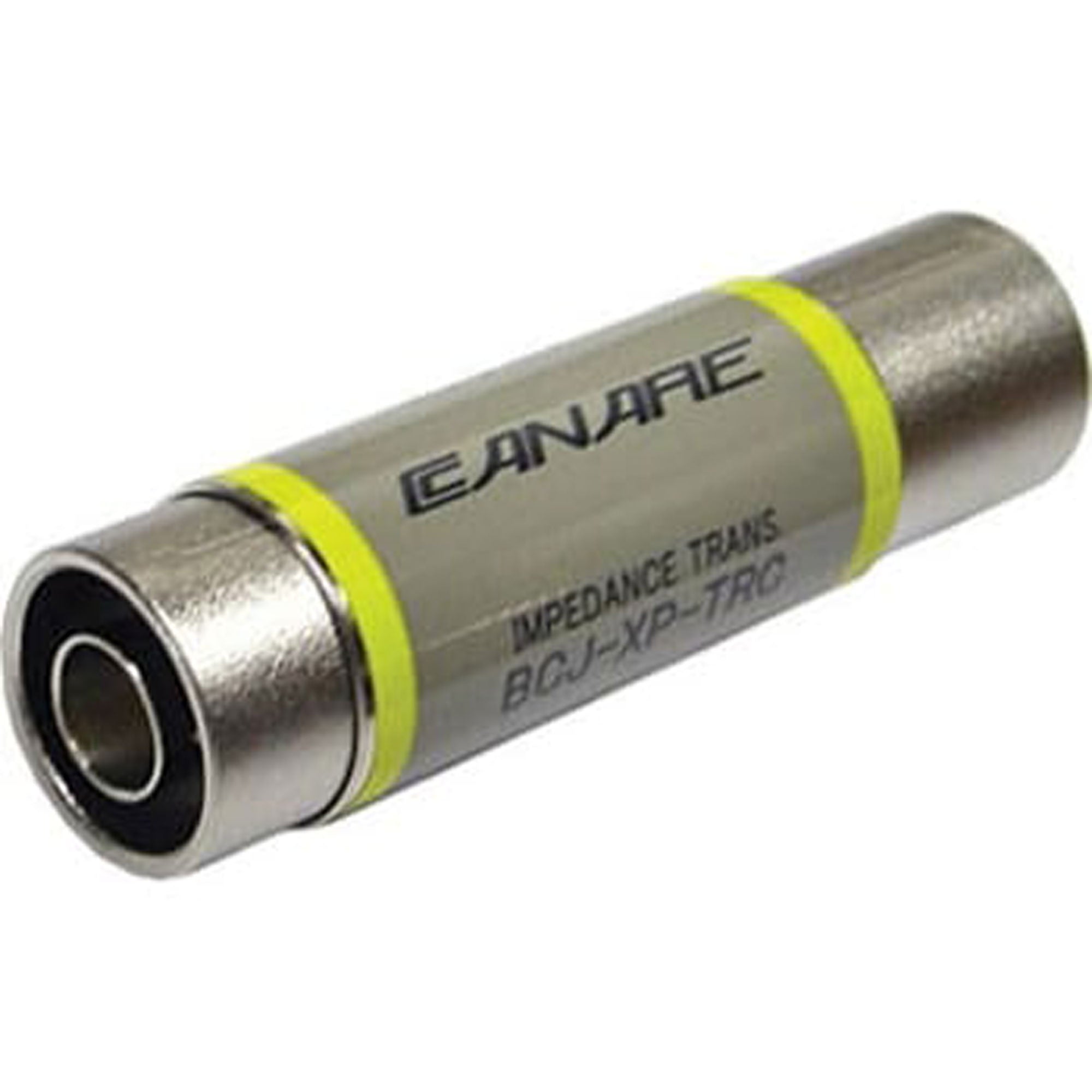

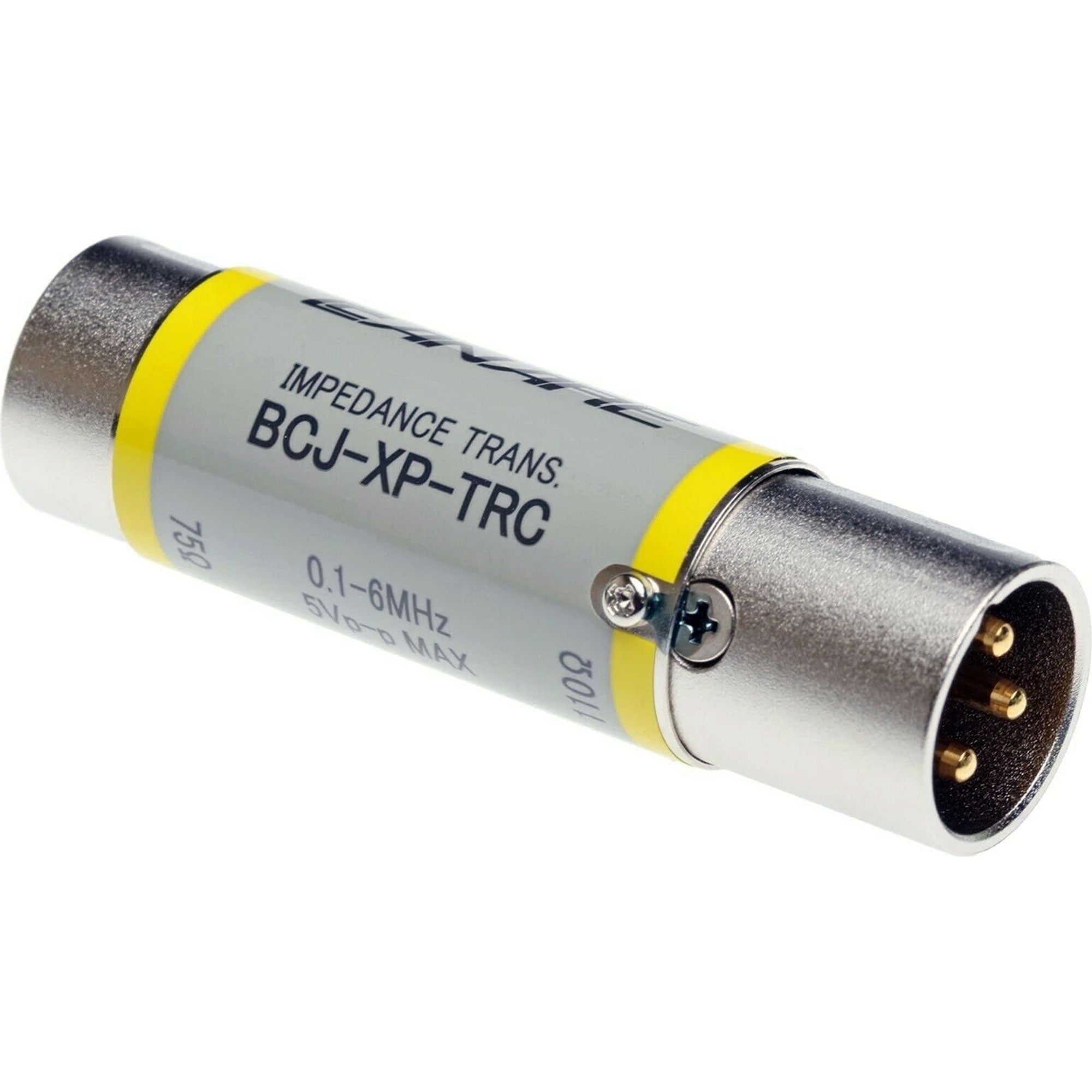

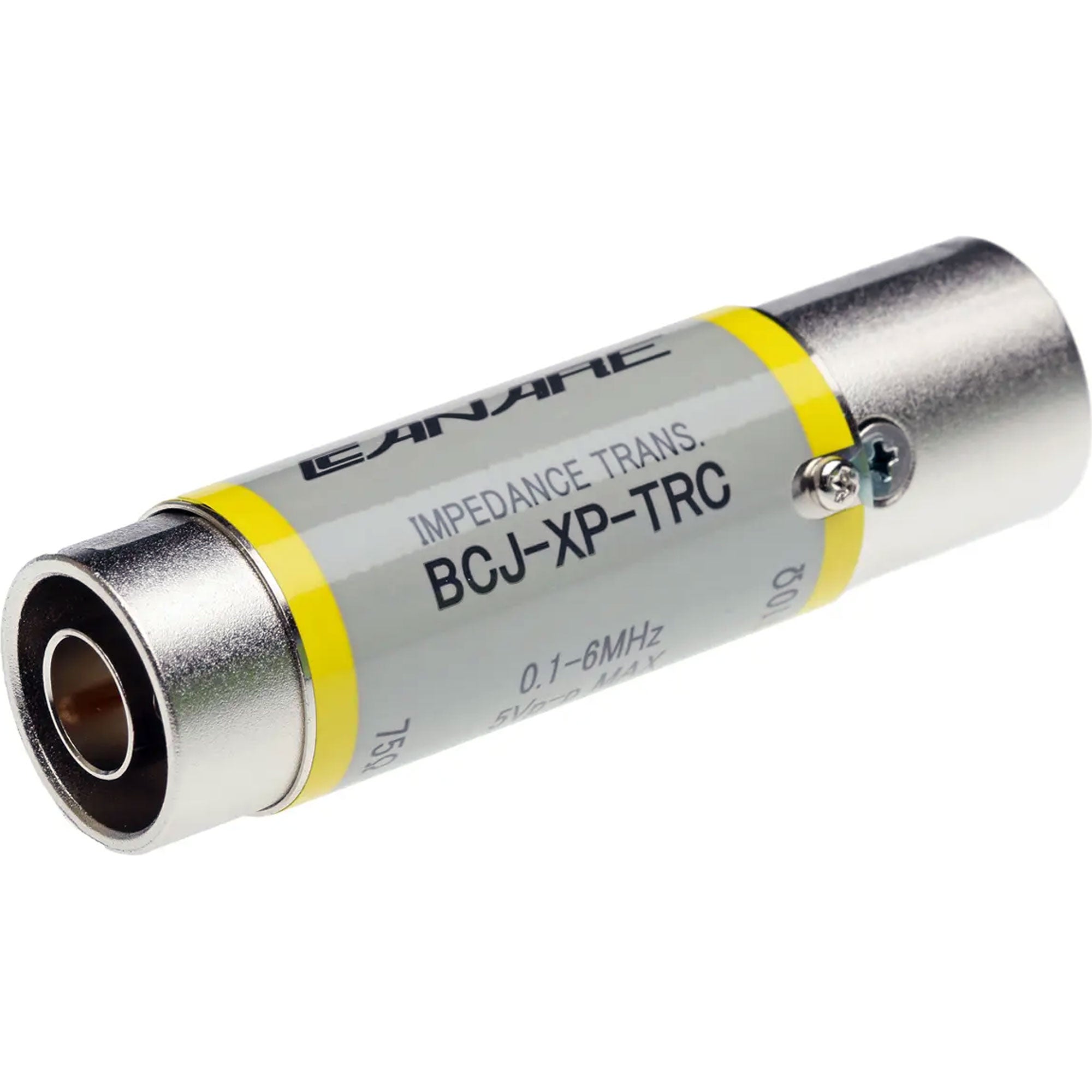

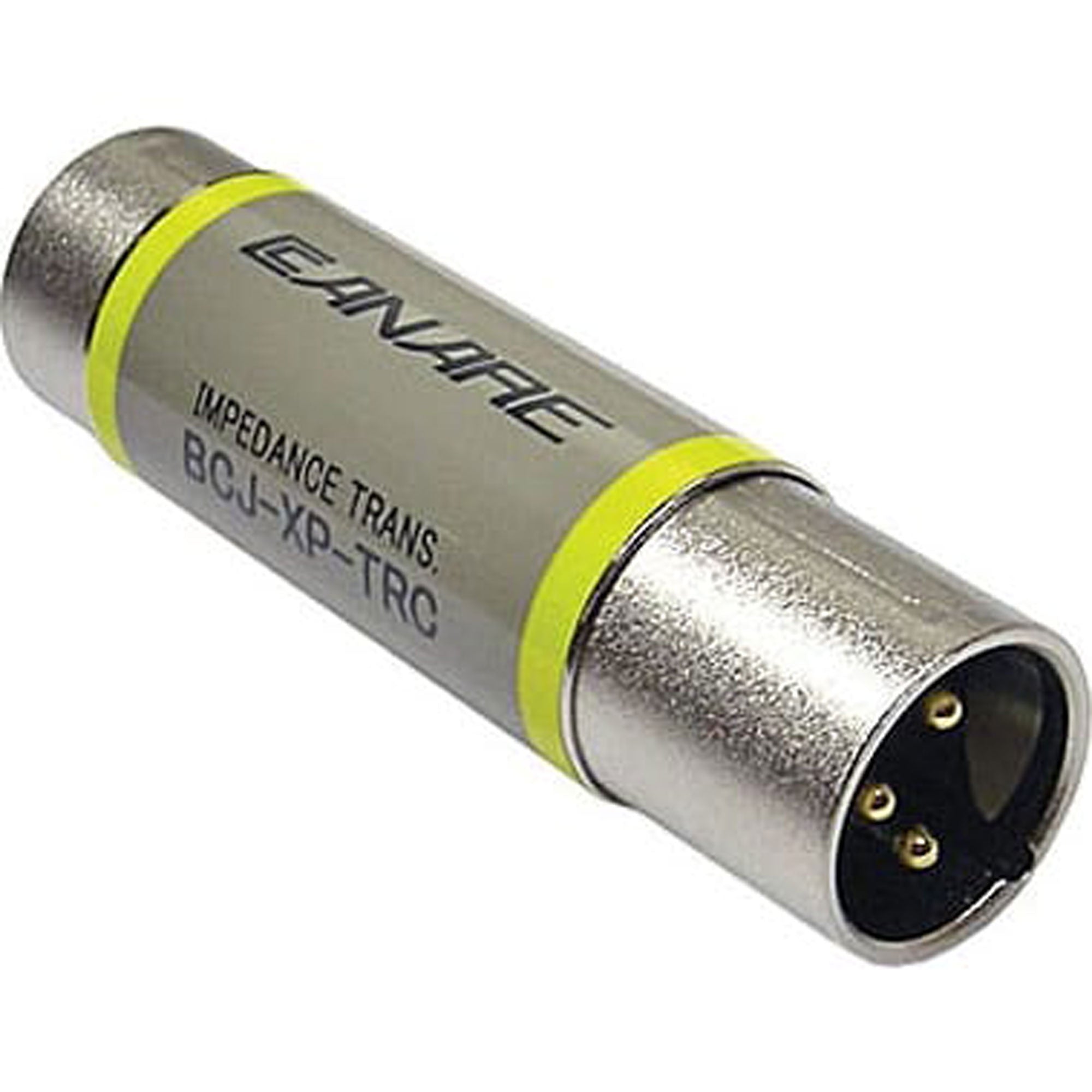

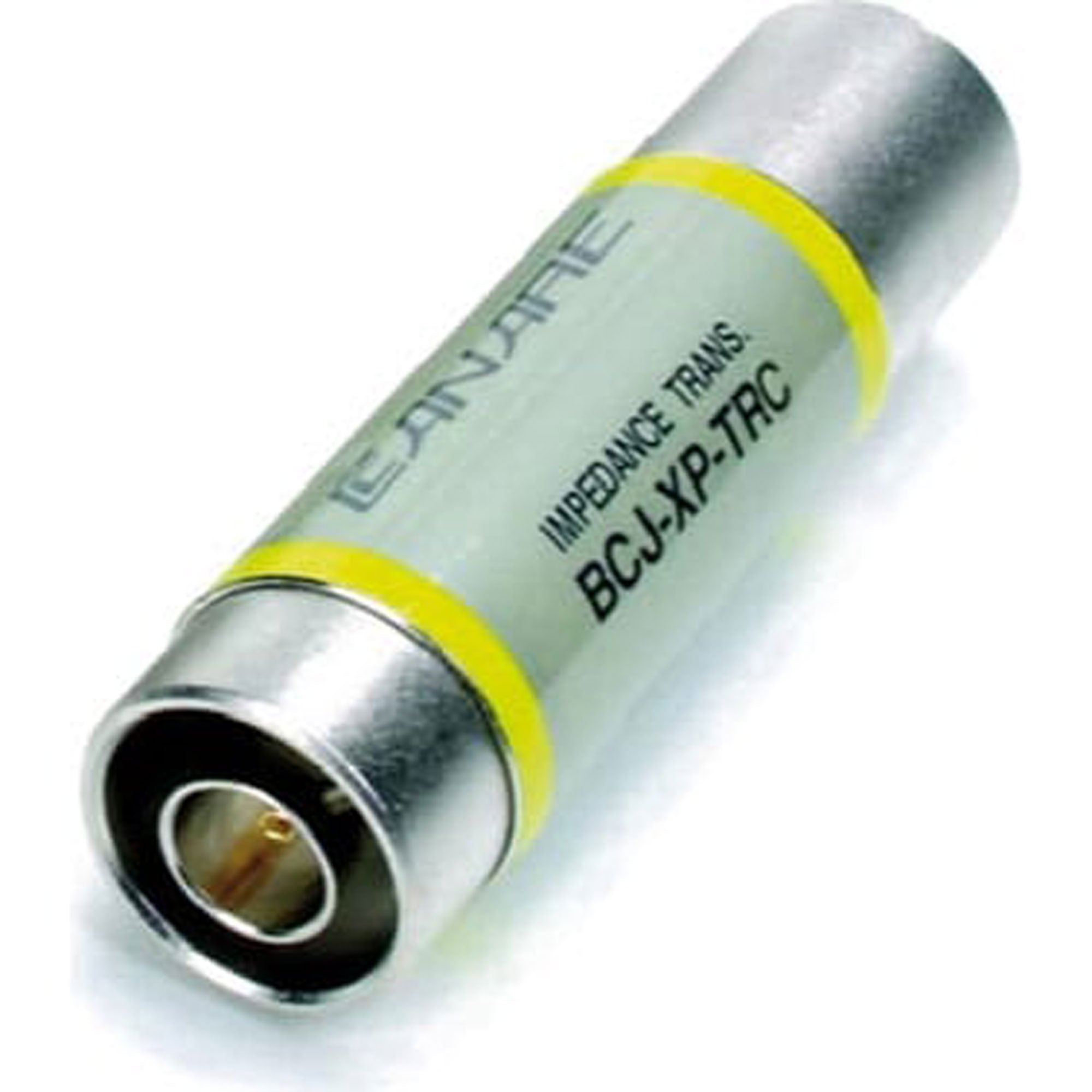

Canare BCJ-XP-TRC 110 Ohm to 75 Ohm Digital Audio Impedance Transformer

110-75 Ohm Digital Audio Impedance Transformer - BNC Receptacle to XLR Male

The BCJ-XP-TRC 75 Ohm to 110 Ohm Digital Audio Impedance Transformer from Canare is a transformer that passively converts 75Ω BNC coaxial cable to 110Ω/XLR3 standard AES/EBU digital audio signals. This solution is ideal for use in post-production suites, DAT routing, recording studios, and digital audio tie lines. It also permits longer cable runs in comparison with twisted pair 110Ω and additionally provides excellent rejection against hum and noise.

Features:

• SMPTE 276M and AES3 Transmission Standard
• Coaxial transmission of 2 Channel Digital Audio
• Allows longer cable runs than 110 ohm twisted pair
• AES/EBU Signal distribution using Canare 75 ohm Video Patchbays

Specifications:

• Model: BCJ-XP-TRC
• Bandwidth: 0.1 - 6MHz
• Maximum Voltage: 5Vp-p
• VSWR: <1.1
• Insertion Loss: <0.3dB
• 110 ohm Port (Balanced):
  XLR3 Male
  1: Shell
  2: Hot
  3: Cold
• 75 ohm Port (Unbalanced):
  Canare 75 ohm BNC Receptacle
