ART SP 4x4 PRO USB LED Metered Rackmount Power Distribution System

ARTSKU: ART SP4X4PROUSB
MPN: SP4X4PROUSB UPC: 840402047254

Price:
Sale price$229.99
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • 8 Switched 3-Prong Outlets
  • Front Unswitched 3-Prong Outlet
  • 2 USB Charging Ports on Front
  • Front Circuit-Breaker Reset Button
  • 2 Front Pullout Light Pipes

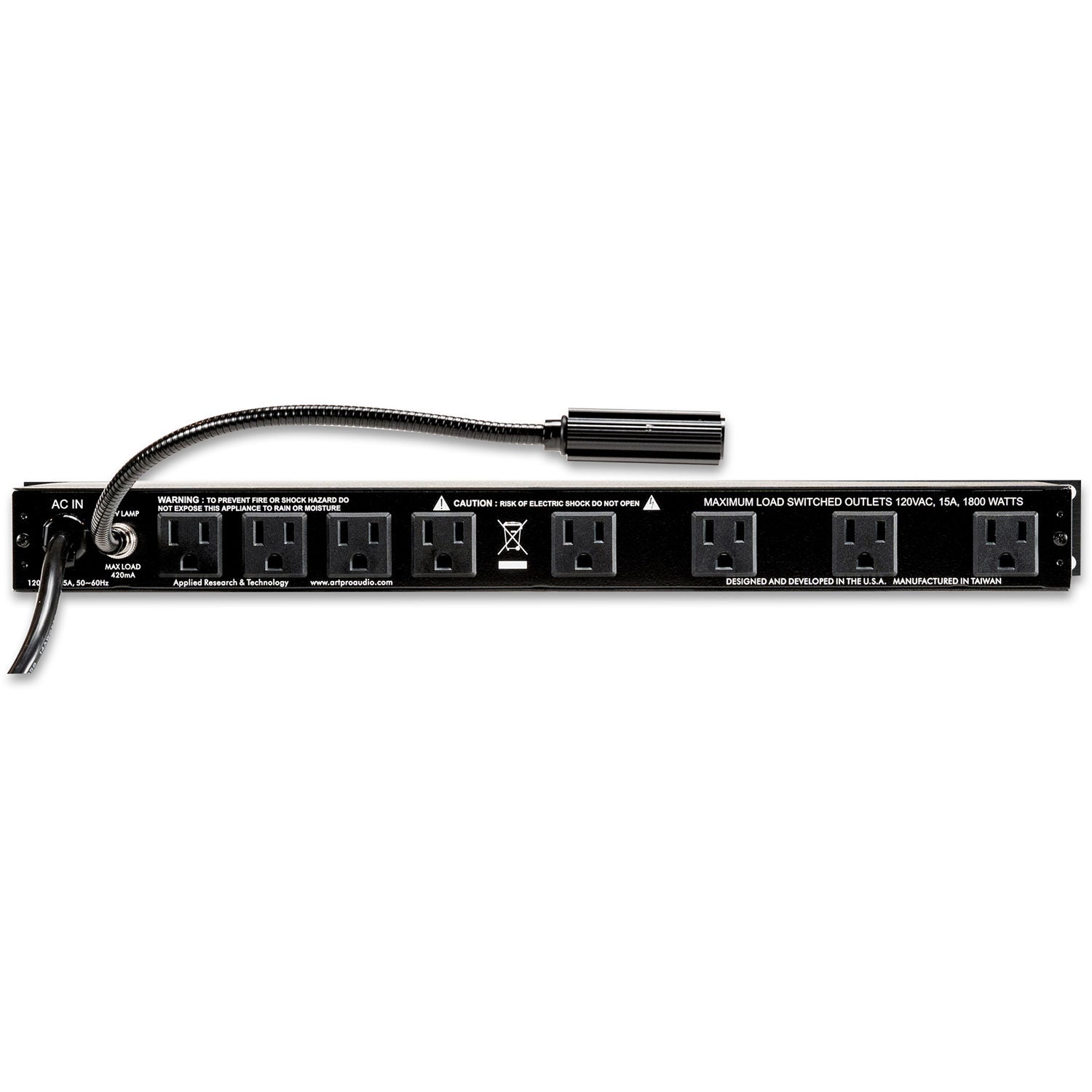

  • Rear Gooseneck Light Connection

Description

9-Outlet Metered Power Distribution System With 2 USB Ports, Advanced Power Filtering, Overload Protection, LED Line Voltage Meter, 2 Pull-Out Lights, and Rear-Mounted Gooseneck Light

Presenting the 4x4 PRO USB SERIES Power Distribution Systems from ART. Built on the foundation of the popular 4x4s, the PRO USB SERIES are durably constructed, reliable power conditioners for use in many applications. Wherever power management system is required, the 4x4 PRO USB SERIES provide the surge protection you need to keep your rack safe from unwanted disruption.

All PRO USB SERIES models have an additional internal discrete module called APF (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high frequency noise that is above the audio range. Some off-the-shelf add-on modules saturate and lose their filtering effectiveness as the load increases, but by using a high power discrete design we were able to create a filter that stays effective over the full operating range.

Features:

  • Designed with a power capacity of 1800 watts
  • Surge/spike protection
  • APF with EMI & RFI filtering
  • Front-mounted unswitched power outlet and an adjustable rear-mounted gooseneck light source for bright illumination behind the rack
  • Spacing and alignment of the rear outlets to accommodate various size power plugs and AC adapters

Specifications:

  • Connections
  • Outlets:
    8 x NEMA 5-15R (Rear Panel)
    1 x NEMA 5-15R (Front Panel, Unswitched)
  • USB Ports: 2 x USB Type-A
  • Lamp Connectors: 1 x BNC (Rear Panel)
  • Electrical
  • AC Input Power: 120 VAC, 50 / 60 Hz
  • Load Capacity: 1800 W
  • USB Output:
    5 V, 2.1 A
    5 V, 1 A
  • Lamp Power: 12 VDC at 420 mA (Max)
  • Protection & Conditioning
  • Circuit Breaker: Yes, at 15 A
  • Physical
  • Rackmount Size: 1 RU
  • Material of Construction: Steel
  • Dimensions: 19 x 6.5 x 1.8" / 48.2 x 16.5 x 4.4 cm
  • Weight: 6.3 lb / 2.8 kg

Includes:

  • ART SP4x4 PRO USB LED Metered Rackmount Power Distribution System

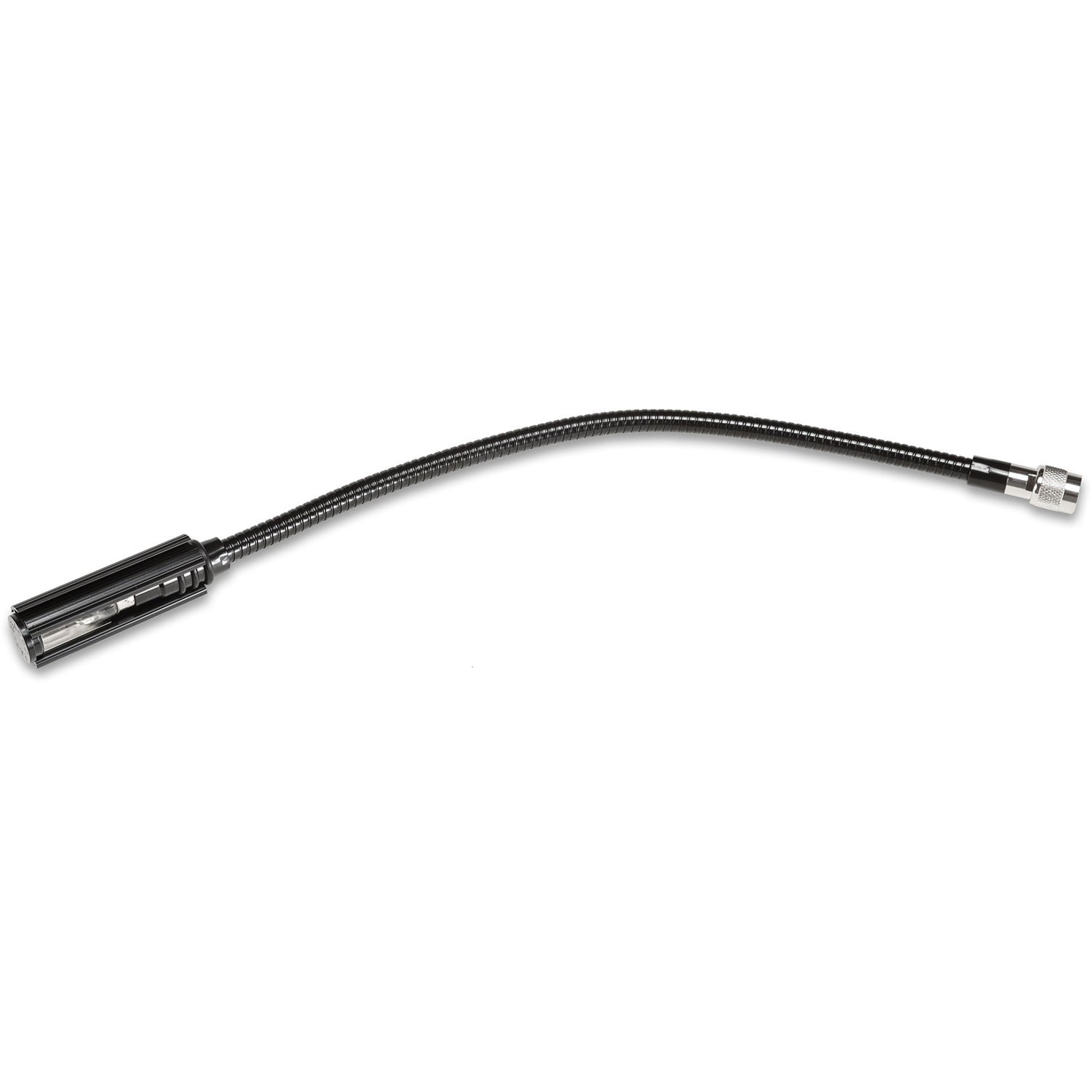

  • 12V Gooseneck Lamp
  • Limited 3-Year Warranty
Details
  • Manufacturer:  ART
  • MPN: SP4X4PROUSB
  • Model Number: SP 4x4 PRO USB
  • UPC: 840402047254
