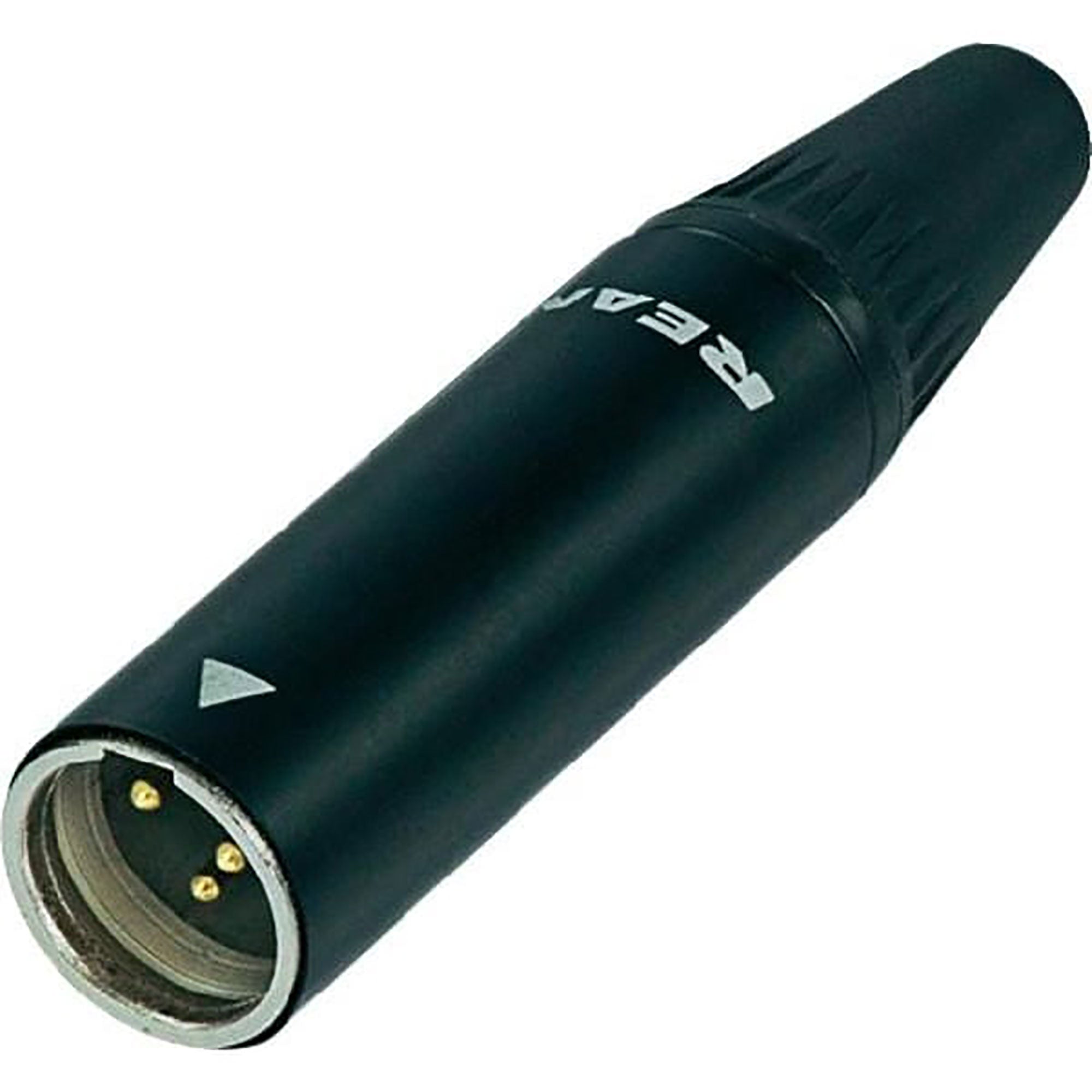

Neutrik RT3MC-B Male 3-Pin Tiny XLR Connector (Black/Gold)

PA SKU # NTK RT3MCB MFR # RT3MC-B
  • Support Lifetime Tech Support!
  • Support 30 Day Returns!
  • Best Seller Best Seller!
  • Question Ask a Question
103 In Stock & Ready to Ship Most orders placed before 3pm MST ship same day (except weekends and holidays).
  • Product Highlights
  • Male 3-Pin Tiny XLR Connector
  • Easy to Assemble
  • Solder Cups
  • Black Metal Housing
  • Gold Contacts

Male 3-Pin Mini-XLR Cable Mount Connector, Black Housing, Gold Contacts

3 pole TINY xlr male cable connector, black metal shell, gold plated contacts

REAN TINY XLR Connectors are easy-to-assemble robust metal connectors with a shielded housing system for high noise immunity and EMI protection. The intuitive and rugged locking mechanism provides a secure mating connection while a keyed insert and chuck helps to avoid mispositioning/rotation of the cable while providing excellent millionfold chuck style strain relief. REAN's TINY XLR product line includes a watertight chassis connector designed to protect the connector from water damage even in an unmated condition, and cable connectors with an optional sealing boot for water/sweat protection. REAN TINY XLR Connectors are offered in 3-, 4-, and 5-pole versions.

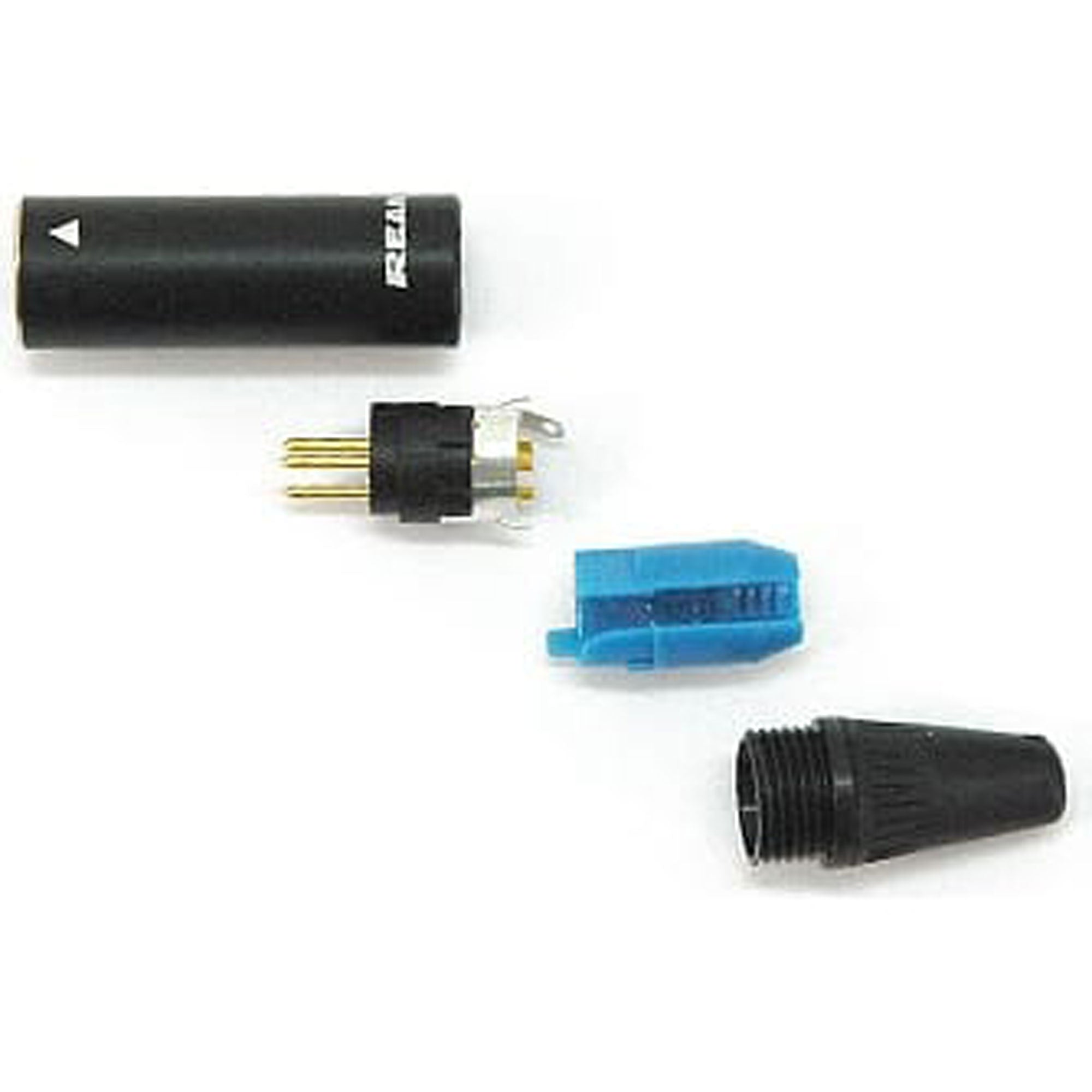

  • Easy to assemble
  • Robust metal housing with best flex relief
  • Shielded system - high noise immunity and EMI protection
  • Intuitive and rugged locking mechanism provides secure locking system
  • Millionfond proven chuck type strain relief - up to 4.00 mm cable diameter
  • Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
  • Product
  • Title: RT3MC-B
  • Electrical
  • Contact resistance: < 10 mΩ (inner)
  • Dielectric strength: > 0.5 kVdc
  • Insulation resistance: > 1 GΩ
  • Rated current per contact: < 5 A
  • Mechanical
  • Cable O.D.: 2.0 - 4.0 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 0.22 mm²
  • Wiresize: 24 AWG
  • Material
  • Boot: EPDM, ZnAl4Cu1, diecast rubber boot
  • Contacts: Bronze (CuSn6)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Strain relief: PVC
  • Environmental
  • Temperature range: -30 °C to +85 °C
