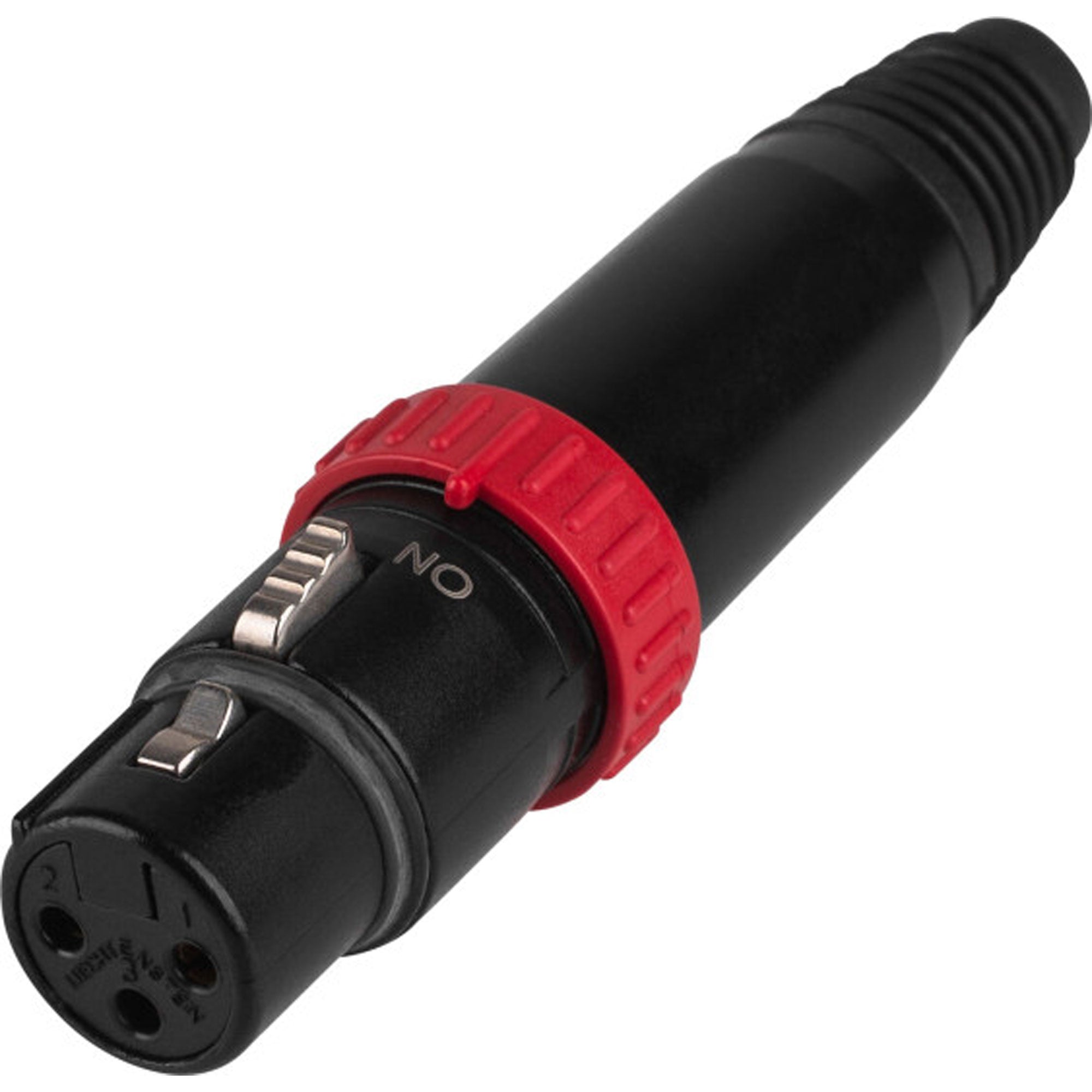

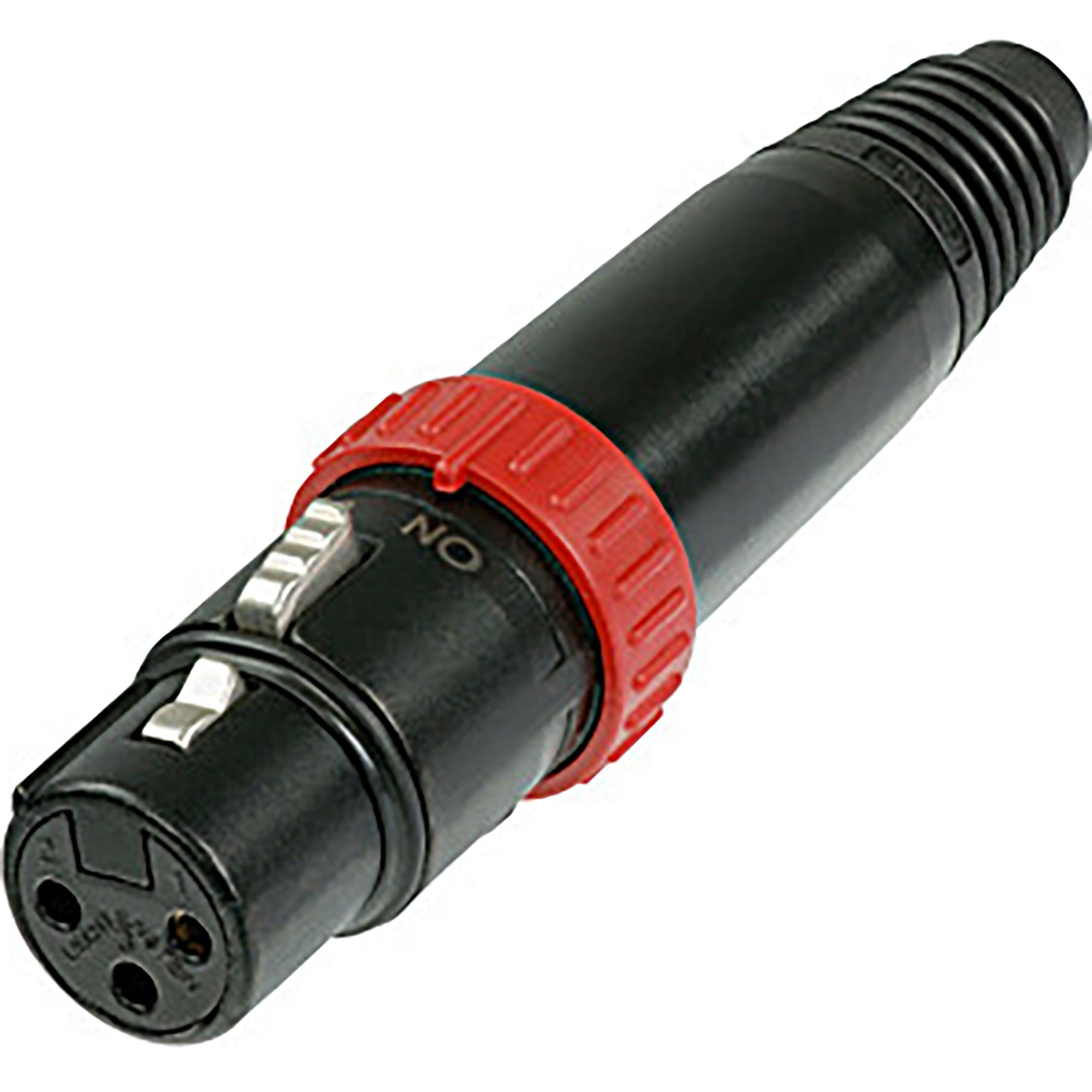

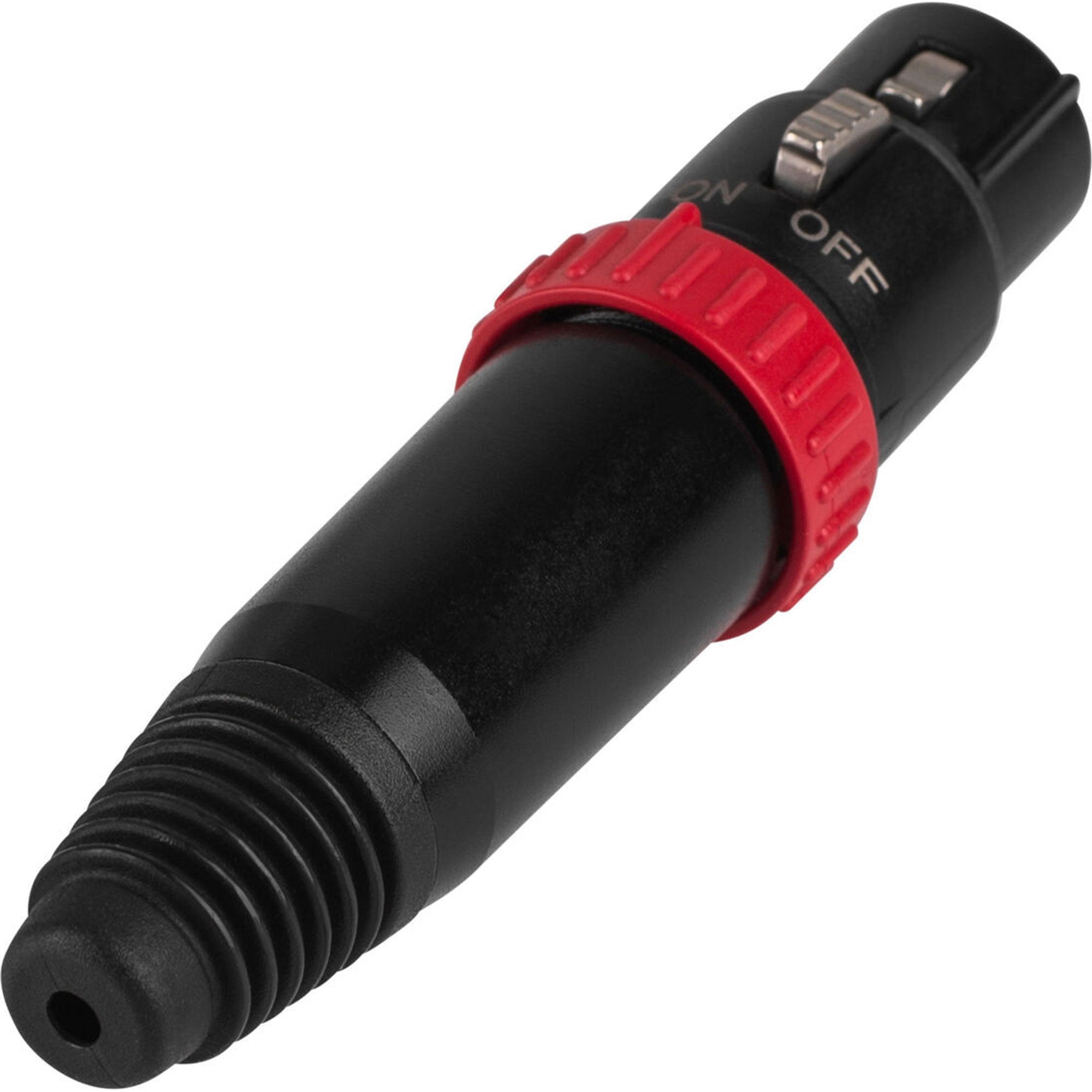

Neutrik NC3FXS-B Female 3-Pin XLR Connector with Switch (Black/Gold)

PA SKU # NTK NC3FXSB MFR # NC3FXS-B
  • Support Lifetime Tech Support
  • Best Seller Best Seller!
  • Question Ask a Question
Only 5 Left! — In Stock & Ready to Ship Order now! Limited quantity in stock! Most orders placed before 3pm MST ship same day (except weekends and holidays).
  • Product Highlights
  • Female 3-Pin XLR Connector
  • Noiseless On/Off Switch
  • Solder Cups
  • Black Metal Housing
  • Gold Contacts

Female 3-Pin XLR Cable End Connector with On-Off Switch, X-S Series, Black Housing, Gold Contacts

3 pole female cable connector, black metal housing

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.
  • Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
  • For use on a microphone without switch
  • Rugged zinc diecast shell, long lasting and durable
  • Rugged metal boot
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Product
  • Title: NC3FXS-B
  • Connection Type: XLR
  • Gender: female
  • Electrical
  • Capacitance between contacts: <= 4 pF
  • Contact resistance: <= 3 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: 50 V
  • Mechanical
  • Cable O.D.: 3.5 - 7.0 mm
  • Insertion force: <= 20 N
  • Withdrawal force: <= 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Material
  • Boot: Polyurethan
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: St3K32 (latch) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)
  • Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
