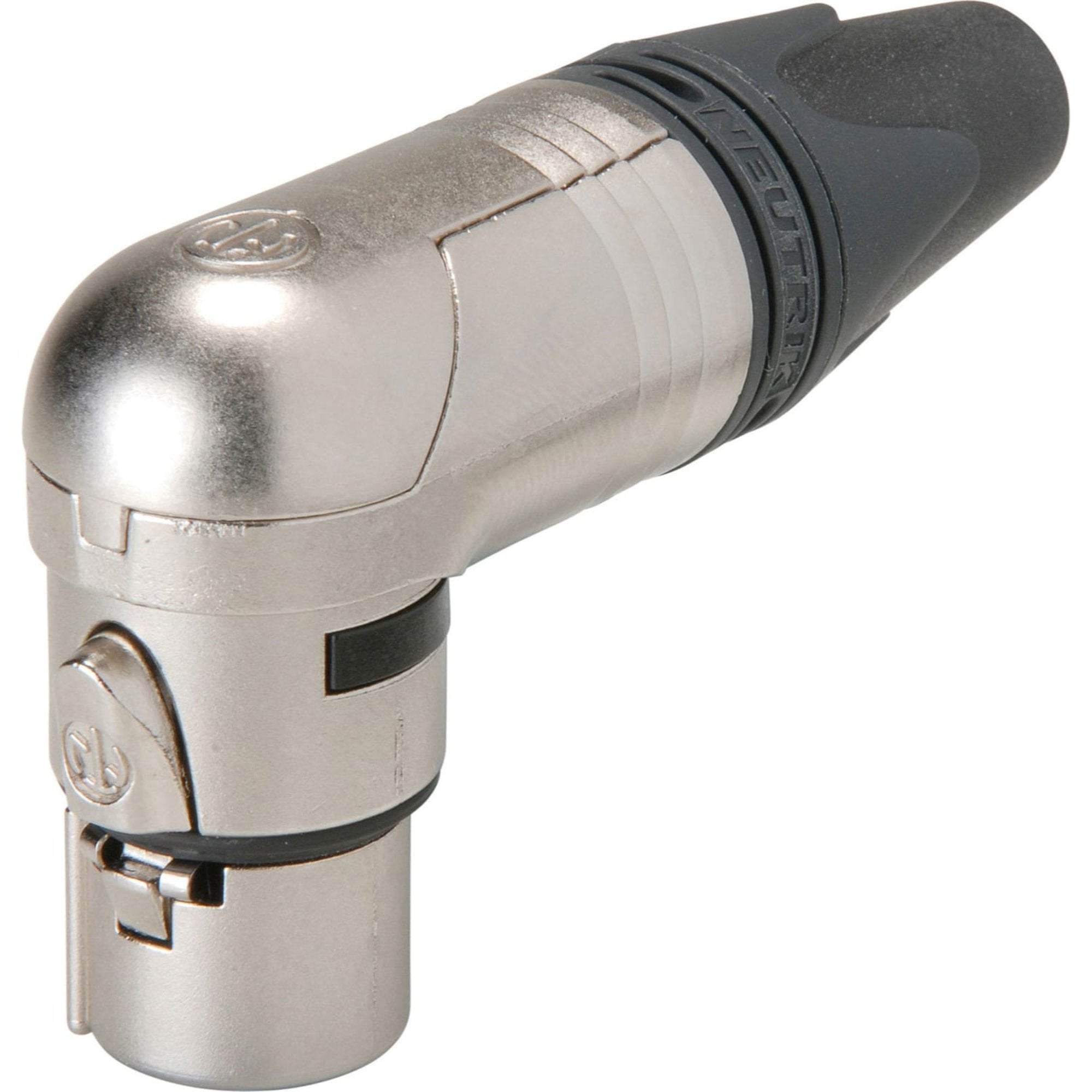

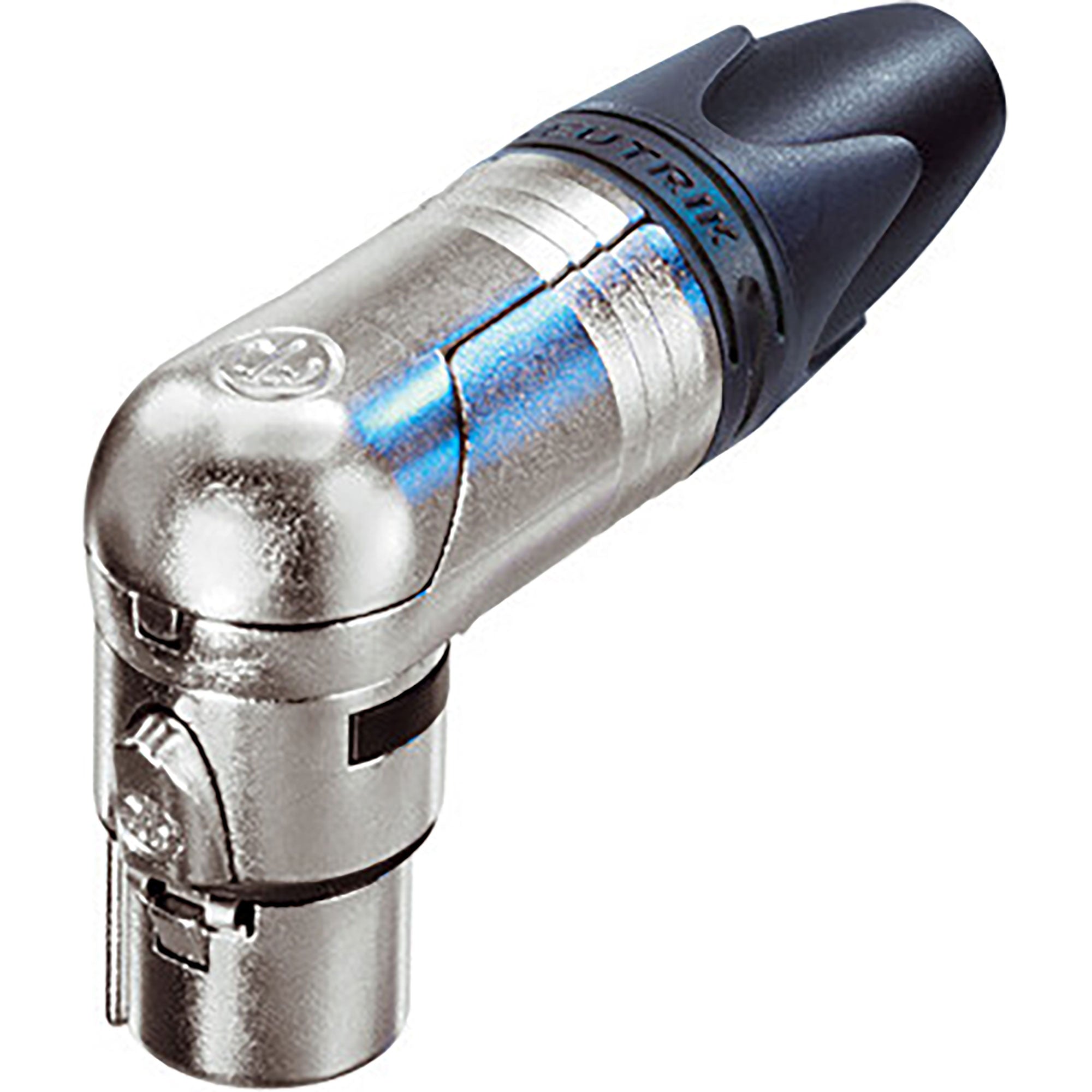

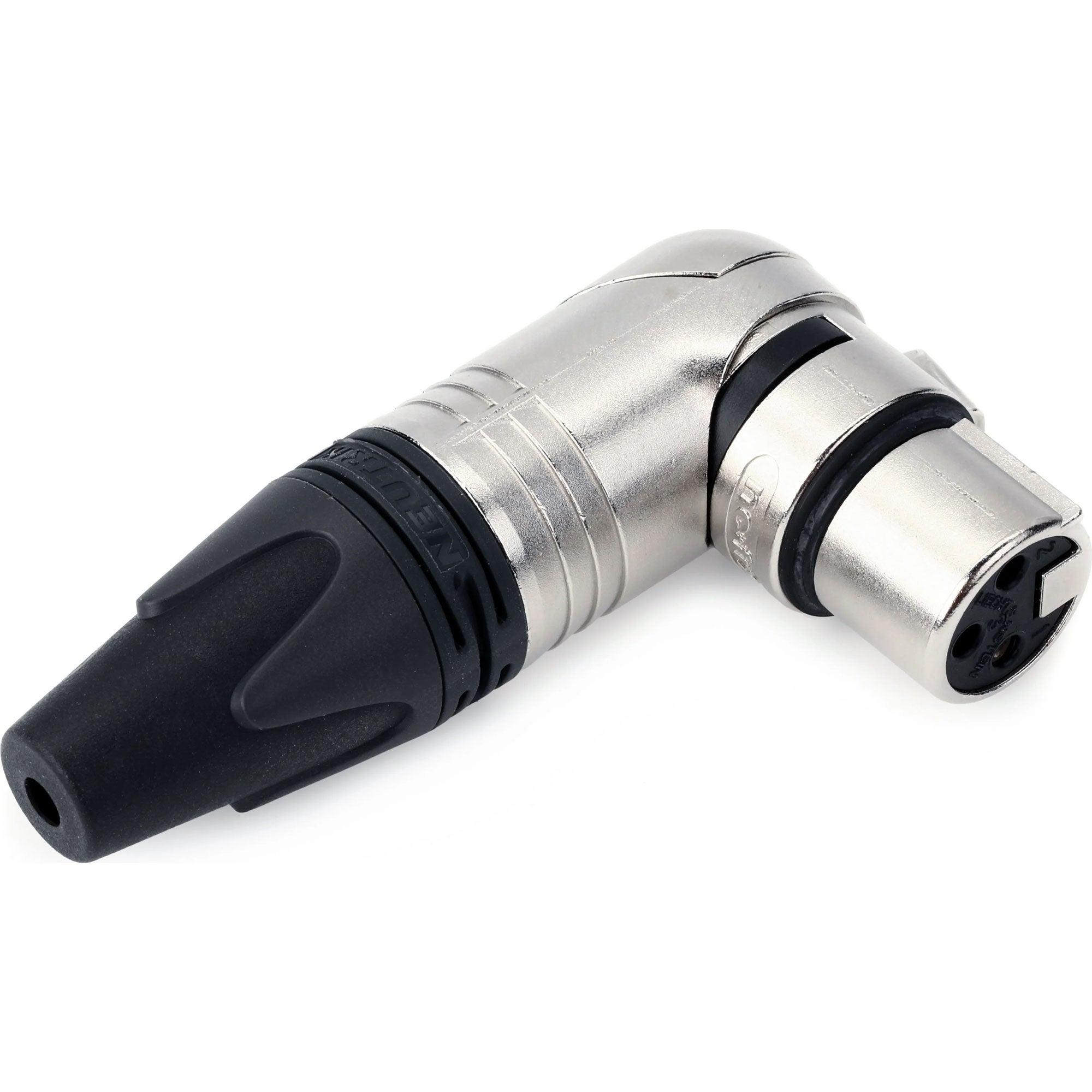

Neutrik NC3FRX Female Right Angle 3-Pin XLR Connector (Nickel/Silver)

PA SKU # NTK NC3FRX MFR # NC3FRX UPC # 7613187000522
  • Support Lifetime Tech Support!
  • Support 30 Day Returns!
  • Best Seller Best Seller!
  • Question Ask a Question
97 In Stock & Ready to Ship Most orders placed before 3pm MST ship same day (except weekends and holidays).
  • Product Highlights
  • Female 3-Pin XLR Connector
  • Solder Cups
  • Extra Slim Right Angle Shape
  • Nickel Metal Housing
  • Silver Contacts

Female 3-Pin XLR Right Angle Cable End Connector, RX Series, Nickel Housing, Silver Contacts

3 pole right angle female cable connector, nickel housing, silver contacts

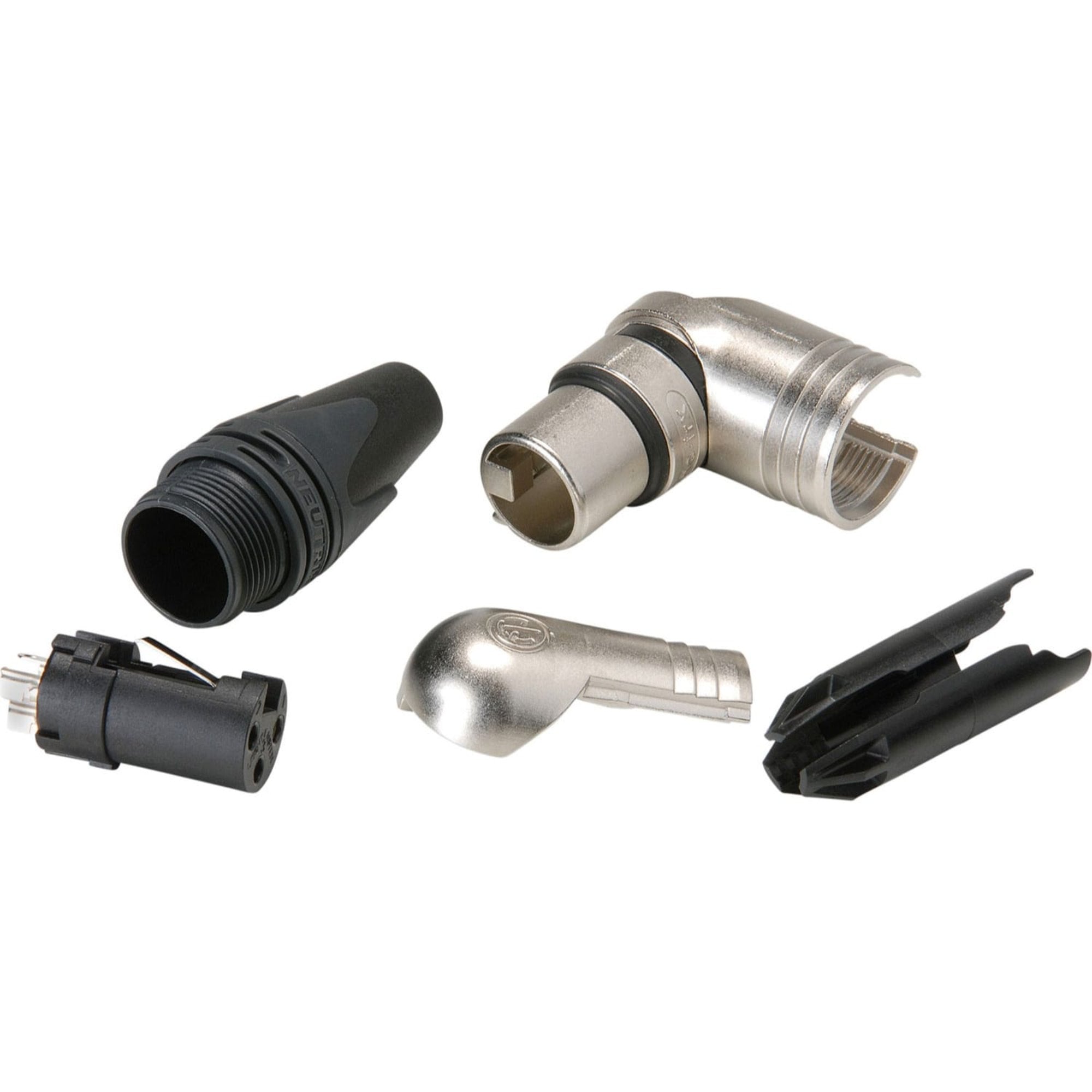

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
  • Extra slim right-angle connector

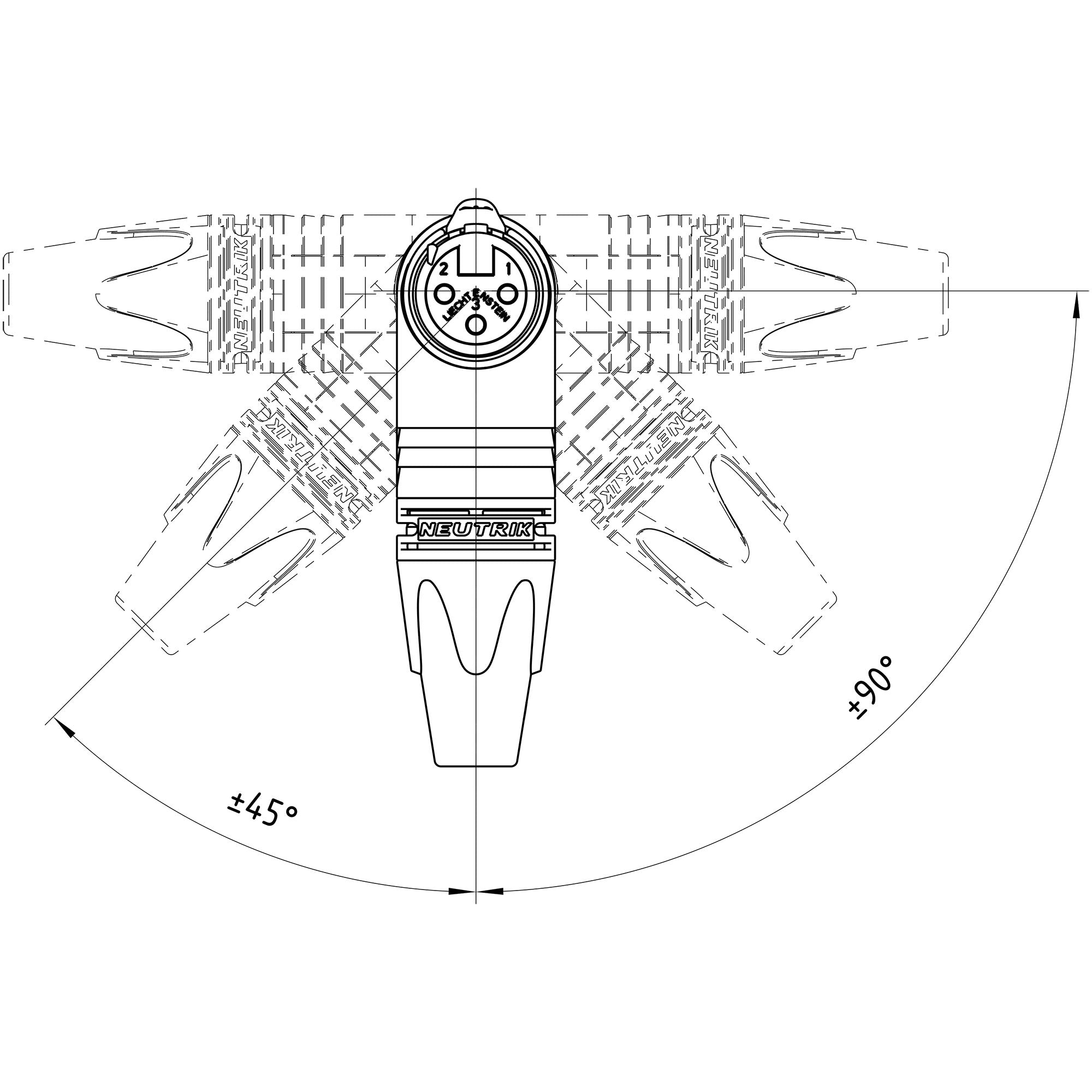

  • 5 selectable cable outlet positions
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
  • Product
  • Title: NC3FRX
  • Connection Type: XLR
  • Gender: female
  • Electrical
  • Capacitance between contacts: <= 4 pF
  • Contact resistance: <= 3 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: 50 V
  • Mechanical
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: <= 20 N
  • Withdrawal force: <= 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Material
  • Boot: Polyurethan
  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
