Key Features
- Rugged Metal Housing
- Pre-Wired and Ready to Use
- 3-Pin XLRM to Stereo 1/4" Jack
Description
Male 3-Pin XLR to Female Stereo Locking 1/4" Jack Adapter (Tip, Ring, Sleeve Contact)

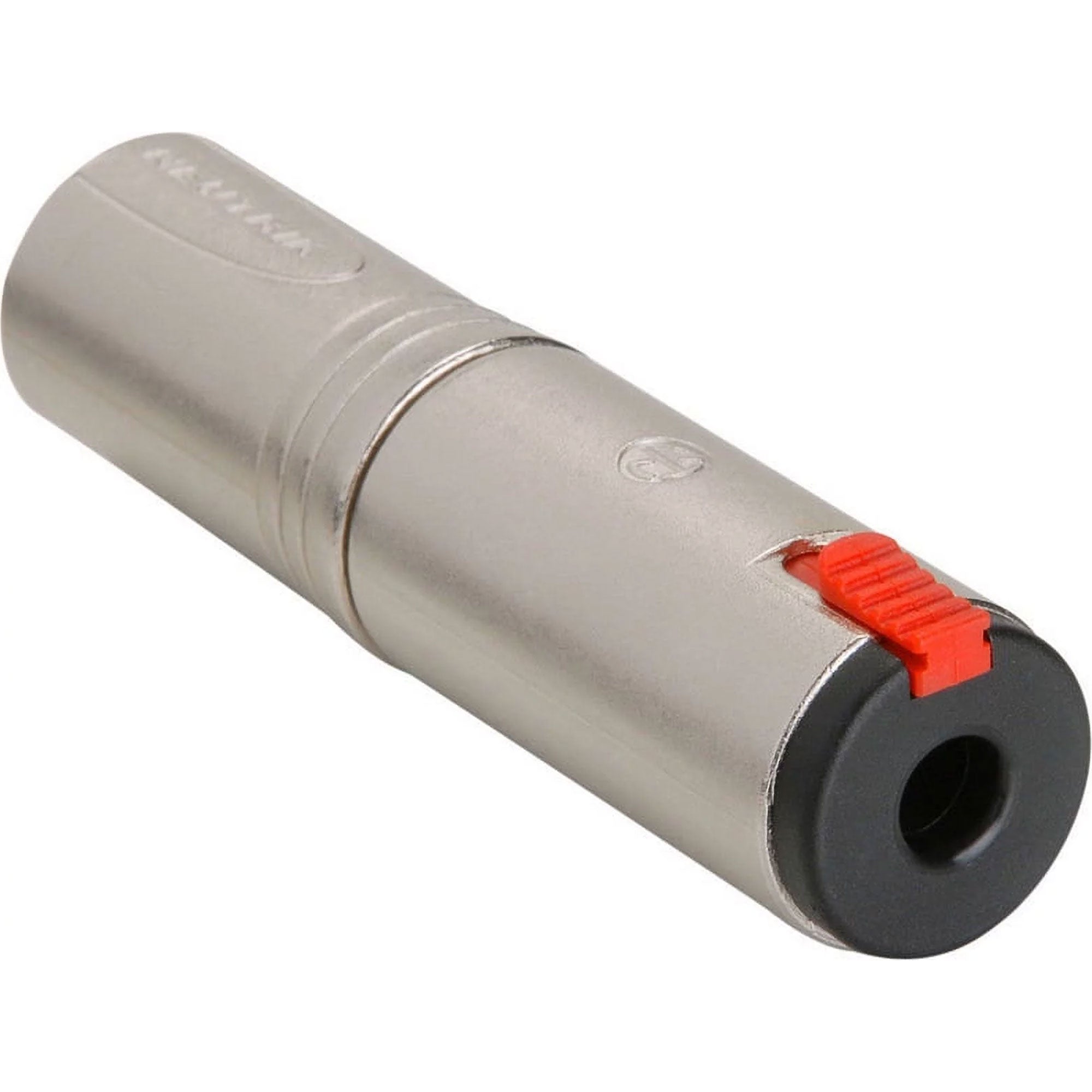

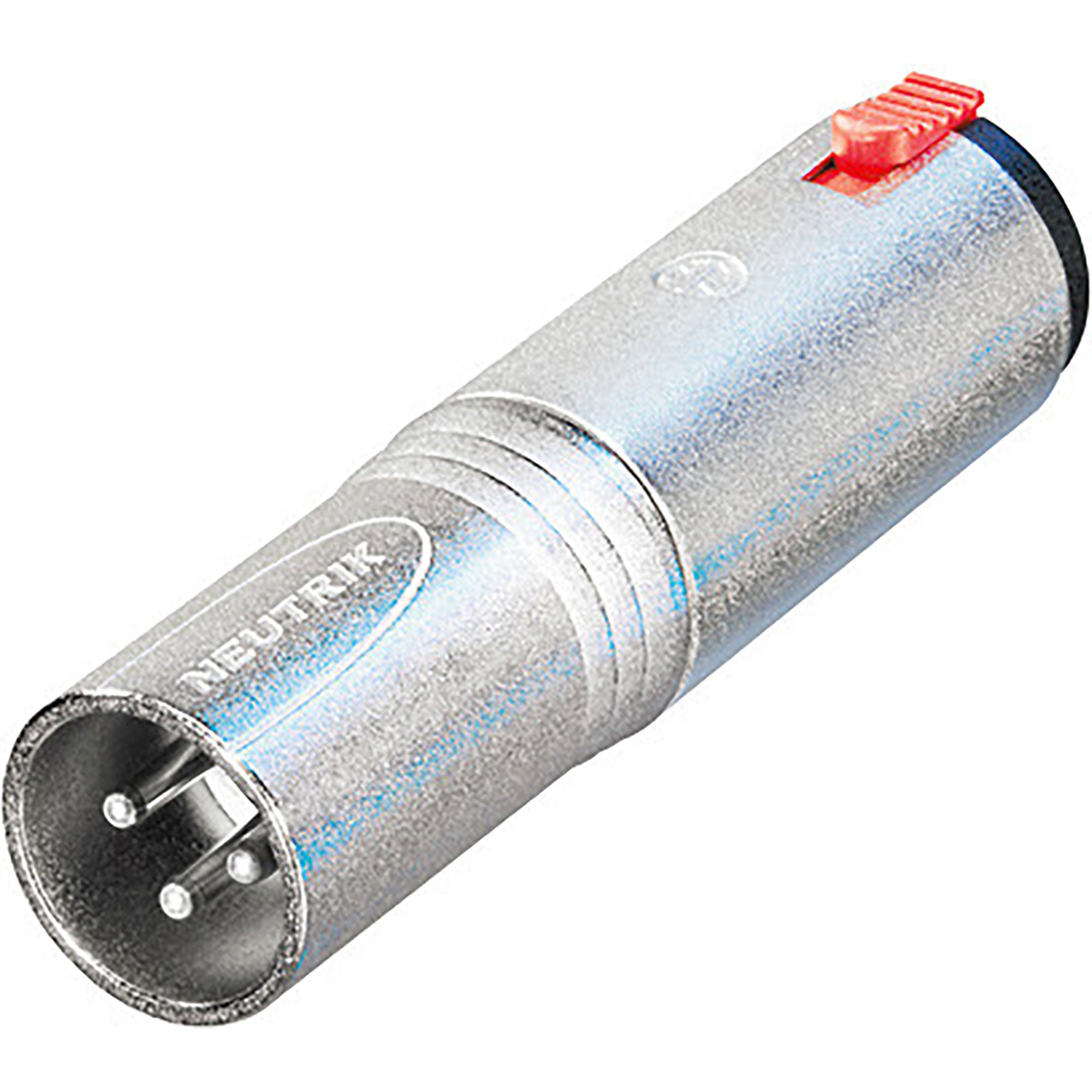

The Neutrik NA3MJ 3-Pole XLR Male to Stereo 1/4" Locking Jack Adapter is a versatile, pre-wired, and ready to use adapter for reliably interlocking various connector systems.
Features:
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX XLR Series
- Rugged diecast shell for best reliability
Specifications:
- Product
- Title: NA3MJ
- Connection Type: Adapter
- Electrical
- Contact resistance: <= 3 mΩ (inner) (XLR)
- Comment: <= 6
- Dielectric strength: 1.5 kV dc / > 1 kVdc (XLR/Jack)
- Insulation resistance: > 2 GΩ
- Mechanical
- Locking device: Latch lock
- Material
- Contact plating: 2 -m Ag
- Contacts: Bronze (CuBe2) (jack)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: gal Cu/Ni
- Environmental
- Temperature range: -20 °C to +65 °C
